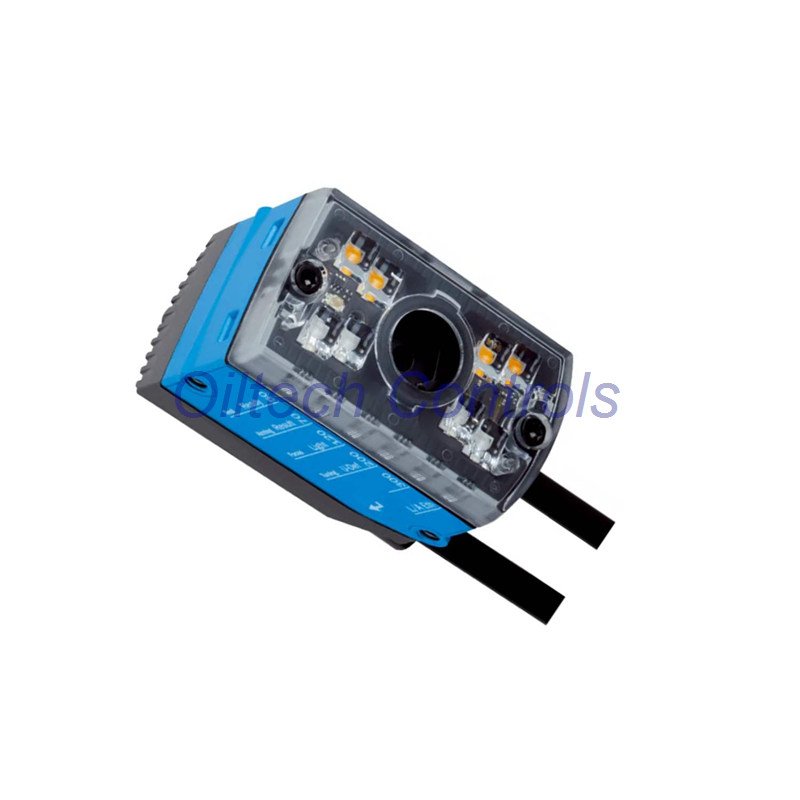

SICK V2D611D-MMSCE4 Lector61x Overview
SICK V2D611D-MMSCE4 Lector61x is a compact image-based code reader.
It reads 1D and 2D codes with high accuracy.
Ideal for smart factory and traceability tasks.
Main Selling Points
- Reads printed and direct-marked codes
- Manual focus for flexible setup
- Integrated multi-color LED lighting
- Fast image processing for stable output
- Small size for tight mounting space
Imaging & Optical Details
- CMOS monochrome sensor
- Resolution: 1.2 megapixel
- Code resolution down to 0.02 mm
- Working distance: 50 mm to 300 mm
- Scan rate up to 40 frames per second
Electrical & Mechanical Specs
- Power supply: 12–24 V DC
- Typical power use: 3.5 W
- Housing: zinc die-cast
- Protection level: IP54
- Weight: approx. 165 g
Code Types & Reading Capability
- 1D, 2D, stacked, and DPM codes
- QR, Data Matrix, PDF417 support
- Up to 50 codes per read cycle
- Automatic parameter switching
- ISO-based code quality grading
Network & Interface Options
- Ethernet TCP/IP
- PROFINET single-port
- EtherNet/IP
- RS-232 serial interface
- CAN and CANopen support
Industrial Reliability
- Operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Shock and vibration resistant
- Stable reading under factory lighting
- Long service life LED illumination
Warranty & Logistics
- Warranty: 12 months
- Shipping by FedEx, UPS, DHL
- Careful industrial packaging
- Global delivery available
Professional FAQ & Buying Advice
- Is this model good for small codes?
Yes. The high resolution sensor allows reading very fine marks. - Can it be used for DPM applications?
Yes. It supports direct-marked codes on metal and plastic. - Is external lighting needed?
No. Built-in LEDs handle most factory conditions. - How do I choose between Lector61x models?
Select based on code size, distance, and interface needs. - Is setup difficult?
No. SOPAS ET software offers guided configuration.
