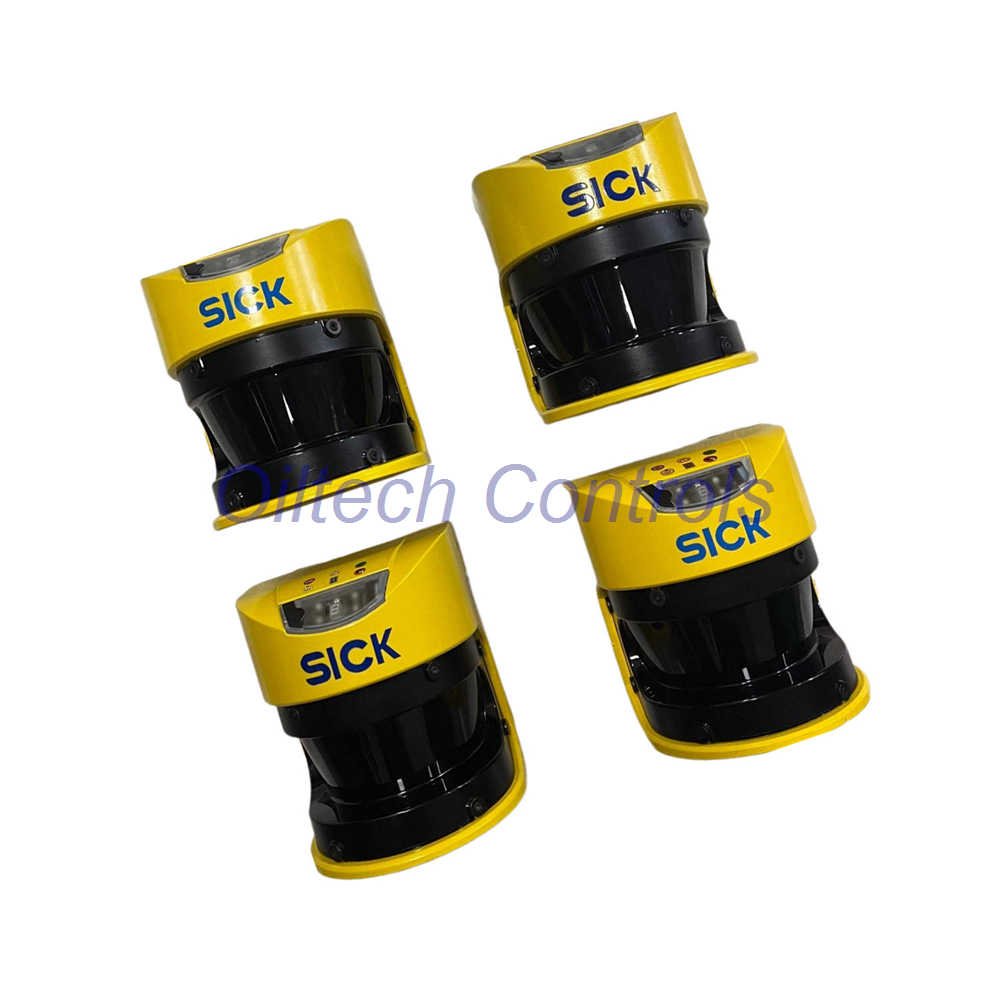

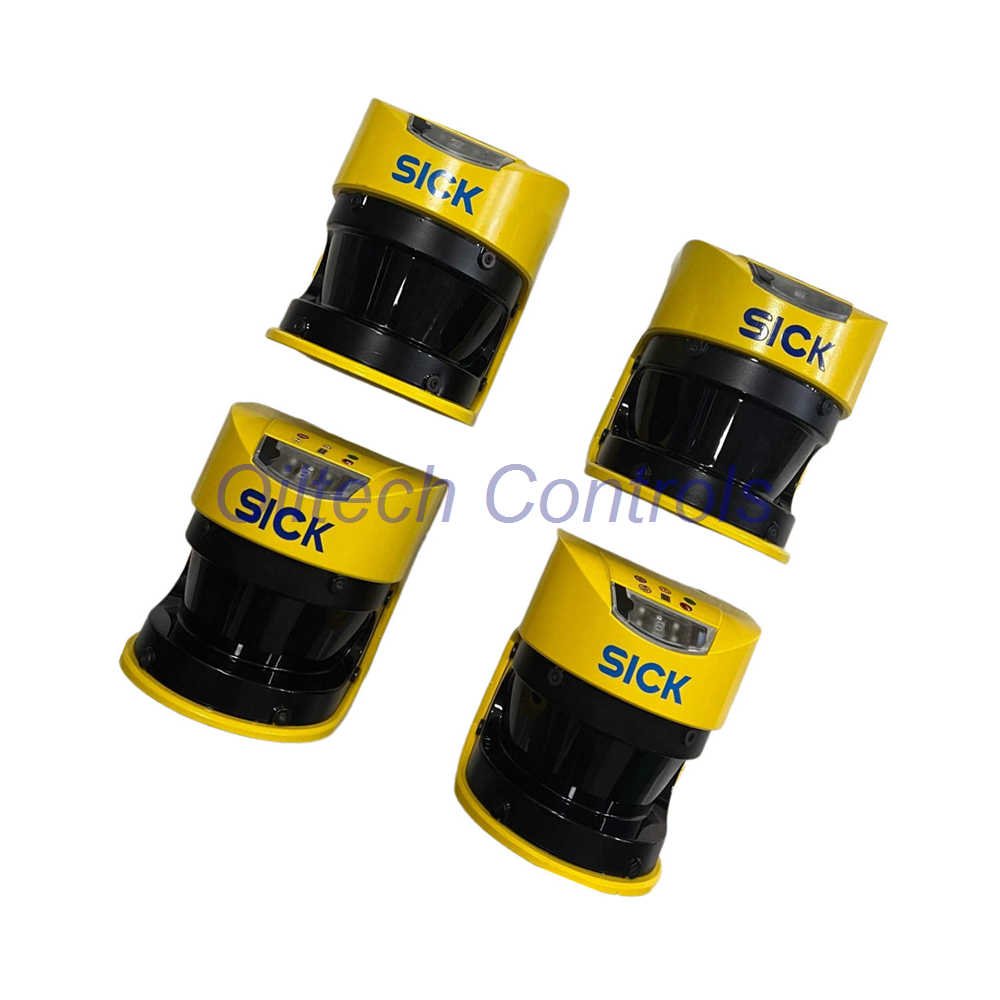

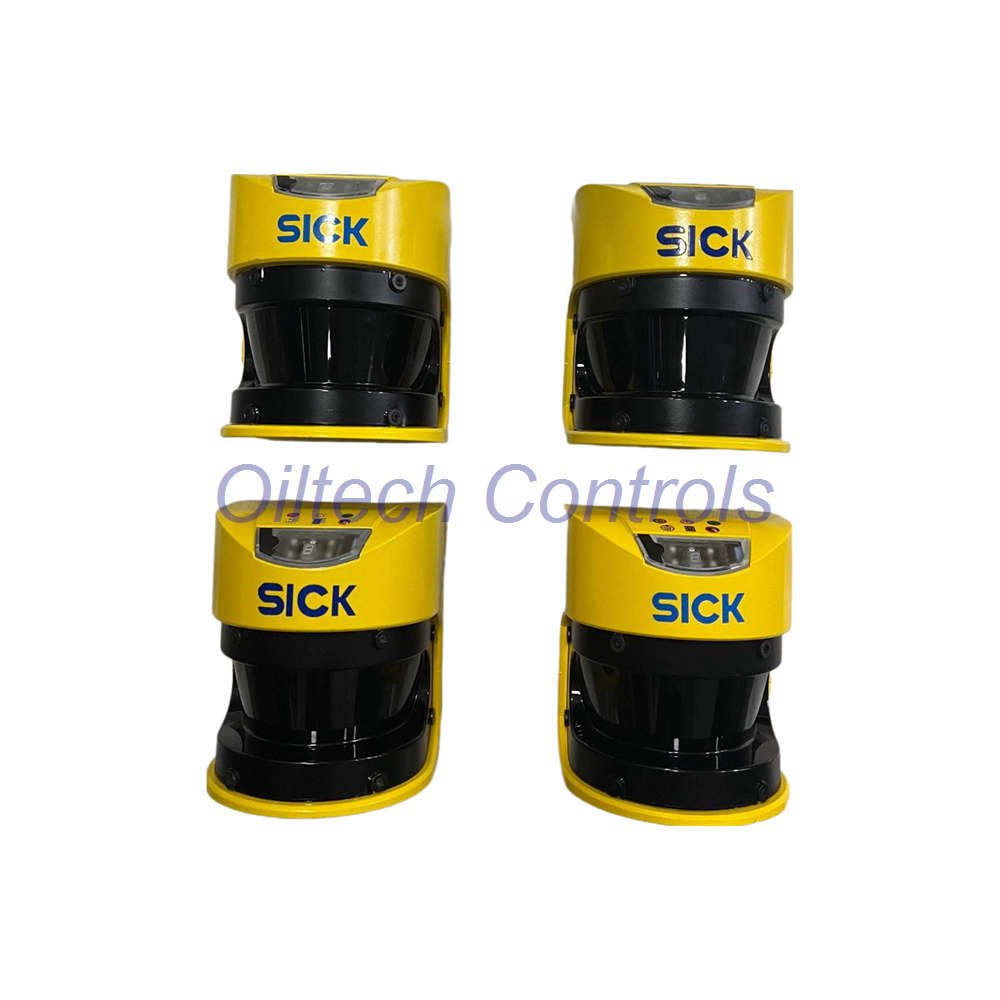

S30A-7111DP SICK Safety Laser Scanner Overview
S30A-7111DP is a high-performance indoor safety laser scanner designed for S3000 PROFINET IO.
Operates exclusively via network controller, no local I/O.
Protective field up to 7 m, warning field up to 49 m.
Dual field sets, 16 total fields, 16 monitoring cases.
Scanning angle 190°, configurable resolution 30–150 mm.
Response time 60 ms, automatic reset delay 120–4920 ms.
SIL 2, Category 3, PL d, PFHD 8×10⁻⁸, mission time 20 years.
IP65 rated, aluminum housing, scratch-resistant polycarbonate front.
Key Features & Advantages
- Model: S30A-7111DP sensor without system plug
- Indoor application, PROFINET IO network integration
- Protective range 7 m, warning range 49 m
- Dual field sets, simultaneous monitoring of 2 fields
- 16 fields, 16 monitoring cases
- Configurable resolution 30/40/50/70/150 mm
- Angular resolution 0.25°–0.5° depending on range
- Response time: 60 ms
- Delay of automatic reset: 120–4920 ms
- Restart interlock and multiple sampling
- Static protective field switching and contour reference
- Integrated configuration memory and measured data output via RS-422
Configuration Breakdown
- Bus: Copper conductor, RJ-45 push-pull
- System supply: With or without connecting cable
- Configuration interface: RS-232, 9.6–38.4 kBaud
- PROFINET IO: Device with 2-port real-time switch
- PROFIsafe: 6-octet input/output per IEC 61784-3-3
- Cycle time: 4/8/16/32 ms configurable
- Switching: Filtering database IEEE 802.1D, priority IEEE 802.1Q
- Memory: 64 KB SRAM in 768-byte segments
- Port: Auto-negotiation, MDIX, auto-polarity, 100Base-TX
Mechanical & Physical Data
- Dimensions: 155 × 185 × 160 mm (W×H×D)
- Weight: 3.3 kg
- Housing: Aluminum die-cast, yellow RAL 1021
- Front: Polycarbonate, scratch-resistant
- Protection: IP65
Environmental Parameters
- Operating temperature: −10 to +50 °C
- Storage temperature: −25 to +50 °C
- Vibration: IEC 60068-2-6/64, Class 5M1
- Shock: IEC 60068-2-27, Class 5M1, 50–100 m/s²
Professional FAQ
- Can S30A-7111DP be used outdoors?
- Not recommended. It is designed for indoor use only.
- How many fields can it monitor at once?
- It supports 2 protective fields simultaneously.
- What communication protocols are available?
- PROFINET IO with PROFIsafe, RS-232 for configuration, auto-prioritized network ports.
- What is the maximum warning distance?
- 49 m for standard reflectivity, 20 m at 20% reflectivity.
- Is it easy to integrate into an existing S3000 system?
- Yes, it integrates via PROFINET IO network; no local I/O needed.
