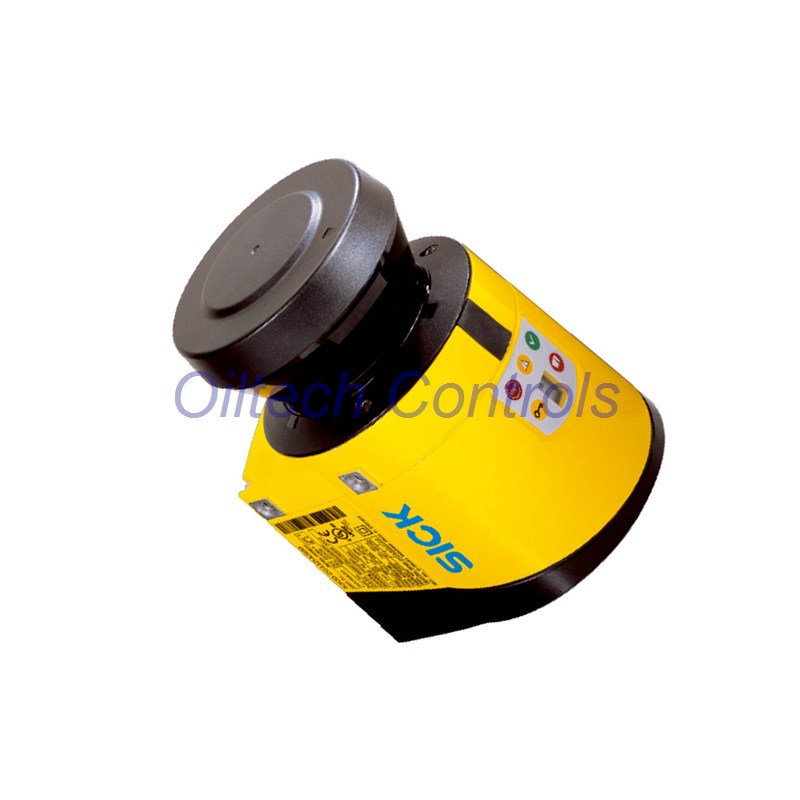

SICK S30B-3011CA Safety Laser Scanner | S300 Advanced Type 3 SIL 2 PL d

Product Overview

The SICK S30B-3011CA is an advanced safety laser scanner. It belongs to the S300 series. This device creates invisible safety zones around machines. It stops equipment when people enter danger areas.

Key Safety & Performance Data

• Model: SICK S30B-3011CA S300 Advanced
• Safety Rating: Type 3, SIL 2, PL d (Category 3)
• Protective Field: Up to 8 meters range
• Scanning Angle: Wide 270° coverage
• Resolution: Configurable 30mm to 150mm
• Response Time: Fast 80 milliseconds
• Field Sets: 4 triple field sets (12 total fields)
• Monitoring Cases: 4 different configurations
• PFHD: High reliability 8.0 x 10⁻⁸

Electrical & Mechanical Specs

• Voltage: 24V DC (16.8-30V range)
• Current: 0.33A typical, 1.7A max
• Outputs: 1 OSSD pair (2 x 250mA)
• I/O: 5 Universal I/O ports
• Connection: M12 5-pin male connector
• Housing: Aluminum, IP65 protection
• Weight: 1.2 kg
• Size: 102 x 152 x 106 mm

Environmental Ratings & Support

• Temperature: Operates -10°C to +50°C
• Mission Time: 20-year design life
• Shock Resistance: 16g for 16ms
• Laser: Class 1, 905nm wavelength
• Software: Configure with CDS software
• Warranty: 12-month product guarantee
• Shipping: Via FedEx, UPS, DHL worldwide

FAQ – Setup & Configuration

• What does “triple field sets” mean?
  You can set three fields in one group. The scanner checks all three at once. This allows complex zone shapes.
• Can I mount two scanners for 360° coverage?
  Yes. Mount two S30B-3011CA scanners back-to-back. This gives full 540° coverage with overlap.
• How do I choose the right resolution?
  Use 30mm for detecting small objects. Use 150mm for general person detection. Higher resolution needs cleaner environment.
• What is the difference between warning and protective fields?
  The warning field alerts but doesn’t stop. The protective field triggers an immediate machine stop for safety.
• How do I test the scanner after installation?
  Use the built-in test function. Walk through each configured field. Verify the machine stops correctly each time.
