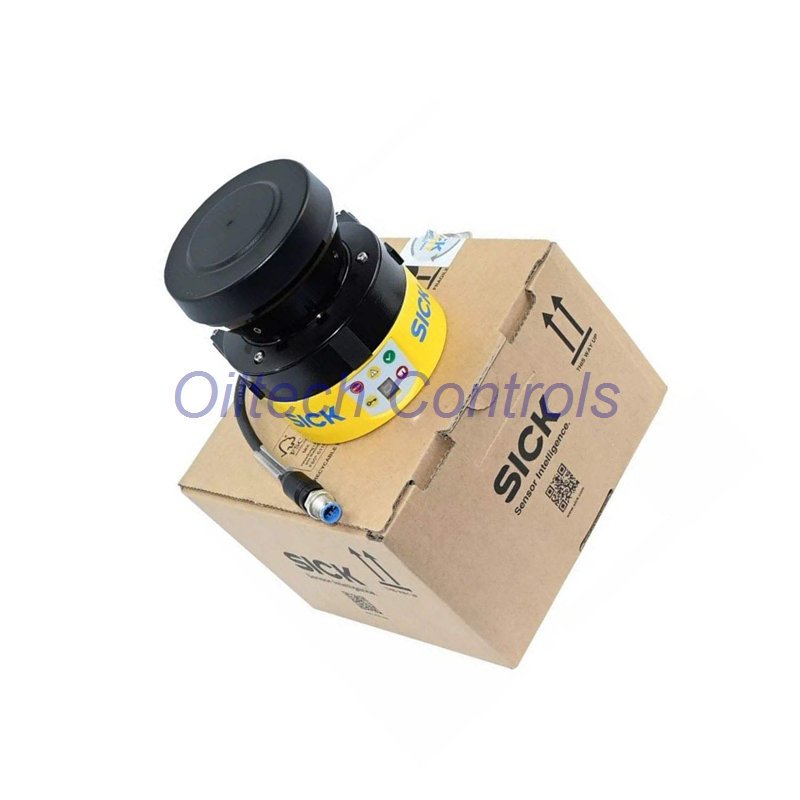

SICK S32B-3011EA Safety Laser Scanner | S300 Mini Remote for AGV

SICK S300 Mini Safety Scanner: Compact 270° Protection

This is a new original SICK S32B-3011EA safety laser scanner. It is part of the S300 Mini Remote series. It creates invisible safety zones around machines. This scanner is perfect for safeguarding collaborative robots, automated guided vehicles (AGVs), and packaging lines. It helps protect people in shared workspaces.

Core Features at a Glance

• Wide 270° Scanning Angle: Covers a large area in front of the machine with a single device.
• Flexible Field Configuration: Set up to 16 different protection zones. Switch between them dynamically.
• Reliable Safety Rating: Designed for Performance Level e (PL e) and Category 3 per ISO 13849. Meets IEC 61496 and IEC 62061 standards.
• Robust Industrial Design: IP65 rated housing keeps out dust and water jets. Durable for tough factory floors.
• Integrated Safety Network: Uses SICK’s EFI system for simple, safe wiring with compatible SICK controllers.

Detailed Product Specifications

• Model & Identification:
  • Main Part Number: SICK S32B-3011EA
  • Alternative ID: 1056431 / 4079255
  • Product Family: S300 Mini Remote | For Indoor Use
• Scanning & Monitoring Performance:
  • Protective Field Range: Up to 3.0 meters (for immediate stop zone).
  • Warning Field Range: Up to 8.0 meters (at 15% reflectivity).
  • Maximum Measurement Range: 30 meters for detection.
  • Scanning Resolution: Configurable from 30 mm to 150 mm.
  • Angular Resolution: 0.5° for precise contour monitoring.
  • Response Time: ≤ 80 ms for fast reaction to intrusions.
• Field & Configuration Capacity:
  • Field Sets: 16 triple field sets (48 total individual fields).
  • Monitoring Cases: 32 different safety scenarios can be programmed.
  • Key Functions: Dynamic field switching, contour referencing, multiple sampling.
• Electrical & Physical Data:
  • Operating Voltage: 24 V DC (16.8 – 30 V range).
  • Outputs: 2 safe PNP semiconductor outputs (OSSDs).
  • Connection: 250 mm cable with 7-pin M12 male connector.
  • Housing: Aluminum die-cast. Black and yellow (RAL 9005/1021).
  • Dimensions (WxHxD): 102 mm x 116 mm x 105 mm.
  • Weight: 0.8 kg (without cables).

Frequently Asked Questions (FAQ)

Can I use this S32B-3011EA scanner as a standalone device?

No. It requires a SICK Flexi Soft safety controller within an EFI system network to evaluate the signals and trigger the machine stop.

What does “triple field sets” mean for configuration?

Each set contains a protective field, a warning field, and a auxiliary field. You can configure 16 of these sets and switch between them during operation.

How does “multiple sampling” improve safety?

The scanner checks an object’s presence 2 to 16 times before reacting. This prevents false stops from flying debris or dust, improving availability.

From experience, what is a key installation tip for reliable operation?

Ensure the scanning plane is free of reflective surfaces (like shiny metal) within 0.5 meters. They can cause measurement errors and blind spots.

Can I monitor a complex machine contour with this scanner?

Yes. The “Contour as a reference” feature allows the protective field to follow the shape of your machine, maximizing available workspace.
