Module Overview: Precision Output Control

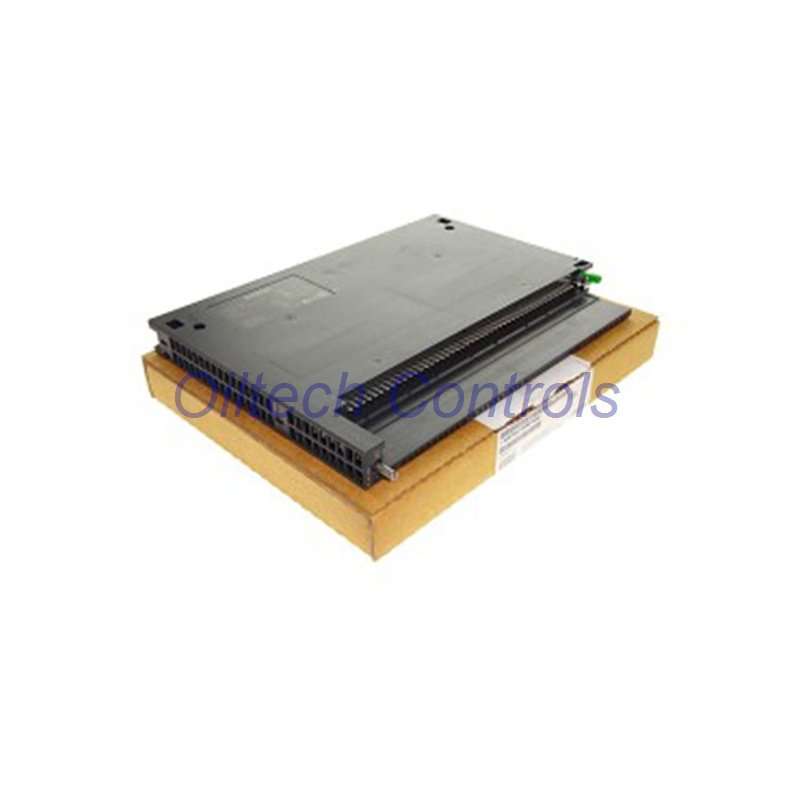

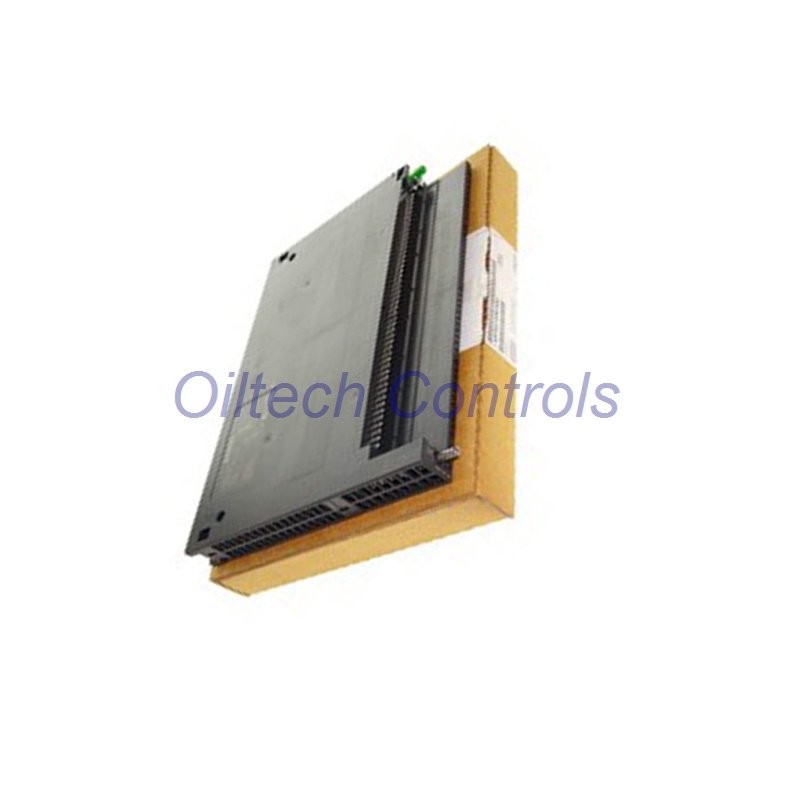

This is the Siemens 6ES7432-1HF00-0AB0 analog output module. It is part of the SIMATIC S7-400 series. The module gives precise control signals to field devices. It drives valves, actuators, and variable speed drives. You get reliable performance for complex automation tasks.
Complete Technical Specifications
- Manufacturer & Model: Siemens 6ES7432-1HF00-0AB0
- Module Type: Analog Output (AO), SM 432
- Compatible System: SIMATIC S7-400 PLC
- Number of Channels: 8 Outputs, Isolated
- Output Resolution: 13-bit (including sign)
- Supply Voltage: 24 VDC (with reverse protection)
- Output Ranges, Voltage: 0-10V, 1-5V, -10 to +10V
- Output Ranges, Current: 0-20mA, 4-20mA, -20 to +20mA
- Conversion Time: 300 µs to 420 µs per channel
- Accuracy (Voltage): ±0.5% of output range
- Accuracy (Current): ±0.5% to ±1% of output range
- Max Cable Length: 200 meters (shielded)
- Load Impedance: Min. 1 kΩ (Voltage), Max. 500-600 Ω (Current)
- Power Loss: Typically 9 Watts
- Module Dimensions: 25mm (W) x 290mm (H) x 210mm (D)
- Module Weight: Approximately 650 grams
Key Features & Benefits
- Wide Output Range: Supports both voltage and current signals for maximum flexibility.
- High Speed & Precision: Fast 300µs conversion and 13-bit resolution ensure accurate control.
- Built-in Protection: Features short-circuit protection and electrical isolation for safety.
- Simple Integration: Plug directly into any S7-400 rack for easy system expansion.
- Industrial Durability: Designed for reliable 24/7 operation in tough plant conditions.
Shipping, Warranty & Support
- One genuine Siemens 6ES7432-1HF00-0AB0 module.
- Comprehensive 12-month quality warranty.
- Express worldwide delivery via FedEx, UPS, or DHL.
- Full tracking details provided after order shipment.
Expert Questions & Answers
What is the main application for this module?
It converts digital PLC commands into real-world analog signals to control process equipment like proportional valves.
Can one channel output voltage and another output current?
Yes, each channel can be individually configured for either voltage or current output within its supported ranges.
What does “13-bit resolution” mean for control?
It provides 8192 steps within the output range. This allows for very fine and smooth control of your devices.
Is special software needed for configuration?
Yes, you use Siemens STEP 7 software to configure the output ranges and addresses for each channel.
Any tip to ensure signal stability over long cables?
Always use shielded, twisted-pair cables. Connect the shield properly at the module end to reduce noise interference.
