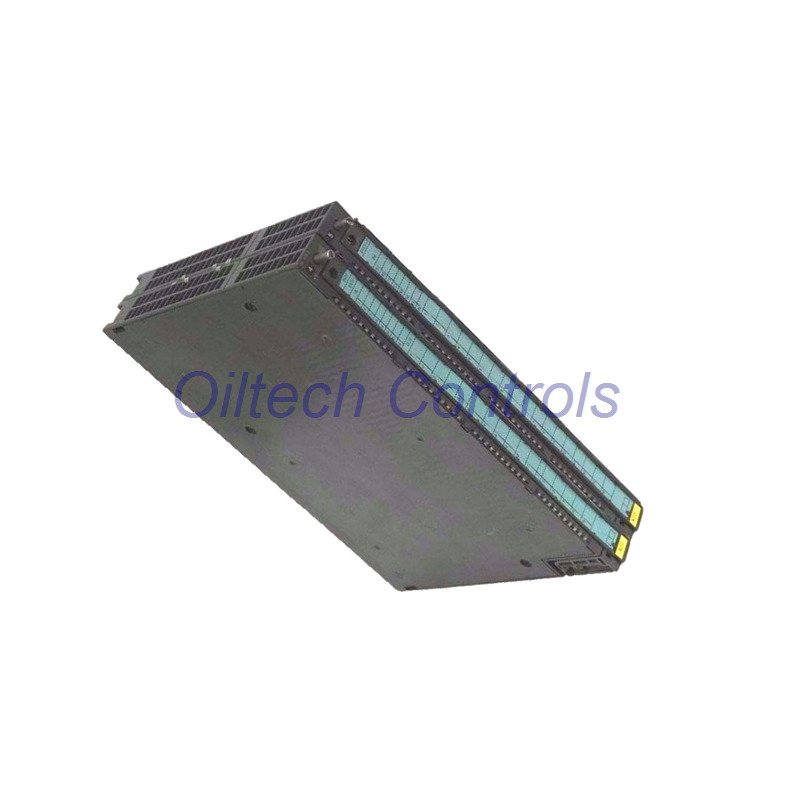

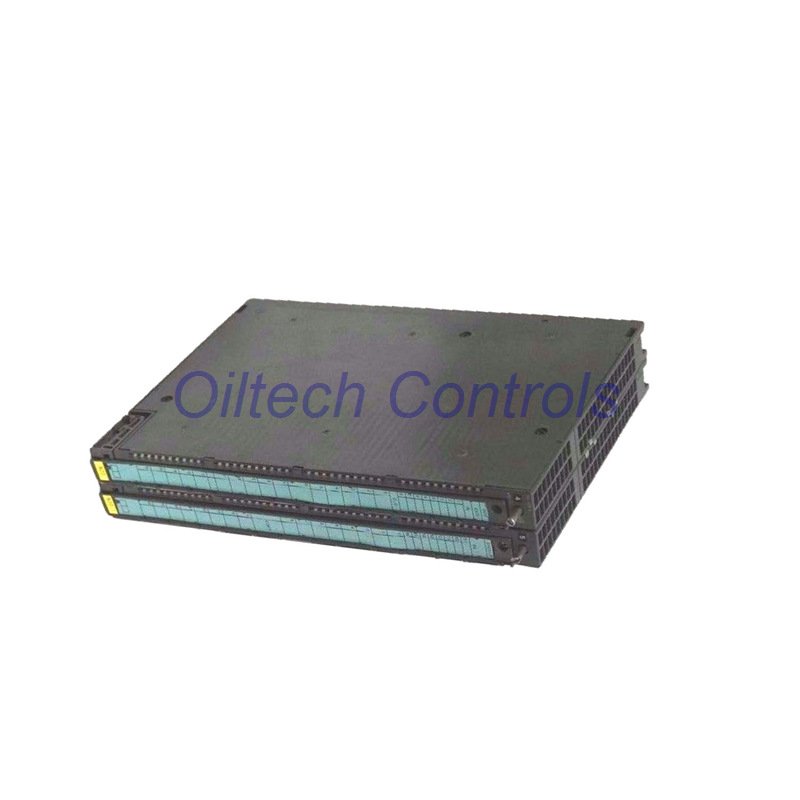

Siemens Module 6ES7455-1VS00-0AE0 | 16-Channel Temperature/PID Controller

What 6ES7455-1VS00-0AE0 Does For You

• Manages up to 16 separate temperature or pressure loops.
• Reads signals from many sensor types directly.
• Built for precise industrial process control.
• Part of the reliable Siemens SIMATIC S7-400 system.
• Reduces need for extra control hardware.

Key Technical Specifications

• Power Requirements:
  • Supply Voltage: 24V DC (20.4V – 28.8V range).
  • Power Consumption: 330 mA typical.
  • Heat Dissipation: 10.7 Watts typical.
• Input Capabilities:
  • Digital Inputs: 16 channels (24V DC).
  • Analog Inputs: 16 channels.
  • Sensor Support: Thermocouples (Types B, J, K, R, S).
  • Sensor Support: RTDs (Pt100), Voltage (0-10V), Current (0-20mA).
• Output & Control:
  • Digital Outputs: 32 channels.
  • Output Current: 0.1A rated, up to 150mA max per point.
  • Output Protection: Electronically short-circuit protected.
• Performance & Accuracy:
  • Control Loops: 16 PID controllers.
  • Analog Resolution: Up to 14-bit.
  • Typical Accuracy: Better than ±0.6%.
  • Operating Temperature: 0°C to 60°C.

Main Benefits And Features

• All-in-one solution for complex process control.
• High accuracy for critical temperature applications.
• Saves cabinet space by combining many functions.
• Easy integration with Siemens TIA Portal software.
• Robust design for continuous 24/7 operation.

Package Details & Support

• One Siemens FM 455 S module (6ES7455-1VS00-0AE0).
• Needs two 48-pin front connectors (sold separately).
• Comes with a full 12-month warranty.
• Worldwide shipping via FedEx, UPS, and DHL available.
• Detailed manual and data sheet included.

Frequently Asked Questions

Can it control a furnace or oven directly?

Yes. Its PID outputs can manage heaters via contactors or solid-state relays (SSRs). It provides precise temperature control.

What is the difference between internal and external temperature compensation?

Internal uses the module’s own sensor. External uses a separate Pt100 sensor placed at your terminal block for better accuracy.

How many thermocouples can I connect at once?

You can connect up to 16 thermocouples if using the module’s 2-wire connection method for each.

Are the digital outputs suitable for driving small contactors?

Yes. Each output can handle up to 150mA, enough for small contactor coils or pilot lights. Check your coil current first.

What is a common configuration mistake for PID loops?

Using the wrong control action (direct/reverse). For cooling, you often need the opposite action of heating. Always test.

Is This The Right Module For You?

• You need multiple, independent PID control loops.
• Your process uses thermocouples or 4-20mA sensors.
• You have a Siemens S7-400 PLC system.
• Your application requires high reliability and accuracy.
• You want to simplify your control cabinet wiring.
