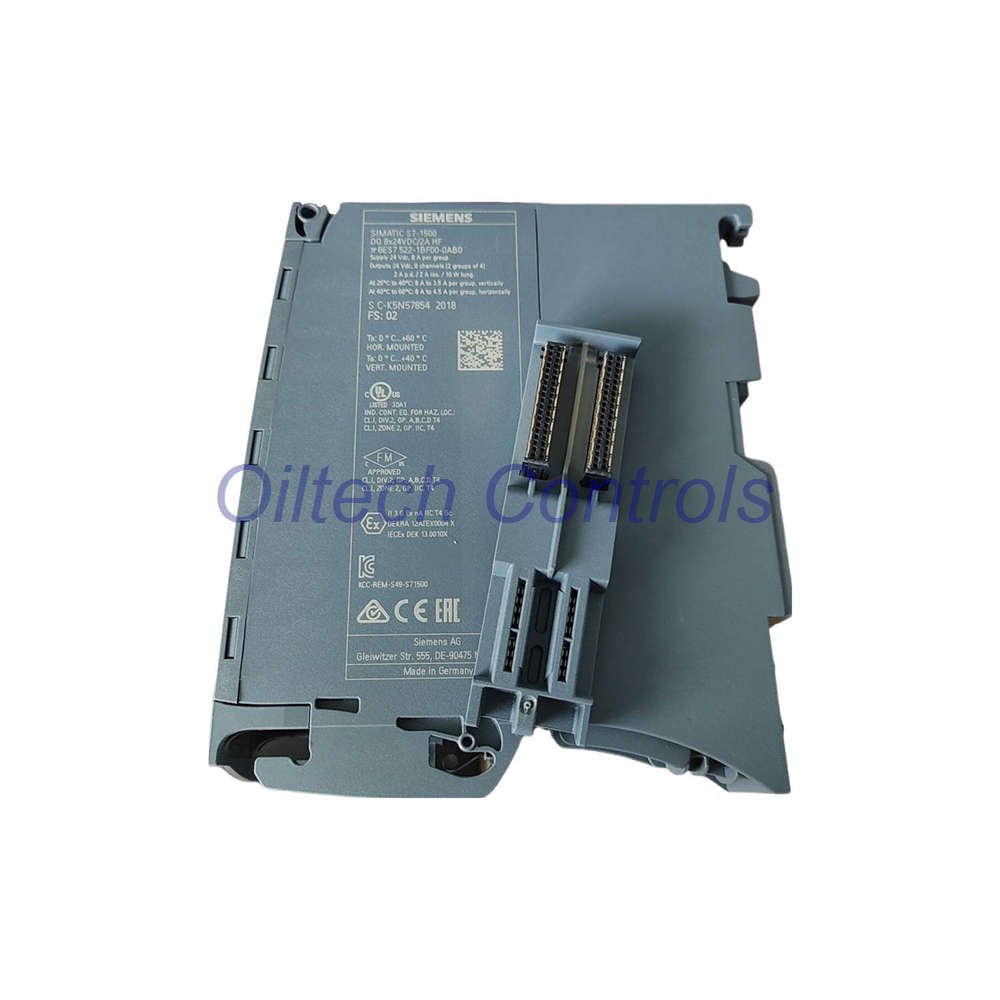

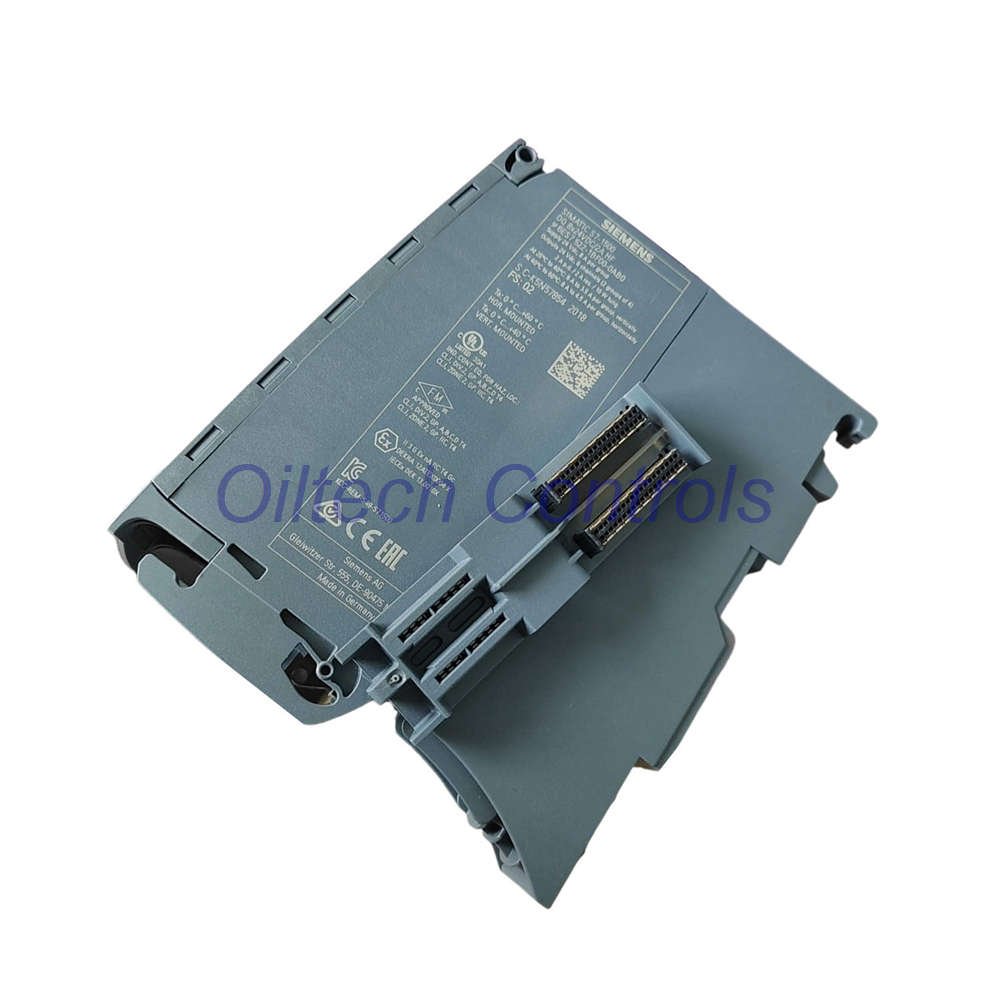

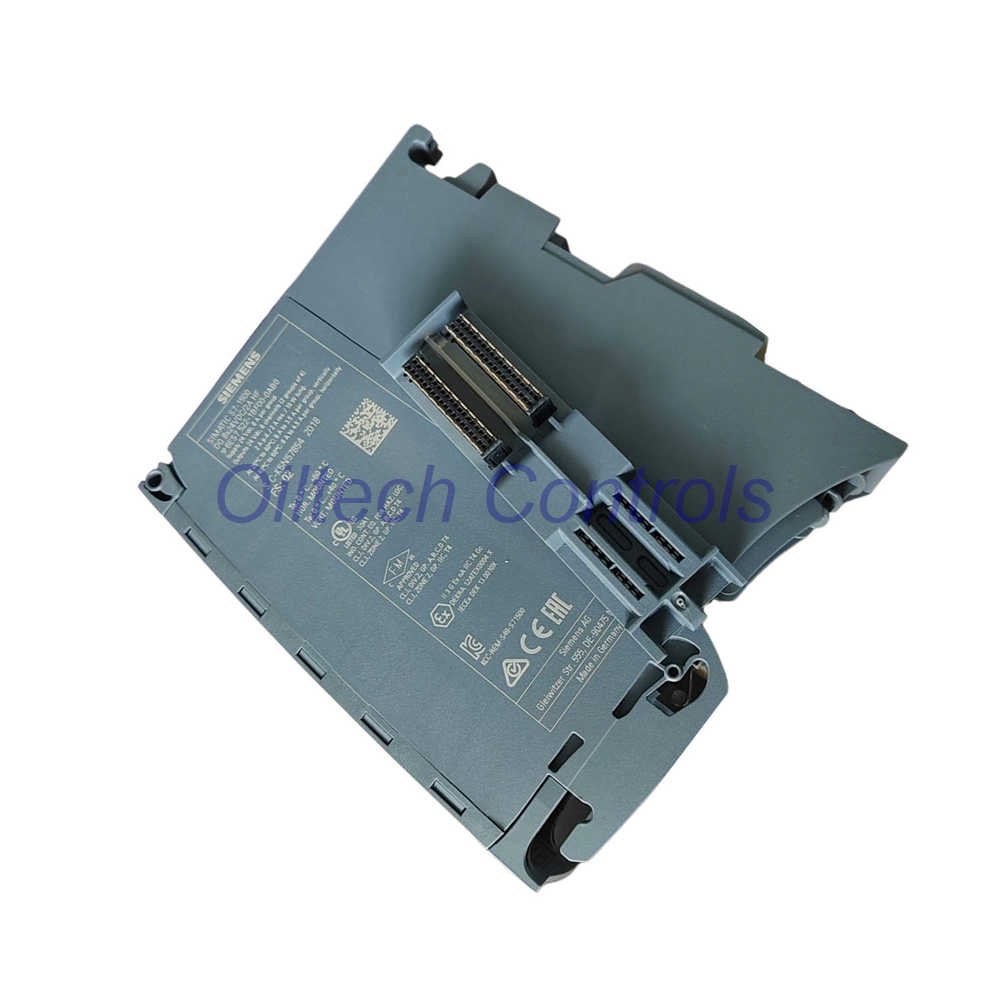

SIMATIC S7-1500 6ES7522-1BF00-0AB0 DQ 8x24VDC/2A HF Digital Output Module

6ES7522-1BF00-0AB0 DQ 8x24VDC/2A HF Digital Output Module

Series: SIMATIC S7-1500 | Type: Digital Output Module | Part Number: 6ES7522-1BF00-0AB0

High-feature 8-channel digital output module for 24 V DC / 2 A per channel. Supports PWM (2 channels max. 500 Hz), safe load group shutdown up to SIL2 (EN IEC 62061) and Cat. 3 / PL d (EN ISO 13849-1). Ideal for high-availability automation tasks.

Key Technical Specifications

• Supply voltage: 24 V DC (19.2 V … 28.8 V) with reverse polarity protection (10 A per group)
• Outputs: 8 transistor outputs, current-sourcing, 2 A per channel (max. 2.4 A with derating)
• Group current: 8 A per group, module total 16 A
• Switching frequency: 100 Hz (resistive), 0.5 Hz (inductive), 500 Hz PWM
• Output delay: 80 µs (0→1 typ.), 300 µs (1→0 typ.)
• Short-circuit protection: typ. 3 A response threshold
• Power loss: typ. 5.6 W (6.8 W PWM mode)
• Cable length: shielded 1000 m, unshielded 600 m
• Diagnostics: supply voltage, short-circuit, group error via LEDs (RUN, ERROR, MAINT, PWR)
• Ambient temperature: 0 … 60 °C (operation), storage -40 … +70 °C

Technical Data in Detail

Safety & Certification

• Safety function: Suitable for safe shutdown of load groups up to SIL2 (EN IEC 62061:2021) and Cat. 3 / PL d (EN ISO 13849-1:2015)
• Approvals: CE, UL, CSA, FM (according to manual)
• Diagnostics: Supply voltage monitoring, short-circuit, group error, channel status (LEDs)
• Alarms: Diagnostic alarm, maintenance interrupt

Installation & Commissioning

• Mounting: S7-1500 rail mounting (width 35 mm)
• Front connector: screw or push-in (order separately)
• Engineering: TIA Portal V13 SP1 or higher, STEP 7 V5.5 SP3, GSD V1.0/V5.1 (PROFIBUS), GSD V2.3 (PROFINET)
• Prioritized startup: Yes
• Firmware update: possible via online tool

Environmental & Mechanical

• Operating altitude: up to 5000 m (derating above 2000 m, see manual)
• Dimensions (W x H x D): 35 x 147 x 129 mm
• Weight: approx. 240 g
• Protection class: IP20

Typical Applications

• High-speed actuator control (valves, contactors)
• PWM-based heater or dimmer control (2 channels)
• Safe output groups for emergency stop circuits (SIL2/PL d)
• Redundant load control in safety-related systems
• Integration into distributed I/O via PROFIBUS/PROFINET

Diagnostics & Maintenance

• LED indicators: RUN (green), ERROR (red), MAINT (yellow), PWR (green), channel status (green), channel diagnostics (red)
• Diagnostic alarms via PROFIBUS/PROFINET
• Substitute value configuration for failsafe operation
• Integrated operating cycle counter
• Maintenance interrupt for predictive service

Compatibility & Interoperability

• Fully compatible with SIMATIC S7-1500 CPU family
• Works with ET 200MP distributed I/O systems
• Supports PROFIBUS DP and PROFINET IO (GSD files available)
• Can be used with third-party controllers via GSD (PROFINET)

Package Contents

• 1x DQ 8x24VDC/2A HF module (6ES7522-1BF00-0AB0)
• 1x product manual (digital download)
• 1x accessory set (labeling strips, shielding clips)
• Front connector not included (order separately)

Warranty & Shipping

• Warranty: 12 months from shipment date (defects in material/workmanship)
• Shipping: FedEx, UPS, DHL (global express, tracking included)
• Items are carefully tested before dispatch (technical verification)

FAQ – Quick Answers

• Can I use this module for PWM control? Yes, up to 2 channels with max. 500 Hz (FW V2.1.0+).
• Is the front connector included? No, it must be ordered separately (screw or push-in).
• What safety level does it support? SIL2 (IEC 62061) and Cat. 3 / PL d (ISO 13849-1).
• Can I connect inductive loads? Yes, but with external freewheeling diode; max. 0.5 Hz (or 500 Hz with external circuit).
• Does it support isochronous mode? No.
• How to update firmware? Via TIA Portal or STEP 7 (online update).
