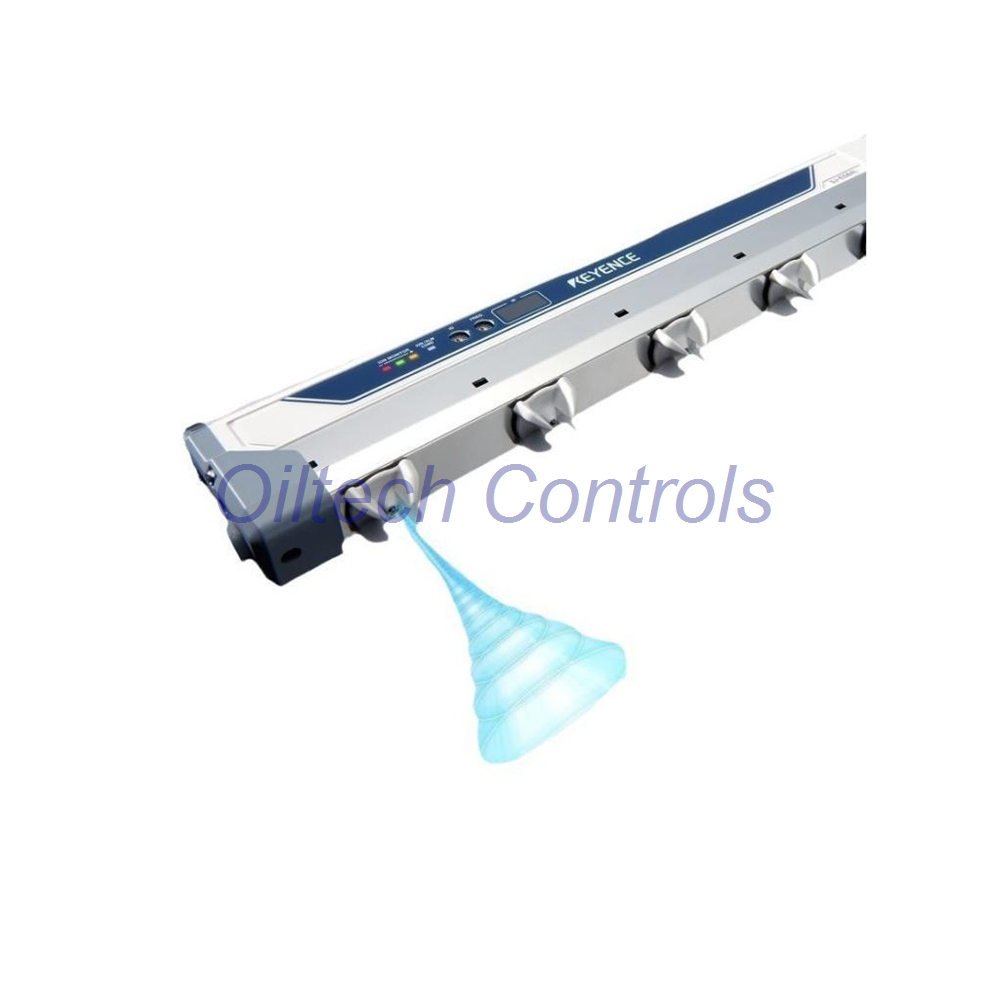

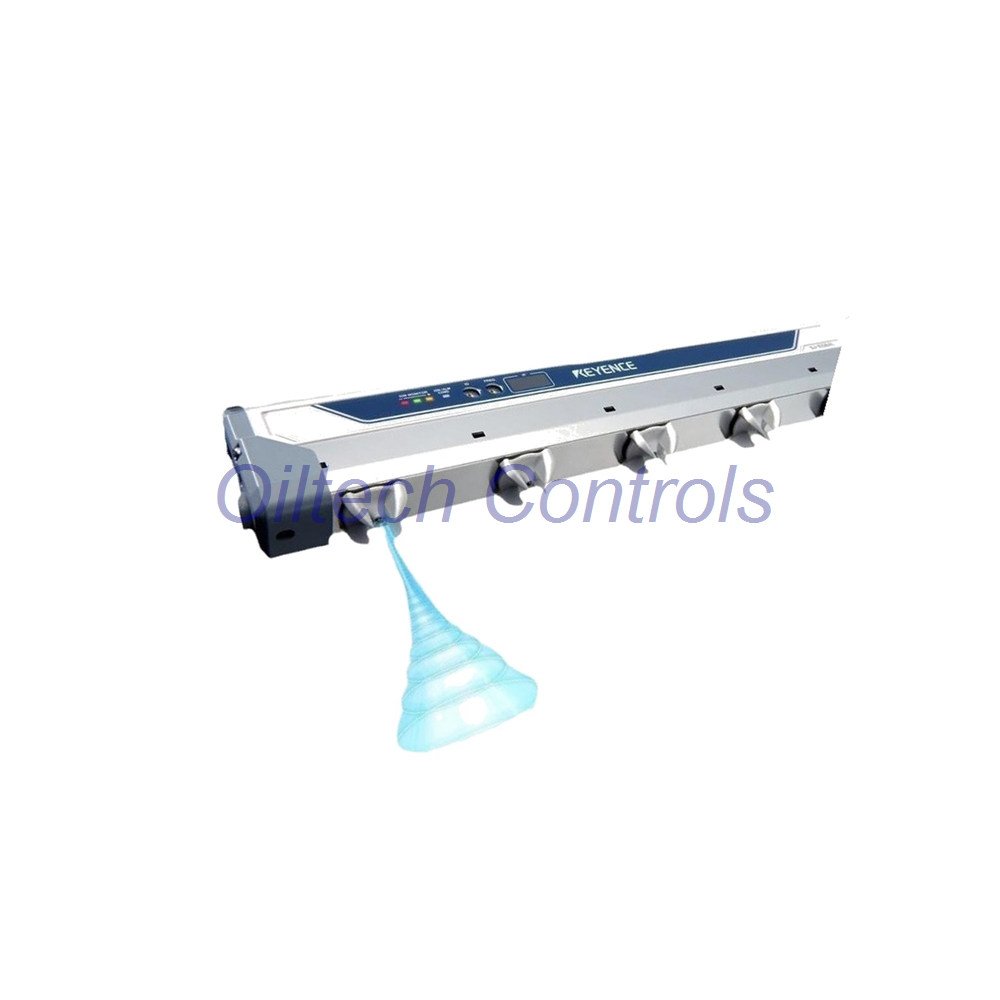

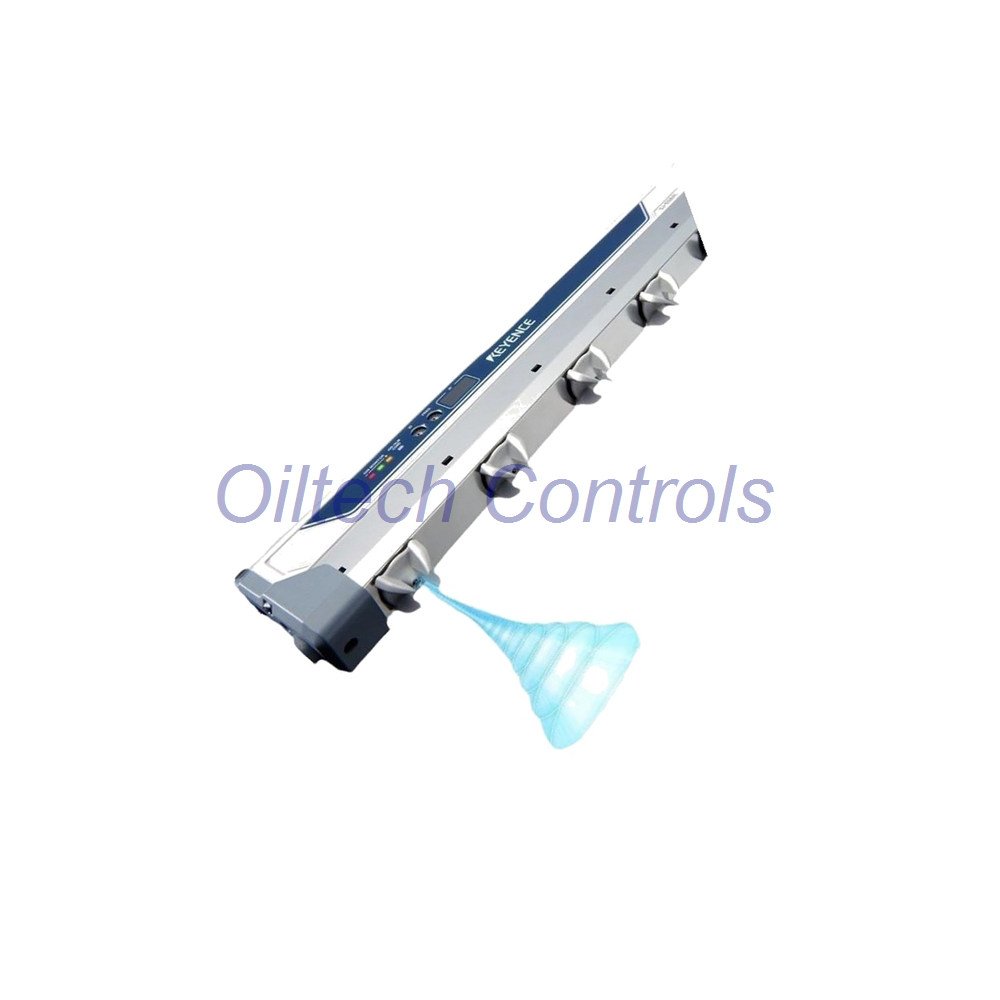

Keyence SJ-E036L Bar-Type Static Eliminator (Ionizer) – Small Flow Model
Keyence SJ-E036L is a compact bar-type static eliminator from the SJ-E series. It uses corona discharge with a shockless resistive coupling design. This small flow model delivers stable ion balance for industrial automation lines. The Hi-Power I.C.C. method keeps ion output precise. It works with 24 to 36 VDC and supports remote control communication.
This ionizer suits narrow spaces and short-range static removal. It has 5 electrodes and an effective length of 440 mm at 50 mm distance. The total length is 350 mm. It is active and officially produced by Keyence. Last verified: 2026-09.
Technical Specifications
| Brand | Keyence |
| Model | SJ-E036L |
| Series | SJ-E series |
| Product Type | Bar-type static eliminator (small flow model) |
| Ion Generation | Corona discharge |
| Structure | Shockless resistive coupling type |
| Voltage Application | Pulse AC method, ±8000 V |
| Ion Balance Control | Hi-Power I.C.C. method |
| Ion Balance | ±30 V (at 300 mm or more, 0.2 MPa air pressure) |
| Installation Distance | 50 to 2000 mm |
| Number of Electrodes | 5 |
| Effective Length | 440 mm (static elimination range at 50 mm) |
| Total Length | 350 mm |
| Supply Voltage | 24 to 36 VDC ±10% |
| Current Consumption | 700 mA (at 24 V), 500 mA (at 36 V) |
| Output Type | NPN open collector (ion level warning, condition warning, alarm output) |
| Control Input | Static elimination stop input (NPN open collector or contact point) |
| Control Output | NPN open collector, 100 mA max (40 VDC or less) |
| Air Connection Port | Rc 1/8 |
| Air Supply Pressure | 0.1 to 0.5 MPa (recommended 0.2 MPa) |
| Overvoltage Category | I |
| Pollution Degree | 2 |
| Operating Temperature | 0 to +40 °C |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Protection Rating | Not available |
| Dimensions (H×W×D) | Not available (total length 350 mm) |
| Weight | 0.67 kg |
| Electrode Probe Material | Tungsten |
| Main Body Material | ABS / PBT / PP / LCP / PPS / SPS / SUS |
| Built-in Ports | None |
| Protocols | Remote control communication |
| Communication Expansion | None |
| Lifecycle | Active; official Keyence production status confirmed (Last verified: 2026-09) |
Key Performance Areas
- Measurement Range: 50 to 2000 mm installation distance
- Frequency Response: Pulse AC method with ±8000 V application
- Sensitivity: Ion balance ±30 V at 300 mm or more
- Linearity: Hi-Power I.C.C. method maintains stable ion output
- Resolution: 5 electrodes with 440 mm effective length
- Temperature Range: 0 to +40 °C
- Environmental Resistance: 35 to 85 % RH, no condensation
- Anti-Interference: Shockless resistive coupling type reduces shock risk
Installation Guide
Mount the SJ-E036L at 50 to 2000 mm from the target. Use the Rc 1/8 air port. Set air pressure to 0.1 to 0.5 MPa. Keyence recommends 0.2 MPa. Connect 24 to 36 VDC power. Wire the NPN open collector outputs for warnings and alarms. Use the static elimination stop input to control operation. Keep the unit within 0 to +40 °C and 35 to 85 % RH.
Debugging and Maintenance
Check ion balance at 300 mm or more. Use 0.2 MPa air pressure for rated balance. Clean the tungsten electrodes regularly. Do not touch electrodes during operation. Use the remote control communication for status checks. The NPN outputs help diagnose ion level, condition, and alarm states.
Compatibility Notes
This bar-type ionizer works with standard industrial power supplies. It supports remote control communication. No built-in ports or expansion modules are included. The NPN open collector interface fits many PLC and control systems. It is not a networked device. Use it as a standalone static eliminator with remote monitoring.
Certifications and Compliance
Overvoltage category I. Pollution degree 2. No protection rating available. Keyence confirms active production status. Last verified: 2026-09. For specific certification documents, contact info@oiltechcontrols.com.
Packaging List
- 1 × Keyence SJ-E036L bar-type static eliminator
- 1 × Quick start guide (typical)
- 1 × Air connection fitting (Rc 1/8) (typical)
- 1 × Mounting hardware set (typical)
Actual contents may vary. Contact us for exact packaging details.
Warranty and Shipping
All units include a 12-month warranty. We ship via FedEx, UPS, and DHL. Tracking is provided. Orders ship after technical verification. For urgent needs, contact us at +86 158 8020 0923 (WhatsApp) or info@oiltechcontrols.com.
Typical Applications
- Electronics assembly lines
- Film and sheet handling
- Packaging machinery
- Printing and converting
- Plastic injection molding
- Small part feeding systems
- Automated inspection stations
Diagnostic Capabilities
The unit provides ion level warning, condition warning, and alarm output. These NPN open collector signals help detect performance drift. The static elimination stop input allows quick shutdown. Remote control communication supports status monitoring. This helps maintenance teams respond fast.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support via FedEx, UPS, DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on eligible products
- Technical verification before every shipment
- Support for obsolete control systems
We help you find reliable replacements for discontinued parts. Our team checks compatibility before shipping. Contact us for details.
FAQ
Q: What is the model number?
A: The model is Keyence SJ-E036L.
Q: What is the supply voltage?
A: It accepts 24 to 36 VDC ±10%.
Q: How many electrodes does it have?
A: It has 5 electrodes.
Q: What is the effective length?
A: The effective length is 440 mm at 50 mm distance.
Q: What is the warranty period?
A: We offer a 12-month warranty.
Q: How fast can you ship?
A: We ship via FedEx, UPS, DHL. Timing depends on stock and destination.
Q: Can you support obsolete systems?
A: Yes. We specialize in hard-to-find and obsolete control parts.
Q: How do I contact you?
A: Email info@oiltechcontrols.com or message +86 158 8020 0923 on WhatsApp.
