Product Overview

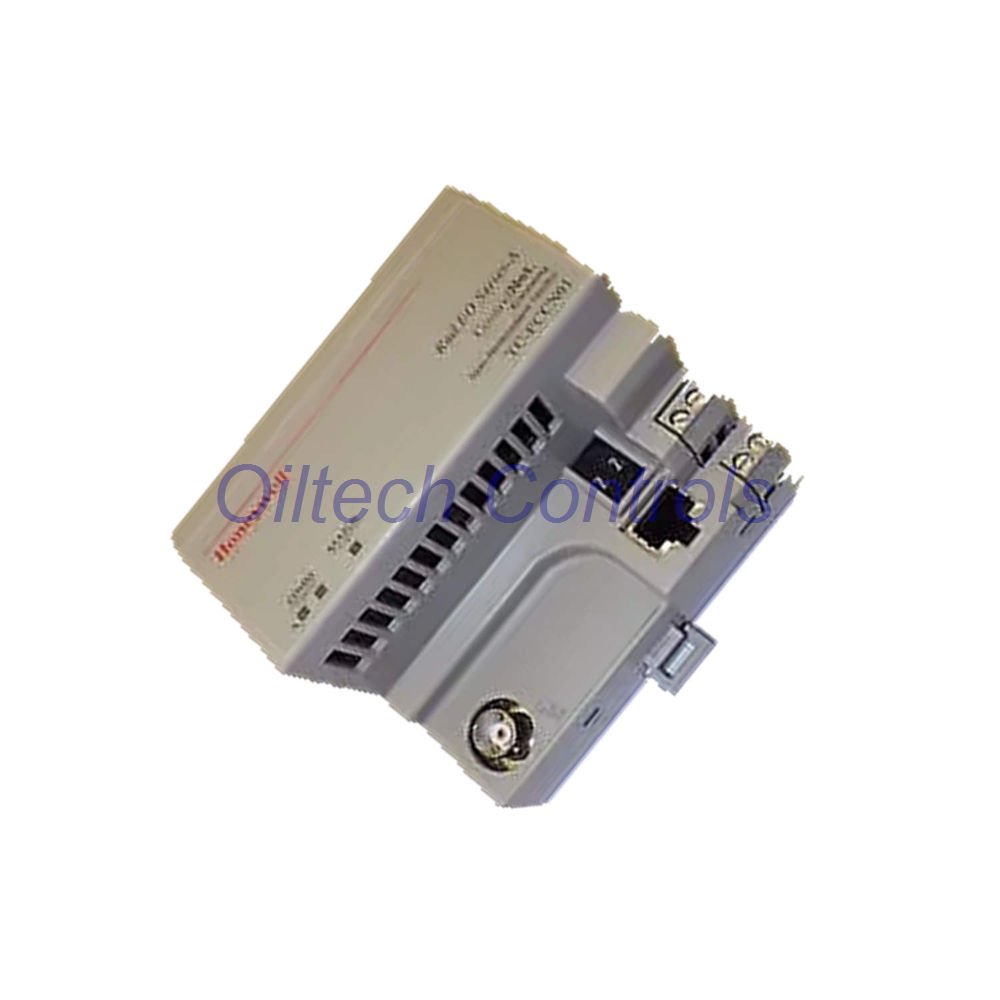

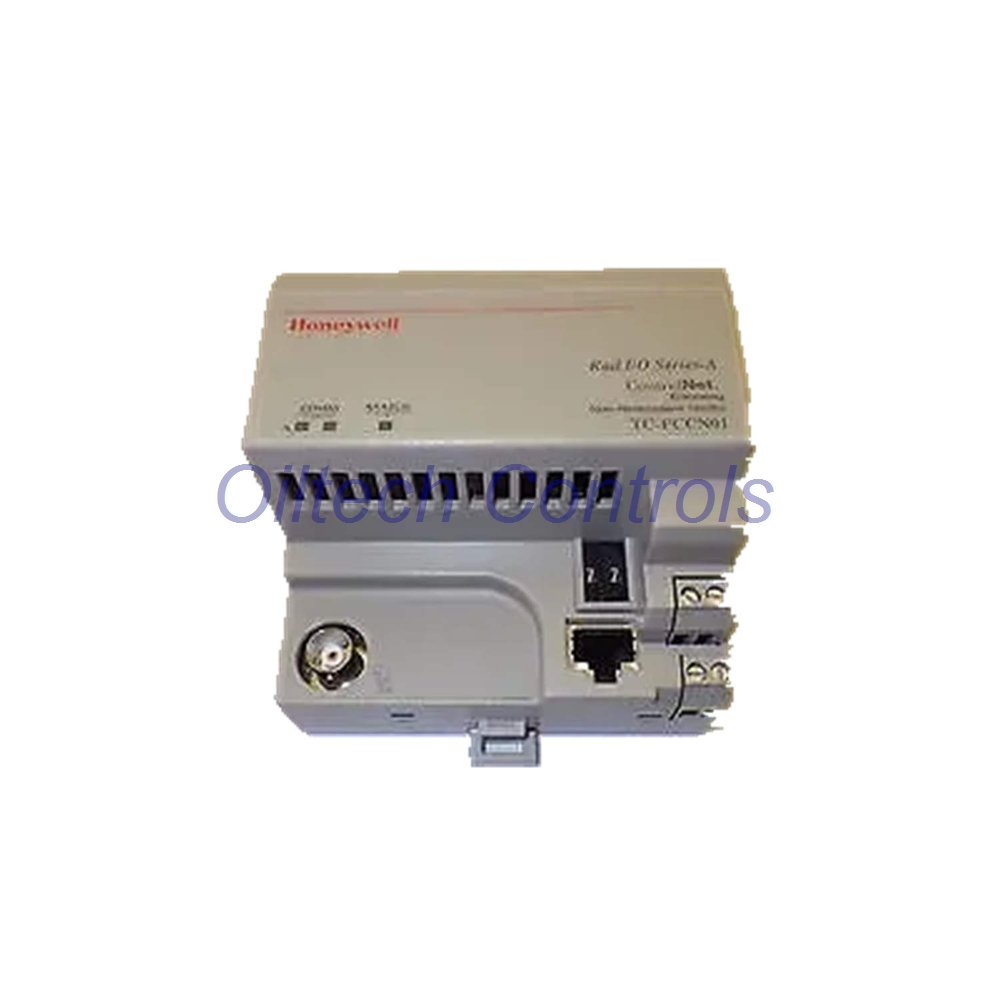

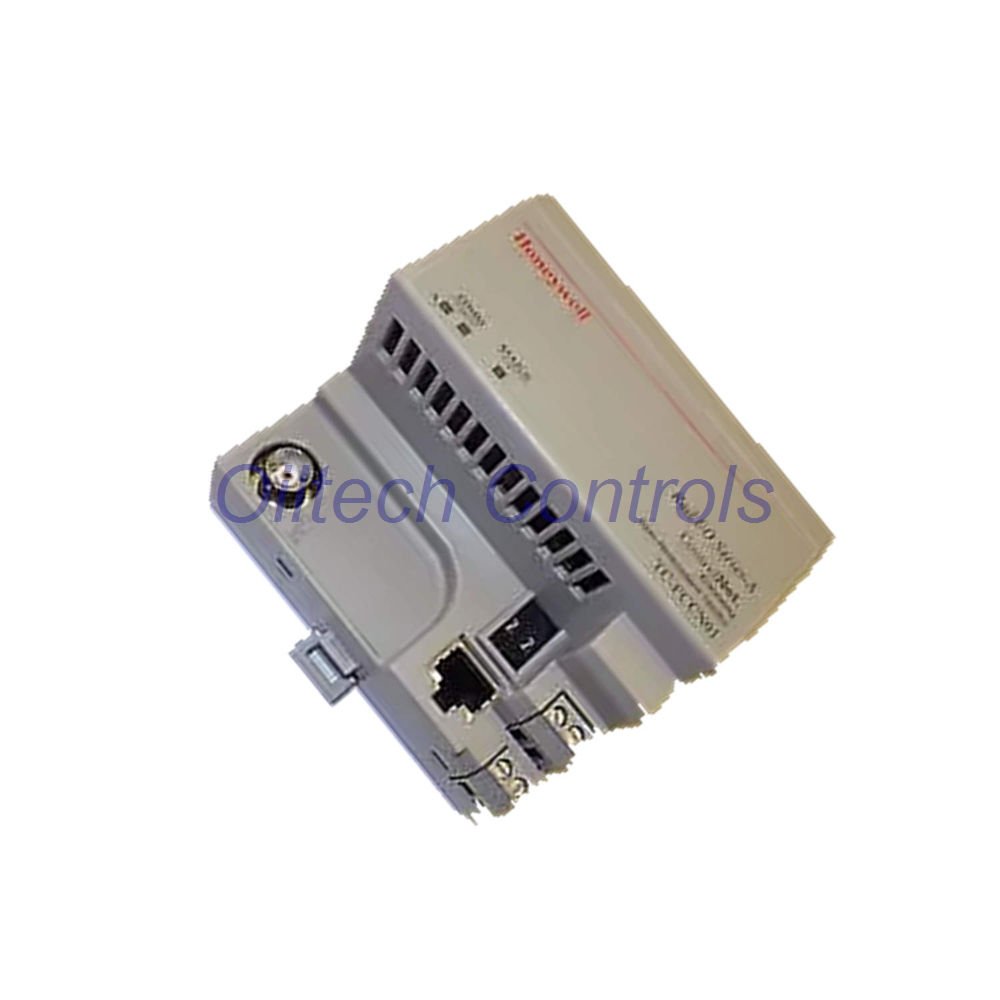

Honeywell TC-FCCN01 is a ControlNet gateway for non-redundant media. It links up to 8 I/O modules to a ControlNet network. Moreover, the adapter runs on 24V dc nominal input. In addition, it supports a 5M bit/s communication rate. Use a SELV or PELV power supply to meet CE Low Voltage Directives. Therefore, the unit suits legacy and obsolete control systems that still rely on ControlNet.
Technical Specifications
| Brand | Honeywell |
| Model | TC-FCCN01 |
| Series | ControlNet Gateway |
| Module Type | ControlNet Adapter, Non-Redundant Media |
| I/O Capacity | 8 modules |
| Input Voltage | 24V dc nominal |
| Input Range | 19.2V to 31.2V dc, includes 5% ac ripple |
| Communication Rate | 5M bit/s |
| Redundant ControlNet Cabling | No |
| Flexbus Output Current | 640mA max at 5V dc |
| Isolation Voltage | 500V ac between user power and flexbus |
| Power Consumption | 400mA max from external 24V supply |
| Power Dissipation | 4.6W max at 19.2V dc |
| Thermal Dissipation | 15.7 BTU/hr at 19.2V dc |
| Connector Screw Torque | 7 to 9 inch-pounds |
| Programming Ports | 1 RJ-45 Network Access Port (NAP), 1786-CP cable, not supported |
| Indicators | Comm A red/green, I/O Status red/green |
| Dimensions (HxWxD) | 87mm x 94mm x 69mm (3.4in x 3.7in x 2.7in) |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Relative Humidity | 5 to 95%, non-condensing |
| Shock | 30g peak, 11(±1)ms pulse width; 50g peak, 11(±1)ms pulse width |
| Vibration | 5g at 10-500Hz per IEC 68-2-6 |
| Cable Type | Belden RG-6/U Quad Shield |
| Power Conductors | Copper, stranded or solid, 12 gauge (4mm2) stranded max |
| Wire Size | 3/64 (1.2mm) inch insulation max |
Measurement and Signal Performance
- Network rate: fixed 5M bit/s ControlNet link.
- Flexbus current: 640mA max at 5V dc.
- Isolation: 500V ac guards user power from flexbus.
- Supply ripple: 5% ac ripple accepted across the input range.
- Noise control: quad shield cable limits network noise.
Installation Guide
- Mount the adapter on a flat panel with clear airflow.
- Use a SELV or PELV 24V dc supply.
- Keep input voltage between 19.2V and 31.2V dc.
- Tighten connector screws to 7 to 9 inch-pounds.
- Use Belden RG-6/U quad shield cable for ControlNet runs.
- Keep wire insulation under 1.2mm.
- Confirm the Comm A and I/O Status LEDs show green.
Commissioning and Maintenance
Set the node address before you connect the network. After that, check the red/green LEDs after power-up. The Comm A LED shows network status. Meanwhile, the I/O Status LED shows module health. Clean dust from the housing at set intervals. Also recheck screw torque after service. The RJ-45 NAP is present but not supported, so use network LEDs for fault checks.
Diagnostics
- Comm A LED: red/green shows ControlNet link state.
- I/O Status LED: red/green shows module fault state.
- Isolation: 500V ac barrier protects the flexbus.
- Power check: 400mA max draw helps size the 24V supply.
Compatibility
The TC-FCCN01 works with non-redundant ControlNet media. It serves up to 8 I/O modules over the flexbus. In addition, it fits 1786-CP programming cable setups, but the NAP port is not supported. As a result, it supports obsolete ControlNet control systems that need tested spares.
Certifications
- CE Low Voltage Directives, with SELV or PELV supply.
- Groups A, B, C, D certified.
- Class I Division 2 certified.
- Class I Zone 2 Group IIC certified.
Packing List and Warranty
- 1 x Honeywell TC-FCCN01 ControlNet Gateway.
- 1 x protective packaging.
- 12-month warranty covers the unit.
- We test each unit before shipment.
- Shipping by FedEx, UPS, or DHL.
Typical Applications
- Legacy ControlNet I/O networks in process plants.
- Obsolete PLC systems that need spare adapters.
- Non-redundant media links with up to 8 modules.
- Factory automation cells on 24V dc power.
Why Buy From Oiltech Controls?
- Over 15 years of industrial automation spare parts work.
- Global shipment support with FedEx, UPS, and DHL.
- Tested industrial surplus and refurbished options.
- Every order carries a 12-month warranty.
- We verify technical details before shipment.
- We support obsolete control systems with tested spares.
FAQ
Q: Does the TC-FCCN01 support redundant ControlNet cabling?
A: No. This model uses non-redundant media only.
Q: How many I/O modules can it serve?
A: It serves up to 8 modules.
Q: What input voltage does it need?
A: 24V dc nominal, from 19.2V to 31.2V dc.
Q: Is the RJ-45 NAP port supported?
A: No. The port is present but not supported.
Q: What is the warranty?
A: 12 months from Oiltech Controls.
