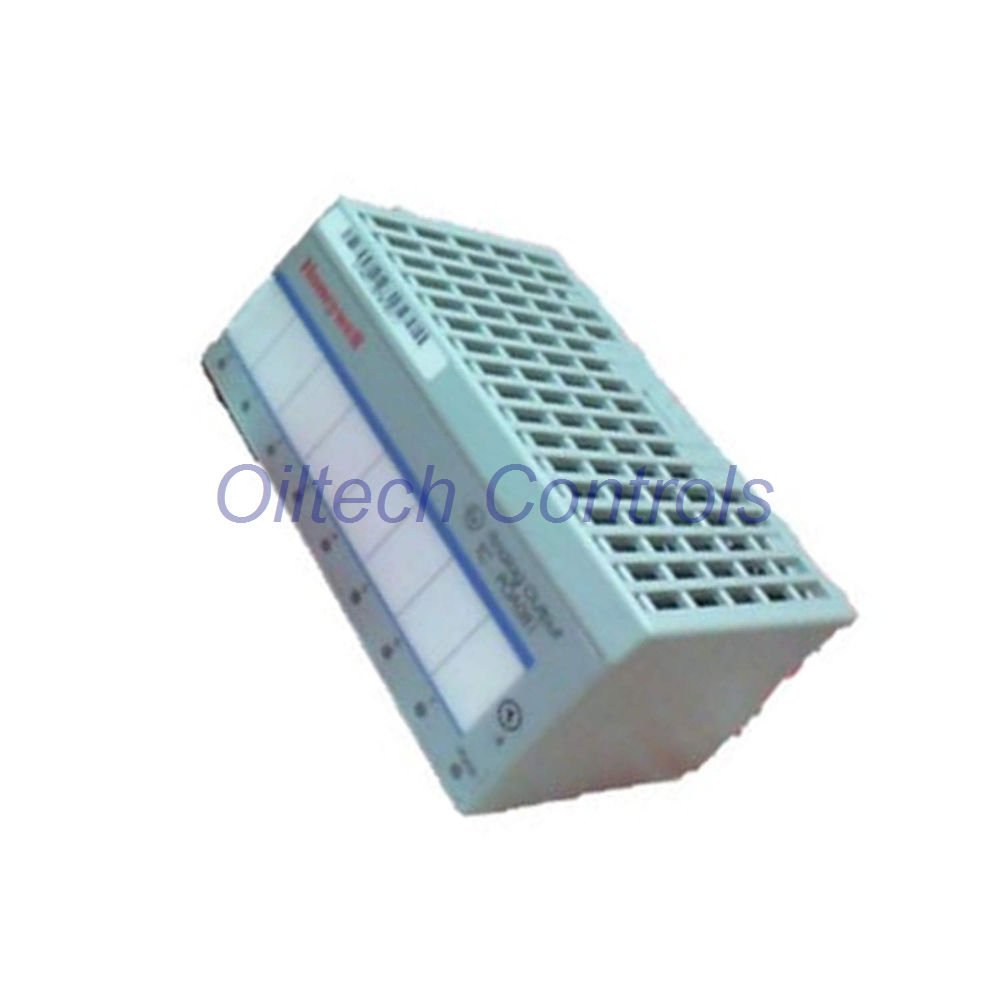

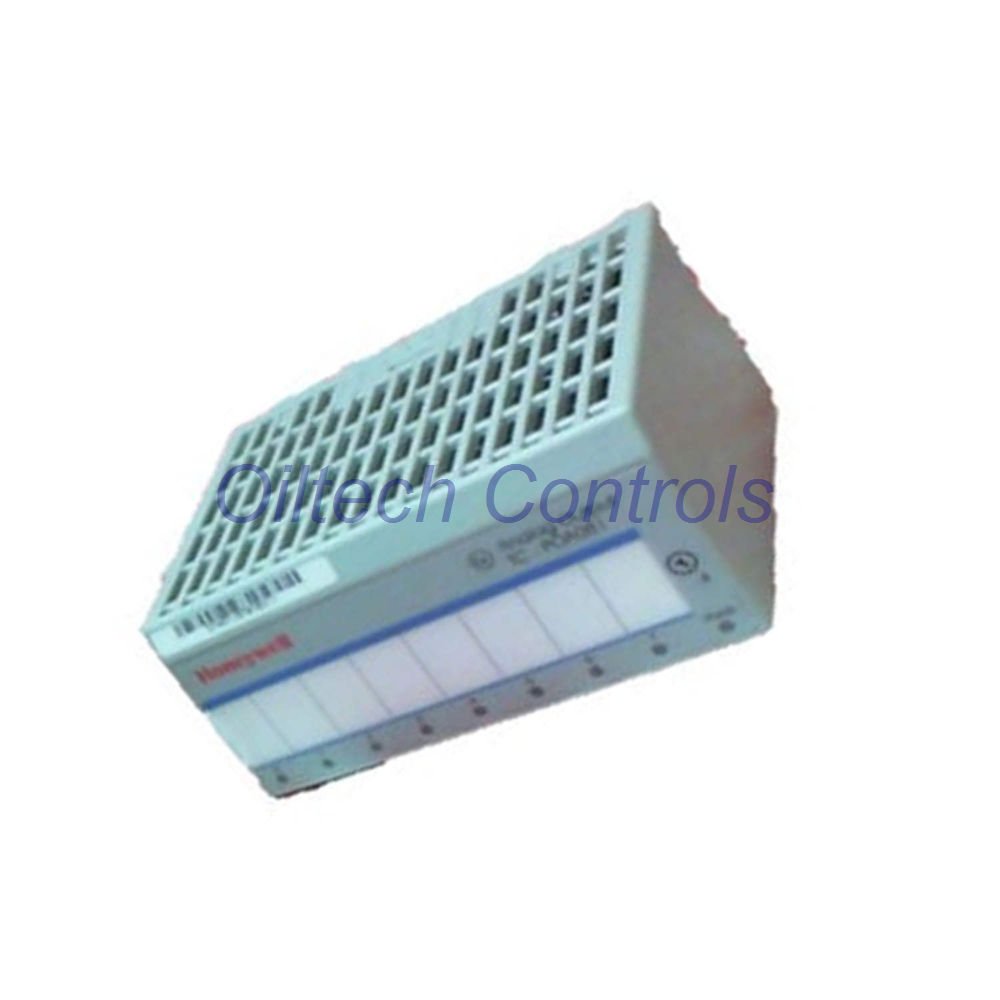

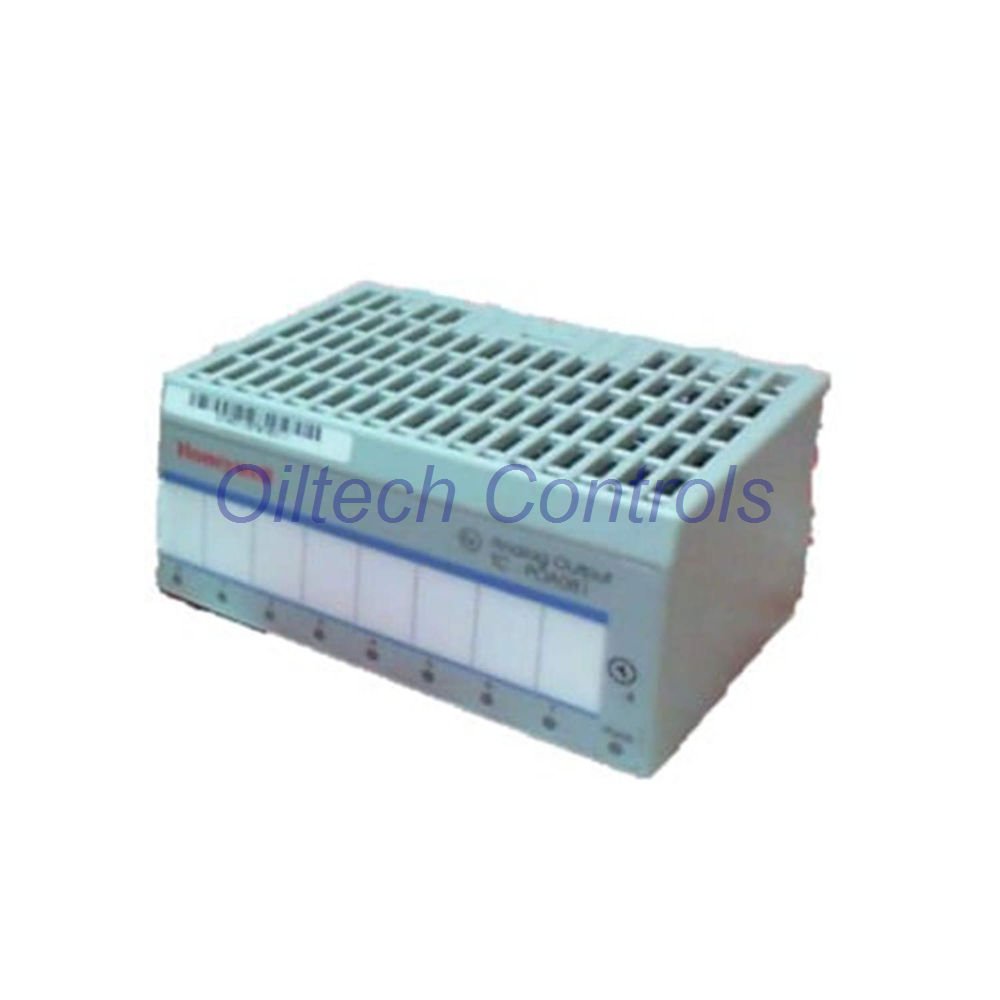

TC-PIA082 Honeywell Analog Current Input Module (8-Points)
TC-PIA082 is an 8-channel analog current input module from Honeywell. It accepts 4 to 20mA and extended 2 to 22mA signals. It supports 2-wire and 3-wire transmitters. The module delivers 16-bit resolution and works with intrinsically safe field circuits. It is built for industrial control systems that need stable current-loop measurement.
This module fits Honeywell I/O terminal bases with keyswitch position 3. Each input is single-ended and referenced to a single common. The unit is designed for harsh plant environments. It offers galvanic isolation between input and backplane bus, and between input and power supply. There is no galvanic isolation between inputs.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Honeywell |
| Model | TC-PIA082 |
| Module Type | Analog Current Input Module, 8-Points |
| Input Channels | 8 single-ended, common referenced |
| Input Signal Range | 4 to 20mA; extended 2 to 22mA |
| Input Voltage | Greater than 15V at 22mA |
| Resolution | 16 Bits |
| Transmission Error | 0.1% of output signal range at 293K (20°C / 68°F) |
| Temperature Drift | 0.005%/K of output signal range |
| Frequency Response | 50 to 60Hz common mode rejection |
| Linearity | Refer to factory calibration; 16-bit resolution supports fine current-loop measurement |
| Sensitivity | Fault detection: lead breakage at I less than 2mA; short circuit at V less than 4V |
| Temperature Range | Ambient –20°C to 70°C (–4°F to 158°F); storage –20°C to 100°C (–4°F to 212°F) |
| Humidity | 95% maximum, non-condensing |
| Environmental Resistance | Pollution gas test G3 per ISA-S71.04-1985; shock 15g peak, 11ms; vibration 2g at 10Hz to 500Hz per IEC 68-2-6 |
| Interference Immunity | EMC per DIN EN 50081-2, DIN EN 50082-2, NAMUR NE 21; use shielded multicore cable with per-channel shield |
| Isolation | Input / backplane bus; input / power supply; channel isolation greater than 500V for EMC protection class |
| Input Type | 2-wire and 3-wire transmitters |
| Intrinsically Safe Input | Europe: II (1) 2G EEx ia/ib IIB/IIC T4 (CENELEC) |
| Power Consumption | 0.95 power supply unit load |
| Power Dissipation | 5.2W |
| Protection Class | IP20; field installation requires separate housing IP54 or better |
| Keyswitch Position | 3 |
| Weight | 0.203 kg (0.45 lb) |
| Dimensions (H x W x D) | 76 x 94 x 46 mm (3.0 x 3.7 x 1.8 in) |
Installation Guide
- Mount the module in a Honeywell terminal base with keyswitch position 3.
- Use 2-wire input terminals: Ch0 0,1; Ch1 4,5; Ch2 8,9; Ch3 12,13; Ch4 17,18; Ch5 21,22; Ch6 25,26; Ch7 29,30.
- Use 3-wire input terminals: Ch0 0,1,2; Ch1 4,5,6; Ch2 8,9,10; Ch3 12,13,14; Ch4 17,18,19; Ch5 21,22,23; Ch6 25,26,27; Ch7 29,30,31.
- Use shielded multicore cable. Keep one shield per channel. This meets EMC protection class.
- Install in a clean, dry panel. Use IP54 or better housing for field installation.
- Check terminal tightness and cable shielding before power-up.
Commissioning and Maintenance
Commissioning is simple. Set the keyswitch to position 3. Verify the terminal base wiring. Check the channel LED after power-up. A flashing red LED shows a fault. Use the backplane bus alarm for lead breakage. Configure overrange, underrange, and transmitter alarms per channel. Lead breakage indication off is configurable for all channels.
For maintenance, inspect cable shields and terminal connections. Confirm the field loop current stays within 2 to 22mA. Replace damaged wiring early. The module needs no routine calibration in normal use. Always follow plant isolation procedures before removing the module.
Compatibility Notes
- Works with Honeywell I/O terminal bases using keyswitch position 3.
- Supports 2-wire and 3-wire transmitters.
- Fits systems that use Honeywell vendor-specific bus with intrinsically safe output.
- Use shielded cable with channel isolation greater than 500V for EMC protection.
- Check backplane bus and power supply compatibility before installation.
Certifications
- CE conformity for applicable directives.
- CENELEC: II (1) 2G EEx ia/ib IIB/IIC T4.
- DIN EN 50014: 1992; DIN EN 50020: 1994; DIN EN 50284: 1997.
- Climatic conditions per DIN IEC 721.
- EMC per DIN EN 50081-2, DIN EN 50082-2, NAMUR NE 21.
- DMT 99 ATEX E 031 X.
Packing List and Warranty
- 1 x Honeywell TC-PIA082 Analog Current Input Module.
- Anti-static protection and industrial packing.
- 12-month warranty from Oiltech Controls Limited.
Shipping
We ship by FedEx, UPS, and DHL. Tracking is provided. We support global shipment. Orders are packed for safe transport.
Typical Applications
- Process control with 4 to 20mA transmitters.
- Intrinsically safe field loop monitoring.
- 2-wire and 3-wire transmitter input in DCS and PLC cabinets.
- Legacy Honeywell I/O systems that need spare modules.
- Plants with high humidity, vibration, and pollution gas exposure.
Diagnostic Capabilities
- Lead breakage alarm through backplane bus.
- Channel LED flashing red for fault indication.
- Overrange alarm per channel.
- Underrange alarm per channel.
- Transmitter alarm for defined fault current.
- Transmitter lead breakage alarm for open or short circuit, if supported by the transmitter.
- Lead breakage indication off configurable for all channels.
FAQ
Q: What signal range does TC-PIA082 accept?
A: It accepts 4 to 20mA, with extended range 2 to 22mA.
Q: How many input channels does it have?
A: It has 8 single-ended input channels with a single common.
Q: Does it support 3-wire transmitters?
A: Yes. It supports both 2-wire and 3-wire transmitters.
Q: What is the resolution?
A: The resolution is 16 bits.
Q: How do I know a channel has a fault?
A: The channel LED flashes red. The backplane bus also sends an alarm.
Q: What is the warranty?
A: Oiltech Controls provides a 12-month warranty.
Q: How fast can I get a quote?
A: Contact us at info@oiltechcontrols.com or +86 158 8020 0923 for a fast quote.
