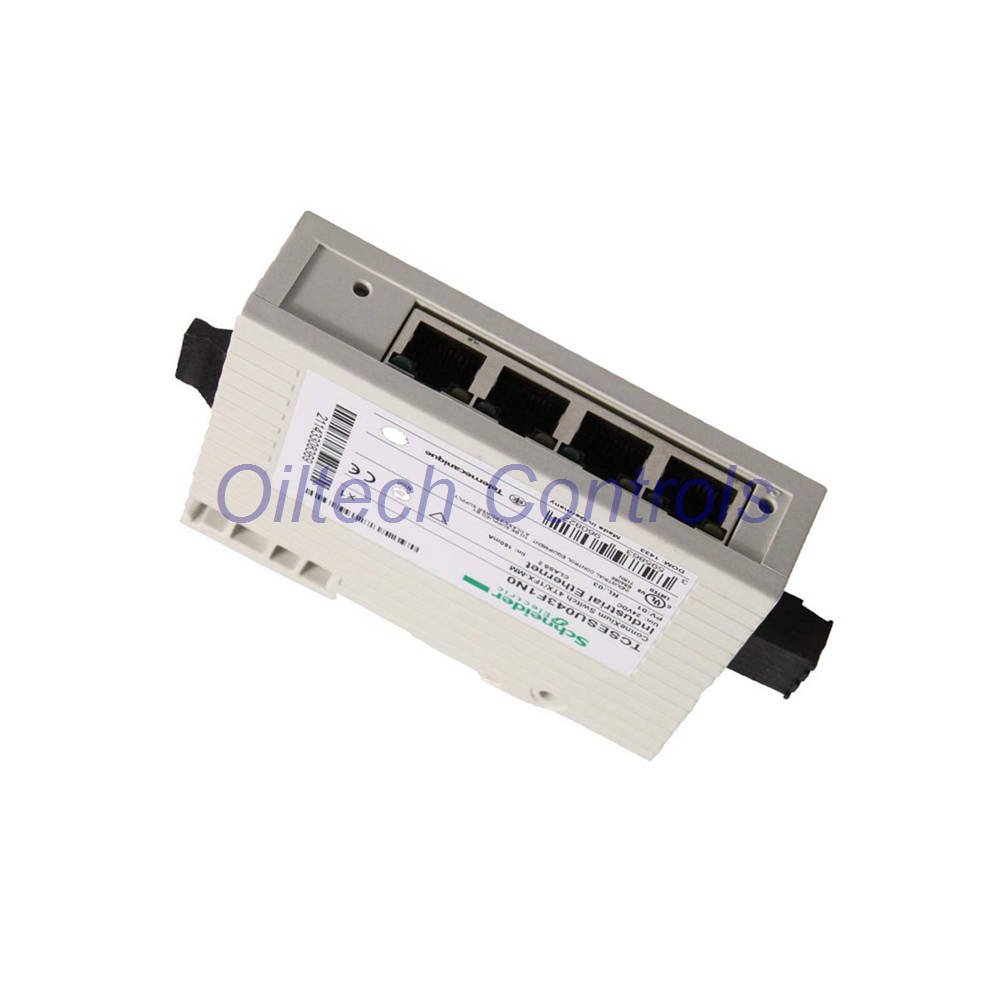

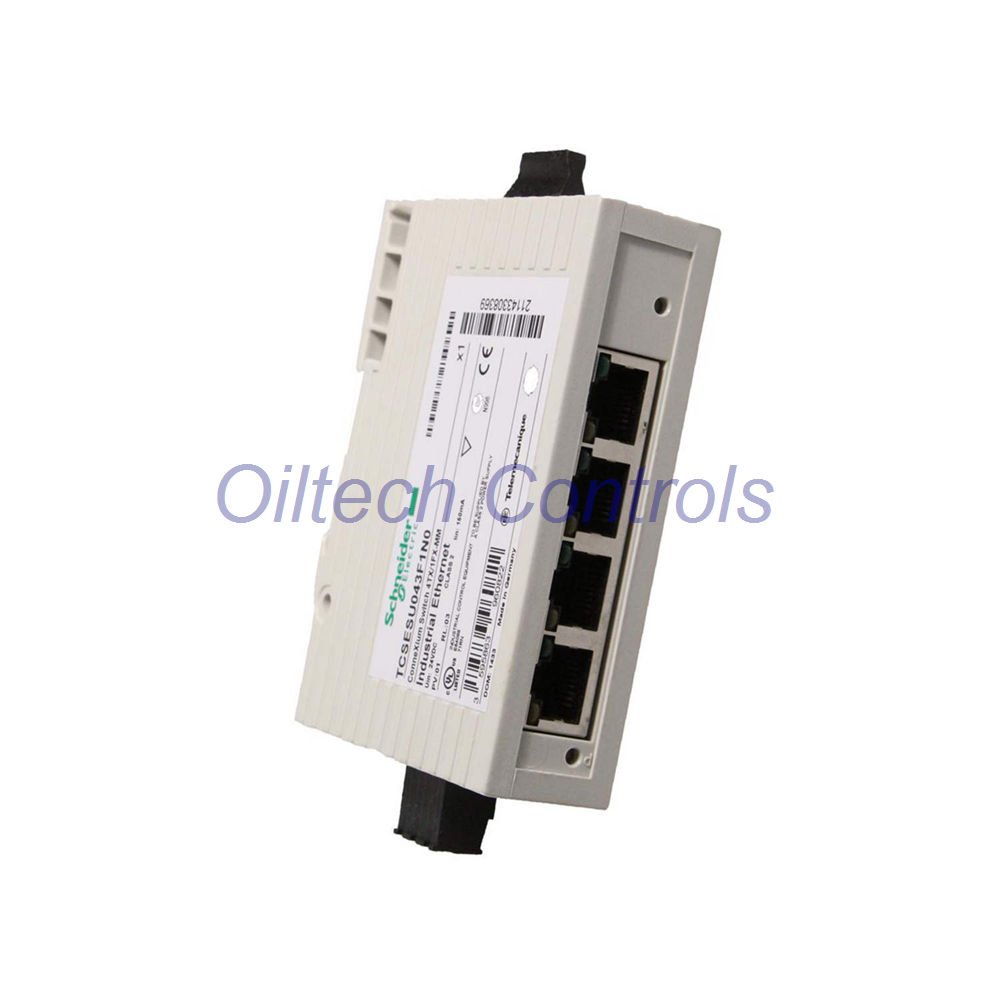

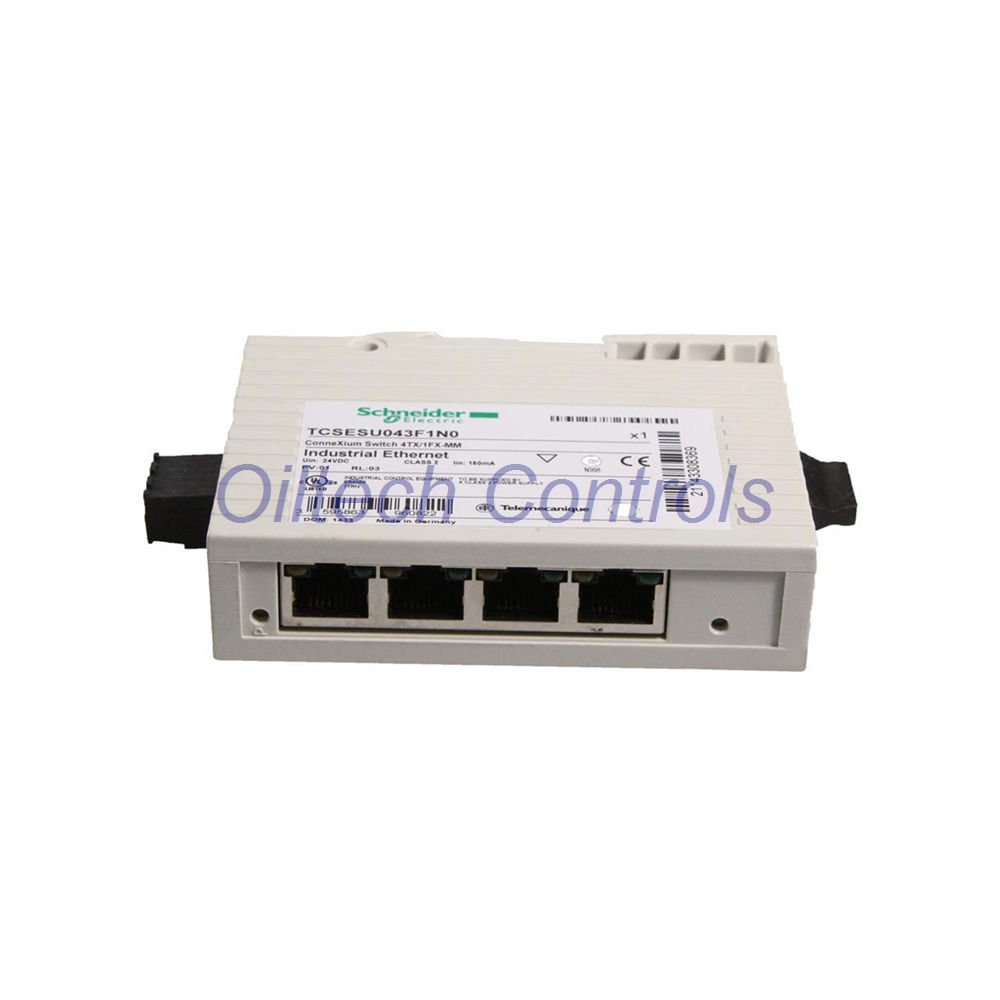

TCSESU043F1N0 | ConneXium Ethernet Switch | 5 Ports | Unmanaged

Product Overview – TCSESU043F1N0 ConneXium Unmanaged Switch

TCSESU043F1N0 is a ConneXium unmanaged Ethernet switch from Schneider Electric. It provides 4x 10/100BASE-TX copper ports and 1x 100BASE-FX multimode fiber port (Duplex SC). This Transparent Ready device supports auto-negotiation, auto MDI/MDX, and automatic polarity correction. It operates on 9.6…32 V DC (SELV) and fits 35 mm DIN rail. Ideal for small industrial networks requiring reliable plug-and-play connectivity.

Technical Specifications – Core Parameters

• Ethernet services: Auto-negotiation of 10/100 Mbit/s and duplex. Auto MDI/MDX and automatic polarity change. Storage and re-routing of received data.
• Cable support: Shielded twisted pair (CAT 5E) for copper; multimode fiber (62.5/125 µm: 11 dB; 50/125 µm: 8 dB).
• Electrical connection: 3-way removable connector (power supply).
• Local signalling: 1x fiber port LED (state/activity), 1x power LED, per copper port activity and 10/100 Mbit/s rate LEDs.
• Standards & certifications: CSA C22.2 No.142, CUL 508, CE marked.

Installation & Commissioning

• Mounting: Snap onto 35 mm DIN rail – no tools required. Allow 40 mm clearance for airflow.
• Power connection: Use 3-way removable plug; wire cross-section 0.5…2.5 mm² (AWG 20-14).
• Commissioning: Plug and play – no configuration needed. Auto-negotiation handles speed and duplex automatically.
• Maintenance: Front-access LEDs enable quick status checks. No software or firmware updates required.
• Compatibility: Fully interoperable with Modicon Quantum and all Ethernet/IP devices. Supports Transparent Ready architecture.

Typical Applications & Diagnostic Capability

• Applications: Small machine control, remote I/O, building automation, conveyor systems, and panel-mounted networks.
• Diagnostics: LED indicators show power, link/activity, and speed (10/100 Mbit/s) per port. Fiber LED confirms optical link.
• Reliability: Unmanaged design eliminates configuration errors. Auto-negotiation ensures optimal performance.

Frequently Asked Questions (FAQ)

• Q: Can I cascade multiple switches? – Yes, cascade is unlimited. No configuration required.
• Q: What fiber cable is compatible? – Multimode (62.5/125 or 50/125 µm) with Duplex SC connectors.
• Q: Does it support PoE? – No, this switch does not provide Power over Ethernet.
• Q: Is the switch managed? – No, it is unmanaged – simply plug and play.
• Q: What is the IP rating? – IP30, suitable for control cabinets and indoor use.

Package, Warranty & Shipping

• Package contents: 1x TCSESU043F1N0 switch, 1x 3-way power connector, 1x quick start guide (fiber cable not included).
• Warranty: 12-month warranty against manufacturing defects.
• Shipping carriers: FedEx, UPS, DHL – global express delivery available.
