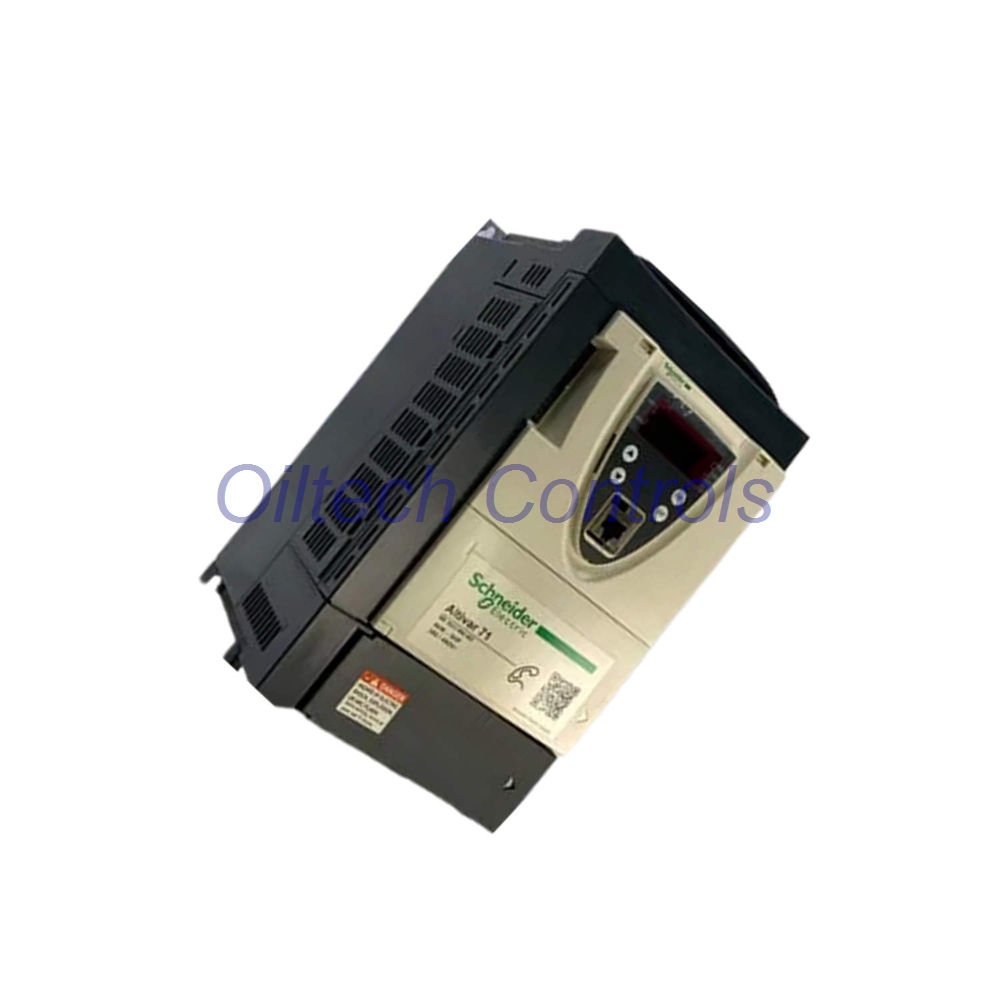

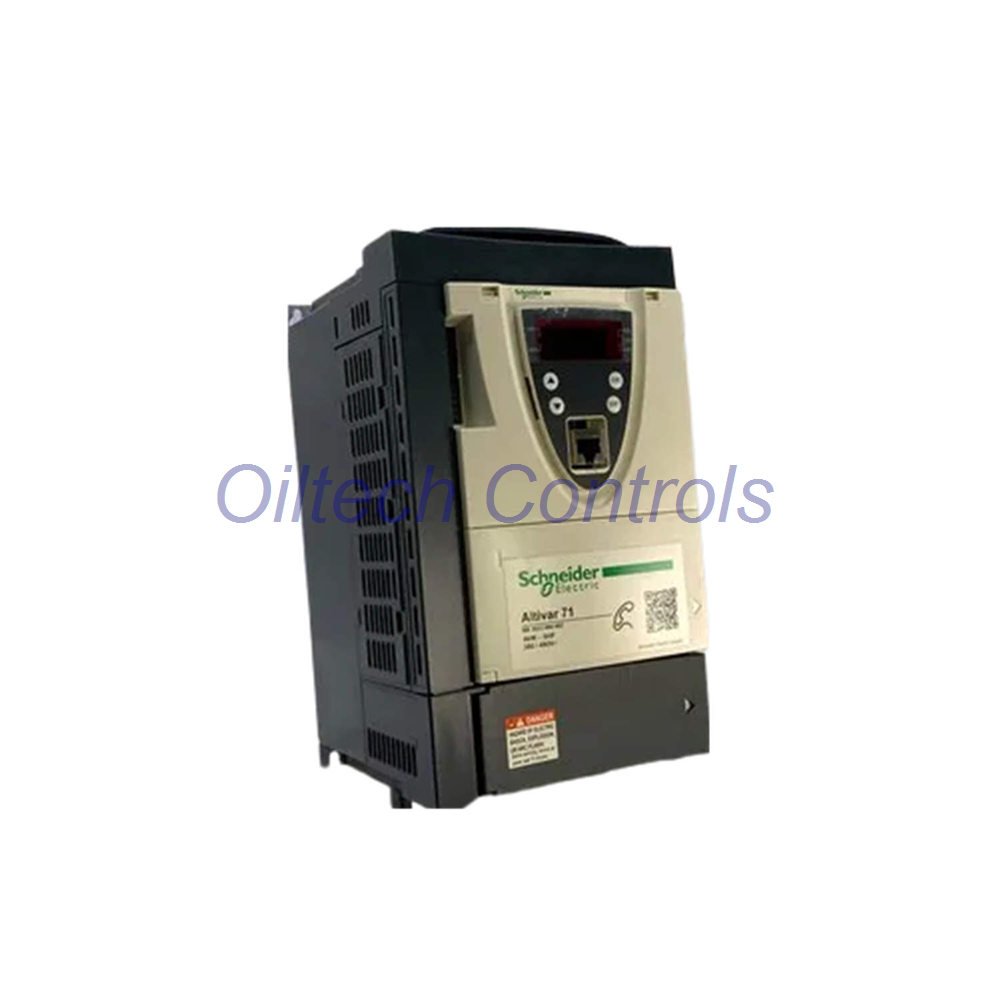

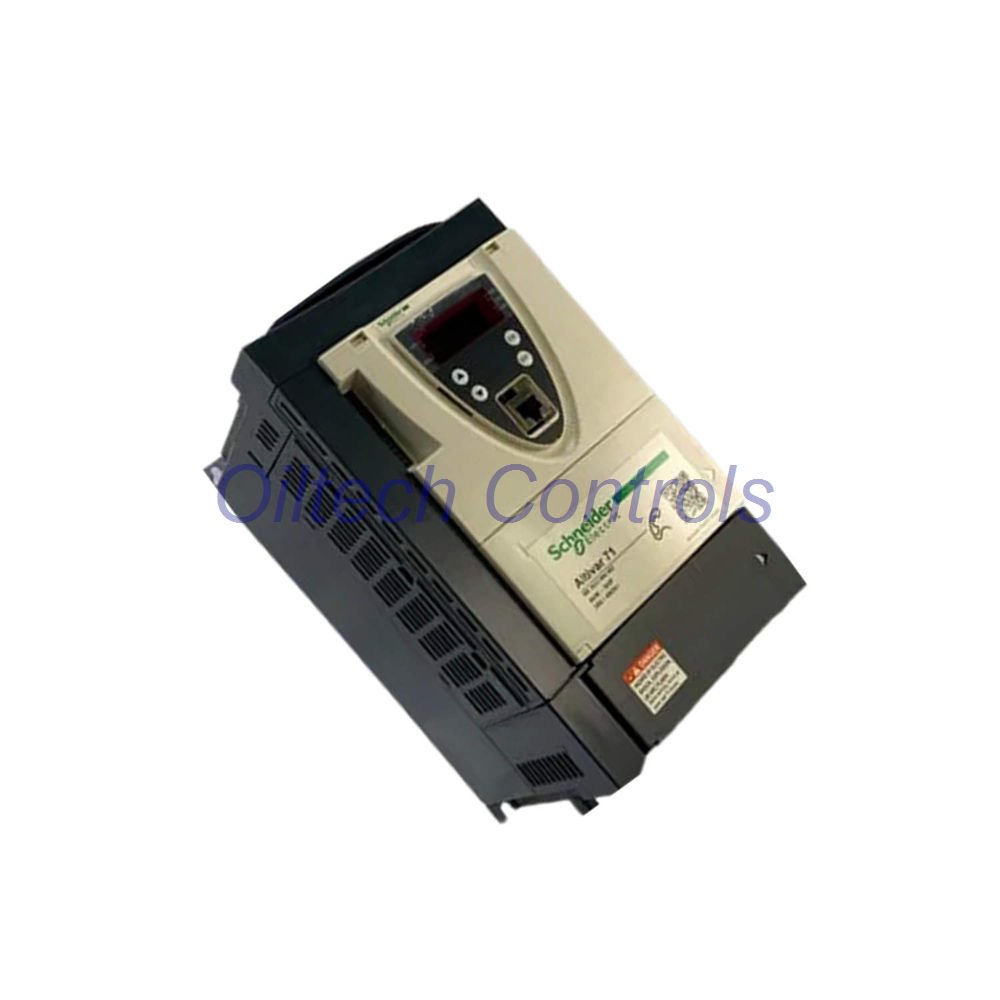

ATV71HU40N4 Schneider Electric Altivar 71 Drive 4kW

ATV71HU40N4 – Schneider Electric Altivar 71 Drive

Manufacturer: Schneider Electric | Model: ATV71HU40N4 | Series: Altivar 71 | Type: Variable Speed Drive

This 4 kW drive handles 380‑480 V AC, 3‑phase. It serves complex high‑power machines. It supports asynchronous and synchronous motors. The drive offers sensorless flux vector control and integrated EMC filter. It fits applications needing precise speed and torque.

Key Technical Data

• Motor power: 4 kW (5 hp) – 3‑phase 380…480 V
• Supply voltage: 380…480 V ±15% (limits 323…528 V)
• Output frequency: 0.1…599 Hz
• Nominal output current: 10.5 A (380 V) / 7.6 A (460 V)
• Line current: 14.1 A (380 V) / 11.5 A (480 V)
• Apparent power: 9.3 kVA at 380 V
• Max transient current: 15.8 A (60 s) / 17.3 A (2 s)
• Switching frequency: 1…16 kHz (4 kHz nominal, derating above 4 kHz)
• Braking torque: ≤150 % with resistor; 30 % without
• Speed range: 1…100 (open‑loop asynchronous) / 1…1000 (closed‑loop with encoder)
• Torque accuracy: ±15 % open‑loop; ±5 % closed‑loop

Installation & Mechanical

• Mounting: With heat sink, vertical ±10°
• IP degree: IP20 (enclosure mounting)
• Dimensions (H×W×D): 260 × 155 × 187 mm (10.2 × 6.1 × 7.4 in)
• Weight: 4.0 kg (8.8 lb)
• Max motor cable: 50 m (shielded) / 100 m (unshielded)
• Tightening torque: 0.6 N·m (control) / 1.4 N·m (power)
• Ambient temp: –10…50 °C (no derating); storage –25…70 °C
• Altitude: ≤1000 m without derating; up to 3000 m with 1 % derating per 100 m

Protection & Diagnostics

• Protections: overvoltage, undervoltage, short‑circuit, phase loss, thermal, overcurrent, earth fault
• Diagnostic: 1 red LED for drive voltage; adjustable PI regulator
• Insulation: >1 MΩ at 500 V DC (earth); dielectric strength 3535 V DC (power/earth)
• EMC: Integrated filter, complies with EN 61800‑3 (C2 environments)

Compatibility & Communication

• Motor types: Asynchronous (induction) and synchronous (permanent magnet)
• Control profiles: FVC (with sensor), SFVC (sensorless), V/f ratio (2 or 5 points)
• Communication ports: Modbus (RJ45 front/terminal), CANopen (SUB‑D 9)
• Option cards: Profibus DP, DeviceNet, EtherNet/IP, Modbus TCP, encoder interface, I/O extension
• Certifications: CE, UL, CSA, GOST, C‑tick, NOM 117

Typical Applications

• Centrifugal pumps and fans
• Compressors and extruders
• Conveyors and hoists
• Mixers and agitators
• Machine tools and textile machinery

Oiltech Controls’s Insight

• This drive excels in retrofitting obsolete drives – it supports both asynchronous and synchronous motors.
• We recommend using shielded cable up to 50 m; for longer runs use an output filter.
• For hoisting applications, add an external braking resistor to utilise the 150 % braking torque.
• Set the switching frequency ≤4 kHz to avoid derating in high‑ambient conditions.
• Use the adjustable PI regulator for closed‑loop pressure or flow control.

Frequently Asked Questions (FAQ)

• Q: What is the maximum motor cable length without a filter?
  A: 50 m shielded, 100 m unshielded. For longer runs, use an output reactor.
• Q: Can this drive run a permanent magnet synchronous motor?
  A: Yes. It supports synchronous motor control via vector control without speed feedback.
• Q: How to choose between open‑loop and closed‑loop?
  A: Open‑loop (SFVC) suits general speed control. Closed‑loop (FVC) with encoder gives ±0.01 % speed accuracy.
• Q: Does the drive include a braking resistor?
  A: No. Braking resistor is optional. Without it, braking torque is 30 %.
• Q: What communication protocols are supported natively?
  A: Modbus RTU and CANopen. Additional fieldbus cards are optional.

Package & Shipping

• Package includes: Drive unit, quick start guide, CD‑ROM with software, mounting screws.
• Warranty: 12 months against manufacturing defects.
• Shipping: 24‑28 hour dispatch. Carriers: FedEx, UPS, DHL.
• Weight (shipping): approx. 6.8 kg (15 lb).
