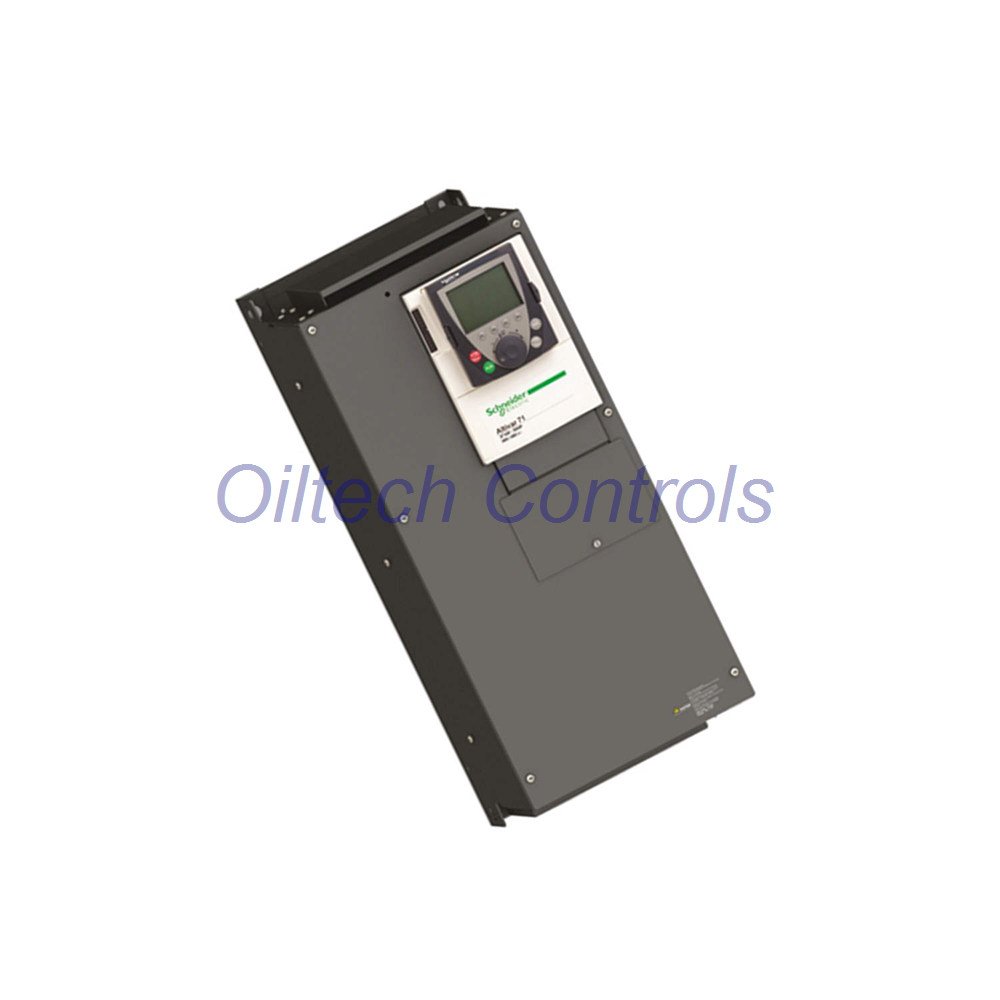

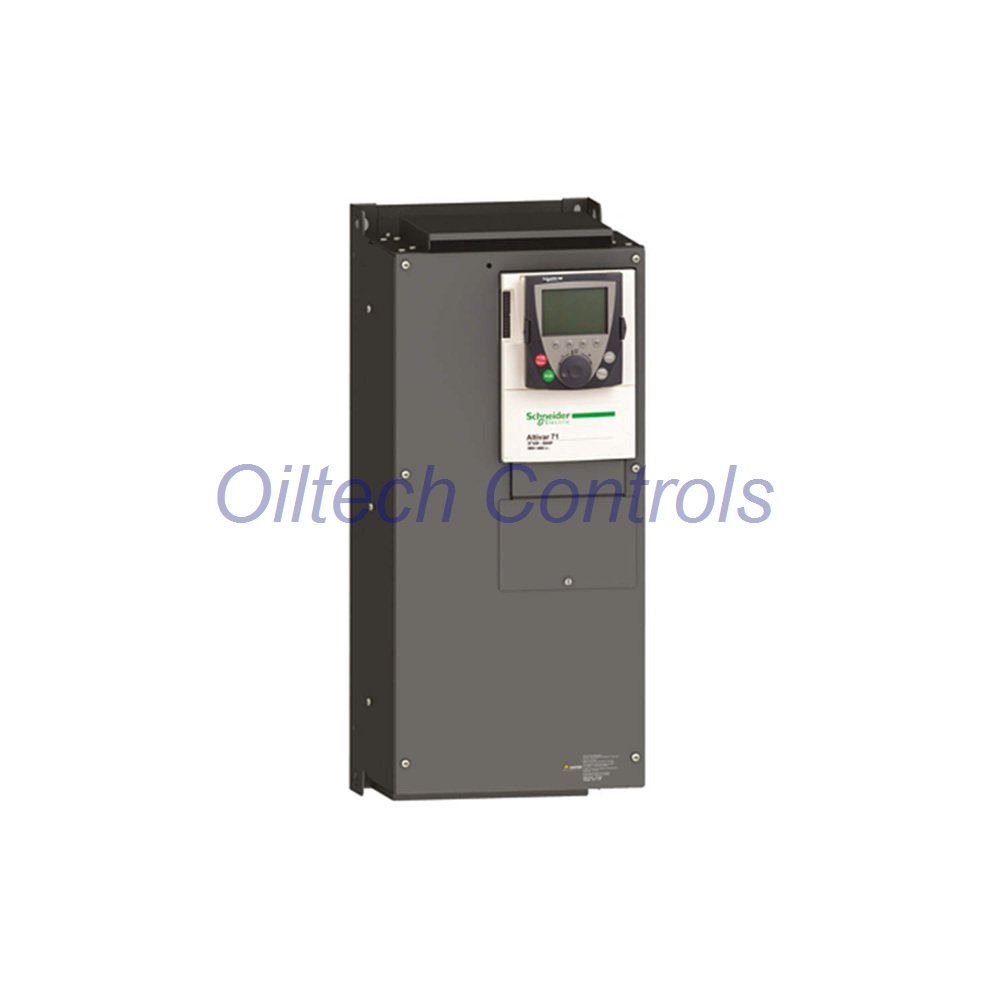

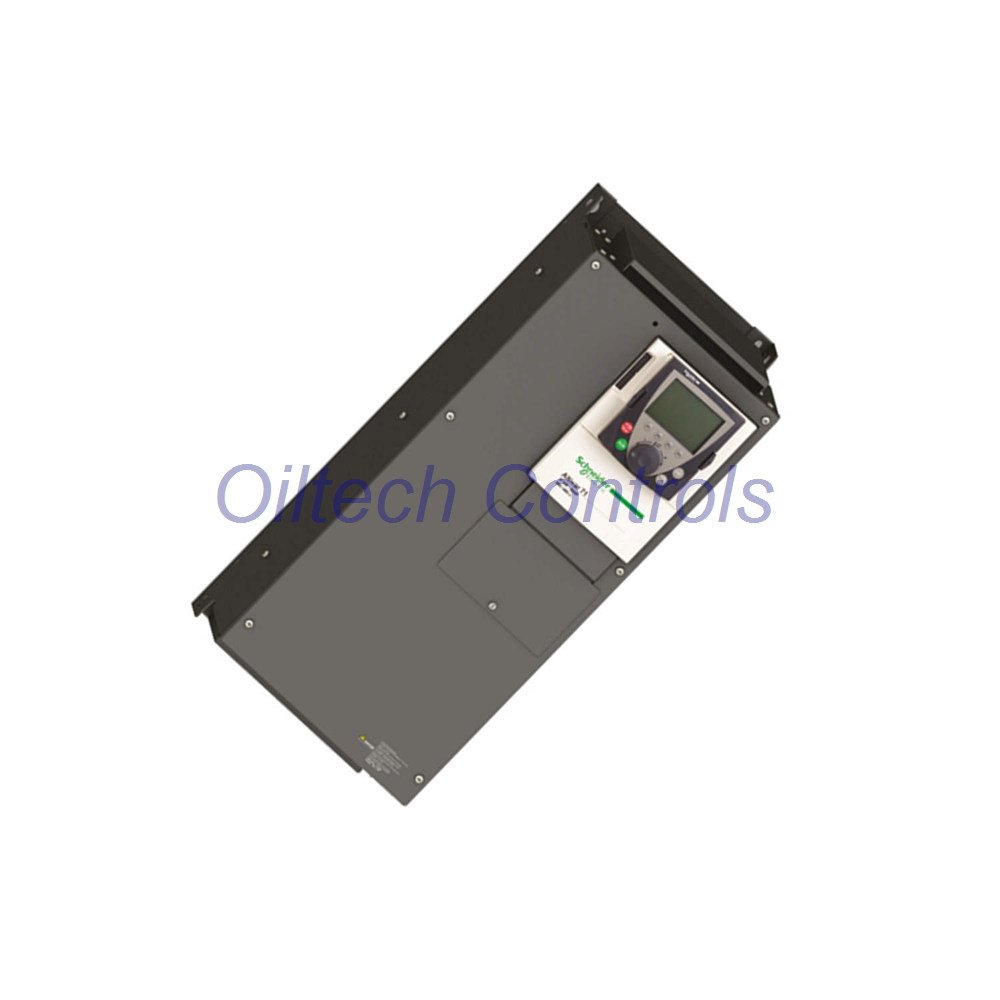

ATV71HD45N4 Schneider Altivar 71 45kW Variable Speed Drive

ATV71HD45N4 – Schneider Electric Altivar 71 Variable Speed Drive

Oiltech Controls’s Insight
Robust 45 kW (60 HP) drive for 3-phase asynchronous/synchronous motors. Integrated EMC filter, heat sink, and flux vector control. Full functionality with Modbus and CANopen. Designed for harsh industrial environments.

Key Specifications

• Brand: Schneider Electric
• Model: ATV71HD45N4
• Series: Altivar 71
• Power: 45 kW (60 HP) – 380-480 V, -15/+10 %
• Current: 84-104 A (line), 77-94 A (output)
• Frequency: 0.1 – 500 Hz output
• Switching freq: 2.5 kHz (nominal), adjustable to 16 kHz
• IP Rating: IP20
• Weight: 44 kg (97 lb)
• Temp range: -10°C to +50°C (operation)

Control & Performance

• Motor types: Asynchronous and synchronous
• Control modes: FVC, SFVC, V/F (2/5 points), ENA
• Speed range: 1…1000 (closed-loop), 1…100 (open-loop)
• Torque accuracy: ±5 % (closed-loop), ±15 % (open-loop)
• Overtorque: 170 % for 60 s, 220 % for 2 s
• Braking torque: ≤150 % with resistor
• Regulation: Adjustable PI, slip compensation

Connectivity & I/O

• Analog inputs: 2 (differential ±10 V, 0-20 mA / 0-10 V)
• Analog output: 1 (0-20 mA or 0-10 V)
• Discrete inputs: 7 (including PWR safety input)
• Relay outputs: 2 (R1 NO/NC, R2 NO)
• Communication: Modbus (RJ45), CANopen (SUB-D 9)
• Protocols: Modbus RTU, CANopen (up to 1 Mbps)

Installation & Mounting

• Position: Vertical ±10°
• Torque: 0.6 N•m (control), 41 N•m (power)
• Cable length: 100 m shielded, 200 m unshielded
• Heat sink: Integrated for efficient cooling
• Mounting: IP20 enclosure (NEMA Type1 kit optional)

Protection & Diagnostics

• Protection: Overvoltage, undervoltage, overcurrent, short-circuit, thermal, phase loss
• Diagnostics: Red LED for drive voltage, adjustable PI regulator
• STO: Safe Torque Off response ≤100 ms
• Insulation: Electrical isolation between power and control

Environmental & Certifications

• Standards: EN 61800-3, EN 61800-5-1, UL Type 1, CSA, NOM, GOST
• EMC: Integrated filter, class A group 2
• Vibration: 1.5 mm (3-13 Hz), 1 gn (13-200 Hz)
• Shock: 15 gn for 11 ms
• Humidity: 5-95 % non-condensing
• Altitude: 1000 m without derating, up to 3000 m with derating

Compatibility & Suitable Equipment

• Motors: Asynchronous (squirrel cage) and synchronous (IPM/SPM)
• Applications: Conveyors, cranes, hoists, pumps, fans, compressors
• Option cards: Profibus, DeviceNet, EtherNet/IP, Modbus TCP, encoder interface, I/O extension
• Braking: Supports braking or hoist resistors

Package List

• 1 x ATV71HD45N4 drive unit
• 1 x quick start guide
• 1 x CD-ROM with software and manuals
• Mounting hardware (screws, grounding clips)

Warranty & Shipping

• 12-month warranty against defects (materials and workmanship)
• 24-28 hours dispatch from order confirmation
• Global express via FedEx, UPS, DHL
• Tracking number provided within 24 hours

Oiltech Controls Review – Why Choose Us?

• 15+ years in industrial automation spares
• Worldwide shipping – reliable and fast
• Tested surplus/refurbished – fully functional
• 12-month warranty for peace of mind
• Pre-shipment technical verification
• Support for obsolete systems – we have hard-to-find parts

Professional FAQ – Experience & Selection Guide

• Q: Can I use this drive with an older 380 V motor?
  A: Yes. Input range 380-480 V -15/+10 % covers most industrial motors. Check motor nameplate for voltage compatibility.
• Q: What is the real-world current capacity at 480 V?
  A: At 480 V, line current is 85 A and output current is 77 A (2.5 kHz). Useful for derating calculations in high-line applications.
• Q: How do I select the correct braking resistor?
  A: Use the <150 % torque rating. For hoisting or frequent stops, choose a resistor with thermal capacity matching duty cycle. Consult Schneider sizing tool.
• Q: Can this drive run a permanent magnet synchronous motor?
  A: Yes. Supports vector control without speed feedback for synchronous motors. Requires auto-tuning during initial setup.
• Q: What option card is best for Profibus DP integration?
  A: Use the VW3A3307 Profibus DP card. Supports cyclic I/O and parameter access. Ensure firmware version ≥ V5.3.
