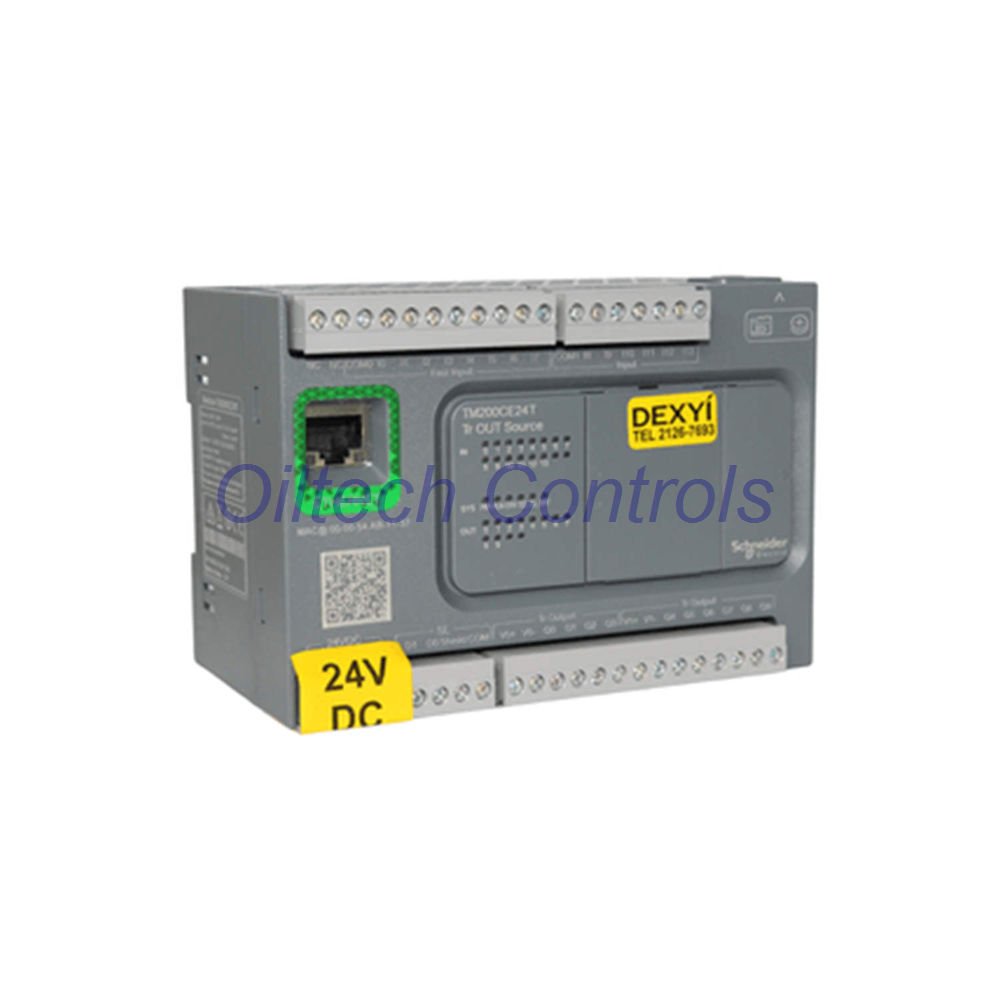

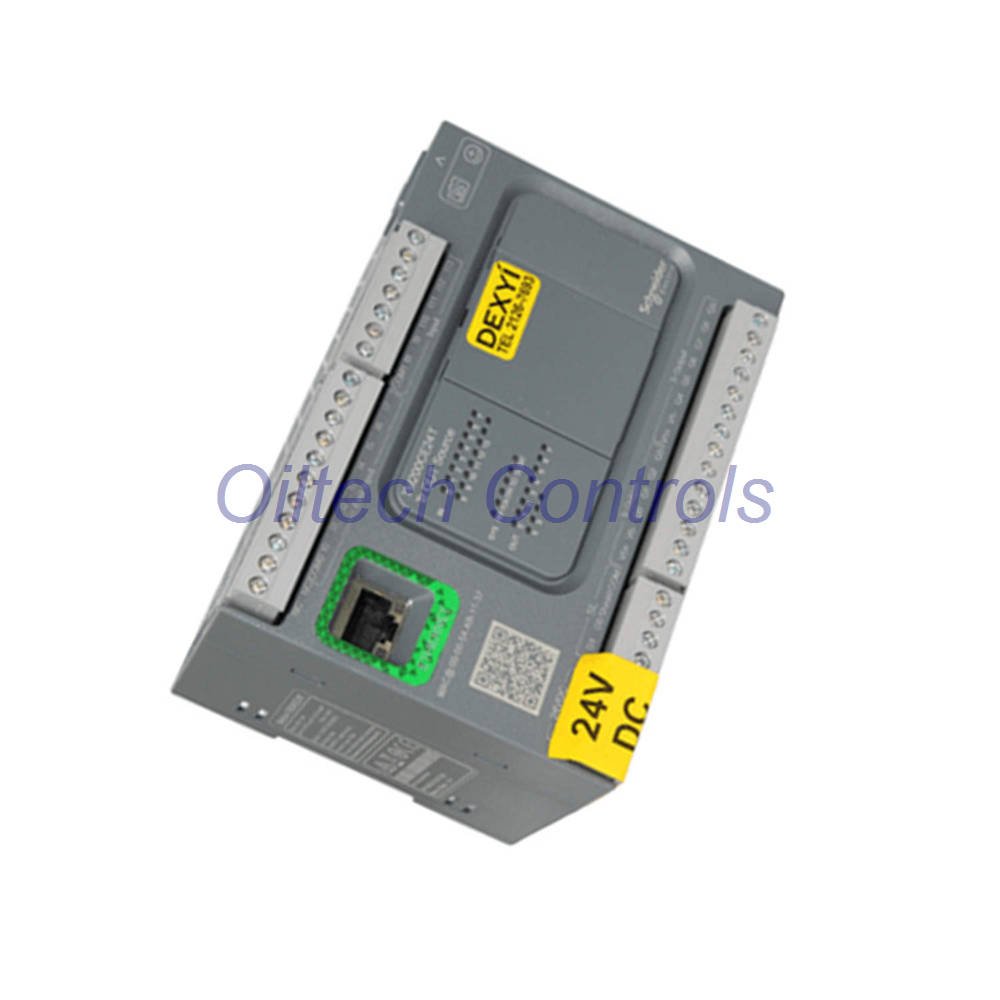

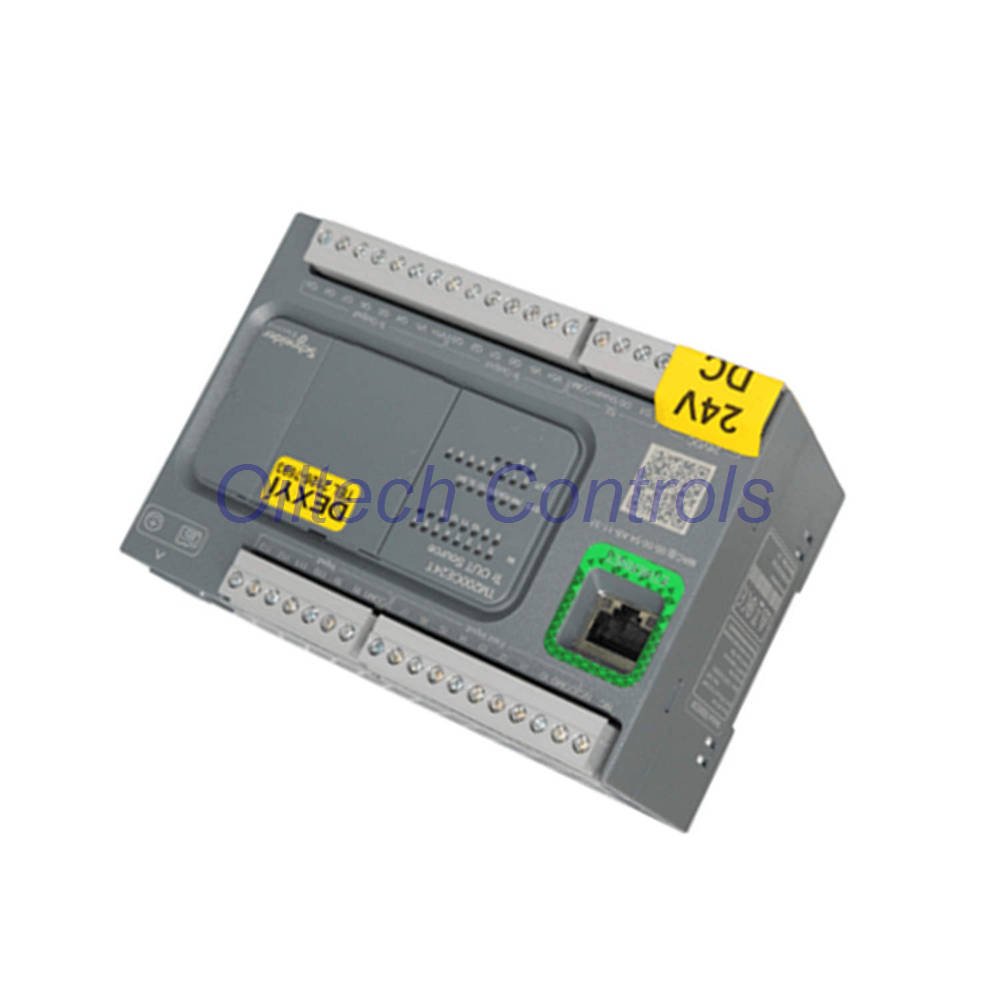

TM200CE24T – Modicon M200 Logic Controller · 24 IO Transistor Source+ Ethernet

Controller Snapshot

TM200CE24T belongs to the Easy Modicon M200 series from Schneider Electric.
This logic controller provides 24 discrete I/O (transistor source), built-in Ethernet Modbus TCP/IP, and high-speed counting up to 100 kHz.
Compact design supports up to 4 expansion modules, PID regulation, and micro SD data backup.
Ideal for motion control, positioning, and small-to-medium automation systems.

Core Technical Data

• Rated Supply: 24 V DC (20.4…28.8 V) · Inrush 35 A
• Discrete I/O: 24 total · 6 regular inputs, 4 fast, 4 high-speed · 8 transistor outputs (2 fast PLS/PWM/PTO)
• Output Current: 0.5 A per channel · max 2 A / common (COM0) · 3 A (COM1)
• High-Speed Features: 100 kHz counting (HSC) · 100 kHz PWM/PLS on Q0…Q1
• Response Time: 5 µs (high-speed inputs) · 35 µs (fast inputs) · 1 ms (outputs)
• Memory & Backup: 512 KB flash · 32 GB micro SD (optional) · BR2032 battery (5 yr life, 3 yr backup at 25°C)
• Execution Speed: 0.3 ms / 1K instructions · 0.2 µs per Boolean
• PID Loops: Up to 14 simultaneous adjustable PID regulators
• Protection: Overload & short-circuit at 2 A · auto reset (1 s)

Connectivity & Interfaces

• Ethernet: 1x RJ45 · 10/100BASE-T · Modbus TCP/IP client/server
• Serial: RS485 (non-isolated) + RS232/RS485 (non-isolated) · Modbus RTU/ASCII
• USB: Mini B USB 2.0 · SoMachine-Network programming
• Local Signalling: PWR, RUN, ERR, SD, BAT, SL1, I/O state, Ethernet LK/ACT
• Removable Terminals: Screw-type for I/O, power, and serial links

Environmental & Mounting

• Operating Temp: 0…55 °C (horizontal) · Storage -25…70 °C
• Protection: IP20 (cover on) · Pollution degree ≤2
• Mounting: DIN rail TH35-15/7.5 or panel mount with kit
• Vibration/Shock: 3.5 mm / 1 gn (rail) · 15 gn / 30 gn shock
• Humidity: 10…95% non-condensing
• Dimensions: 130 × 90 × 70 mm (W×H×D) · Weight 0.424 kg

Standards & Approvals

• Certifications: CE · EN/IEC 61131-2 · EN/IEC 61010-2-201
• EMC Immunity: 8 kV ESD (air) · 6 kV (contact) · 10 V/m radiated · 2 kV EFT (power/relay)
• Surge Protection: 1 kV / 2 kV on power lines · 1 kV on I/O
• Emissions: Class A (10 m) · conducted & radiated limits per EN/IEC 55011

Oiltech Controls’s Insight

• The TM200CE24T excels in compact machine control, conveyor indexing, and packaging equipment.
• Its 100 kHz fast I/O supports precise positioning – ideal for servo interfacing and encoder feedback.
• Built-in PID and Ethernet Modbus TCP/IP enable easy integration with SCADA and HMI.
• For retrofit or upgrade, this controller replaces older M200 variants with enhanced memory and speed.
• Typical applications: textile machines, printing presses, small conveyor systems, and HVAC controls.

Compatible Equipment

• • Modicon M200 expansion I/O modules (up to 4 units)
• • Modicon Quantum series (via Modbus TCP/IP gateway)
• • Schneider Electric HMIs and Magelis touch panels
• • Third-party Modbus RTU/TCP devices (VFDs, sensors, actuators)

Expert FAQ – Selection & Operation

• Q: Can TM200CE24T control a stepper motor directly?
  Yes. Use the two fast outputs (Q0…Q1) in PWM/PTO mode at 100 kHz. For closed-loop, add an encoder to high-speed inputs.
• Q: What is the maximum expansion I/O count?
  Up to 4 expansion modules. For relay outputs, max 64 discrete outputs; for transistor, max 138 discrete outputs.
• Q: Does it support micro SD hot-swap?
  Yes, but always power off before inserting/removing the SD card to avoid data corruption. Use 32 GB max.
• Q: How to choose between source and sink wiring?
  TM200CE24T uses positive logic (source). Connect loads between output and common (0 V). For sink inputs, use 24 V DC common.
• Q: What programming software is required?
  Use SoMachine or EcoStruxure Machine Expert – both support M200 series. The USB port offers direct connection.

Delivery & Warranty

• Shipping: FedEx, UPS, DHL – 24~28 hours dispatch after order confirmation.
• Warranty: 12-month limited warranty against manufacturing defects.
• Package: 1x controller, removable terminal blocks, quick start guide (cables sold separately).
