TCSESM043F23F0 ConneXium Switch – Managed 4x Copper, RSTP, VLAN

Product Brief – ConneXium TCSESM043F23F0

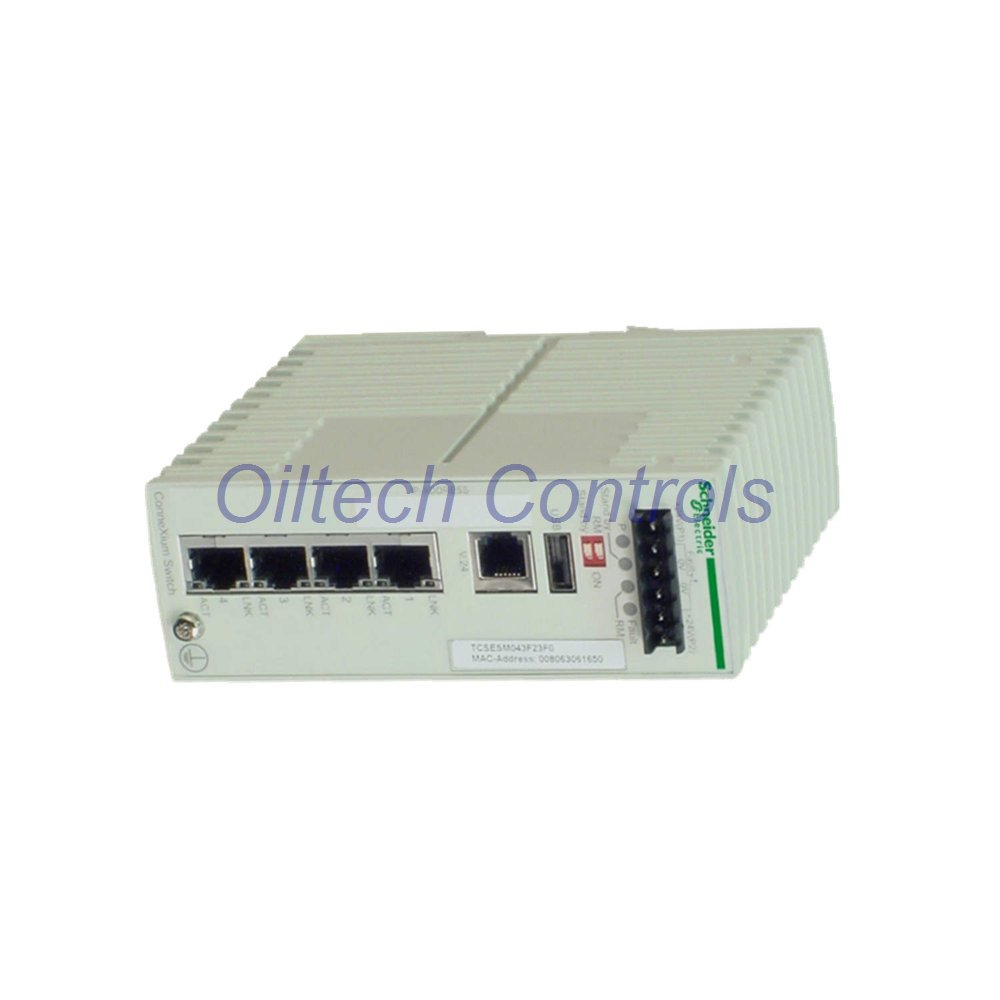

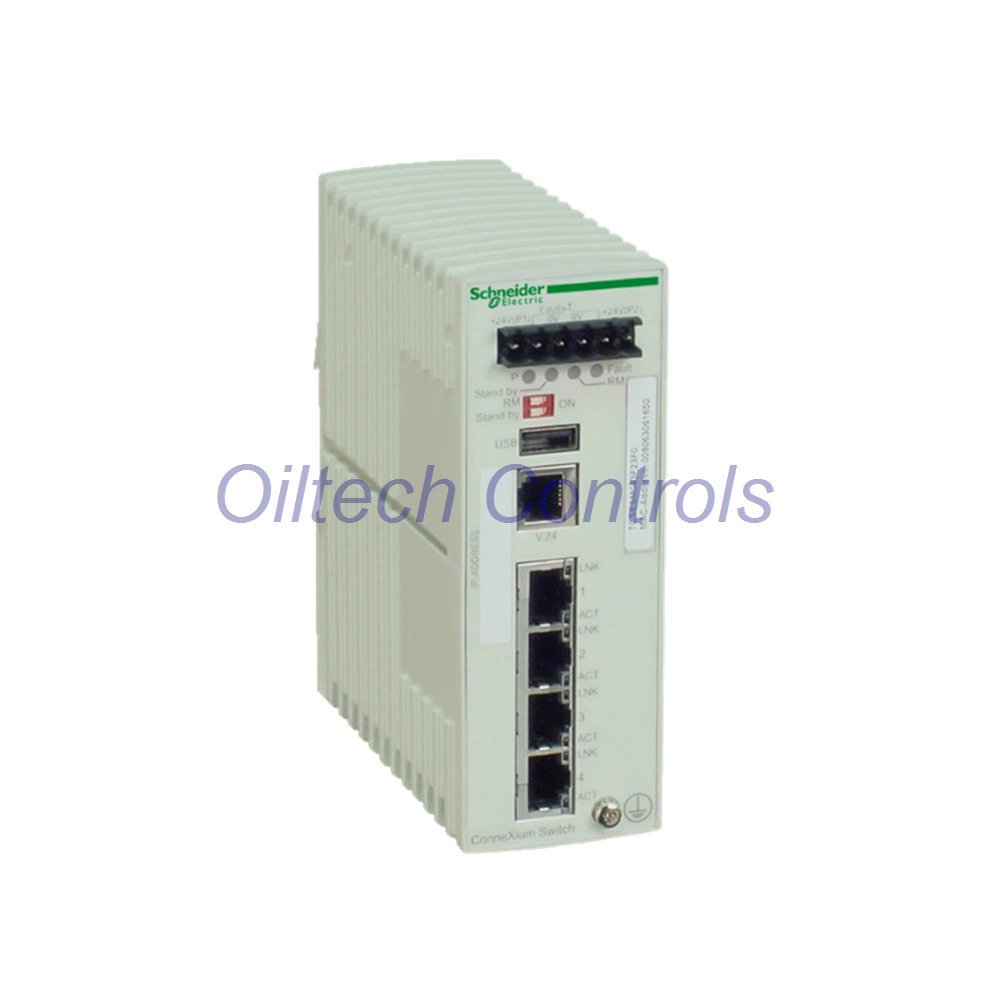

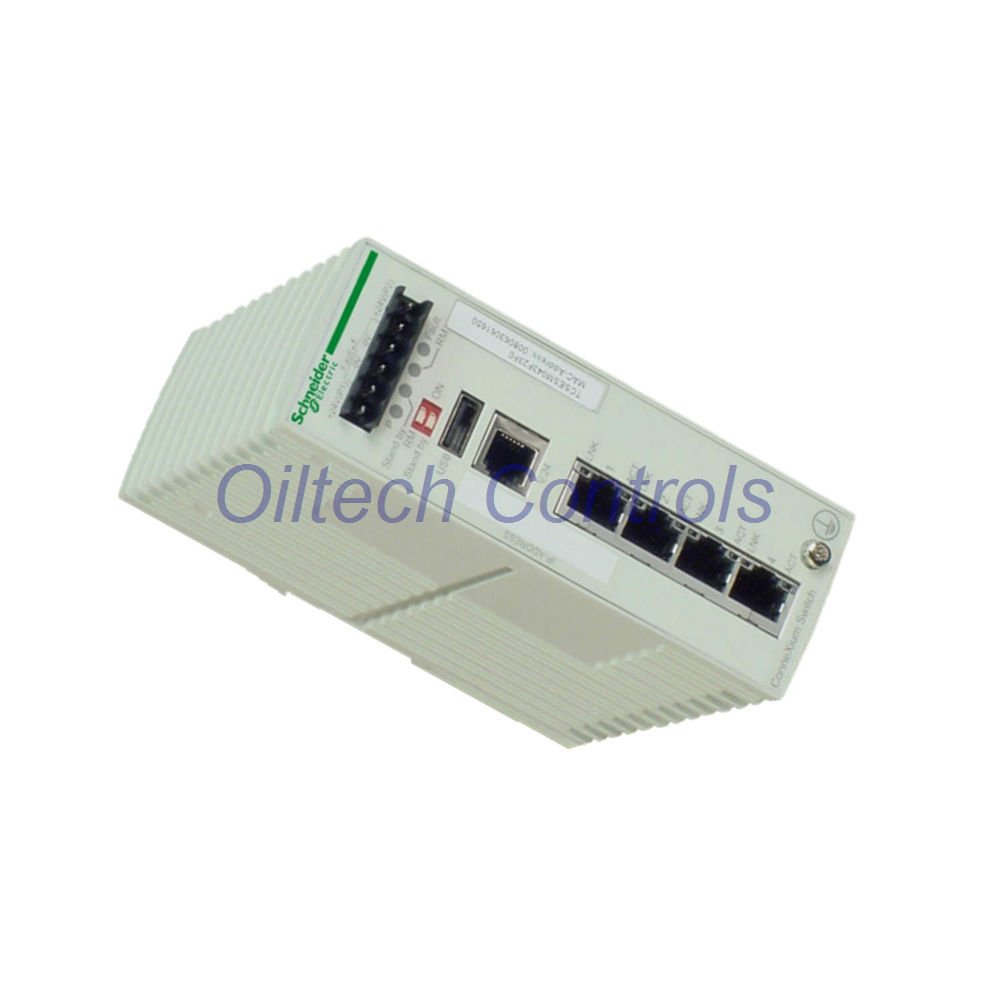

TCSESM043F23F0 is a managed Ethernet TCP/IP switch from the ConneXium series.
It offers 4 copper ports for 10BASE-T/100BASE-TX.
This switch supports RSTP, VLAN, and IGMP Snooping for robust industrial networks.
It works with Modicon Quantum (learn more) and other automation systems.
Redundant power inputs (9.6…60 V DC or 18…30 V AC) ensure high availability.

The device provides advanced diagnostics: fault alarms, link status, and ring manager LED.
It fits 35 mm DIN rails and operates from 0 °C to 60 °C.
Ideal for factory floors, process control, and critical infrastructure.

Technical Specifications

• Brand: Schneider Electric / ConneXium
• Model: TCSESM043F23F0
• Type: Managed Ethernet TCP/IP switch, 4 copper ports
• Ports: 4 x 10BASE-T/100BASE-TX (RJ45, shielded)
• Transmission: CAT 5E twisted shielded pairs
• Supply voltage: 9.6…60 V DC SELV / 18…30 V AC SELV
• Power consumption: 5.3 W max
• Redundancy: Dual power inputs, single ring (up to 50 switches)
• Network protocols: RSTP, VLAN, IGMP Snooping, SNTP, SMTP V3
• Alarm output: 1 volt-free contact (1 A) for fault, link, ring errors
• Diagnostics: LED for fault, P1/P2, ring manager, stand-by, port status
• Mounting: 35 mm symmetrical DIN rail
• Dimensions (W x H x D): 47 x 131 x 111 mm
• Weight: 0.4 kg
• Operating temp: 0…60 °C
• Humidity: 10…95 % non-condensing
• Protection: IP20

Installation & Commissioning

• Mounting: Snap onto 35 mm DIN rail (horizontal or vertical).
• Wiring: Use 6-way removable connector for power (P1/P2) and alarm.
• Configuration: Web server based – no extra software.
• Auto-negotiation: Each port automatically detects speed/duplex.
• Ring setup: Enable ring manager via web or CLI.
• LED check: Verify P1/P2 green, fault LED off after power-up.

Compatibility & Certification

• Compatible with: Modicon Quantum, M340, M580, and third-party PLCs.
• Standards: EN/IEC 61131-2, UL 1604 Cl.1 Div.2, UL 508, CSA C22.2 No.213/214.
• Certifications: C-Tick, GL (marine), CE marked.
• Environmental: 0…60 °C, 10-95% RH, IP20.

Diagnostics & FAQ

• Fault LED: Red indicates power, link, or ring error.
• Ring Manager LED: Shows active ring status.
• Port LEDs: Green for link, blinking for activity.
• Alarm relay: Triggers on power loss, switch fault, or ring break.
• FAQ – Q: Can I cascade unlimited switches? A: Yes, unlimited cascade.
• FAQ – Q: Max ring size? A: 50 switches.
• FAQ – Q: Supported VLAN? A: Yes, 802.1Q VLAN.

Packaging & Warranty

• Includes: Switch, 6-way power connector, quick start guide.
• Warranty: 12 months against defects.
