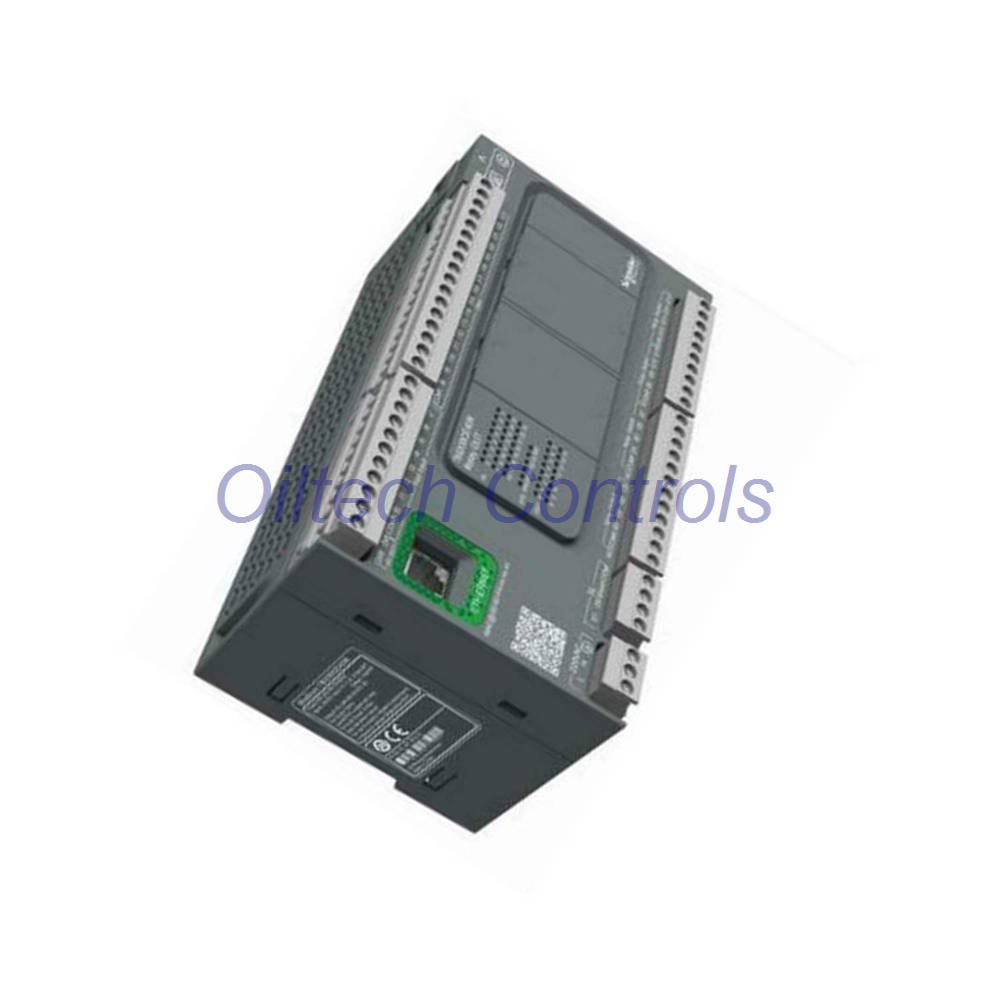

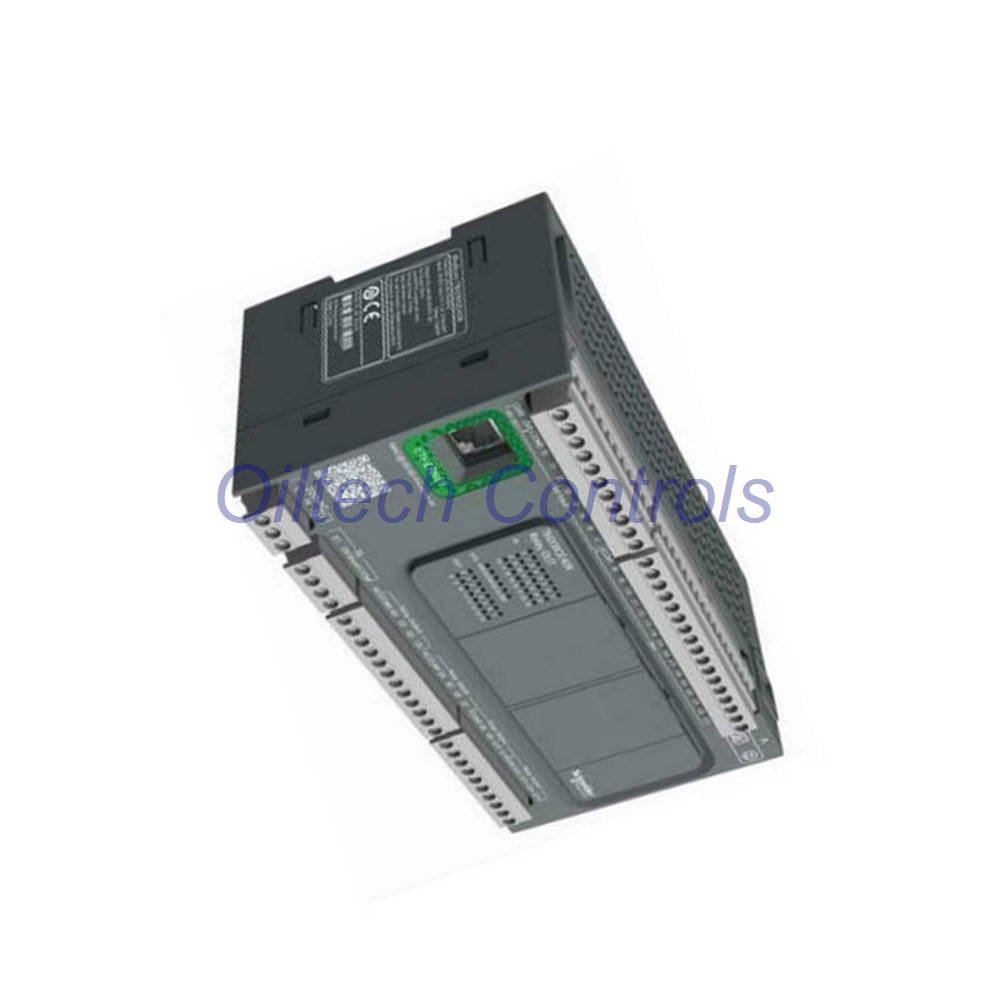

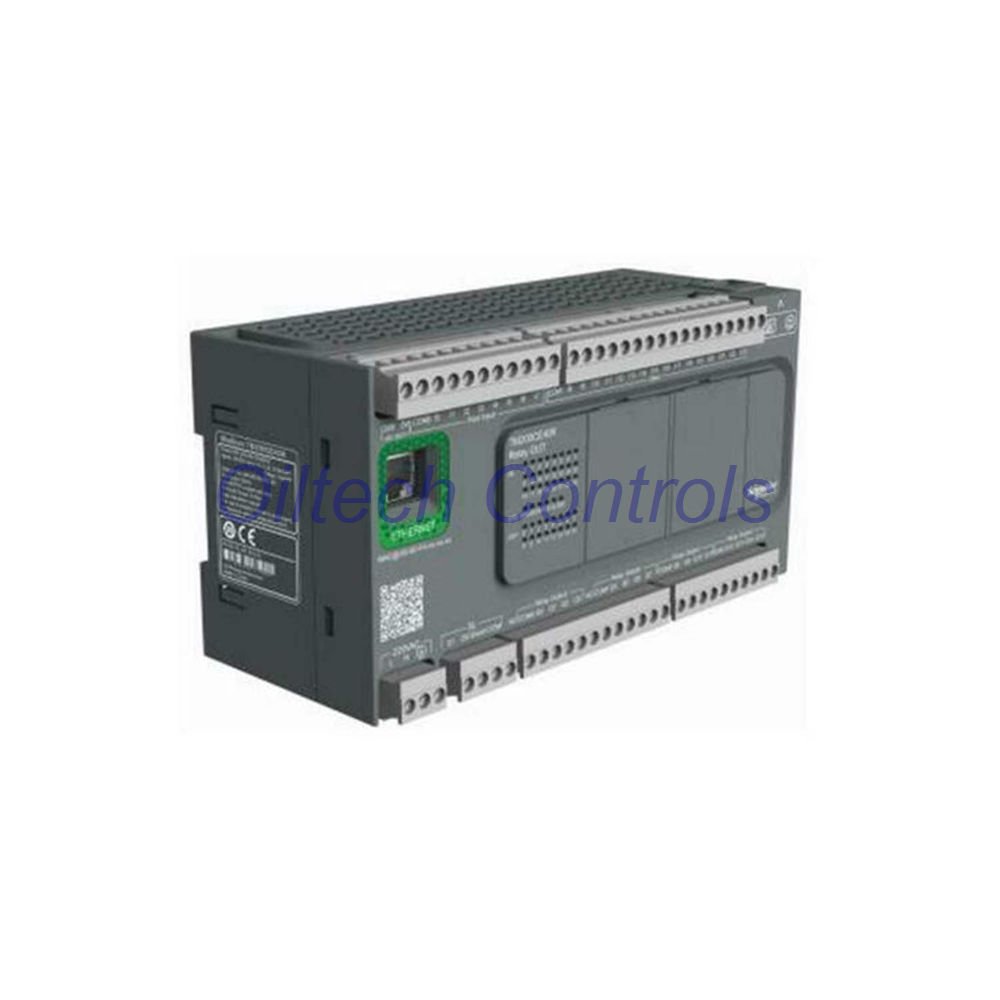

TM200CE40T Logic Controller – M200, 40 IO, Fast PWM/PLS

Product Short Description

TM200CE40T is a 24 V DC logic controller with 40 mixed I/O (24 in / 16 transistor source outputs), Ethernet Modbus TCP/IP, 2 x 100 kHz PWM/PTO outputs, and 4 high-speed counters. Ideal for motion and positioning tasks.

Technical Overview – TM200CE40T

• Brand / Series: Schneider Electric – Easy Modicon M200
• Model: TM200CE40T (controller M200 40 IO transistor Source+ Ethernet)
• Supply: 24 V DC (20.4…28.8 V limits), 18 W max
• Discrete I/O: 24 inputs (4 fast, 4 high-speed, 16 regular) + 16 transistor outputs (0.5 A, source logic)
• Motion features: 2 fast outputs Q0/Q1 for PWM/PLS/PTO up to 100 kHz
• High-speed counters: 4 inputs up to 100 kHz (quadrature, pulse/dir, CW/CCW)
• Ethernet: Built-in Modbus TCP/IP (10/100BASE-T, RJ45) client/server
• Serial links: RS485 + RS232/RS485 – Modbus RTU/ASCII
• Expansion: Up to 4 I/O modules (max 144 transistor or 64 relay outputs)
• Memory & Backup: 512 bytes flash; optional 32 GB micro SD; BR2032 battery (5 yr life)
• Performance: 0.3 ms / 1k instruction; 0.2 µs per Boolean; PID up to 14 loops
• Protection: Overload/short-circuit protection on outputs with auto-reset

Installation & Commissioning

• Mounting: 35 mm DIN rail (TH35-15 or TH35-7.5) or panel with fixing kit
• Wiring: Removable screw terminal blocks for power, inputs, outputs, and serial links
• Programming: USB mini-B (SoMachine-Network) or Ethernet (Modbus TCP/IP)
• Filtering: Configurable input filter (0, 3, 12 ms) for noise immunity
• LED diagnostics: PWR, RUN, ERR, SD, BAT, SL1, I/O state, Ethernet link/activity

Compatibility & Certifications

• Compatible with: Modicon M200 expansions, HMIs, VFDs, and third-party Modbus devices
• Standards: EN/IEC 61010-2-201, EN/IEC 61131-2
• Certifications: RCM, IACS E10, CSA, cULus, CE
• EMC immunity: ESD 8 kV air / 6 kV contact; burst 2 kV (power), 1 kV (I/O/serial); surge 0.5/1 kV DC power

Oiltech Controls Insight – Our Review

• Excellent for positioning and light motion control with built-in 100 kHz outputs.
• Transistor source outputs are ideal for driving solid-state relays or small actuators.
• Ethernet and serial ports provide flexible connectivity without extra gateways.
• Compact design saves panel space – fits tight enclosures.
• Reliable choice for OEM machine builders and system integrators.

Suitable Equipment & Applications

• Ideal for: Conveyor positioning, pick-and-place, winding machines, and packaging lines.
• Works with: Modbus TCP/IP HMIs, VFDs, remote I/O, and barcode scanners.
• Motion control: Stepper/servo drives via PWM/PTO signals.
• Process control: PID loops for temperature, pressure, or flow.
• Data logging: Optional micro SD for production data storage.

5 Professional FAQs – Experience & Selection Guide

• Q: Can I use this for closed-loop positioning?
  A: Yes, with external encoder feedback via high-speed inputs and PID/PWM outputs. For complex multi-axis, consider M241.
• Q: What is the maximum PWM frequency?
  A: Q0 and Q1 support up to 100 kHz. Useful for dimming, heating, or speed control.
• Q: Can I mix transistor and relay expansion modules?
  A: Yes, up to 4 modules total. Choose TM2 or TM3 digital/analog modules as needed.
• Q: Does it support Ethernet/IP or Profinet?
  A: No, only Modbus TCP/IP. For other protocols, use a gateway or choose M241/M251.
• Q: How do I protect outputs from short circuits?
  A: Built-in protection limits current at 2 A and auto-resets after 1 s – no external fuses needed for each output.
