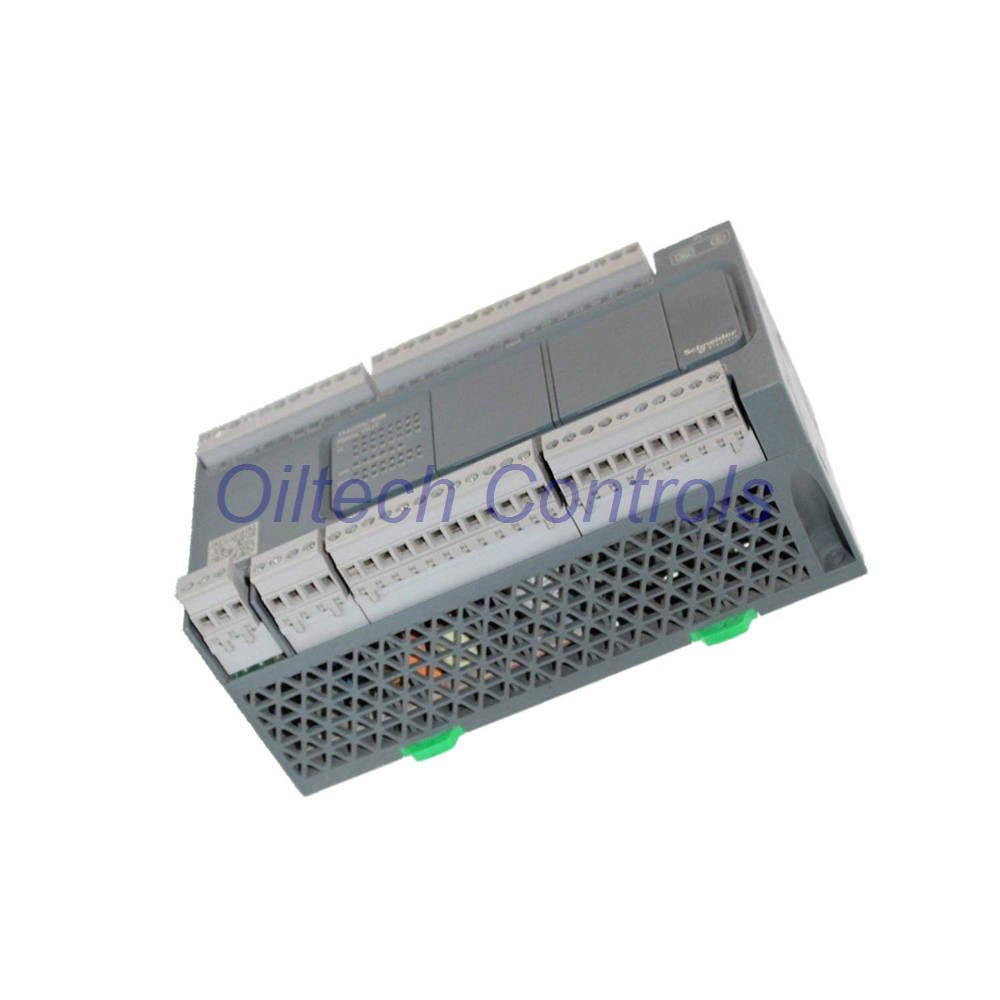

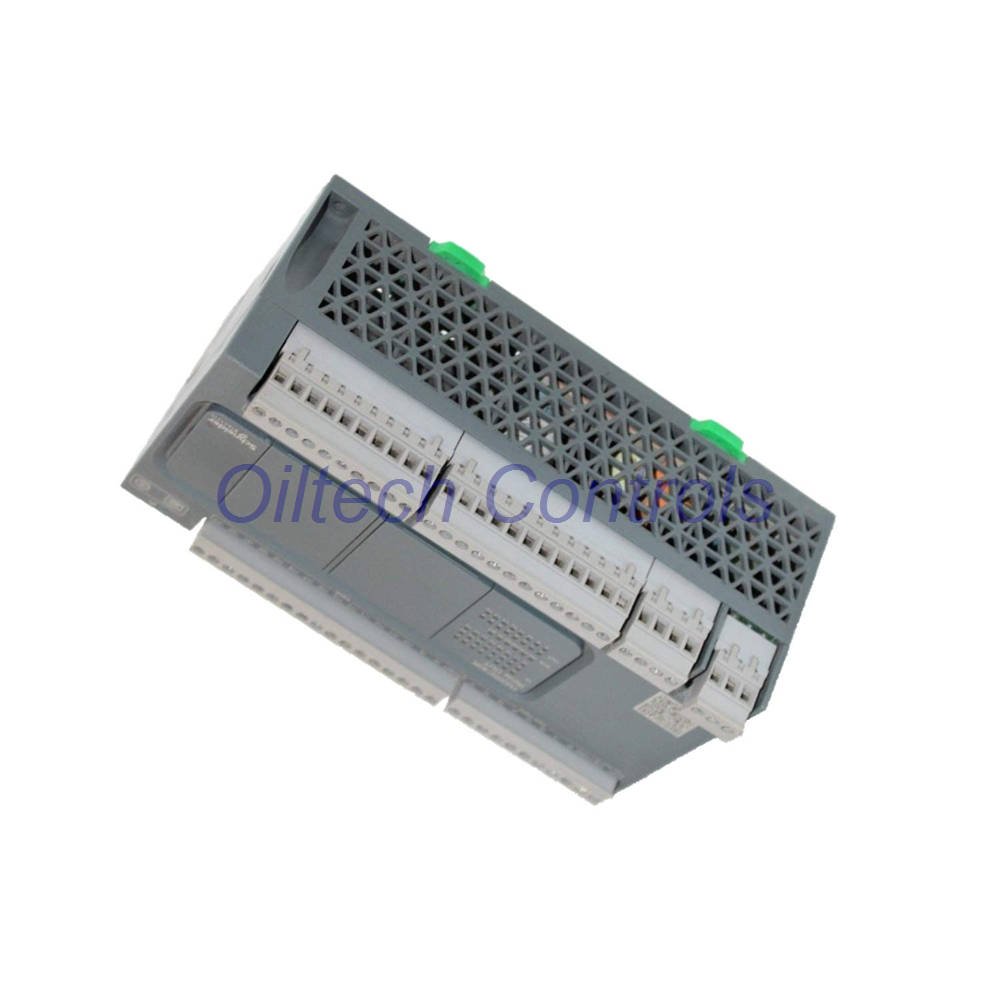

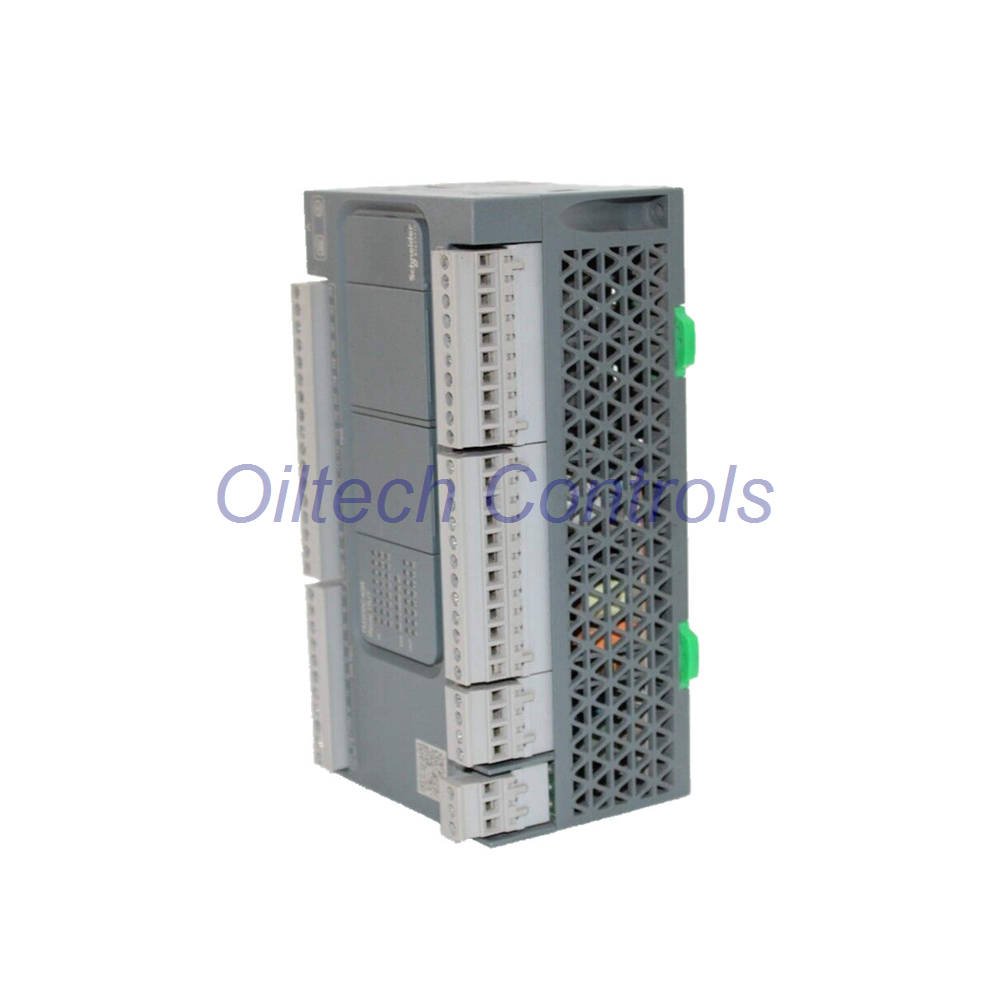

Schneider TM200C40R Modicon M200 Controller 40 I/O Relay

TM200C40R – Modicon M200 Logic Controller with 40 I/O Relay

Brand: Schneider Electric | Series: Easy Modicon M200 | Type: Logic Controller, 40 I/O, Relay Outputs

This compact controller delivers 100–240 V AC operation with 40 mixed I/O points (24 inputs, 16 relay outputs). It supports 4 high‑speed inputs (100 kHz) and 4 fast inputs for precise counting and positioning tasks. The embedded RS485/RS232 serial links enable Modbus RTU/ASCII communication, while the USB mini B port simplifies programming via SoMachine-Network. Ideal for small to medium automation systems requiring robust relay switching and flexible expansion.

Technical Specifications

Environmental & Certifications

• Operating temp: 0…55 °C (horizontal), storage -25…70 °C
• Humidity: 10–95 % non‑condensing
• Vibration: 3.5 mm / 1 gn (rail); 3.5 mm / 2 gn (panel)
• Shock: 15 gn / 11 ms
• EMC immunity: ESD 8 kV (air), 6 kV (contact); EFT 2 kV (power), 1 kV (I/O)
• Certifications: CE, cULus, RCM, CSA, IEC 61010‑2‑201
• IP rating: IP20 (with cover)

Installation & Connectivity

• Mounting: DIN rail TH35‑15/7.5 or panel (fixing kit included)
• Wiring: Removable screw terminals (inputs, outputs, power, serial)
• Cable distances: Inputs <50 m (unshielded), fast <10 m (shielded); Outputs <150 m
• Insulation: 1780 V AC (output‑logic, groups); 500 V AC (inputs‑logic)
• Sensor supply: 24 V DC / 300 mA (internal)

Diagnostics & Maintenance

• LEDs: PWR (green), RUN (green), ERR (red), SD (green), BAT (red), SL1 (green), I/O state per channel
• Configurable filtering: 0 / 3 / 12 ms for inputs
• PID regulation: Up to 14 simultaneous loops
• Clock drift: ≤90 s/month at 25 °C
• Battery replacement and micro SD access for easy data backup

Compatibility & Expansion

• Programming: SoMachine-Network via USB or Modbus serial
• Expansion I/O: Up to 4 modules (digital, analog, temperature)
• Supports Modbus RTU/ASCII master/slave on RS485/RS232
• Compatible with Schneider Electric TM2 expansion modules

Package Contents & Warranty

• TM200C40R controller unit, 4‑pin power terminal block, 3‑pin serial block
• Programming cable (USB mini B) – not included
• Warranty: 12 months from date of purchase (defects in material/workmanship)
• Shipping via FedEx, UPS, DHL – global express delivery

Typical Applications

• Packaging machinery, conveyor control, small assembly lines
• HVAC, pump stations, and material handling systems
• Counting, positioning, and speed monitoring (HSC mode)
• Replacement/upgrade for legacy Modicon controllers

Frequently Asked Questions

• Q: Can this controller run without a battery? A: Yes, but battery keeps RTC and program backup during power loss.
• Q: What is the maximum output current per common? A: 4 A per COM (0‑3).
• Q: Is it compatible with M200 expansion modules? A: Yes, up to 4 TM2 modules.
• Q: Does it support Micro SD cards? A: Yes, up to 32 GB for data logging.
