TCSEGPA23F14F
Profibus DP V1 Remote Master – Schneider Electric
Product Description

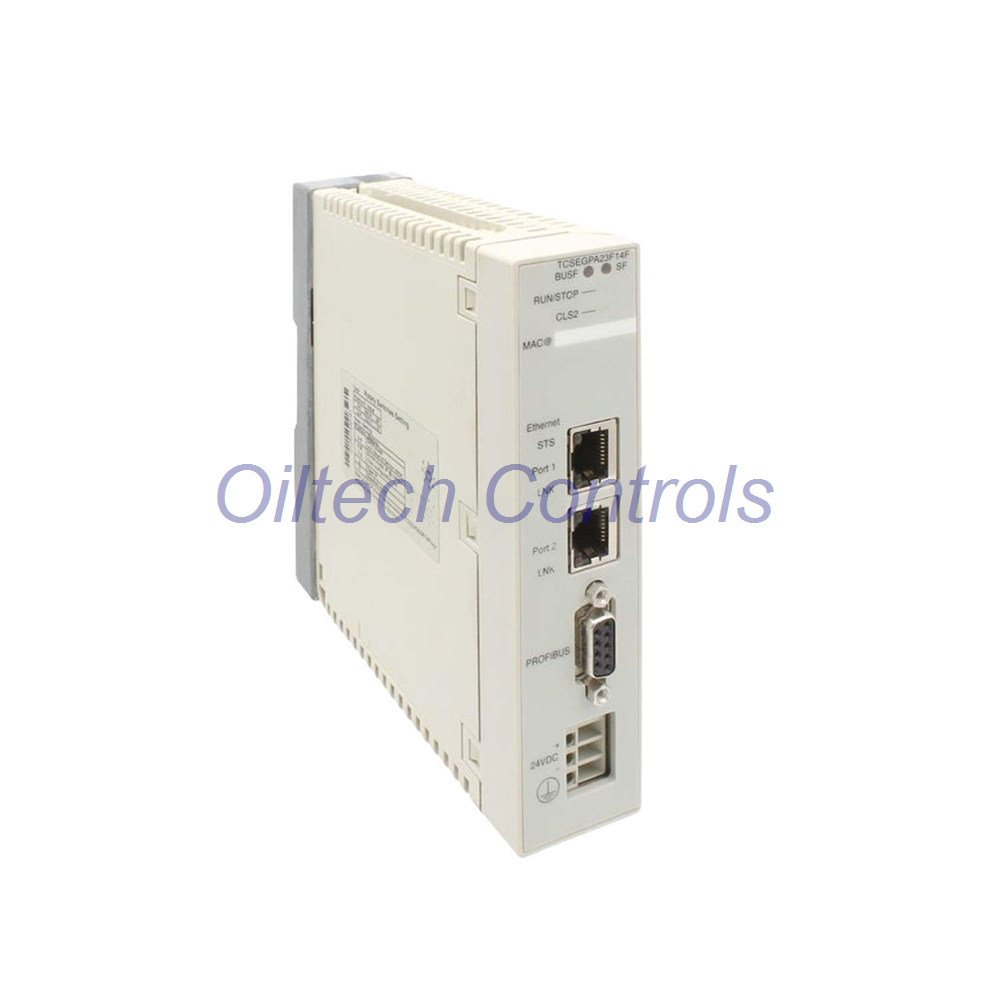

TCSEGPA23F14F is a Profibus DP V1 remote master gateway from Schneider Electric.
It acts as a Modbus TCP to Profibus DP V1 bridge. This gateway supports Premium, Quantum, M340, and M580 PLCs.
It operates as a Class 1 and Class 2 master on Profibus DP. The device also functions as a Modbus TCP slave.
It handles acyclic DP V1 communication (R/W) for both master classes.
The gateway integrates seamlessly with Modicon Quantum and other Modicon platforms.
It enables efficient data exchange between Ethernet networks and Profibus DP field devices.
This module is ideal for modernizing legacy Profibus installations.
Technical Specifications
| Brand | Schneider Electric |
| Model | TCSEGPA23F14F |
| Series / Type | Profibus DP V1 Remote Master / Modbus TCP to Profibus DP Gateway |
| PLC Compatibility | Premium, Quantum, M340, M580 |
| Physical Interface | RS485 (Profibus) + 2x Ethernet RJ45 (Modbus TCP) |
| Transmission Rate (Profibus) | 9.6 kbit/s – 12 Mbit/s (depends on cable length & repeaters) |
| Modbus TCP Speed | 10/100 Mbit/s, 100 m bus (without repeater) |
| Max Slave Nodes | 126 |
| I/O Points | 2 inputs / 2 outputs |
| Acyclic DP V1 | Supported (Read/Write) for Class 1/2 Master |
| Ambient Temp (Operation) | 0 °C … +60 °C |
| Storage Temp | -45 °C … +85 °C |
| Humidity | 10 … 95 % RH (non-condensing) |
| Power Supply | 24 V DC, 200 mA (external) |
| Weight | 0.62 kg |
| Mounting | Standard module format |
Key Technical Features
- Master Class 1 & 2 – full Profibus DP master functionality
- Modbus TCP Slave – easy integration with Ethernet networks
- Acyclic DP V1 – supports read/write parameterization
- Sync & Freeze – class 1 master control commands
- Diagnostic Data – transfers slave diagnostic info
- Check Slave Config – automatic verification on power-up
- Master Diag – get master diagnostic via class 2
- NRZ Transmission – reliable physical layer
Installation & Commissioning
- Cabling: Profibus uses 2 twisted shielded pairs; Modbus TCP uses CAT5e STP.
- Connectors: SUB-D 9 for Profibus DP, RJ45 for Ethernet.
- Configuration: Master DTM for PRM inside UNITY Pro software.
- Maintenance: standard module format, easy swap. No special tools.
- Diagnostics: supports Global CONTROL and Get Master Diag.
Environmental & Immunity
- Temp Range: 0…60°C operating, -45…85°C storage.
- Humidity: 10-95% non-condensing, robust for industrial sites.
- Altitude: up to 2000 m without derating.
- EMC Immunity: designed for harsh electrical environments (Profibus standard).
Compatibility & Certifications
- PLC: Premium, Quantum, M340, M580 (all Modicon).
- Protocols: Profibus DP V1, Modbus TCP, Ethernet IP.
- Certification: CE, UL (industrial control equipment).
- RoHS compliant – environmentally safe.
Package Contents & Warranty
- Included: TCSEGPA23F14F gateway, CD with Master DTM and communication DTM.
- Warranty: 12 months against manufacturing defects.
- Shipping: via FedEx, UPS, or DHL (global express).
Typical Applications & Diagnostics
- Application: connect Modicon PLCs to Profibus DP field devices (drives, I/O, sensors).
- Diagnostic: class 2 master diagnostic requests, slave parameter readback.
- Troubleshooting: built-in LED indicators, diagnostic data transfer.
Frequently Asked Questions
- Q: Does it support Profibus FMS? A: No, FMS not supported.
- Q: Max cable length? A: up to 1200 m at 9.6 kbit/s, 100 m at 12 Mbit/s.
- Q: Can I use 3 repeaters? A: Yes, extends bus to 400 m at 12 Mbit/s.
- Q: Software required? A: UNITY Pro with Master DTM provided.
Why Buy From Oiltech Controls?
- ✓ 15+ years industrial automation spare parts expertise.
- ✓ Global shipping – fast, insured, tracked.
- ✓ Tested surplus / refurbished options with full functionality.
- ✓ 12-month warranty on all products.
- ✓ Technical verification before shipment.
- ✓ Support for obsolete control systems – we keep you running.
