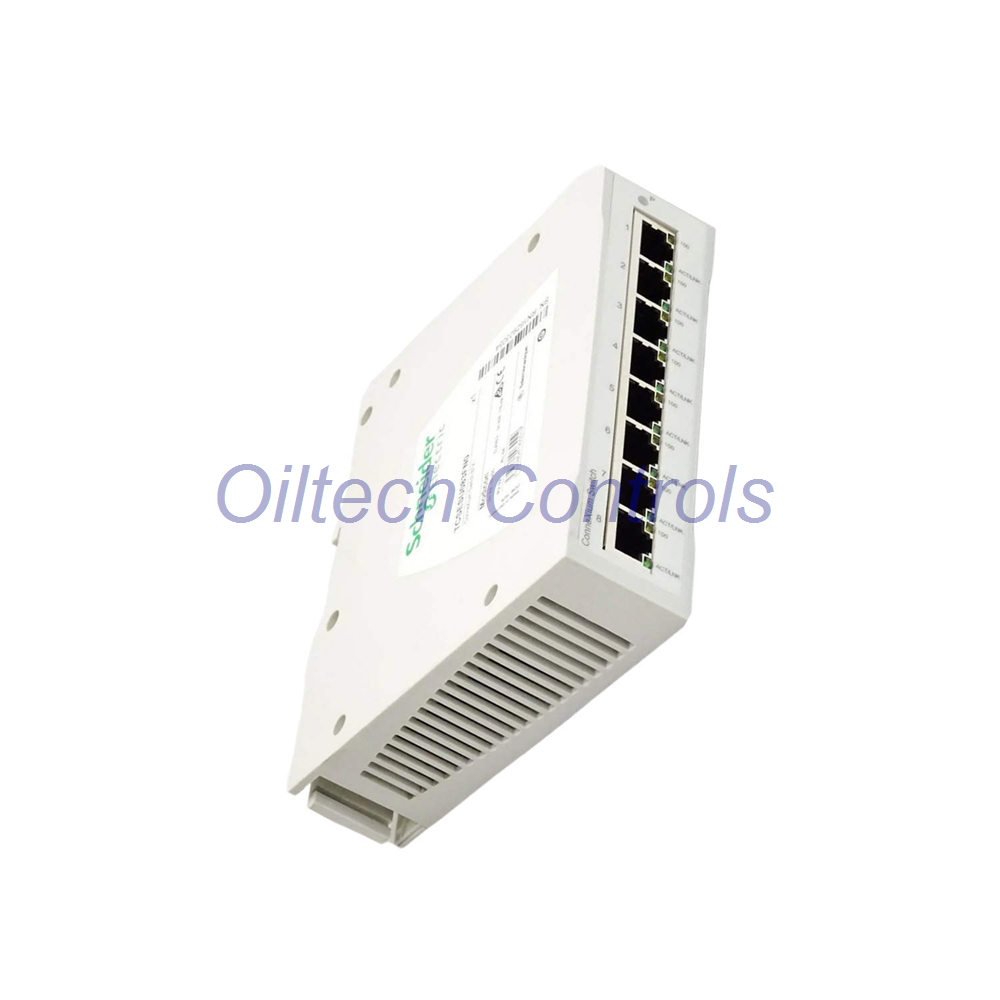

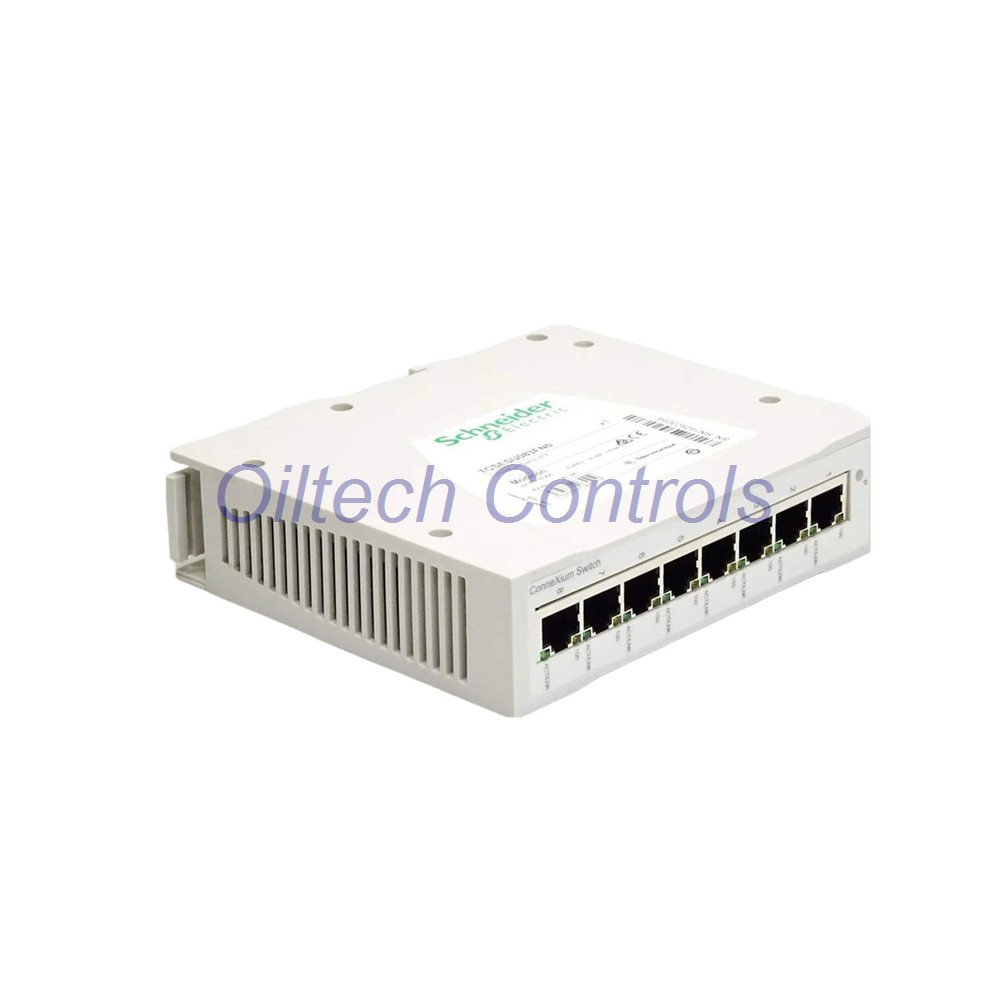

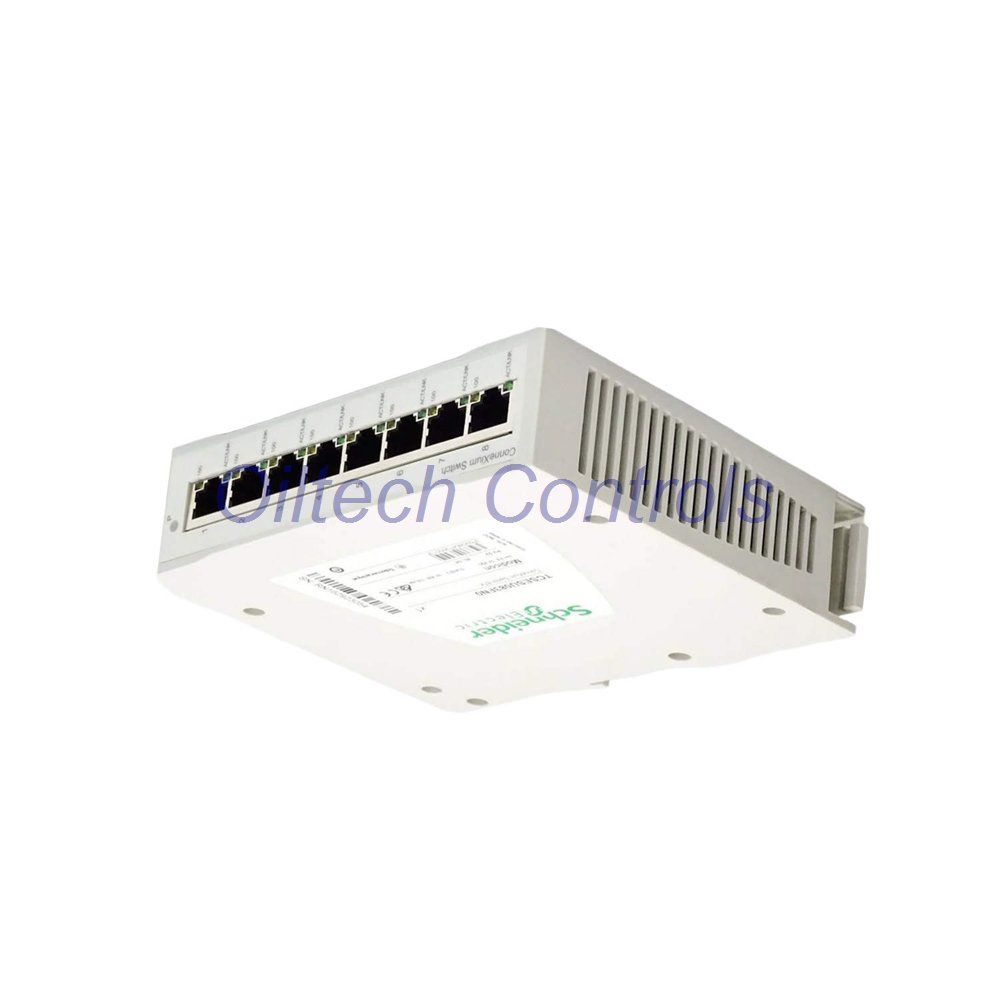

1. Product Overview
The TCSESU083FN0 belongs to the Schneider Electric ConneXium series. This unmanaged Ethernet switch provides 8 copper ports for 10/100 Mbps networks. It supports Transparent Ready architecture for seamless integration. Ideal for factory automation and machine control networks.
The switch operates with a 24V DC power supply (range 9.6…32V DC, SELV). It offers plug-and-play simplicity with auto-negotiation and auto-MDI/MDX. The compact DIN-rail design saves panel space.
2. Key Technical Specifications
| Brand | Schneider Electric (ConneXium) |
| Model | TCSESU083FN0 |
| Ports | 8 x 10BASE-T/100BASE-TX (copper, RJ45) |
| Protocol | Ethernet TCP/IP |
| Supply Voltage | 24V DC (9.6…32V DC SELV) |
| Power Consumption | 4.1 W |
| Operating Temp | 0…60 °C |
| Humidity | 0…95% RH (non-condensing) |
| Protection | IP30 |
| Mounting | 35 mm symmetrical DIN rail |
| Dimensions (WxHxD) | 35 x 138 x 121 mm |
| Weight | 0.246 kg |
- Cable type: Shielded twisted pair CAT 5E
- Auto-negotiation: 10/100 Mbps & duplex
- Auto-MDI/MDX: Yes, plus polarity correction
- LED indicators: Power, link/activity, speed (10/100)
- Electrical connection: 3-way removable terminal
3. Diagnostic & Environmental Capabilities
- Diagnostic LEDs – per-port link/activity and speed status.
- Temperature range: 0…60 °C, suitable for industrial floors.
- Humidity tolerance: 0…95% non-condensing.
- EMC immunity: Complies with industrial standards.
- Storage & forwarding with automatic data rerouting.
4. Installation & Maintenance
- DIN-rail clip – quick snap-on mounting (35 mm).
- Removable power connector – 3-way terminal for easy wiring.
- No configuration needed – plug and play.
- Maintenance: Periodic cleaning of RJ45 ports and LED check.
- Rugged metal housing protects against vibration.
5. Compatibility & Applications
Fully compatible with Modicon Quantum and other PLC systems. Supports unlimited cascade for network expansion.
- Typical uses: Factory automation, conveyor control, packaging machines.
- Connects sensors, drives, and HMIs in TCP/IP networks.
- Works with Transparent Ready devices for seamless data exchange.
6. Certifications & Standards
- CE marked
- CSA C22.2 No 142
- cUL 508 listed
- Complies with IP30 protection
7. Package Contents & Warranty
- Included: TCSESU083FN0 switch, 3-way power connector, DIN-rail clip, user manual (digital).
- Warranty: 12 months against manufacturing defects.
- Shipping: FedEx, UPS, DHL worldwide.
8. Frequently Asked Questions
- Q: Can I cascade multiple units? – Yes, unlimited cascade supported.
- Q: Is configuration software required? – No, it is unmanaged and plug-and-play.
- Q: What cable do I need? – CAT 5E shielded twisted pair.
- Q: Does it support 100 Mbps? – Yes, with auto-negotiation.
