Schneider ATV71HU30N4 Variable Speed Drive 380-480V

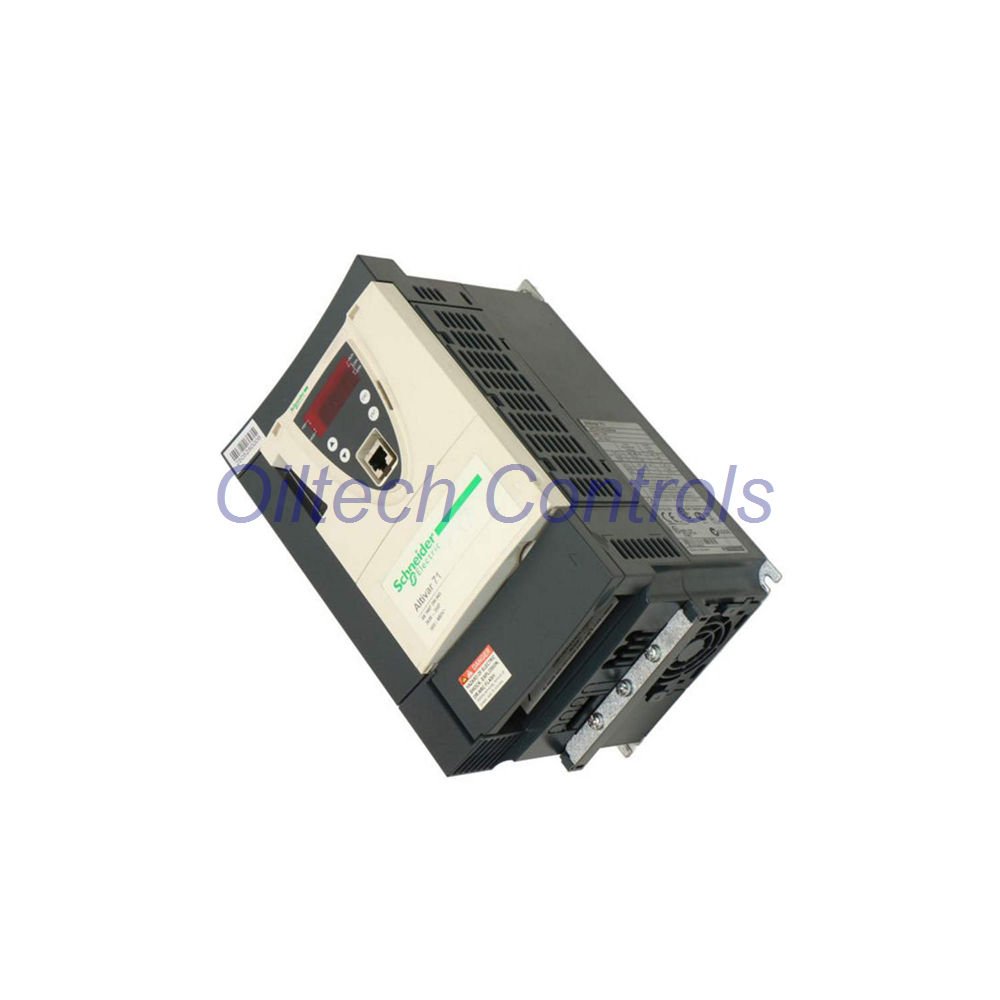

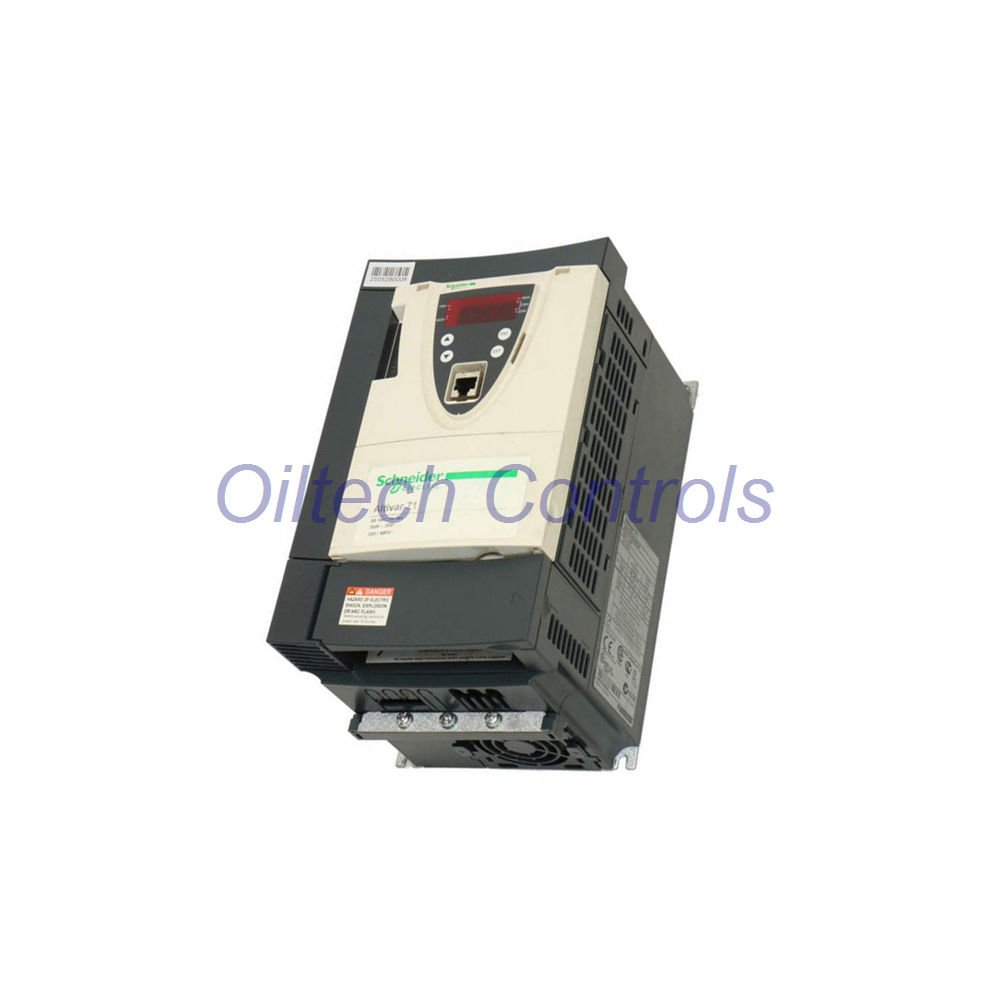

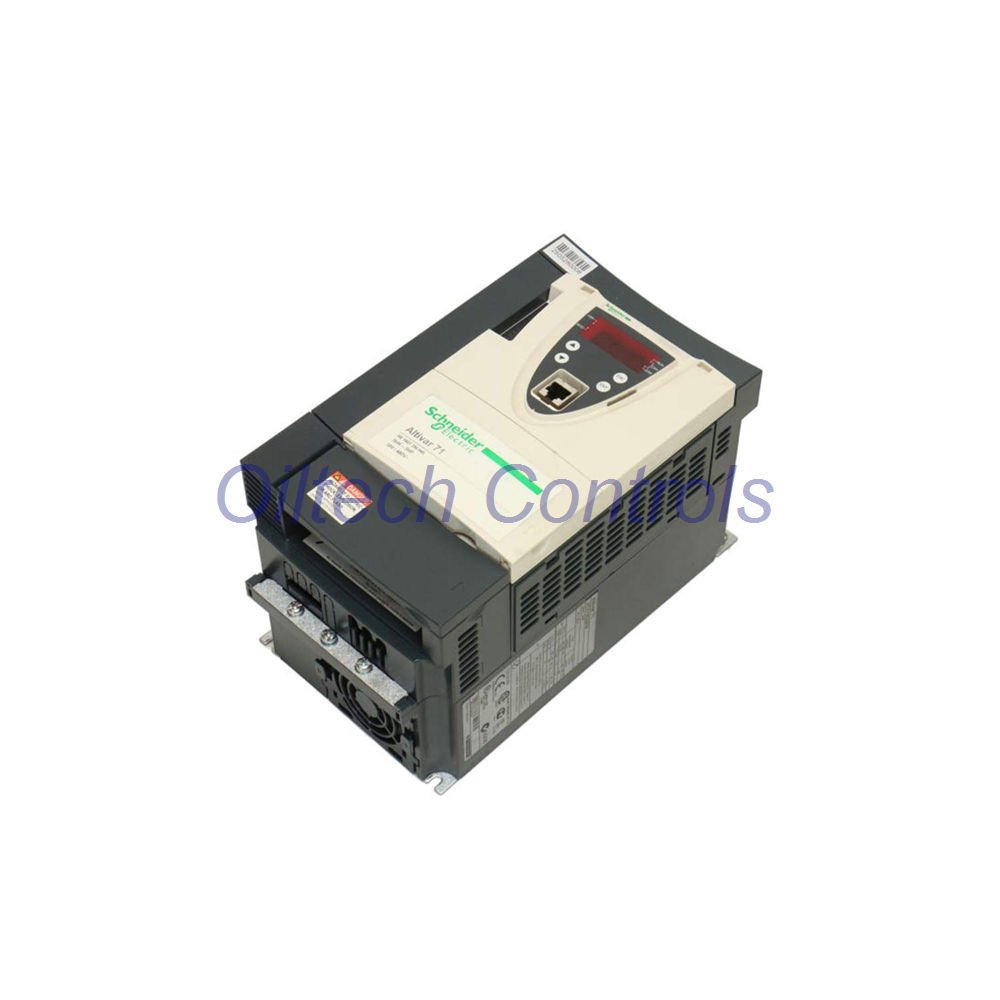

ATV71HU30N4 – Schneider Electric Altivar 71 Variable Speed Drive

Brand: Schneider Electric | Series: Altivar 71 | Part Number: ATV71HU30N4 | UPC: 785901602866

Industrial-grade variable speed drive for 3-phase asynchronous and synchronous motors. Supports 3 kW (3 HP) power, 380-480 VAC input, and 0.1-599 Hz output frequency. Integrated EMC filter and heat sink for harsh environments.

Oiltech Controls’s Insight

• Proven reliability for high-power machines in continuous operation.
• Sensorless flux vector control ensures stable torque down to 0.2 Hz.
• Built-for-purpose: handles unbalanced loads with ENA energy adaptation.
• Easy integration with Modbus and CANopen for legacy and new systems.

Key Technical Data

• Output Current: 6.2-7.8 A (4 kHz, 380-460 V)
• Max Transient Current: 11.7 A (60 s) / 12.9 A (2 s)
• Switching Frequency: 1-16 kHz (4-16 kHz with derating)
• Control Modes: V/f, Sensorless Flux Vector, Closed-loop Flux Vector
• Speed Range: 1-100 (open loop) / 1-1000 (closed loop with encoder)
• Torque Accuracy: ±15 % (open loop) / ±5 % (closed loop)
• Braking Torque: ≤150 % with braking resistor
• Protection: Overcurrent, overvoltage, undervoltage, thermal, phase loss

Environmental & Mechanical

• Operating Temp: -10 °C to +50 °C (no derating)
• Storage Temp: -25 °C to +70 °C
• Altitude: 1000 m without derating; up to 3000 m with 1 % derating per 100 m
• IP Rating: IP20 (enclosure mounting recommended)
• Dimensions: 260 x 155 x 187 mm (H x W x D)
• Weight: 4.0 kg (8.8 lbs)
• Vibration: 1.5 mm peak-to-peak (3-13 Hz) / 1 gn (13-200 Hz)

Connectivity & I/O

• Analog Inputs: 2 (differential ±10 V, configurable 0-20 mA / 0-10 V)
• Analog Output: 1 (0-20 mA / 0-10 V, configurable)
• Discrete Inputs: 7 (including PTC probe input and safety input)
• Relay Outputs: 2 (R1: NO/NC, R2: NO)
• Communication: Modbus (RJ45) + CANopen (SUB-D 9)
• Internal Supply: 10.5 V DC (potentiometer) / 24 V DC (200 mA)

Certifications & Compliance

• Standards: EN/IEC 61800-5-1, EN 61800-3 (C2), UL Type 1
• Certifications: UL, CSA, GOST, NOM 117, C-tick
• EMC Immunity: Level 3 (ESD, burst, surge, RF) per IEC 61000-4
• Pollution Degree: 2
• Marking: CE

Typical Applications (Compatible Equipment)

• Conveyors, hoists, overhead cranes – high starting torque required
• Centrifugal pumps, fans, compressors – variable flow control
• Extruders, mixers, agitators – constant torque at low speed
• Textile machinery, printing presses – precise speed synchronisation
• Test benches, winders, unwinders – closed-loop tension control

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spares – we know the hardware.
• Global shipping with FedEx, UPS, DHL – 24-28 hours dispatch.
• Tested surplus / refurbished options with full functional check.
• 12-month warranty on all drives.
• Pre-shipment technical verification per your application.
• Obsolescence support – we source legacy parts worldwide.

Professional FAQ – Practical & Selection Guide

• Q: Can this drive run a 5 HP motor continuously?
  A: Yes, with derating above 50 °C. For 5 HP (3.7 kW), reduce switching frequency to 4 kHz or ensure forced cooling. We recommend checking the motor nameplate FLA.
• Q: What is the difference between open-loop and closed-loop flux vector?
  A: Open-loop (SFVC) works without encoder – good for 95 % of applications. Closed-loop (FVC) requires an encoder and delivers ±0.01 % speed accuracy for hoisting or positioning.
• Q: How to wire the PTC probe input for motor thermal protection?
  A: Connect the PTC sensor to LI6 and set the switch to PTC position. The drive will trip on over-temperature – a simple and reliable protection.
• Q: Does this model support Safe Torque Off (STO)?
  A: Yes, the PWR input (ISO 13849-1 level d) provides STO function. Response time ≤ 100 ms – suitable for emergency stop circuits.
• Q: Which communication card should I choose for Profibus or EtherNet/IP?
  A: This drive accepts optional cards: Profibus DP V1, EtherNet/IP, DeviceNet, Modbus TCP, and more. Select based on your PLC network. We can advise on compatibility.

Ordering & Shipping Information

• Part Number: ATV71HU30N4
• GTIN: 00785901602866
• Category: US1CP4C22130
• Shipping: FedEx, UPS, DHL – 24-28 hours handling
• Warranty: 12 months from invoice date
