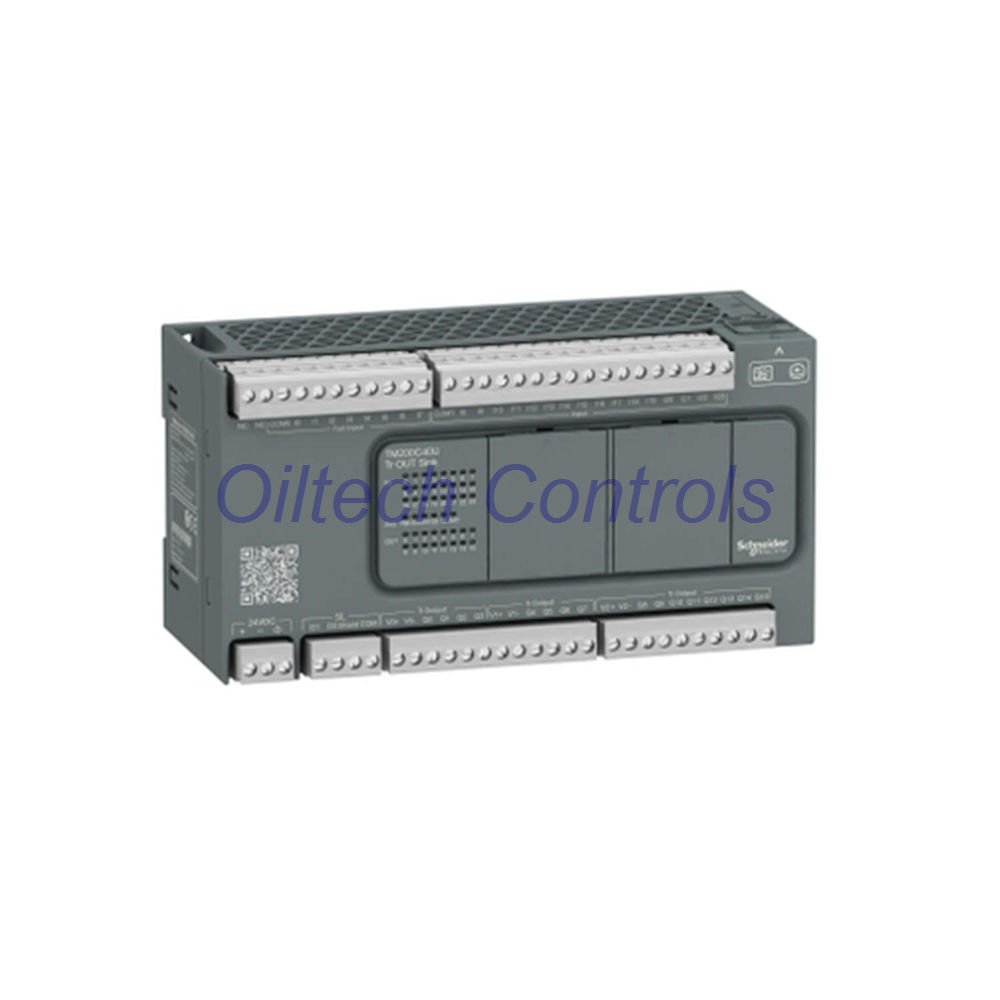

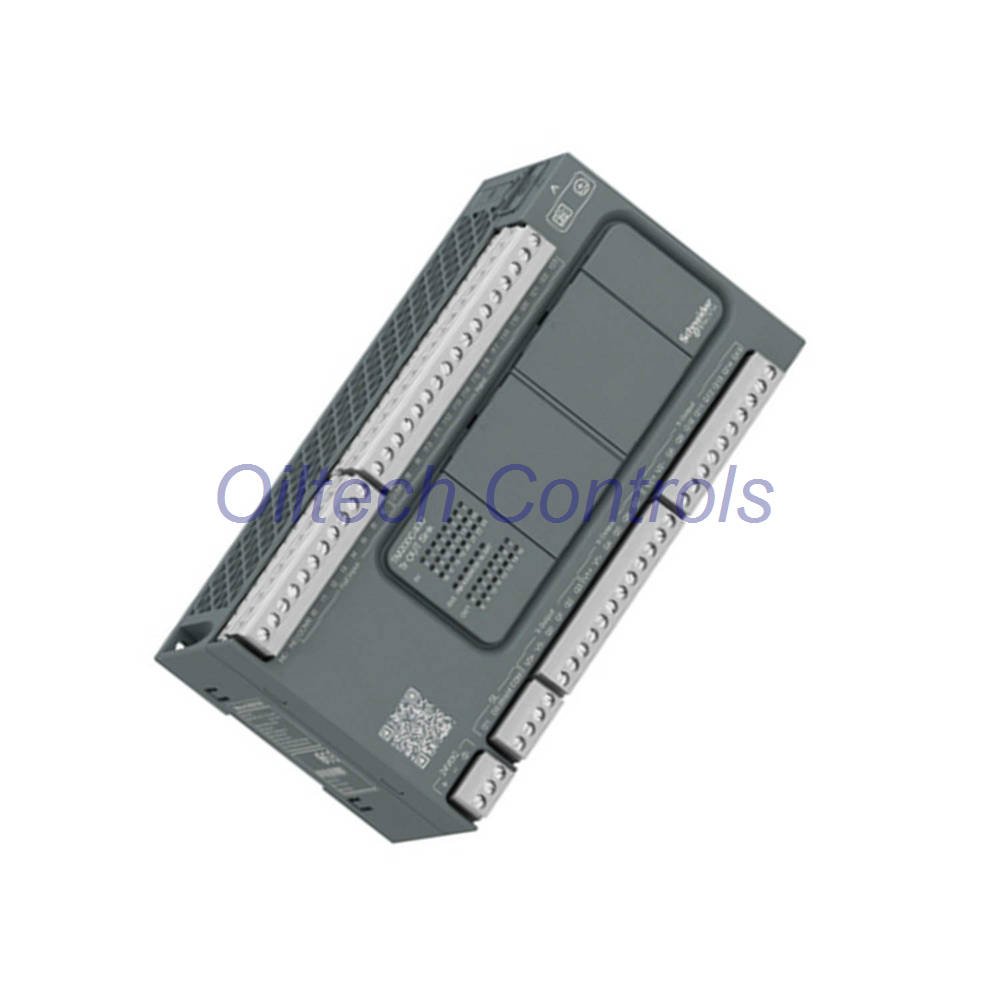

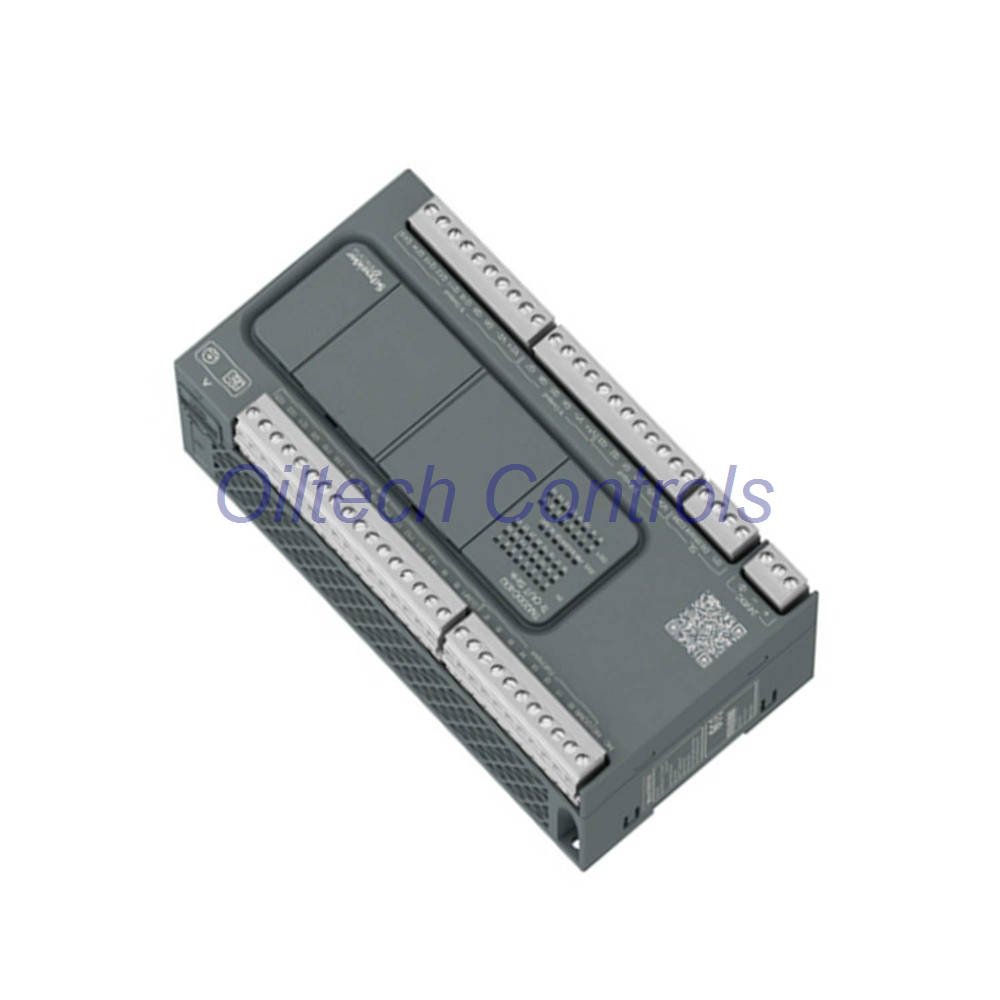

TM200C40U
Logic Controller – M200 40 IO Transistor SINK – Schneider Electric

Product Overview

• TM200C40U – compact logic controller from Easy Modicon M200 series.
• Runs on 24 V DC supply, with 40 discrete I/O.
• Includes 4 high-speed inputs (100 kHz) and 2 fast outputs (PWM/PTO).
• Transistor outputs – negative logic (sink) type.
• Supports Modbus RTU/ASCII, USB programming, and up to 4 expansion modules.
• Ideal for positioning, conveying, packaging, and small machine control.

Oiltech Controls’s Insight

• The TM200C40U suits applications needing fast counting and precise output.
• Its 100 kHz high-speed inputs handle encoders and pulse signals reliably.
• The 2 fast outputs (PWM/PTO) enable speed control and stepper drive.
• With 14 transistor outputs (0.5 A each), it drives solenoids and small relays.
• Built-in PID (14 loops) handles temperature, pressure, or flow regulation.

Key Technical Data

• Brand: Schneider Electric
• Model: TM200C40U
• Supply: 24 V DC (20.4…28.8 V), 10 W
• I/O Count: 40 – 24 inputs (4 HS, 4 fast, 16 regular) + 16 outputs (2 fast, 14 transistor)
• High-Speed Input: 100 kHz (Quadrature, Pulse/Dir, CW/CCW)
• Fast Output: 2 channels – PWM/PLS/PTO mode at 100 kHz
• Output Current: 0.5 A per point, 2 A per common (COM0/1), 4 A (COM2)
• Response Time: 1 ms (outputs), 5 µs (HS inputs), 35 µs (fast inputs)
• Memory: 512 bytes flash, 32 GB SD card (optional)
• Battery: BR2032 – 5 years life, 3 years backup
• PID Loops: Up to 14 adjustable loops
• Communication: RS232/RS485 (Modbus), USB mini B
• Temp Range: 0…55°C (operation), -25…70°C (storage)
• Protection: IP20, overload & short-circuit (3.8 A trip)
• Weight: 0.468 kg, dimensions 175 x 90 x 70 mm

Environmental & Immunity

• EMC: 8 kV ESD, 10 V/m radiated, 2 kV burst, 2 kV surge (AC lines)
• Vibration: 3.5 mm (5-8.4 Hz), 1 gn (8.4-150 Hz) on rail
• Shock: 15 gn / 11 ms, 30 gn / 6 ms
• Humidity: 10-95% non-condensing
• Pollution Degree: 2 – suitable for industrial floors
• Altitude: 2000 m operating, 3000 m storage

Installation & Commissioning

• Mounting: DIN rail TH35-15 or panel (with kit)
• Wiring: Removable screw terminals for I/O, power, and serial
• Programming: Via USB mini B or RS232/RS485 link
• Software: SoMachine-Network compatible
• Diagnostics: LEDs for PWR, RUN, ERR, SD, BAT, SL1, and I/O status
• Maintenance: Easy swap, auto-reset on overload (3.8 A)

Compatibility & Certifications

• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
• Certifications: CSA, cULus, IACS E10, RCM, CE
• Expansion: Up to 4 modules (relay or transistor outputs)
• Protocol: Modbus master/slave over RS485/RS232

Typical Applications & Diagnostics

• Suitable for: conveyors, packaging lines, small robots, pump controls, labeling machines
• Diagnostic: Real-time I/O monitoring, error LED, battery low alert, SD access indicator
• Troubleshooting: Use SoMachine to read diagnostic logs and check module status

Package, Warranty & Shipping

• Included: TM200C40U controller, terminal blocks, mounting accessories
• Warranty: 12 months against manufacturing defects
• Shipping: FedEx, UPS, DHL – dispatched within 24-28 hours
• Package: 7.0 kg, dimensions 13.8 x 18.4 x 9.0 cm

Expert FAQ – Selection & Experience

• Q1: Which motors can I control with the fast outputs?
  A: The 100 kHz PWM/PTO outputs drive stepper drives, servo amplifiers, or small DC motors. They support pulse-train positioning.
• Q2: How many expansion modules can I add?
  A: You can connect up to 4 expansion modules. Choose relay or transistor types depending on your load needs.
• Q3: What is the difference between sink and source outputs?
  A: This model uses sink (negative logic) outputs. They connect the load to 0V. Make sure your devices match this configuration.
• Q4: Can I use it for temperature control?
  A: Yes. The built-in PID controller (up to 14 loops) handles temperature, pressure, or flow. Use analog expansion modules for sensor inputs.
• Q5: What should I check before buying?
  A: Verify your supply is 24V DC. Count your high-speed inputs and output current requirements. Check that your software supports SoMachine-Network.
