TCSESB083F2CU0 – ConneXium Managed Switch · 6TX/2FX Multimode
Product Overview
TCSESB083F2CU0 belongs to the ConneXium family from Schneider Electric.

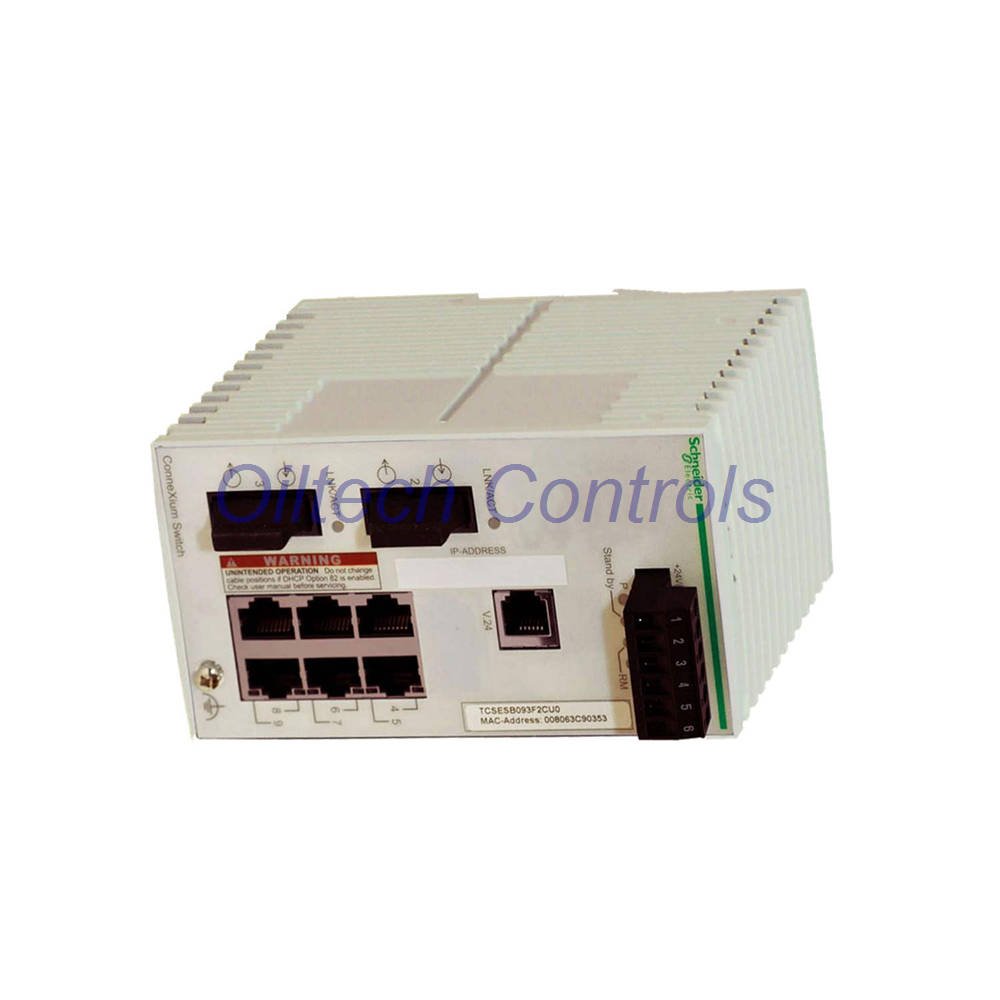

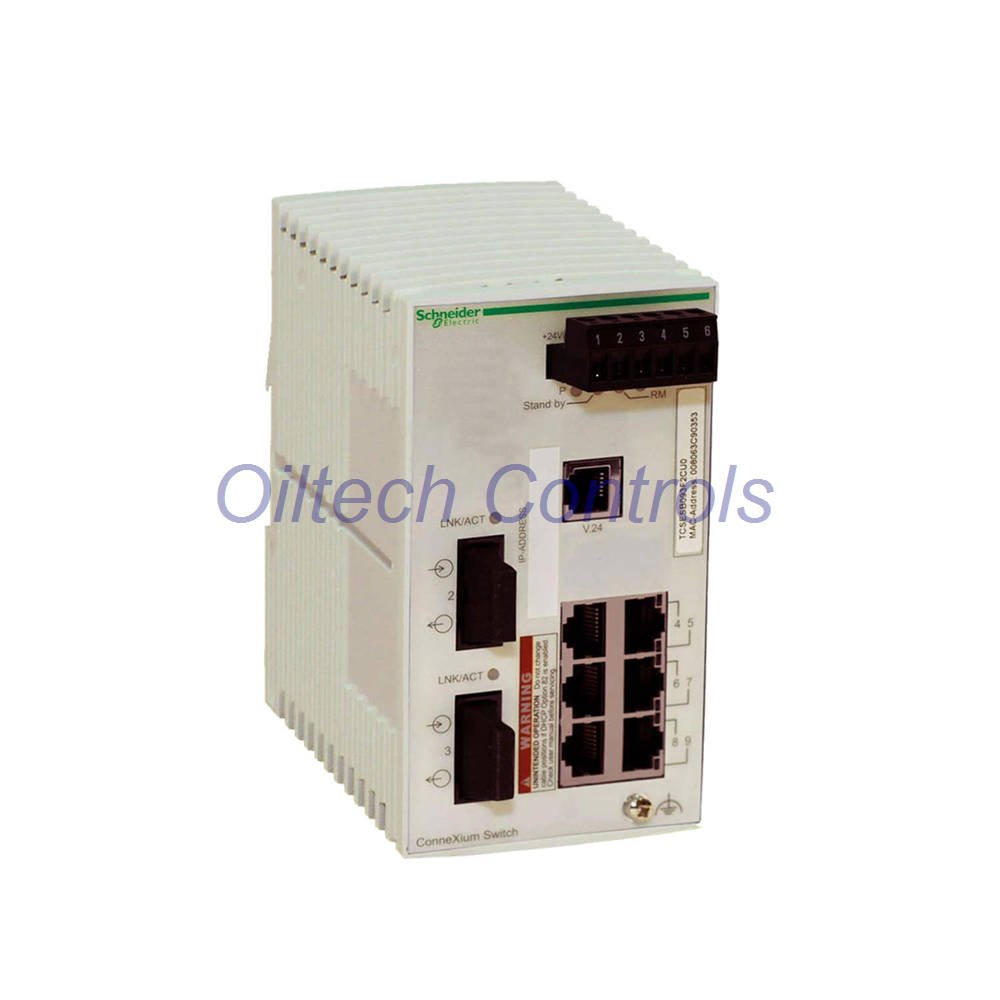

This Ethernet TCP/IP basic managed switch provides 6x 10/100BASE-TX copper ports and 2x 100BASE-FX multimode fiber ports (Duplex SC).
It supports Transparent Ready concept with unlimited cascade capability.
Designed for industrial automation, it ensures reliable data exchange in harsh environments.
Technical Specifications
| Brand | Schneider Electric (ConneXium) |
| Model | TCSESB083F2CU0 |
| Product Type | Ethernet TCP/IP basic managed switch |
| Copper Ports | 6x 10BASE-T/100BASE-TX (RJ45 shielded) |
| Fiber Ports | 2x 100BASE-FX (Duplex SC, multimode) |
| Fiber Attenuation | 11 dB (62.5/125 µm) · 8 dB (50/125 µm) |
| Cable Support | CAT 5E twisted shielded pairs · multimode fiber |
| Redundancy | Redundant power inputs · single ring · ring coupling · up to 50 switches in ring |
| Protocols | RSTP, IGMP Snooping, multicast filtering, priority port, secure port, SMTP V3, SNTP client |
| Management | Web server configuration · data stream control · FDR |
| Cascade Limit | Unlimited |
Electrical & Environmental
- Supply Voltage: 9.6…32 V DC (SELV)
- Power Consumption: 8 W typical
- Operating Temp: 0…+60 °C (no condensation, 0…95% RH)
- Protection: IP20 (DIN rail mount, 35 mm symmetrical rail)
- Alarm Output: 1x volt-free contact (1 A) for power fault, switch fault, link status
- Dimensions: 74 × 131 × 111 mm (W×H×D) · Weight 0.41 kg
Diagnostics & Compatibility
- Local Signalling: Fault LED, P1/P2 power LEDs, ring manager, standby, per-port activity/link
- Diagnostic Tools: IGMP Snooping, multicast filtering, RSTP, FDR, SNTP client
- Compatibility: Transparent Ready · works with Modicon Quantum and other industrial PLCs
- Standards: EN/IEC 61131-2, UL 1604 Class 1 Div 2, UL 508, CSA C22.2 No. 213, CSA No. 214
Mounting & Commissioning
- Mounting: 35 mm symmetrical DIN rail · removable 6-way power connector
- Configuration: Web server access · easy setup via standard browser
- Maintenance: Hot-swappable power inputs · LED diagnostics for fast troubleshooting
- Interference Immunity: Meets industrial EMC standards · shielded RJ45 and fiber optics
Certifications & Package
- Approvals: CE, UL, CSA · suitable for Class I Division 2 hazardous locations
- Package Includes: switch unit, 6-way power connector, quick start guide (no cables included)
- Warranty: 12-month limited warranty against defects
- Shipping: FedEx, UPS, DHL · global express delivery
Why Buy From Oiltech Controls?
- ✓ 15+ years in industrial automation spare parts
- ✓ Global shipment support – fast & reliable
- ✓ Tested industrial surplus / refurbished options
- ✓ 12-month warranty on every product
- ✓ Technical verification before shipment
- ✓ Support for obsolete control systems (including Modicon Quantum)
Contact:
info@oiltechcontrols.com ·
+86 158 8020 0923 (WhatsApp)
Typical Applications
- • Factory automation networks · conveyor control
- • SCADA systems · remote I/O connections
- • Machine building · motion control backbones
- • Redundant ring topologies in critical processes
Frequently Asked Questions
- Q: Does it support 1000BASE? – No, it is 10/100BASE-TX and 100BASE-FX only.
- Q: Can I use single-mode fiber? – No, designed for multimode (62.5/125 or 50/125).
- Q: Is configuration saved after power loss? – Yes, settings are stored in non-volatile memory.
- Q: What is the max ring size? – Up to 50 switches in a single ring.
- Q: Does it come with power supply? – No, power supply is ordered separately.
