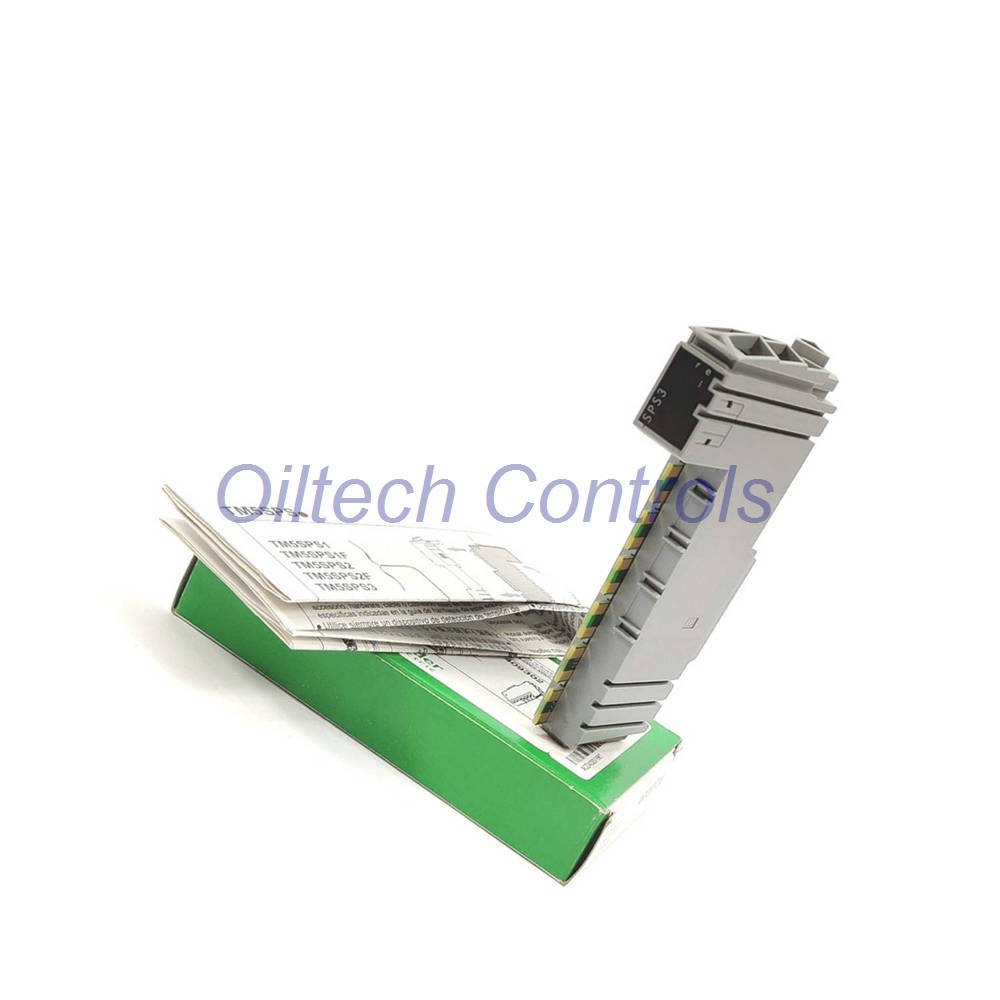

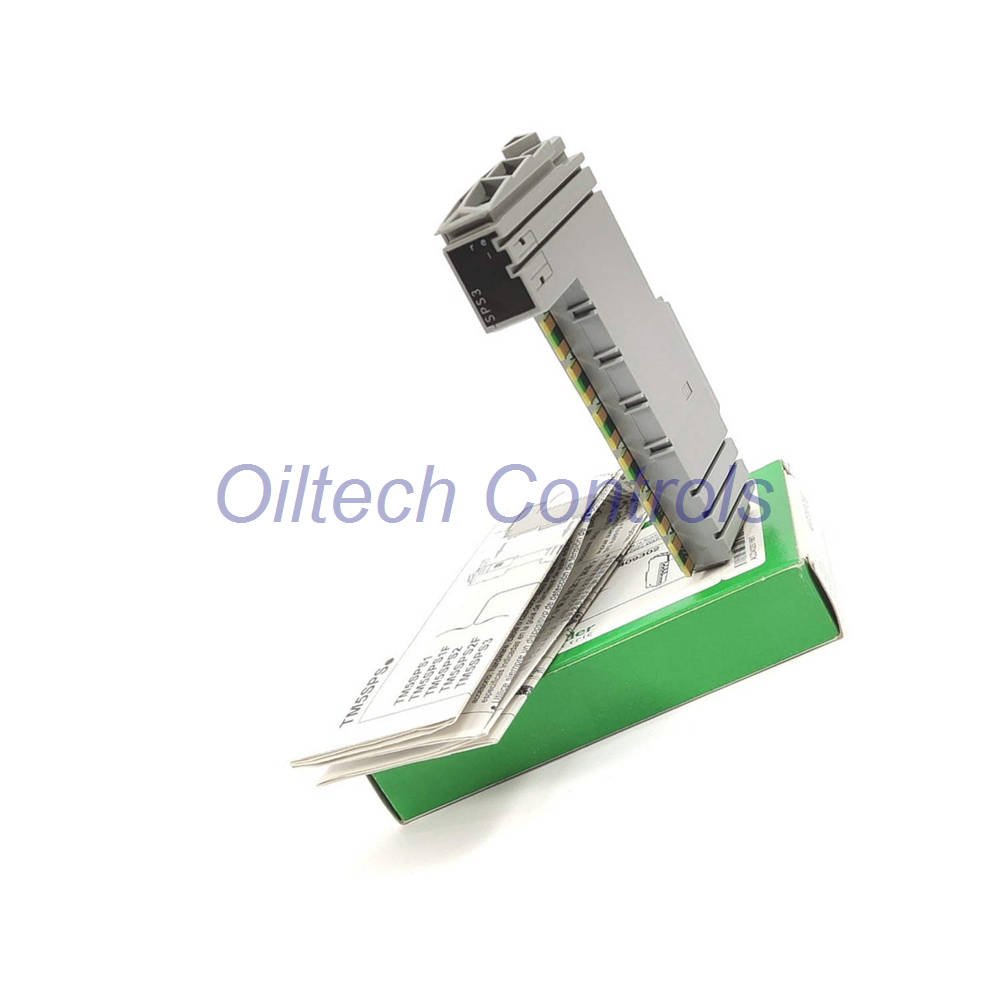

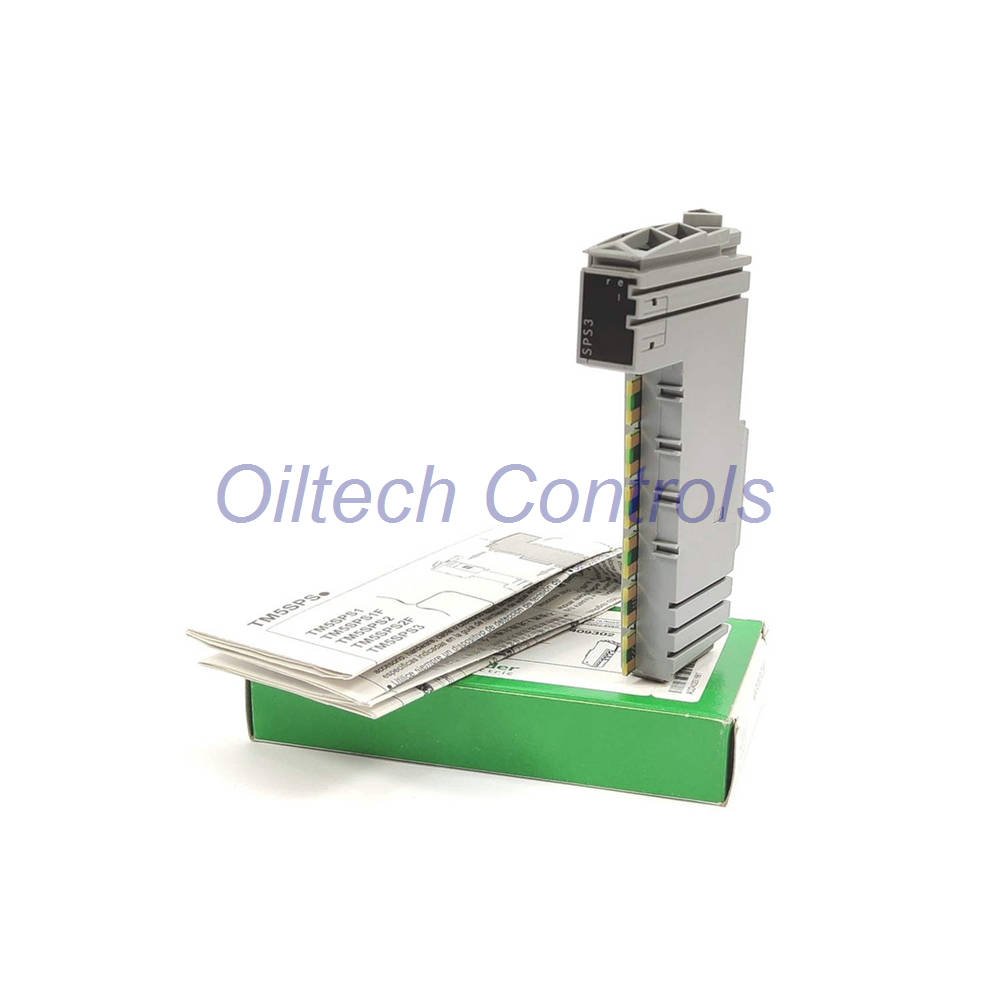

TM5SPS3 Power Distribution Module – 24 V DC
TM5SPS3 belongs to the Modicon TM5 series. It supplies 24 V DC power to CANopen interface modules and I/O modules. This module also supports the Sercos III bus. It is a compact and reliable power distribution unit for motion and logic controllers.
Product Overview
This power distribution module feeds the TM5 power bus and the I/O power segment. It delivers stable 24 V DC to connected modules. The design focuses on industrial automation environments. It works with Modicon Quantum systems and other compatible controllers.
Key Technical Specifications
| Brand | Schneider Electric |
| Model | TM5SPS3 |
| Series | Modicon TM5 |
| Rated Supply Voltage | 24 V DC |
| Current Supply (TM5 power bus) | 750 mA at -10…55 °C; 500 mA at 55…60 °C |
| I/O Power Segment Current | 10 A |
| Max Power Dissipation | 1.91 W |
| Protection | External 10 A fuse (short-circuit) |
| Current Consumption (control) | ≤ 25 mA at 24 V DC |
| Colour | Grey |
Environmental & Mechanical Ratings
- Operating temperature: -10…55 °C (horizontal, no derating); 55…60 °C (derating); -10…50 °C (vertical)
- Storage temperature: -40…70 °C
- Relative humidity: 5…95 % (non-condensing)
- Operating altitude: 0…2000 m; Storage altitude: 0…3000 m
- Vibration resistance: 1 gn (8.4…150 Hz) / 3.5 mm (5…8.4 Hz) on DIN rail
- Shock resistance: 15 gn for 11 ms
Electromagnetic Compatibility (EMC)
- ESD: 4 kV contact / 8 kV air (EN/IEC 61000-4-2)
- Radiated RF: 10 V/m (80…2000 MHz); 1 V/m (2…2.7 GHz)
- Fast transients: 1 kV (I/O, shielded cable); 2 kV (power lines)
- Surge: 0.5 kV differential mode; 1 kV common mode
- Conducted immunity: EN/IEC 61000-4-6
- Emissions: CISPR 11 (radiated/conducted)
Compatibility & Applications
- Compatible controllers: Modicon LMC078, LMC058, M258
- Typical applications: Power distribution for CANopen and Sercos III networks in motion control systems.
- Diagnostic capability: Short-circuit protection via external fuse; LED indicators for status (not listed but standard).
Installation & Maintenance
- Mount on DIN rail (horizontal or vertical).
- Ambient temperature derating applies above 55 °C.
- Use a 10 A external fuse for short-circuit protection.
- No special maintenance required; visual inspection recommended.
Certifications & Standards
- Standards: CSA C22.2 No 213, No 142; IEC 61131-2; UL 508
- Certifications: GOST-R, C-Tick, CSA, cULus
- Marking: CE
Packaging & Shipping
- Unit Type: PCE (1 piece per package)
- Package dimensions: 2.0 x 6.0 x 10.5 cm; weight: 51 g
- Shipping: FedEx, UPS, DHL (global express)
- Warranty: 12 months from date of shipment.
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts.
- Worldwide shipping support.
- Tested surplus and refurbished options available.
- 12-month warranty on all products.
- Technical verification performed before shipment.
- Support for obsolete control systems.
Frequently Asked Questions (FAQ)
Q: Does this module work with Modicon M241?
A: It is compatible with LMC078, LMC058, and M258. Check your controller manual.
Q: What is the maximum current for I/O segment?
A: The I/O power segment supplies up to 10 A.
Q: Can I mount this vertically?
A: Yes, but the ambient temperature range is -10…50 °C for vertical installation.
Q: Is external fusing required?
A: Yes, use a 10 A external fuse for short-circuit protection.
Q: What is the shipping weight?
A: The package weight is 51 g.
