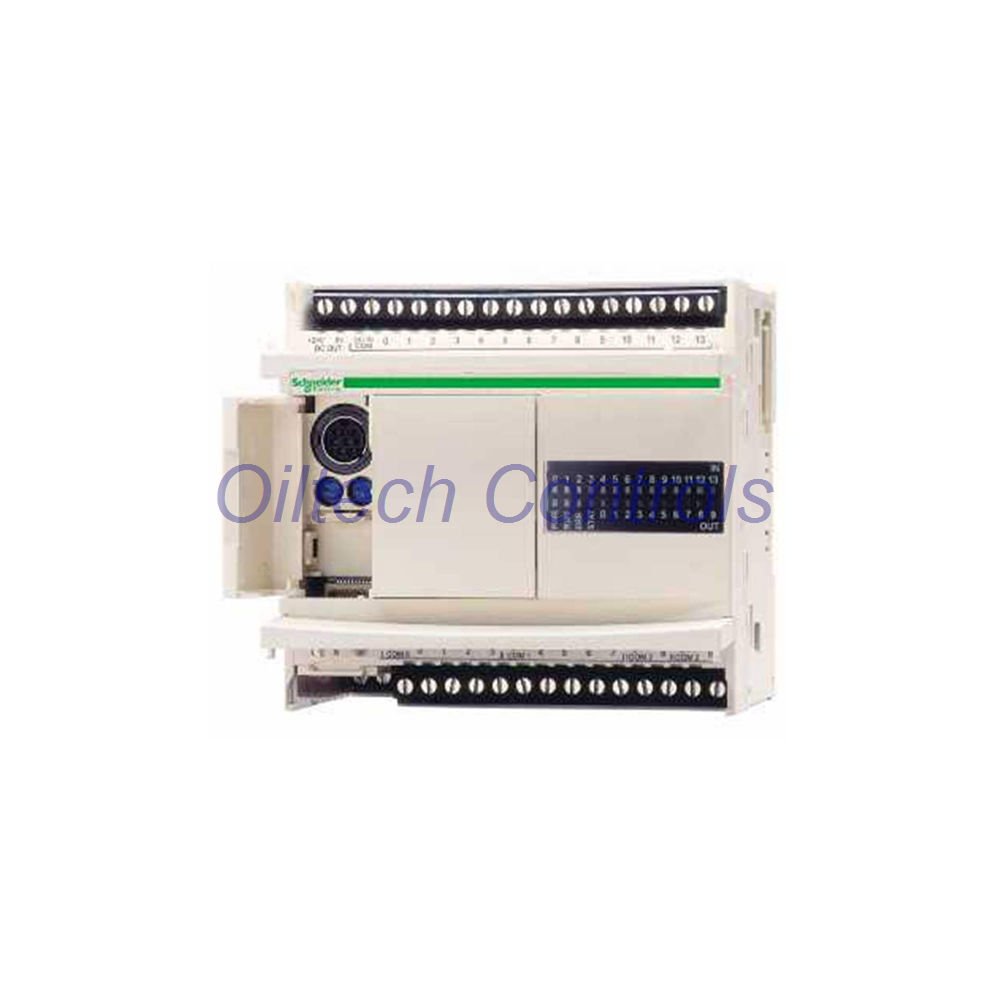

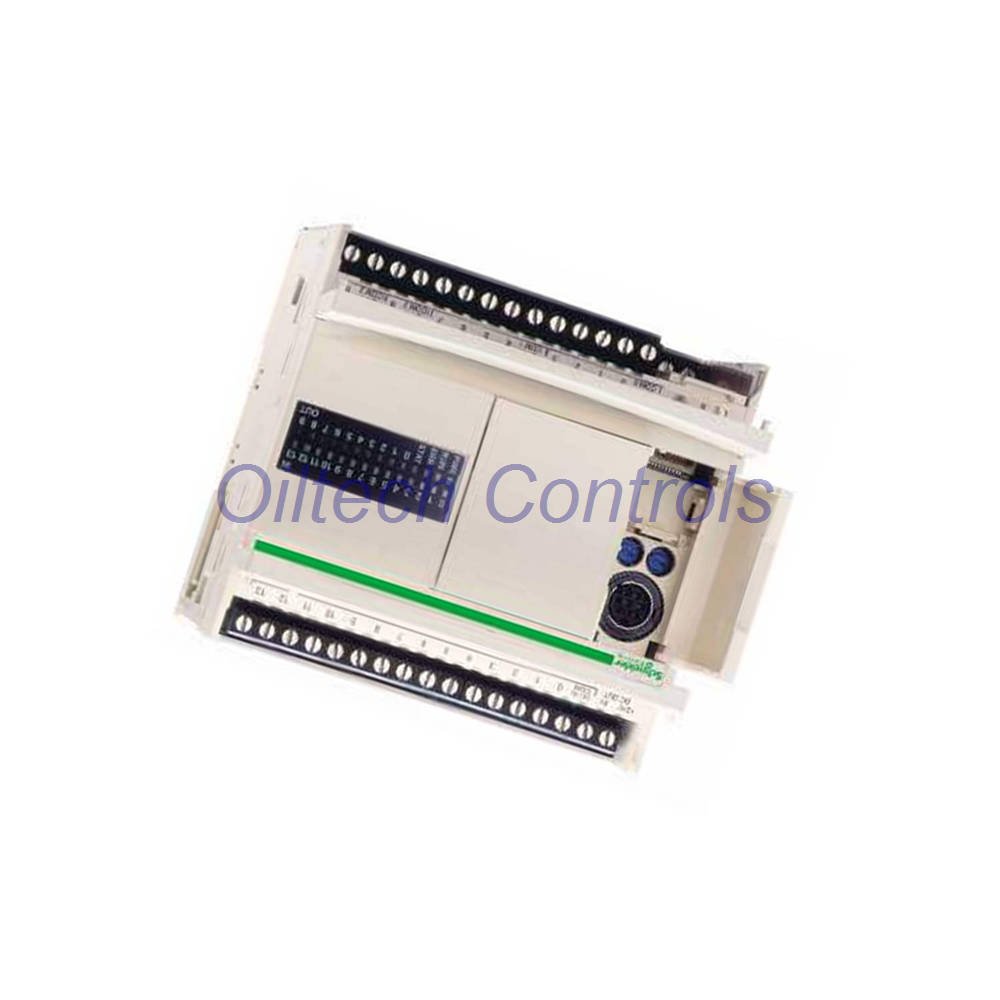

TWDLCAA24DRF Twido Compact PLC – 14 Inputs 10 Relays 100-240V AC

Schneider Electric TWDLCAA24DRF – Compact PLC Controller

TWDLCAA24DRF is a compact base controller from the Twido series. It runs on 100–240 V AC supply. This PLC offers 14 discrete inputs (24 V DC) and 10 relay outputs. It supports up to 4 expansion modules for flexible I/O scaling. Ideal for small to mid-size automation systems.

Technical Overview – Twido TWDLCAA24DRF

• Discrete I/O: 14 inputs (sink/source) + 10 relay outputs.
• Input voltage: 24 V DC (20.4…28.8 V limits).
• Relay output rating: 2 A at 30 V DC / 240 V AC (resistive/inductive).
• Program memory: 3000 instructions – execution 1 ms per 1K.
• Integrated serial link: RS485 (Modbus RTU/ASCII) up to 38.4 kbit/s.
• Filter time: 40–150 µs + programmable filter.
• High-speed counters: 3 channels @ 5 kHz (16-bit) and 1 @ 20 kHz (32-bit).
• Analogue adjustment: two points (0–1023 and 0–511).
• Data backup: internal RAM (lithium) – 30 days retention, 10-year battery life.

Power & Environmental Ratings

• Supply voltage: 100–240 V AC (85–264 V limits).
• Frequency: 50/60 Hz (47–63 Hz limits).
• Power consumption: 40 VA @ 264 V / 33 VA @ 100 V.
• Inrush current: ≤40 A.
• Operating temperature: 0…55 °C.
• Storage temperature: -25…70 °C.
• Humidity: 30–95% (non-condensing).
• Protection: IP20, internal fuse for power.
• Dielectric strength: 1500 V (supply & I/O to earth).

Compatibility & Expansion

• Accepts up to 4 I/O expansion modules.
• Total I/O count: up to 152 (with HE-10 connector).
• Works with memory cartridge or real-time clock cartridge.
• Supports Modbus RTU/ASCII master/slave via RS485.
• Compatible with Modicon Quantum, M221, and other Twido systems.

Oiltech Controls’s Insight – Why This PLC?

• Robust relay outputs – 2 A per channel, 100k electrical cycles.
• Built-in PID and event processing – reduces external controller needs.
• Non-removable screw terminals – secure and reliable connections.
• High immunity to microbreaks (10 ms) – stable in noisy environments.
• LED status for every I/O – quick troubleshooting.

Typical Applications & Suitable Equipment

• Conveyor systems – logic and relay control.
• Packaging machines – sequence and counting.
• HVAC control – fan, pump, and damper logic.
• Small process automation – mixing, filling, dosing.
• Replacement for obsolete controllers in legacy panels.

Professional FAQ – Expert Buying Guide

Q1: What is the maximum number of I/O points with expansion?
A: You can reach up to 152 I/O points using HE-10 connector expansion modules. For screw terminal blocks, the max is 88 points.

Q2: Can I use this PLC for high-speed counting applications?
A: Yes. It has 3 channels at 5 kHz (16-bit) and 1 channel at 20 kHz (32-bit). Ideal for encoder or flowmeter inputs.

Q3: How do I protect the outputs from short circuits?
A: The relay outputs are not internally protected. Use external fuses or circuit breakers for each output group (COM0–COM3).

Q4: Is the real-time clock included?
A: No, but you can add a real-time clock cartridge in the free slot. The module also has a battery-backed RAM for data retention.

Q5: What is the typical scan cycle time?
A: Approx. 1 ms per 1K instructions plus system overhead of 0.5 ms. For most applications, this is under 5 ms total.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spare parts.
• Fast shipping – 24–28 hour dispatch via FedEx, UPS, or DHL.
• Tested surplus and refurbished options – quality assured.
• 12-month warranty on all products.
• Technical verification before shipment – we test every unit.
• Expert support for obsolete control systems – we have legacy stock.
