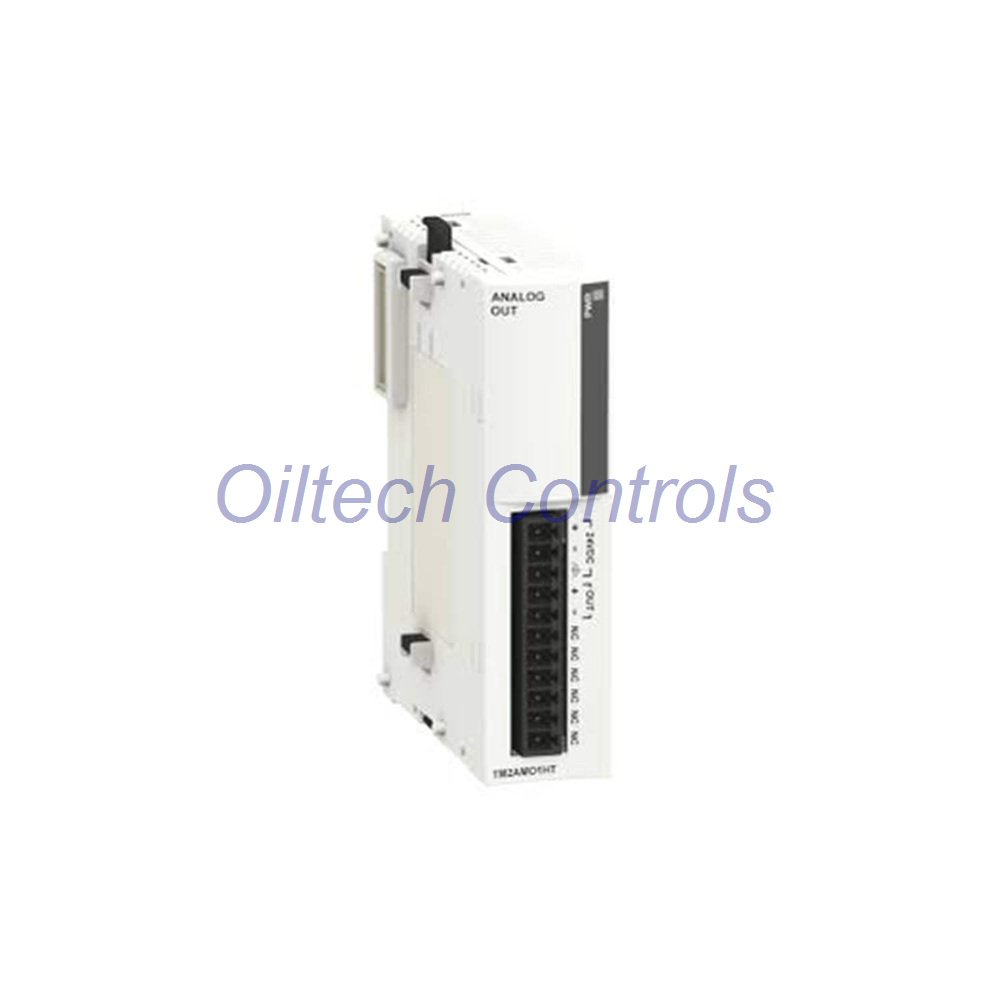

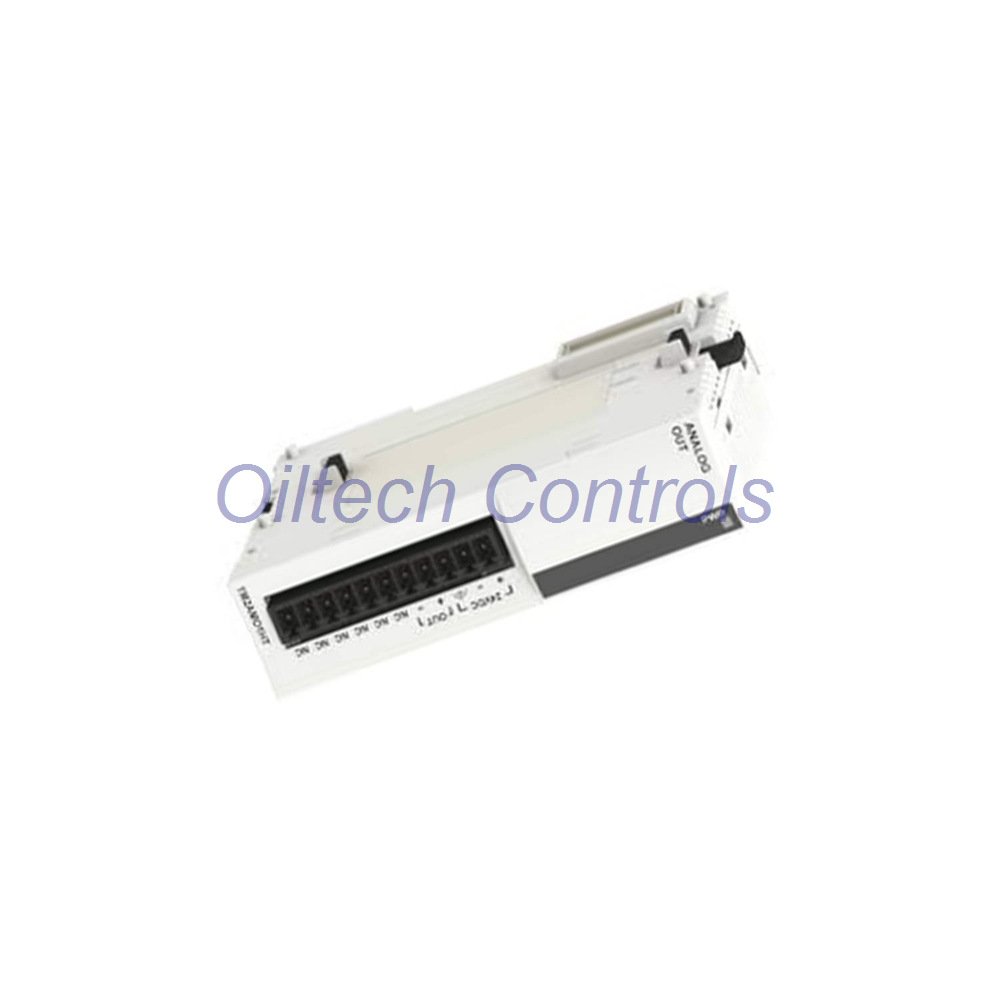

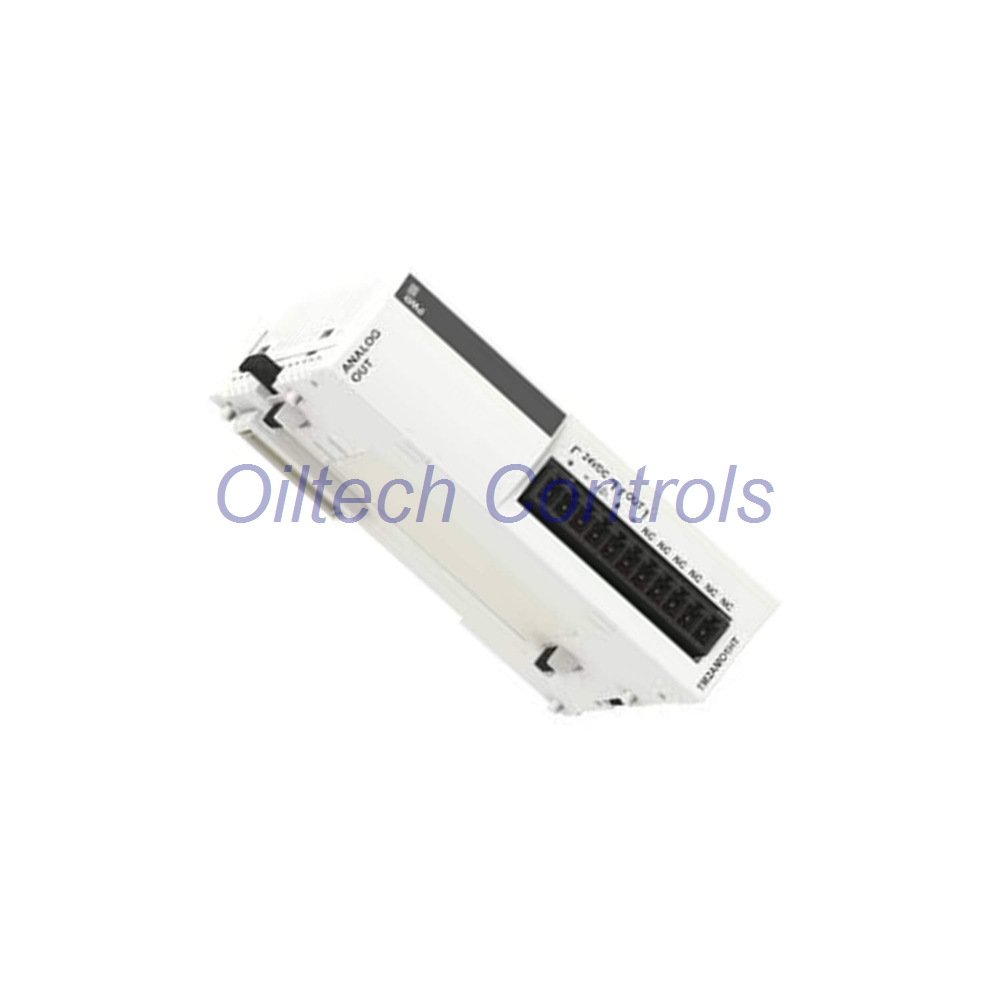

Product Overview: TWDAMO1HT Analog Output Module

The TWDAMO1HT belongs to the Twido series by Schneider Electric. This compact analogue output module delivers one configurable channel for current (4…20 mA) or voltage (0…10 V) signals. It is engineered for precise control in small to mid-size PLC systems, offering robust performance within harsh industrial environments. The module features a removable screw terminal block for easy wiring and supports a 24 V DC external supply.

Key Technical Specifications

• Brand: Schneider Electric
• Model: TWDAMO1HT
• Series: Twido
• Module Type: Analog Output Module
• Outputs: 1 channel, configurable for 0…10 V or 4…20 mA
• Resolution: 12 bits
• LSB Value: 2.5 mV (voltage) / 4 µA (current)
• Load Impedance: ≤ 300 Ω (current) / ≥ 2000 Ω (voltage)
• Stabilization Time: 20 ms
• Conversion Time: 20 ms + 1 controller cycle
• Measurement Error: ±0.2% full scale @ 25 °C
• Non-linearity: ±0.2% FS
• Repeat Accuracy: ±0.5% FS
• Total Error: ±1% FS
• Output Ripple: ≤ 1 LSB
• Temperature Coefficient: ±0.015% FS/°C
• Supply Voltage: 24 V DC (range 20.4…28.8 V)
• Current Consumption: 40 mA @ 24 V DC / 50 mA @ 5 V DC
• Dielectric Strength: 500 V between outputs and supply
• Isolation: Photocoupler between channel and logic
• Cable Type: Shielded twisted pair recommended

Environmental & Physical Data

• Operating Temperature: 0…55 °C
• Storage Temperature: -25…70 °C
• IP Rating: IP20 (protected against solid objects >12.5 mm)
• Net Weight: 0.085 kg
• Certifications: CSA, UL, CE marked

Installation & Wiring Guidance

• Mount the module on a DIN rail inside a control cabinet (IP20 minimum).
• Connect external 24 V DC supply (20.4…28.8 V) to the dedicated terminals.
• Use shielded twisted pair cables for analogue signals to minimize noise.
• Wire the output load respecting impedance limits: ≤300 Ω for current, ≥2000 Ω for voltage.
• Removable screw terminal block simplifies wiring and maintenance.

Compatibility & System Integration

• Designed for Twido programmable controllers (all CPU versions).
• Also compatible with Modicon Quantum (Modicon Quantum series) via bus couplers.
• Fully supported in EcoStruxure Machine Expert and TwidoSuite software.
• Integrates seamlessly into existing Modicon and Telemecanique architectures.

Diagnostics & Built-in Protection

• Photocoupler insulation ensures galvanic isolation between output and logic.
• Internal diagnostics detect open-circuit and short-circuit conditions.
• Output error < ±1% FS; ripple ≤ 1 LSB assures stable signal quality.
• LED indicators on module front provide real-time status (power and channel active).

Typical Application Scenarios

• Speed control of small DC drives via 0…10 V signal.
• Valve positioning with 4…20 mA loop-powered actuators.
• Analog setpoint generation for temperature or pressure regulators.
• Retrofitting older systems requiring single analogue output.

Frequently Asked Questions (FAQ)

• What is the output resolution? 12 bits (4096 steps).
• Can I use both current and voltage simultaneously? No, only one output type configurable per module.
• Is external supply mandatory? Yes, requires 24 V DC external power.
• What is the update time? Conversion time is 20 ms plus one PLC scan.
• Does it support hot-swapping? No, power off before removing module.

Packaging & Delivery Information

• Package Dimensions: 125 x 100 x 70 mm
• Package Weight: 0.198 kg
• Shipping Methods: FedEx, UPS, DHL (trackable door-to-door).
• Warranty: 12 months from date of invoice.
