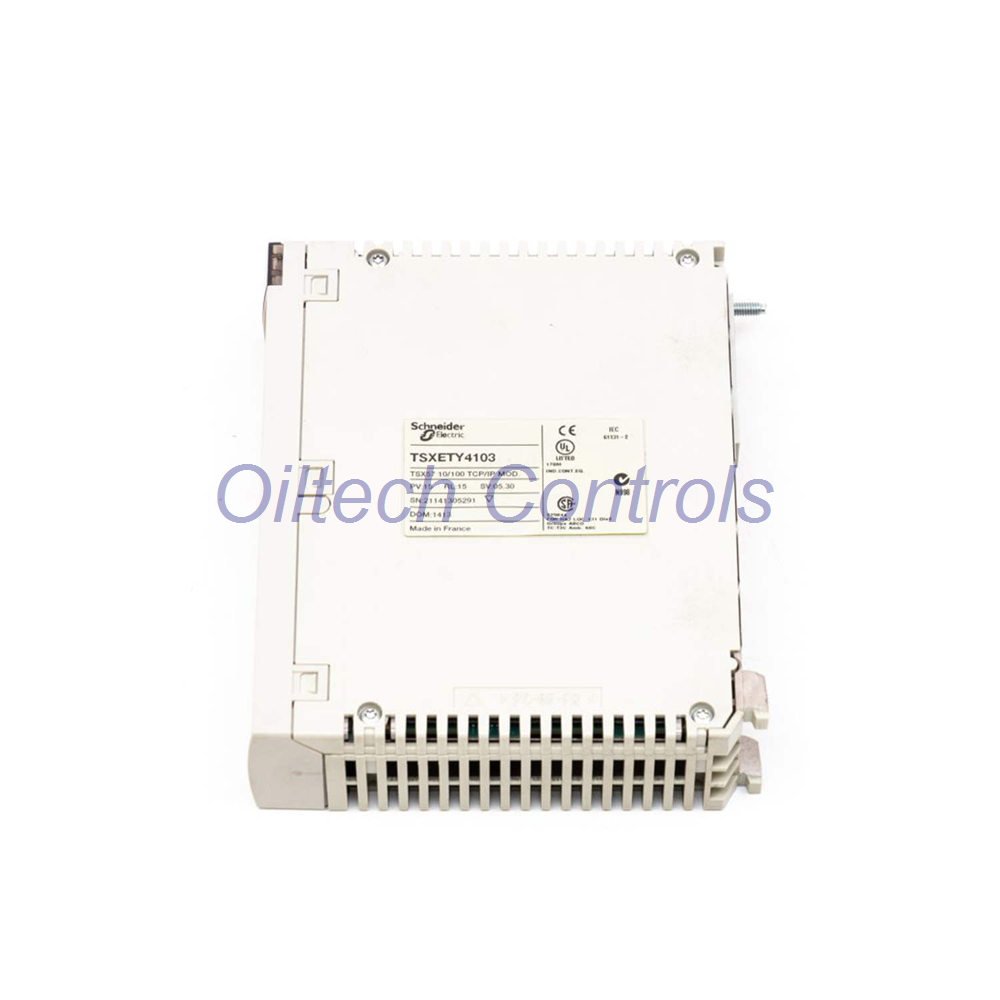

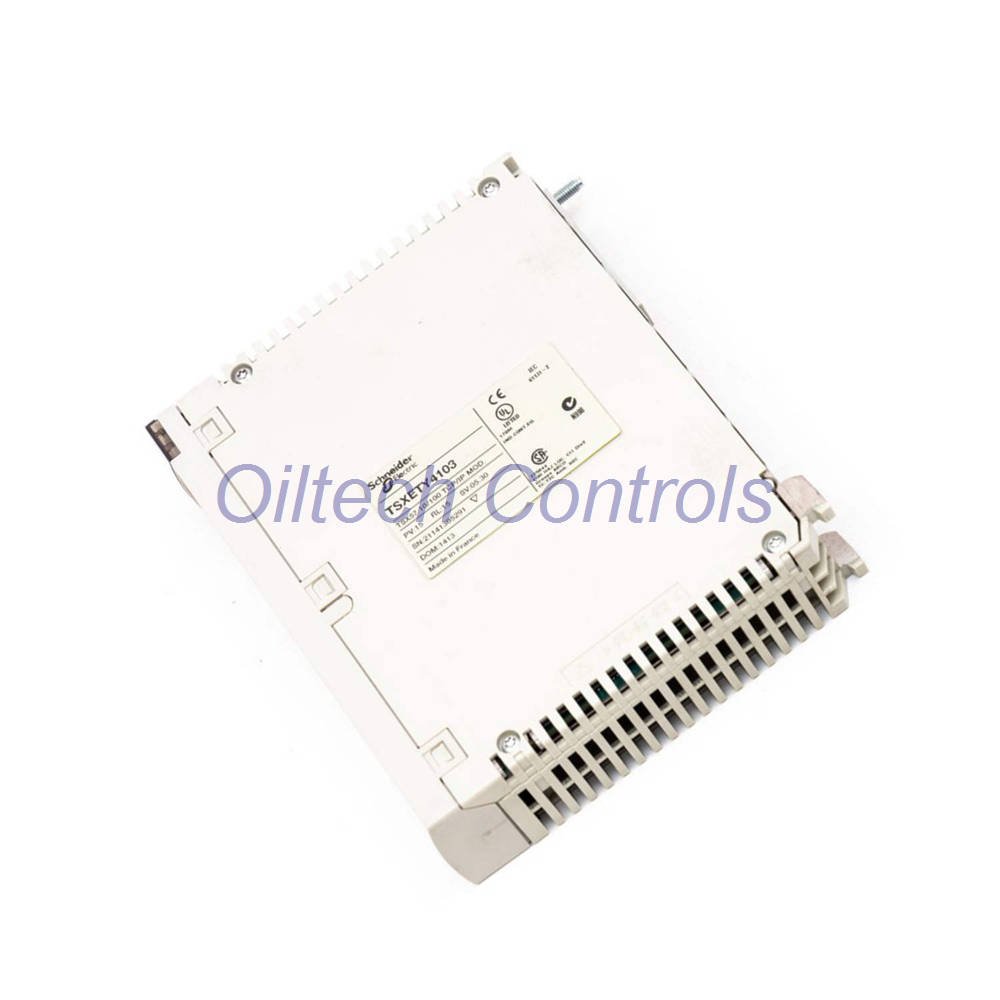

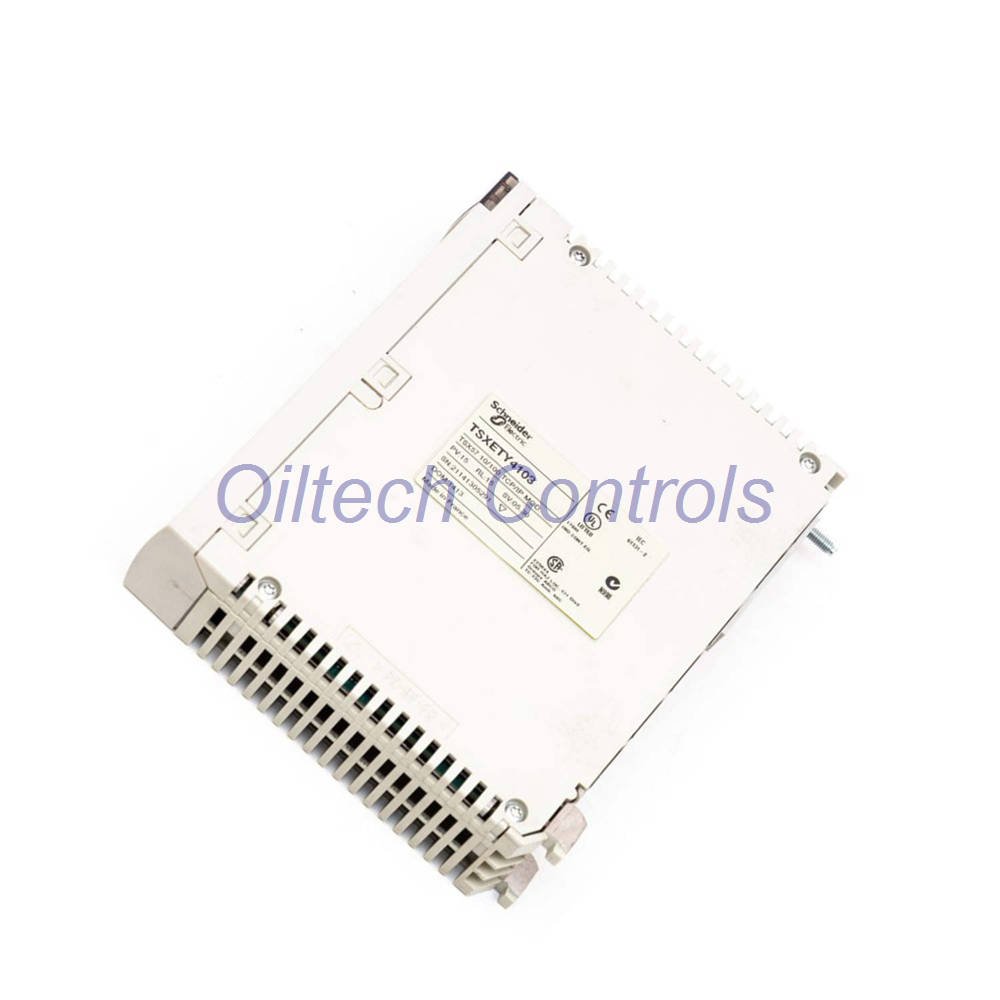

TSXETY4103 Schneider Electric Ethernet Communication Module
TSXETY4103 by Schneider Electric is an industrial Ethernet TCP/IP module for TSX Micro PLC systems.
It enables stable network communication between PLCs, control systems, and monitoring software.
The module supports fast data exchange through Modbus TCP and Uni-Telway protocols.
It provides reliable industrial networking for factory automation, process control, and machine monitoring.
Key Industrial Advantages
- TSXETY4103 provides stable Ethernet communication for TSX Micro PLC platforms.
- Supports 10/100 Mbps Ethernet speed for fast industrial data transfer.
- Handles up to 64 simultaneous connections for complex automation networks.
- Integrated web server allows remote monitoring and diagnostics.
- Works with PLC programming tools such as PL7 Pro and Unity Pro.
- Supports email alarms through SMTP notification.
- Built-in SNMP agent simplifies network supervision.
- Industrial design ensures reliable operation in factory environments.
Technical Highlights
- Brand: Schneider Electric
- Model: TSXETY4103
- Product Type: Ethernet TCP/IP Communication Module
- Product Platform: TSX Micro PLC Automation System
- Transmission Rate: 10/100 Mbit/s Ethernet
- Ethernet Interface: RJ45 twisted pair port
- Maximum Connections: 64 communication sessions
- Supported Protocols: Modbus TCP, Uni-Telway
- Communication Services: I/O scanning, messaging, data exchange
- Web Server: Transparent Ready Class B30
- Remote Tools: Rack Viewer and Data Editor
- Power Supply: Powered by PLC rack
- Current Consumption: 360 mA at 5 V DC
- Weight: about 0.34 kg
- Certification Mark: CE
Network Communication Features
- Supports Modbus TCP messaging for PLC data exchange.
- Provides I/O scanning for distributed automation systems.
- Includes bandwidth control for network traffic management.
- Offers FDR server function for automatic device replacement.
- Supports SNMP monitoring for network diagnostics.
- Allows SMTP email alarms for system warnings.
Industrial Interface and Indicators
- RJ45 Ethernet port supports standard industrial network wiring.
- LED indicator for collision detection (COL).
- LED indicator for Ethernet network operation (RUN).
- LED indicator for Ethernet port error (ERR).
- LED indicator for transmission activity (TX/TR).
- Status LEDs allow quick system troubleshooting.
Environmental and Reliability Data
- Operating temperature: 0°C to 60°C.
- Storage temperature supports wide industrial conditions.
- Relative humidity: 10% to 95% without condensation.
- Protection level: IP20.
- Compliance standards: UL508 and EN61131-2.
- Certified for hazardous locations FM Class 1 Division 2.
Compatibility and System Integration
- Fully compatible with Schneider TSX Micro PLC controllers.
- Works with PL7 Pro configuration software.
- Supports Unity Pro engineering platform.
- Integrates with industrial Ethernet control networks.
- Suitable for systems that also use the Modicon Quantum automation platform.
Installation and Setup
- Insert the module directly into the TSX Micro PLC rack.
- Connect Ethernet cable to the RJ45 port.
- Configure IP address through engineering software.
- Enable Modbus TCP communication parameters.
- Verify network activity through LED indicators.
Packaging Information
- 1 × TSXETY4103 Schneider Ethernet Module
- 1 × Factory inspection documentation
- 1 × Protective industrial packaging
Shipping and Warranty
- Global shipping via FedEx, UPS, or DHL.
- Professional anti-static packaging for transport safety.
- 12-month warranty for manufacturing defects.
- Technical assistance available for installation.
Typical Industrial Applications
- PLC industrial Ethernet communication networks.
- Factory automation data exchange.
- Process control monitoring systems.
- Remote equipment diagnostics platforms.
- Machine production line communication.
Frequently Asked Questions (FAQ)
- What PLC systems support TSXETY4103?
- This module works with Schneider TSX Micro PLC automation systems.
- How many devices can connect to this module?
- The module supports up to 64 simultaneous Ethernet connections.
- How do engineers usually configure the module?
- Most engineers configure the IP address using PL7 Pro or Unity Pro software.
- What should users check if communication fails?
- Check Ethernet cable, IP address settings, and LED network indicators.
- How should buyers choose between Ethernet PLC modules?
- Select a module based on PLC model, protocol needs, and required connection capacity.
