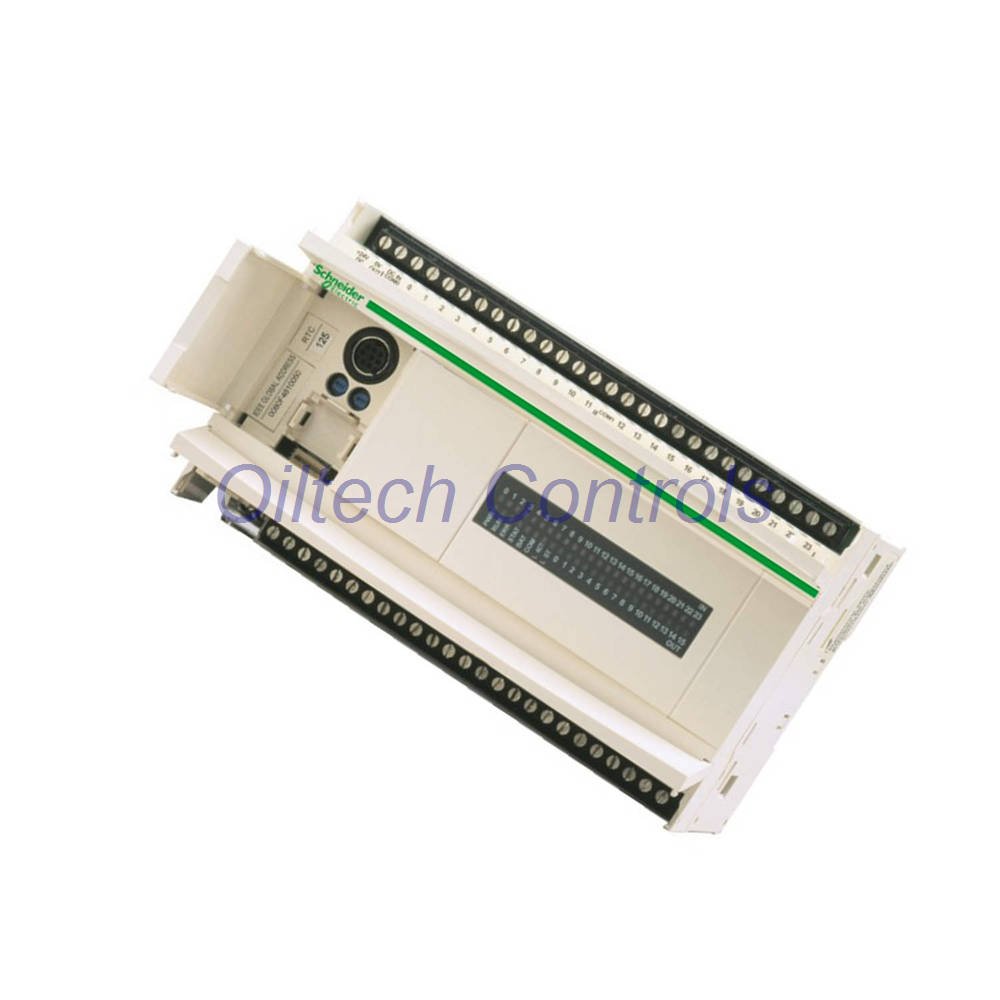

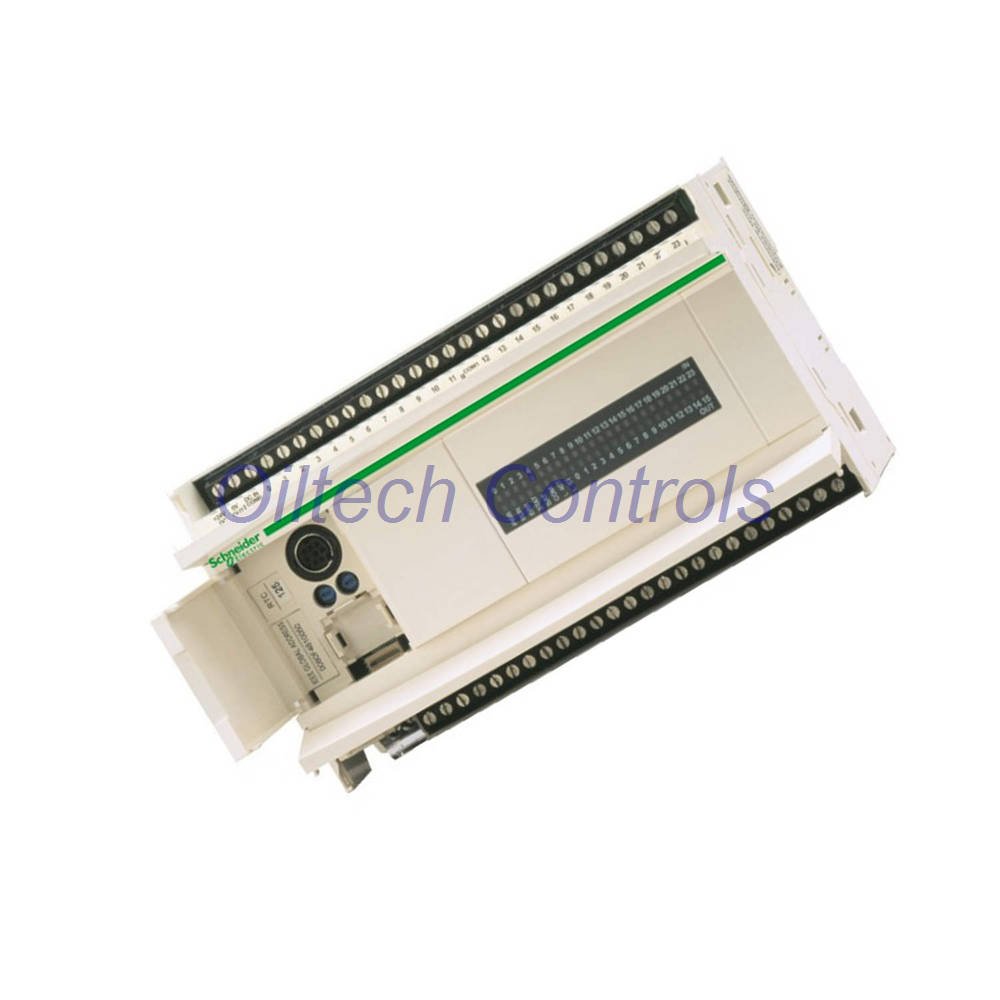

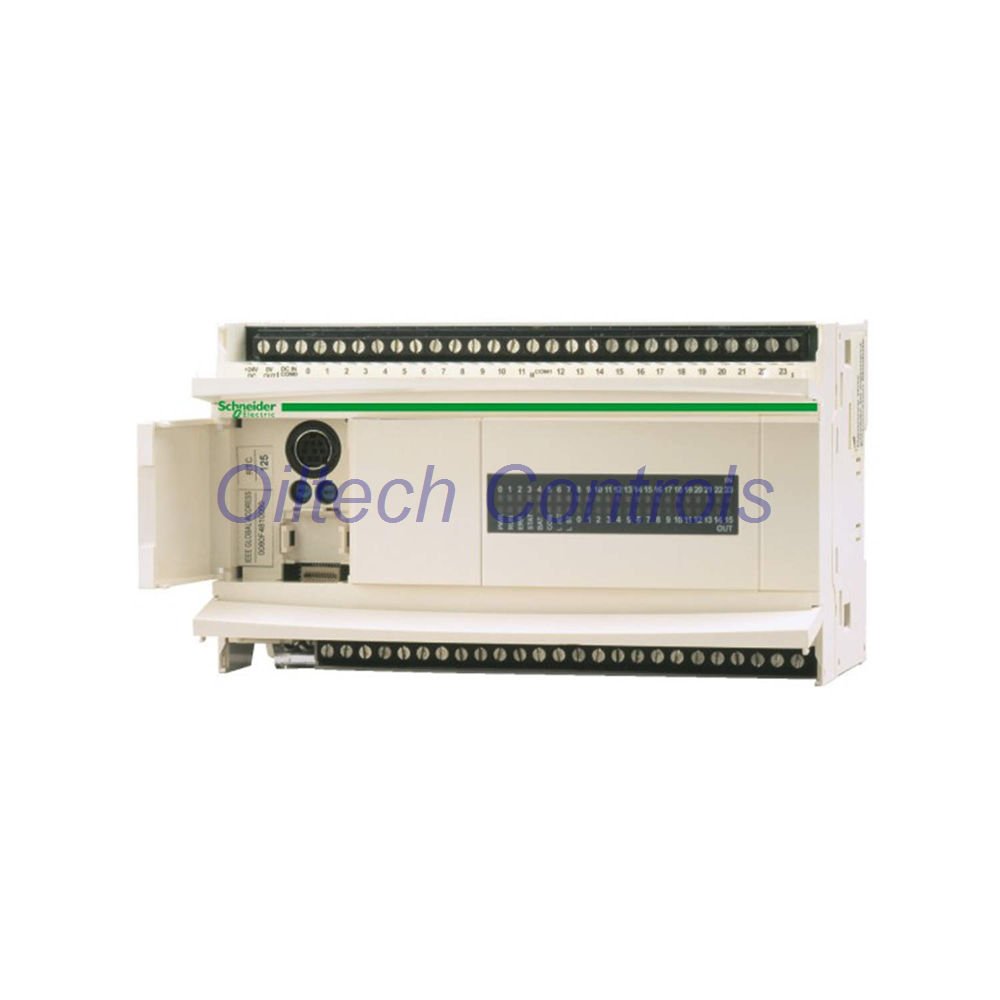

TWDLCDA40DRF Schneider Twido Controller – 24 Inputs, 16 Outputs, PID, RS485

TWDLCDA40DRF Compact PLC Base – Twido Series

Brand: Schneider Electric | Series: Twido | Type: Compact Base Controller | Part No.: TWDLCDA40DRF

This 40‑I/O compact PLC base operates with a 24 V DC supply. It combines 24 discrete DC inputs with 16 outputs (2 transistor, 14 relay). The controller supports up to 7 expansion modules and features integrated non‑isolated RS485 serial link (Modbus/character mode master/slave RTU/ASCII, 38.4 kbit/s). Built‑in PID, event processing, and real‑time clock make it suitable for small to mid‑size automation tasks.

Key Technical Data

• Discrete Inputs: 24 (sink/source, 20.4…26.4 V DC, 7/11 mA per channel)
• Discrete Outputs: 2 transistor + 14 relay (2 A at 30 V DC / 240 V AC, resistive/inductive)
• Program Memory: 3000 instructions (1 ms per 1K instructions)
• Counters / Timers: 128 each; 4 counting channels (16‑bit @ 5 kHz, 32‑bit @ 20 kHz)
• Positioning: PWM/PLS 2 channels @ 7 kHz
• Real‑time Clock: Drift ≤30 s/month, backup 30 days (lithium)

Technical Specifications

Environmental & Mechanical

• Operating Temp: 0…55 °C | Storage: -25…70 °C
• Humidity: 30…95 % (non‑condensing)
• Vibration: 4 gn (25‑100 Hz) on plate; 1 gn (57‑150 Hz) on DIN rail
• Shock: 15 gn for 11 ms
• Altitude: 0…2000 m (op.), 0…3000 m (storage)
• Protection: IP20 | Weight: 0.525 kg

Installation & Compatibility

• Mounting: Panel / plate with fixing kit, or 35 mm symmetrical DIN rail
• Connection: Non‑removable screw terminal block
• Serial Link: RS485 (mini DIN) half‑duplex, Modbus/ASCII master/slave
• Expansion: Use slot for memory cartridge; up to 7 I/O modules
• Software: TwidoSuite compatible (programming via RS232C/RS485 adaptor)
• Compatibility note: Works seamlessly with Modicon Quantum series via gateway

Diagnostics & Maintenance

• On‑board diagnostics: Error LED (ERR), RUN, PWR, I/O status per channel
• Event processing & PID: Built‑in functions for real‑time control
• Data backup: Internal RAM with lithium battery (30 days, 10 yr life)
• Maintenance: Easy fuse protection, removable terminal blocks
• Firmware: Field‑upgradable via memory cartridge slot

Typical Applications

• Small conveyor systems and packaging machines
• HVAC, pumping stations, and water treatment
• Material handling and sorting lines
• Light industrial automation and OEM machinery
• Retrofit projects requiring compact PLC with relay outputs

Certifications & Standards

• Certified: CSA, UL, CE marked
• Dielectric strength: 1500 V (I/O‑earth), 500 V (supply‑earth)
• Immunity: Microbreaks 10 ms, insulation >10 MΩ @500 V
• RoHS compliant, industrial grade

Package Contents

• TWDLCDA40DRF compact PLC base
• Non‑removable screw terminal blocks
• Mounting clips (DIN rail / panel)
• Quick start guide (digital download available)
• No memory cartridge included (sold separately)

Shipping & Delivery

• Carriers: FedEx, UPS, DHL – worldwide express
• Handling: 1‑2 business days; tracking provided
• Packaging: Anti‑static, industrial‑grade carton

Warranty & Support

• 12‑month warranty against manufacturing defects
• Technical verification before shipment (tested surplus / refurbished options)
• Global support for obsolete control systems

FAQ – Frequently Asked Questions

• Q: Can this PLC replace a Twido TWDLMDA? A: Yes, it is a direct replacement with similar I/O and form factor.
• Q: Does it support Ethernet? A: No, native RS485 only; use an external gateway for Ethernet.
• Q: Is programming software included? A: Software not included; use TwidoSuite or EcoStruxure Machine Expert.
• Q: What is the max expansion I/O? A: Up to 264 with HE‑10 connectors.
• Q: Is the battery replaceable? A: Yes, the lithium battery is field‑replaceable.
