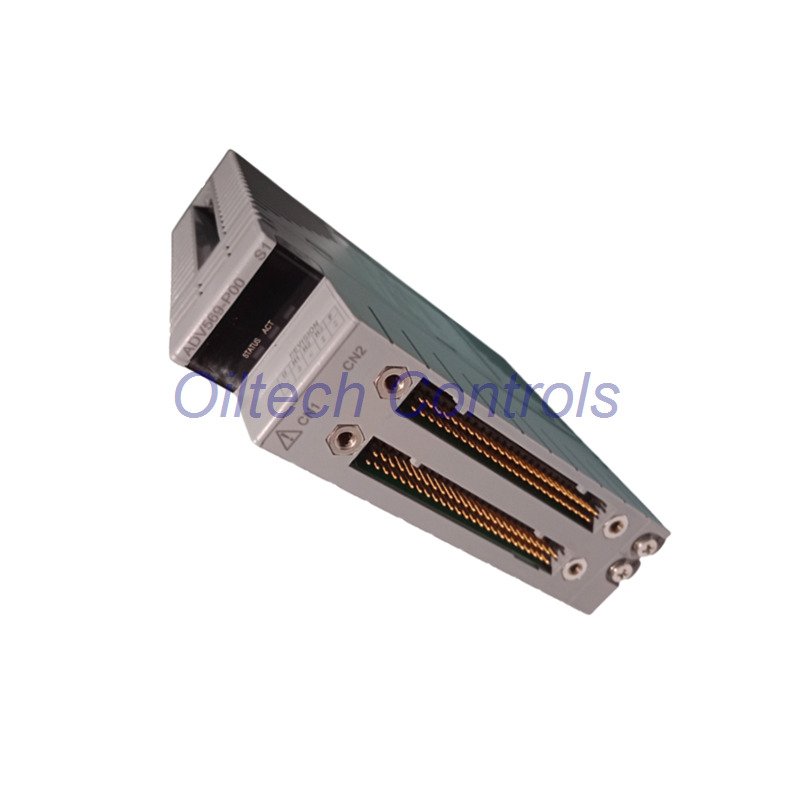

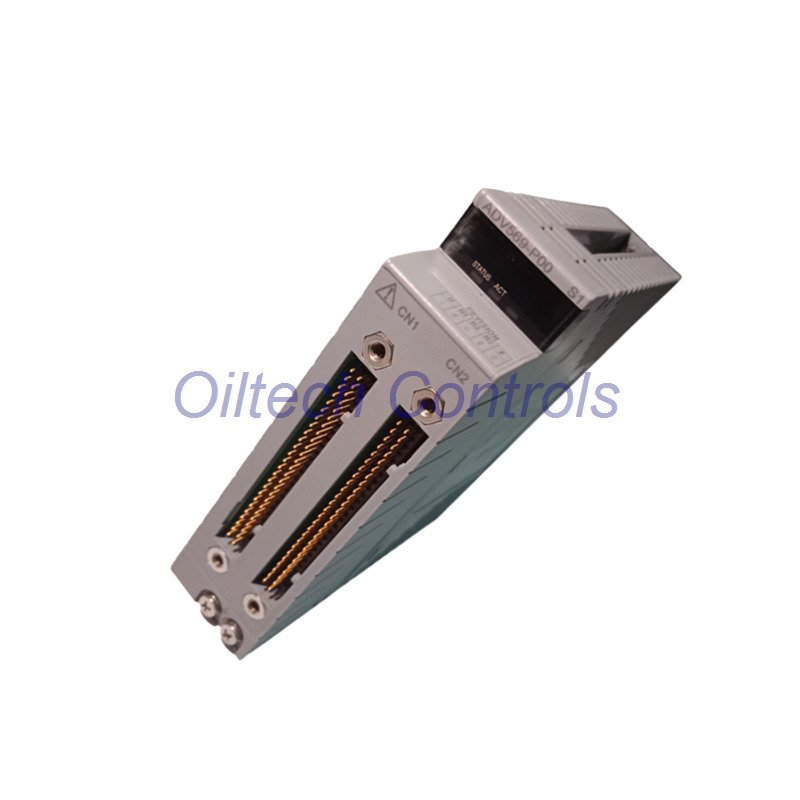

Yokogawa ADV569-P00 Digital Output Module | 64-Channel

ADV569-P00 Main Advantages

• High-density 64 output channels in one module.
• Integrated pulse and time-proportional output for precise timing control.
• Transistor contact outputs for long life and fast switching.
• Compact design saves significant cabinet space.
• Direct compatibility with Yokogawa ST7 systems.
• Simple connection with dedicated KS9 cable.

Model Code Details

• Base Model: ADV569 (Digital Output Module)
  • Channels: 64 Output
  • Compatibility: ST7 System
  • Isolation: Common every 16 channels
• Suffix: -P00
  • P: With Pulse/Time-Proportional Output Function
  • 0: Fixed Value
  • 0: Basic Type

Technical Specifications

• Manufacturer & Model: Yokogawa ADV569-P00
• Output Channels: 64, Transistor Contact
• Isolation: Common every 16 channels
• Output Rating: 30 V DC, 100 mA max per channel (Resistive/Inductive)
• Input Contact Rating: 5 V DC, 20 mA or more
• Response Time: 16 ms or less
• Pulse Width Range: 8 ms to 7200 seconds
• Pulse Resolution: 8 ms (+/-1 ms ON/OFF delay)
• Power Consumption: 800 mA @ 5V DC
• Weight: Approximately 0.30 kg
• Connection: Dedicated KS9 Cable
• Operating Temperature: Standard industrial range (typically 0-60°C)

Setup & Installation

• Install the module in the designated ST7 system slot.
• Connect the dedicated KS9 interface cable.
• Wire your field loads (LEDs, small relays, solenoids) to the terminal unit.
• Ensure the external load power supply does not exceed 30V DC.
• Configure the output patterns and timing in the control software.

Typical Usage Scenarios

• Controlling large arrays of indicator lights or alarms.
• Operating multiple solenoid valves in packaging machinery.
• Sequencing control for material handling systems.
• Any application requiring many low-power DC switching points.

FAQ & Technical Guidance

What does “common every 16 channels” mean?

The 64 outputs are grouped into sets of 16. All 16 outputs in a group share one common wire. This simplifies wiring but means they must use the same voltage.

Can I control AC loads with this module?

No, it is for DC loads only (up to 30V DC). To control AC devices, you need an external DC-powered relay for each channel.

What is the main benefit of transistor outputs?

Transistors switch much faster and last longer than mechanical relays. They have no moving parts to wear out.

What happens if I exceed the 100mA per channel limit?

You risk damaging the output transistor. Always check the current draw of your connected device. For higher currents, use an intermediate relay.

How do I know if my system is ST7 compatible?

Check your controller model. The ADV569-P00 is designed for specific Yokogawa ST7 architecture. It is not directly compatible with Yokogawa Centum VP systems.

Ordering & Support Information

• Package Includes: 1x ADV569-P00 Digital Output Module.
• Shipping Methods: Worldwide via FedEx, UPS, and DHL.
• Warranty: Backed by a 12-month warranty.
• Contact Us: For inquiries, email info@oiltechcontrols.com or message on WhatsApp: +86 158 8020 0923.
