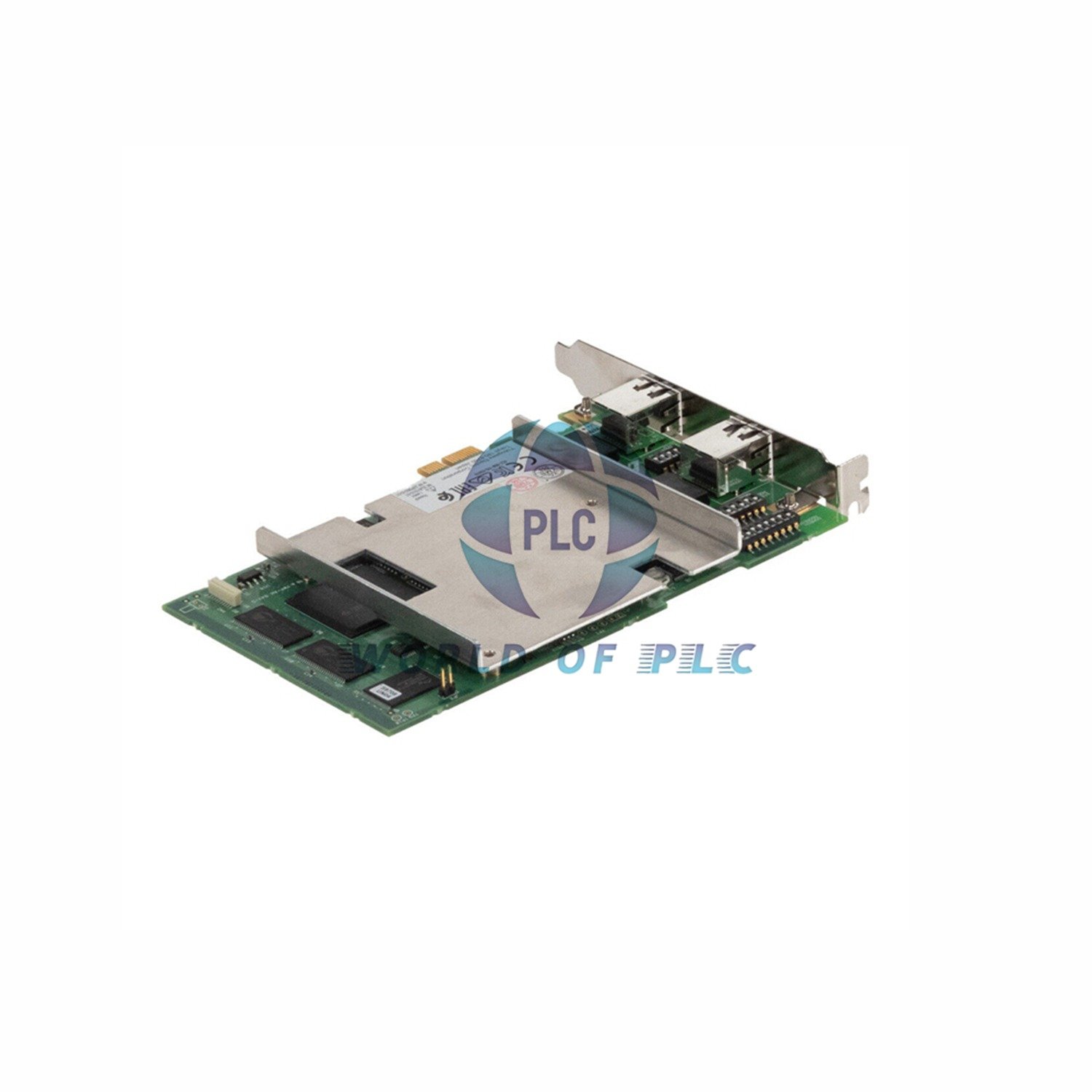

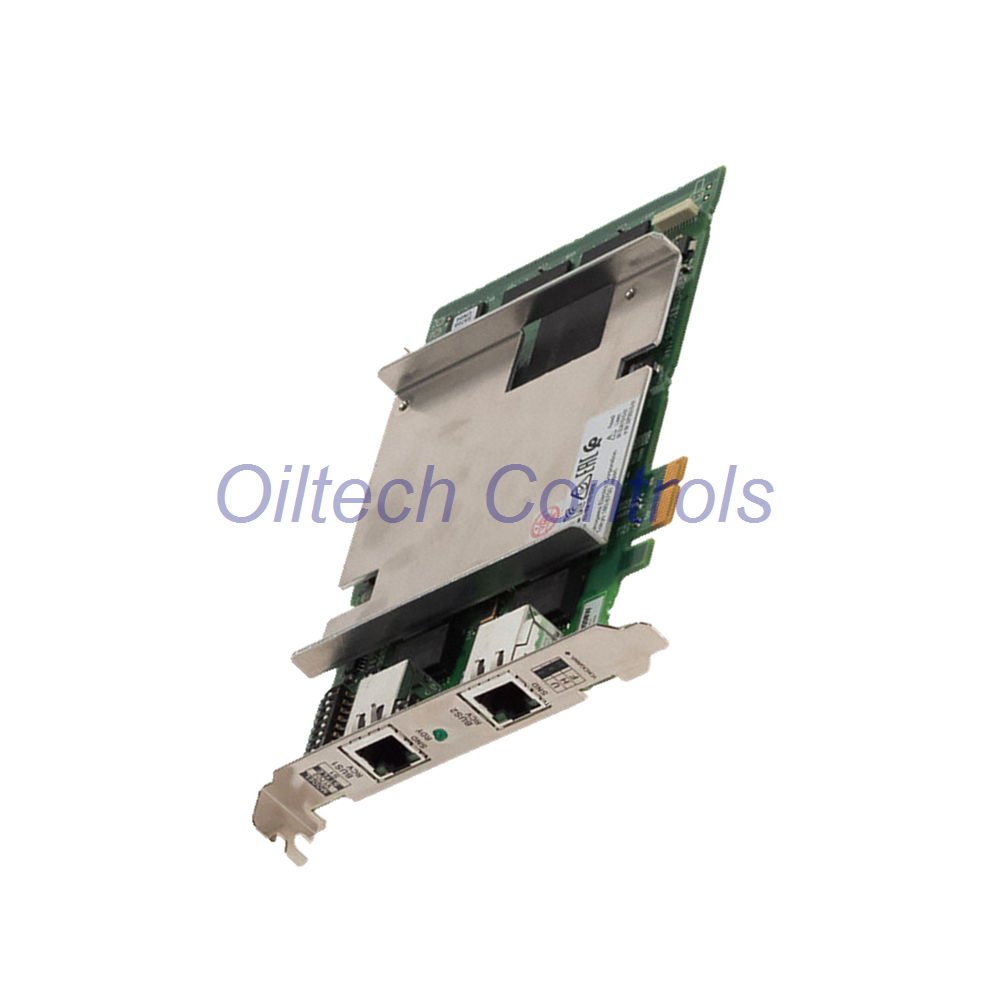

Yokogawa VI702 Vnet/IP Interface Card – Product Overview
The VI702 is a high-performance Vnet/IP interface card. It replaces the VI701 model. This card bridges PCI Express and Vnet/IP control networks. It ensures reliable, high-speed data exchange for industrial automation. The VI702 is essential for Yokogawa CENTUM systems. It offers robust communication in critical control environments.
Technical Specifications
| Brand | Yokogawa |
| Model | VI702 |
| Type | Vnet/IP Interface Card |
| Replacement For | VI701 Vnet/IP Interface Card |
| Communication Speed | 1 Gbps Full Duplex |
| Transmission Standard | 1000BASE-T compliant |
| Cable | CAT5e UTP (Enhanced Category 5) |
| Connector | RJ45 Ethernet |
| Max. Cable Distance | 100 m (to Layer 2 switch) |
| PCI Express Specification | CEM 1.0a x1, 2.5 GT/s signaling |
| PCIe Slot Compatibility | x1 to x16 (not PCI slot) |
| Supply Voltage | 3.3 V ± 9 % |
| Max. Current | 2.5 A |
| Weight | 0.18 kg (approx.) |
| Operating Temperature | 0 to 55 °C (ambient) |
| Humidity (non-condensing) | 10 to 90 % RH |
| EMC Immunity | IEC 61000-4 compliant |
LED Status & Diagnostics
- RDY (Ready) – Lights when the card passes self-diagnosis.
- RCV (Receive) – Lights when the card detects control bus signals.
- SND (Send) – Lights during active signal transmission on the control bus.
Diagnostic capability: Onboard LEDs provide instant health and activity feedback. The RDY lamp confirms normal operation. RCV and SND lamps verify network traffic. This simplifies troubleshooting and reduces downtime.
Installation & Compatibility
- Installation: Insert the VI702 into any PCI Express slot (x1 to x16). Do not install in a PCI slot. Use a CAT5e UTP cable for Ethernet connection. Ensure the distance to the Layer 2 switch does not exceed 100 m.
- Compatibility: The VI702 replaces the VI701 directly. It supports Yokogawa CENTUM VP and CS 3000 systems. It also integrates with Modicon Quantum series via Vnet/IP gateway.
- Maintenance & debugging: No special tools required. LED indicators enable fast debugging. The card supports hot-swap in compatible chassis (check system manual). Firmware is field-upgradable via the PCIe interface.
Environmental & Mechanical Resilience
- Temperature range: 0 to 55 °C (operational).
- Storage temperature: -20 to 70 °C.
- Humidity: 10 to 90 % RH, non-condensing.
- Vibration resistance: 0.5 G (5 to 500 Hz).
- Shock resistance: 5 G, 11 ms half-sine.
- EMC immunity: Meets IEC 61000-4-2 (ESD), -4-3 (radiated), -4-4 (burst), -4-5 (surge).
Why Buy From Oiltech Controls?
- Over 15 years of experience in industrial automation spare parts.
- Global shipment via FedEx, UPS, or DHL – fast and tracked.
- Each unit undergoes technical verification before shipment.
- We supply industrial surplus and refurbished options – fully tested.
- 12-month warranty covers defects and performance issues.
- Support for obsolete control systems, including legacy Yokogawa and Modicon.
Typical Applications
- Yokogawa CENTUM VP/CS 3000 distributed control systems.
- Vnet/IP control bus bridging in petrochemical plants.
- Power generation and water treatment SCADA networks.
- Replacing legacy VI701 cards in critical control loops.
- High-availability redundant control system architectures.
FAQ – Quick Answers
- Q: Can I use VI702 in a standard PC? Yes, if it has a PCI Express slot (x1 to x16). Not for PCI slots.
- Q: Is VI702 a direct replacement for VI701? Yes. It offers improved performance and is fully backward-compatible.
- Q: What cable do I need? Standard CAT5e UTP (Enhanced Category 5). Max length 100 m.
- Q: Does it support dual redundant Vnet/IP? Yes. Use two VI702 cards in separate PCIe slots for redundancy.
- Q: How do I verify normal operation? Check the RDY lamp. If lit, the card is healthy.
Packaging & Delivery
- Package includes: VI702 card, anti-static bag, quick start guide (digital).
- Shipping: Worldwide via FedEx, UPS, or DHL – express service.
- Warranty: 12-month comprehensive warranty from Oiltech Controls.
