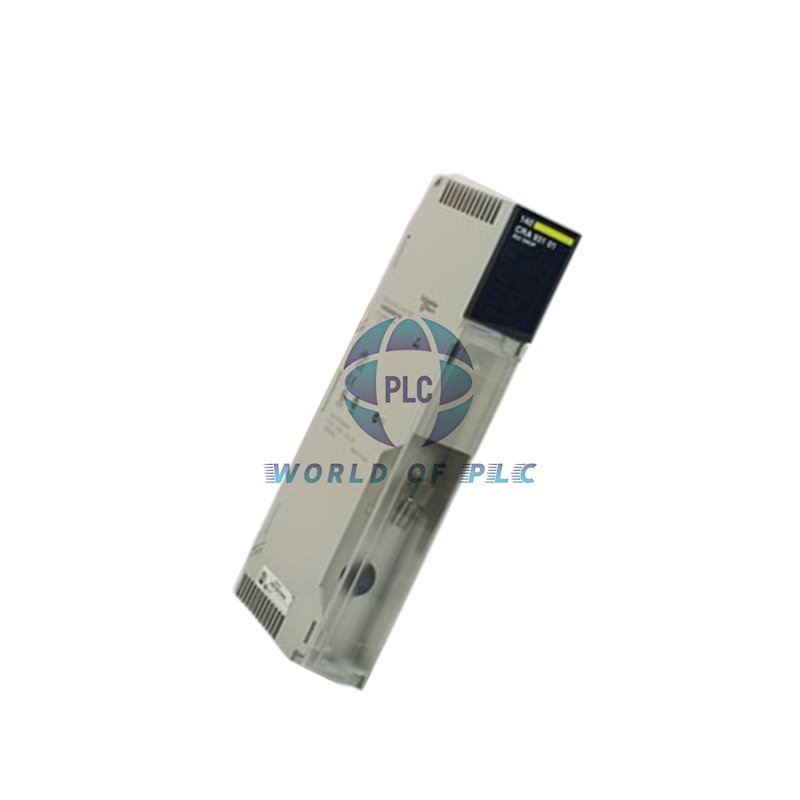

Compact Connectivity: Schneider Electric 140CRA93101 Adapter
Essential Remote I/O Interface
- The 140CRA93101 provides reliable S908 remote I/O connectivity.
- This Schneider Electric adapter features a compact and efficient design.
- It enables seamless integration with Modicon Quantum automation systems.
- You get robust F-type connector interface for secure cable connections.
- The unit ensures reliable data transmission in industrial environments.
- Your remote I/O networks maintain stable and continuous operation.
- System expansion becomes straightforward with this essential adapter.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CRA93101
- Product Type: RIO Drop Adapter Module
- Device Code: CRA series adapter
- Connector Type: Female F-type elbowed
- SAT Connector: 1 female F-type port
- Compatibility: Modicon Quantum systems
- Impedance Rating: 75 Ohm standard
- Frequency Range: DC to 50 MHz operation
- Insertion Loss: < 0.3 dB typical
- VSWR: 1.2:1 maximum ratio
- Operating Temp: 0°C to 60°C range
- Isolation: 500 V DC minimum
Connection Features
- Female F-type connector
- Elbowed design for space saving
- Secure cable connection
- Reliable signal transmission
- Easy installation
- Maintenance-friendly design
System Compatibility
- Modicon Quantum platform
- S908 remote I/O systems
- Industrial network applications
- Automation control systems
- Process control environments
- Manufacturing applications
Physical Specifications
- Compact module design
- Standard form factor
- Lightweight construction
- Robust industrial housing
- Easy rack mounting
- Space-efficient layout
Performance Characteristics
- High signal integrity
- Low insertion loss
- Excellent impedance matching
- Reliable data transmission
- Stable operation
- Long-term reliability
Shipping Information
- Single unit packaging
- Package weight: 511 grams
- Dimensions: 31.2cm × 16.2cm × 4.6cm
- FedEx, UPS, DHL shipping
- 12 month warranty coverage
- Secure protective packaging
Technical Questions
- What connector type does it use?
- It features a female F-type elbowed connector for coaxial cable connection.
- What systems is it compatible with?
- The adapter works with Modicon Quantum automation platforms and S908 systems.
- What is the impedance rating?
- It maintains 75 Ohm impedance for proper signal transmission quality.
- How many connectors does it have?
- The module provides one female F-type connector for network connection.
- What is the operating temperature range?
- It operates reliably in temperatures from 0°C to 60°C industrial range.
