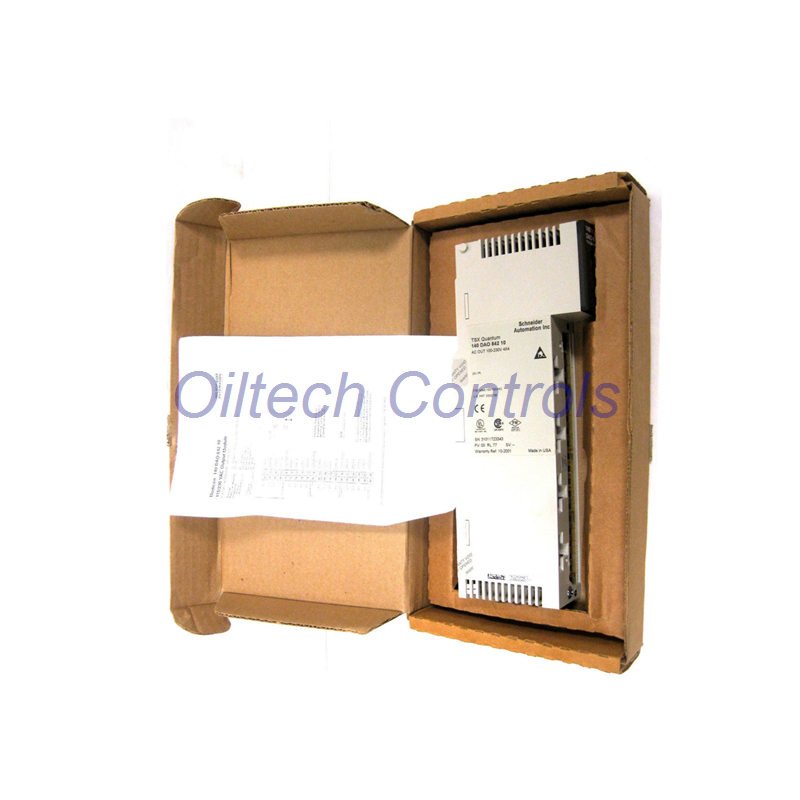

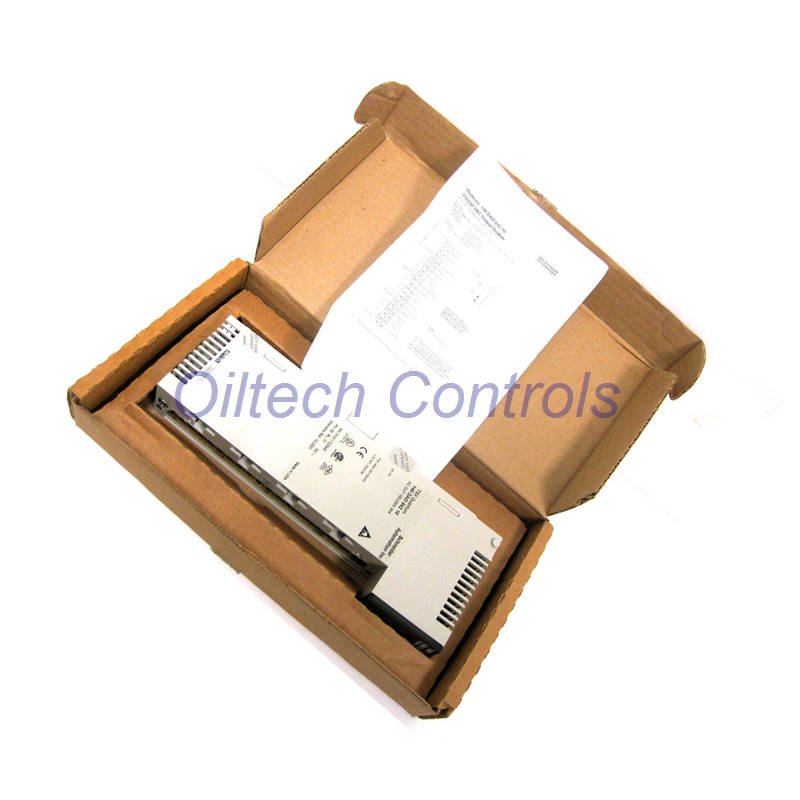

High-Power AC Output: Schneider Electric 140DAO84210 Module
Robust AC Output Solution
- The 140DAO84210 delivers reliable AC power control for industrial applications.
- This Schneider Electric module provides sixteen individual AC output channels.
- It handles wide voltage range from 83 to 253 volts AC operation.
- You get four protected channel groups with individual fuse protection.
- The module offers fast response times for precise control applications.
- Your AC load control achieves new levels of reliability and safety.
- Industrial automation systems benefit from this robust output solution.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DAO84210
- Product Type: AC Discrete Output Module
- Output Channels: 16 individual outputs
- Channel Groups: 4 groups of 4 channels
- Output Voltage: 83-253 V AC range
- Frequency: 47-63 Hz operation
- Load Current: 3A at 170-253V, 4A at 85-132V
- Module Current: 16A maximum total
- Group Current: 4A maximum per group
- Surge Current: 30A for 1 cycle per point
- Response Time: 0.5 ms switching speed
- Fuse Protection: 5A internal fuses
- Voltage Drop: 1.5V maximum
- dV/dt Rating: 400 V/ms maximum
Protection Features
- Individual 5A fuse protection
- RC filter internal protection
- Surge current withstand capability
- Overload protection
- Short-circuit protection
- Loss of field power detection
Monitoring & Indication
- Green bus communication LED
- Red external fault indicator
- 16 green channel status LEDs
- Blown fuse detection
- Field power loss indication
- Module status monitoring
Performance Characteristics
- Fast 0.5 ms response time
- Low leakage current
- High surge current capability
- Stable voltage operation
- Reliable switching
- Long service life
Electrical Specifications
- Bus current: 350 mA requirement
- Power dissipation: Calculated formula
- Isolation: 300Vrms continuous
- Withstand: 400Vrms momentary
- Leakage: 2-2.5 mA off state
- Impedance: High isolation rating
Environmental Specifications
- Operating temperature: 0°C to 60°C
- Storage temperature: -40°C to 85°C
- Humidity tolerance: 95% non-condensing
- Maximum altitude: 5000 meters
- ESD protection: 4kV contact, 8kV air
- EMC immunity: 10V/m 80-1000MHz
Shipping & Service
- Single unit packaging
- Package weight: 634 grams
- Dimensions: 31.2cm × 16.3cm × 4.5cm
- FedEx, UPS, DHL shipping
- 12 month warranty coverage
- Returnable product option
Technical Questions
- What voltage range does it support?
- The module operates with AC voltages from 83 to 253 volts for wide application use.
- How are the output channels grouped?
- Sixteen outputs divide into four groups of four channels with separate protection.
- What is the maximum load current?
- Each output handles 3 amps at higher voltages and 4 amps at lower voltage ranges.
- What protection features are included?
- It provides 5A fuses, RC filters, and surge protection for each channel group.
- How fast is the response time?
- The module switches states in 0.5 milliseconds for precise control applications.
