Schneider Electric 140DDO35300C Output Module | Modicon Quantum 32-Point

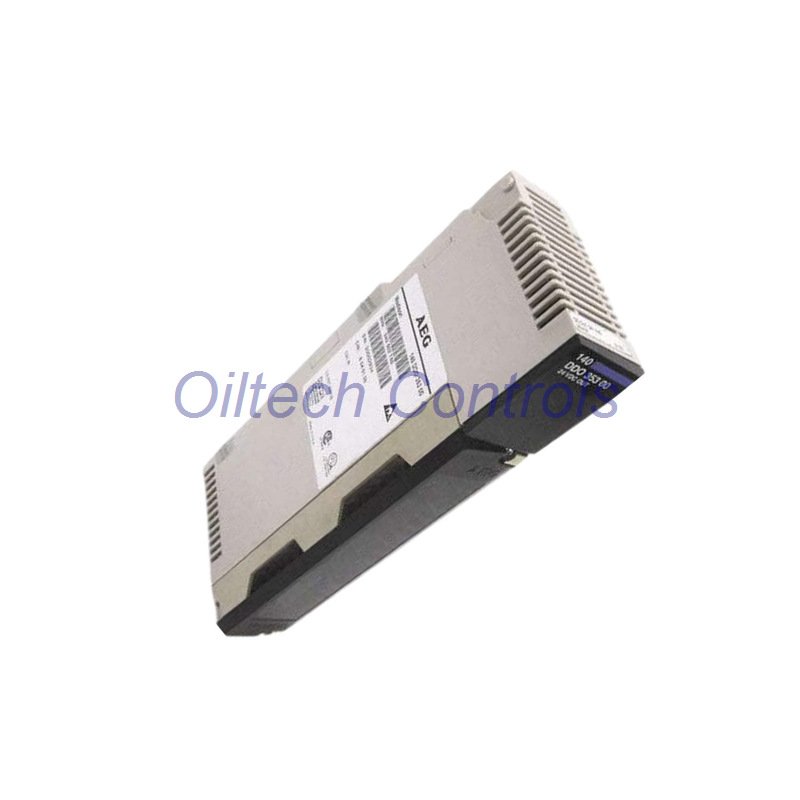

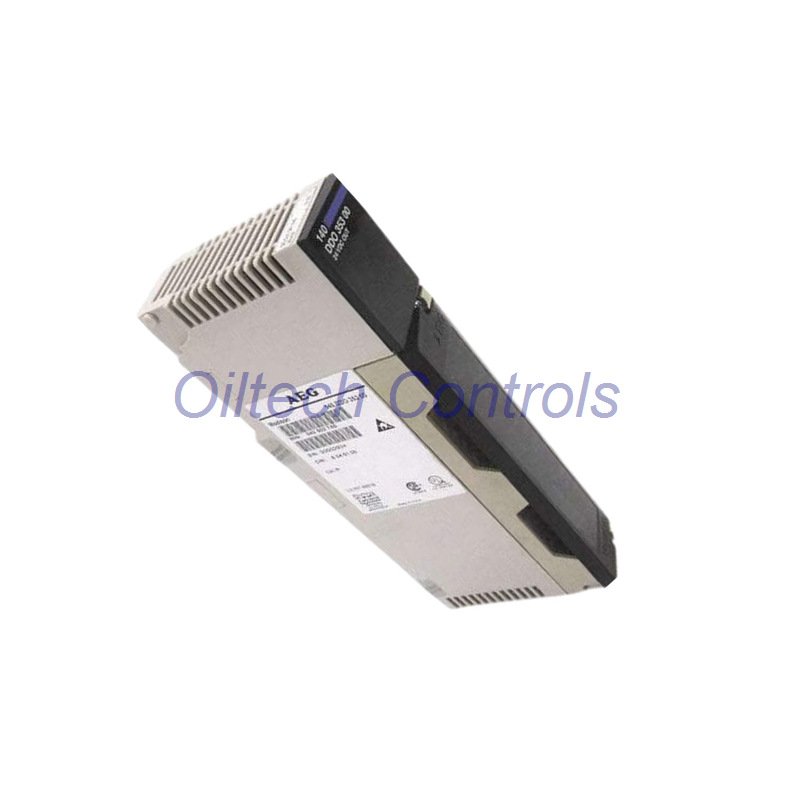

Schneider Electric 140DDO35300C Module

The Schneider Electric 140DDO35300C is an output module. It works with Modicon Quantum PLC systems. This unit controls 32 output points.

Product Details

• Model: Schneider Electric 140DDO35300C
• Type: DC Discrete Output Module
• Output Points: 32 Points Total
• Groups: 4 Groups of 8 Points
• Voltage: 24V DC (19.2-30V DC Range)
• Current: 4A per Group, 16A Total
• Weight: 0.45 kg

Technical Specifications

• Electrical Performance:
  • Response Time: ≤1 ms
  • Max Voltage Pulse: 56V for 1.3s
  • Leakage Current: <0.4 mA
• Protection Features:
  • Internal Fuses: 5A per Group
  • Isolation: 1780Vrms Protection
  • Standards: UL 508, CSA
• Operating Conditions:
  • Temperature: 0°C to +60°C
  • Humidity: 95% Max
  • Altitude: Up to 5000m
• Indicators & Power:
  • 32 Green Status LEDs
  • Red Fault Indicator LED
  • Bus Power: 330 mA Required

Key Advantages

• High density saves panel space
• Fast switching for precise control
• Built-in fuse protection
• Wide voltage range operation
• Easy to install and wire
• Reliable industrial performance

Shipping & Warranty

• 12 month manufacturer warranty
• In stock for quick delivery
• Ships via FedEx, UPS, DHL
• Package size: 31 x 16 x 5 cm

FAQ

• What PLC system uses this module?
  It works with Modicon Quantum series PLCs.
• Can all outputs work together?
  Yes, all 32 outputs can operate at same time.
• How do I know if a fuse is bad?
  The red fault LED will light up on the module.
• What is the maximum load per point?
  Each point can handle up to the group limit of 4A.
• Is programming software needed?
  Yes, use standard Modicon configuration tools.
