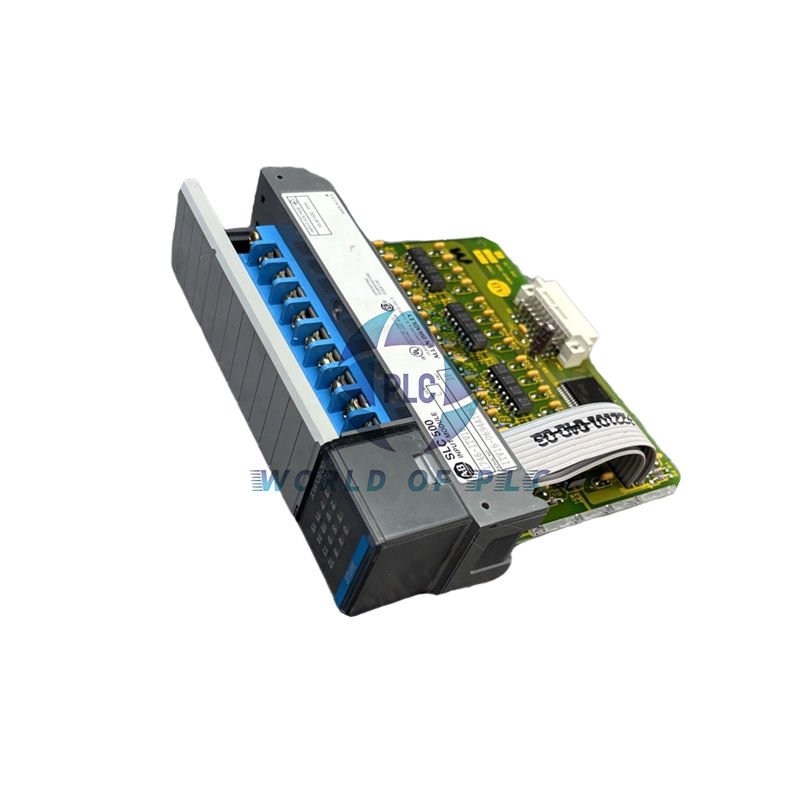

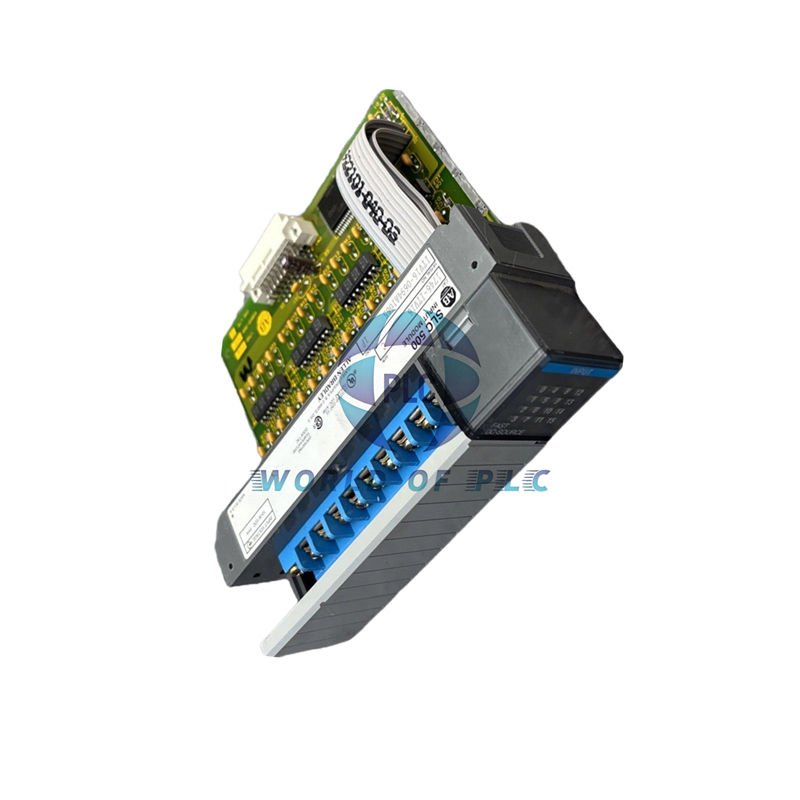

Allen-Bradley 1746-ITV16 SLC 500 High-Speed Input Module
The Allen-Bradley 1746-ITV16 offers sixteen fast-response input channels for precise 24V DC sensing. This module delivers exceptional speed and reliability for time-critical automation applications.
Technical Specifications
- Brand: Allen-Bradley | Rockwell Automation
- Model: 1746-ITV16
- Input Type: 16-point sourcing DC input
- Voltage Range: 10-30V DC operating range
- Nominal Voltage: 24V DC standard operation
- Response Time: 0.3ms ON / 0.5ms OFF maximum
- Input Current: 8mA typical @ 24V DC
- Off-State Leakage: 1.5mA maximum
- Backplane Current: 85mA @ 5V DC
- Power Dissipation: 3.6W maximum
- Isolation: 1500V AC optical isolation
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Connection: Removable terminal block
- Filtering: Built-in noise suppression
Package Contents
- One 1746-ITV16 input module
- Installation documentation
- Safety and compliance information
Shipping Options
- Global shipping available
- Carriers: FedEx, UPS, DHL
- Protected packaging ensures safe delivery
- Tracking information provided
Performance Comparison
- Different function than 1746-P1 Power Supply
- Different function than 1746-P2 Power Supply
- The 1746-ITV16 specializes in high-speed input sensing
Expert FAQ
- What makes this module high-speed? 0.3ms response time enables fast counting
- Can it handle encoder signals? Yes, ideal for quadrature encoder applications
- What wiring configuration does it use? Source wiring (sinking input) configuration
- How many channels can it monitor? Sixteen independent input channels
- What noise protection does it feature? Optical isolation and built-in filtering
