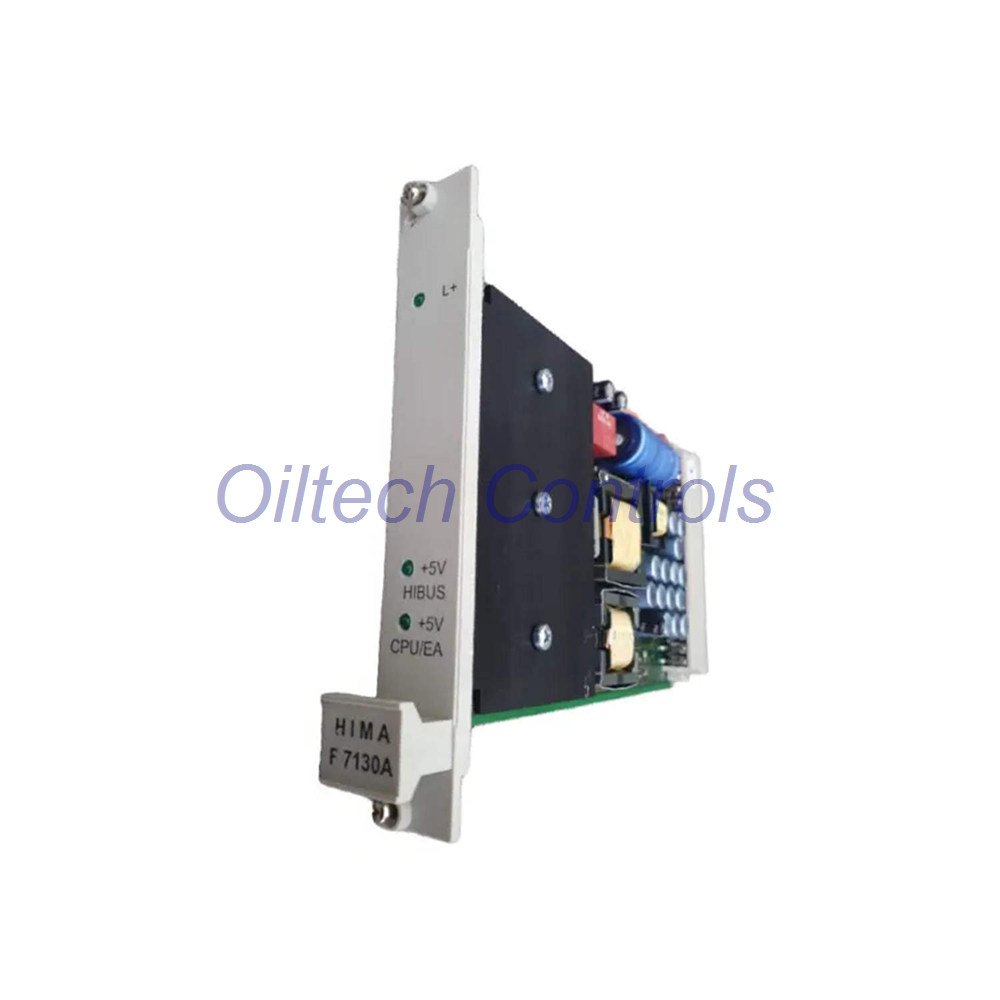

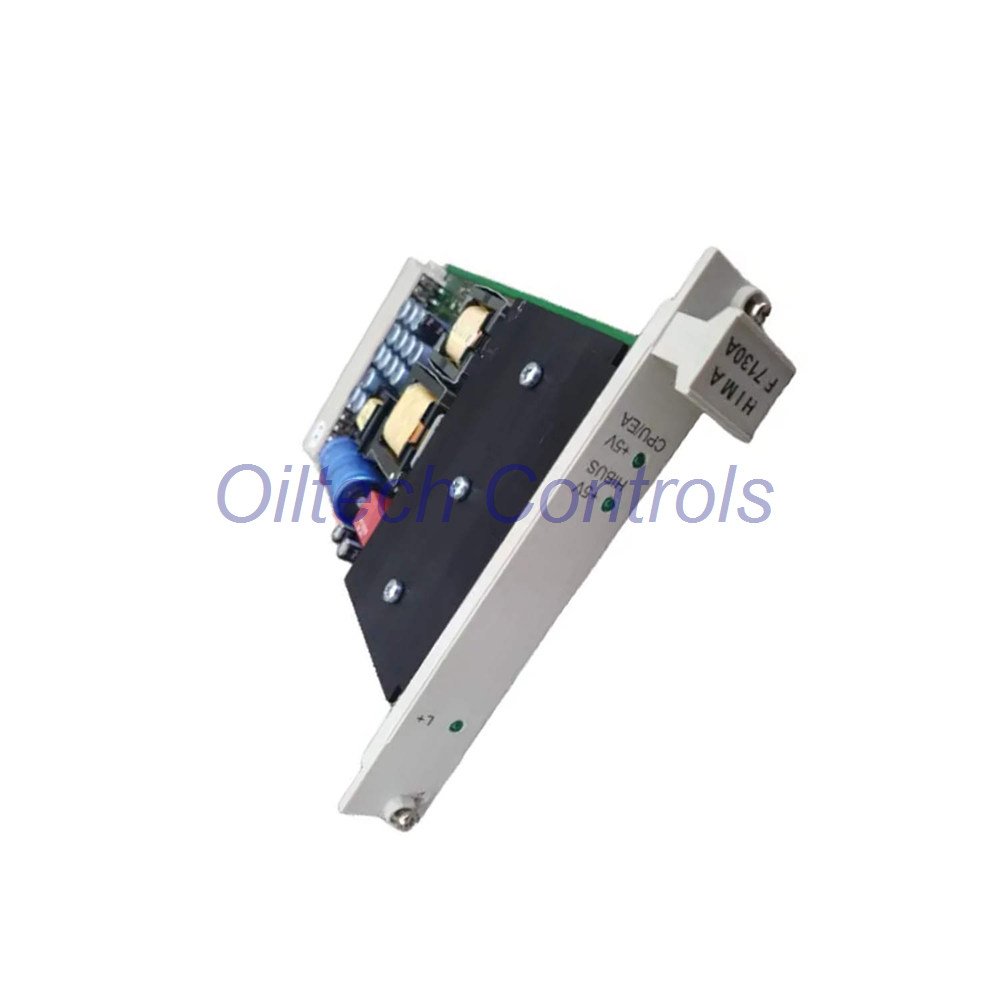

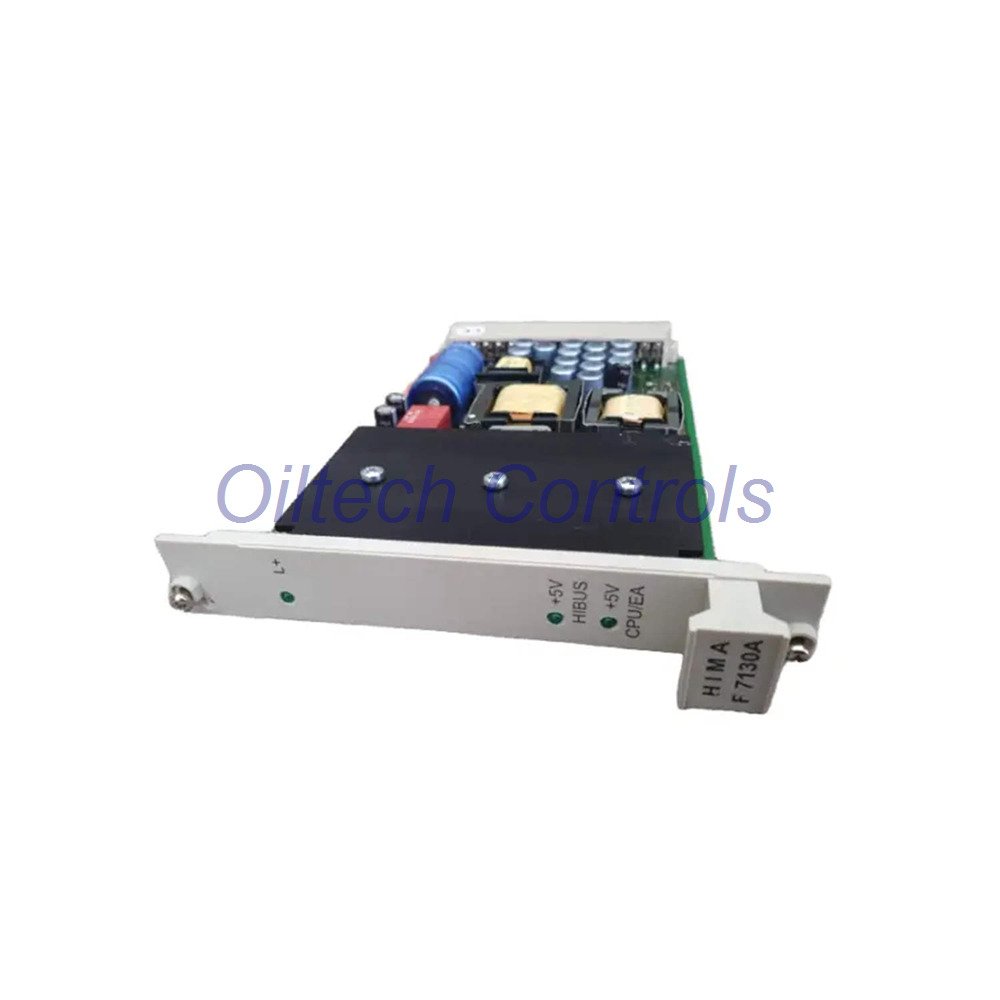

Technical Profile: HIMA F7130A Power Supply

The F7130A serves as a dedicated DC/DC converter for H41q PES architectures. It efficiently transforms a 24VDC primary supply into regulated 5VDC outputs with full electrical isolation, ensuring high system integrity in mission-critical automation environments.

Operating Parameters

• Input Voltage: 24VDC (-15% to +20%), ripple pp < 15%
• Primary Protection: Integrated 5AgL fuse
• Output A (CPU/IO): 5VDC, +0.25V / 10A
• Output B (HIBUS): 5VDC, +0.25V / 1A
• Conversion Efficiency: ≥ 70%
• Space Requirement: 4SU

Safety and Diagnostics

• Circuit Integrity: Features overvoltage protection and current limitation.
• Short-Circuit Protection: Fully hardened outputs for high availability.
• Status Monitoring: Front-plate LEDs provide visual verification of L+ input and 5V outputs.
• Operational Note: Minimal illumination of the “5V CPU/EA” LED does not indicate module failure.
• Dedicated Monitoring: Central device monitoring via separate pin z16 (NG).

Oiltech Controls’s Insight

• Equipment Compatibility: Optimized specifically for HIMA H41q safety systems.
• Pro-Tip: Always calculate the total current draw of your active IO modules plus the CPU base load, ensuring a 15% power safety buffer.
• Reliability: Engineered for 24/7 industrial performance under harsh electrical conditions.

Logistics & Support

• Quality Assurance: Comprehensive 12-month quality guarantee.
• Fast Dispatch: Orders processed and shipped within 24-28 hours.
• Global Logistics: Secure transit via FedEx, UPS, and DHL.
• Expert Contact: Need technical support? Reach us at info@oiltechcontrols.com or via WhatsApp.

Frequently Asked Questions (FAQ)

• Q: How do I identify an internal failure versus a load issue?
  A: If 5V LEDs are completely dark despite valid 24V input (L+), the unit likely requires replacement.
• Q: Why does the 5V LED sometimes glow dimly?
  A: The module is designed to indicate proper operation even with slight LED dimming; this is often due to load variance.
• Q: What is the most common cause of the primary fuse blowing?
  A: A direct short circuit in the HIBUS interface or a faulty IO module feeding back into the 5V line.
• Q: Can I replace the F7130A while the system is live?
  A: We recommend following your facility’s safety lockdown procedures, although the F7130A design supports rapid rack-based swap.
• Q: How does the separate monitoring for the central device work?
  A: It uses pin z16 (NG) to isolate monitoring functions, ensuring that local power fluctuations do not mask critical system health status.
