Product Overview

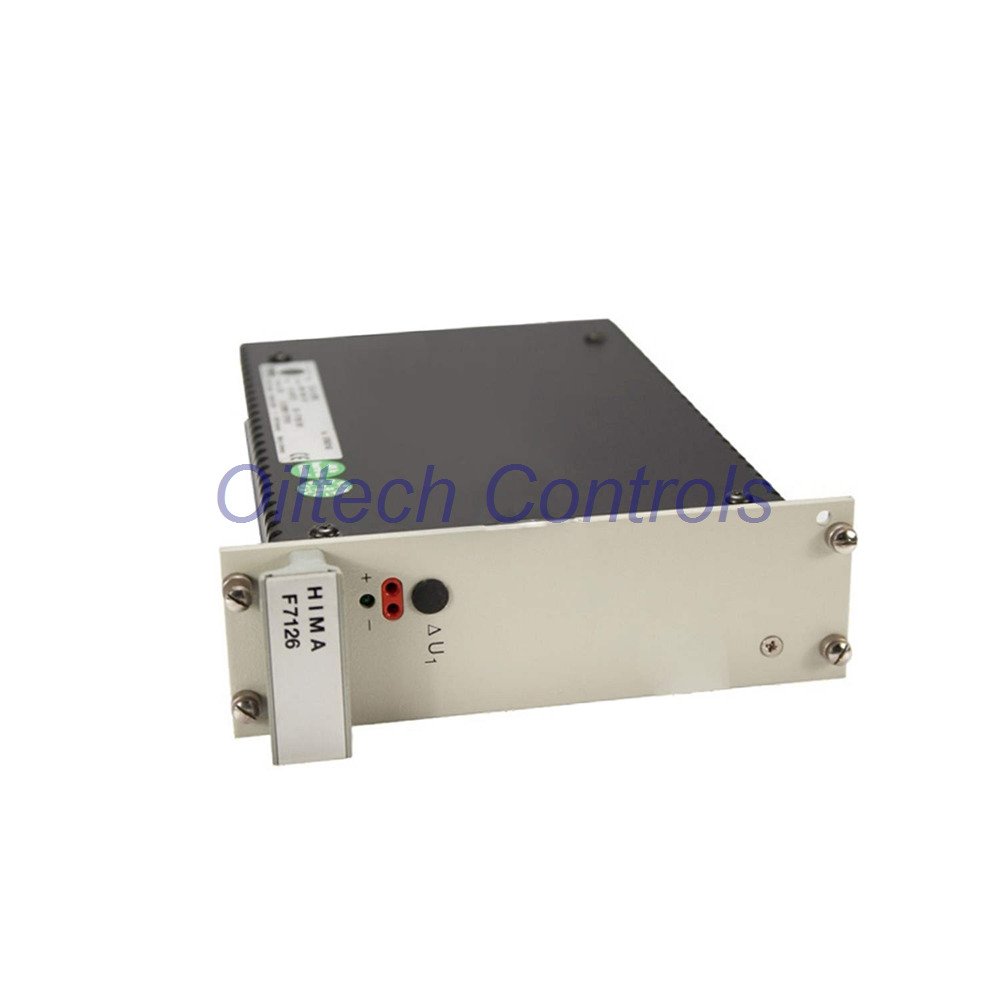

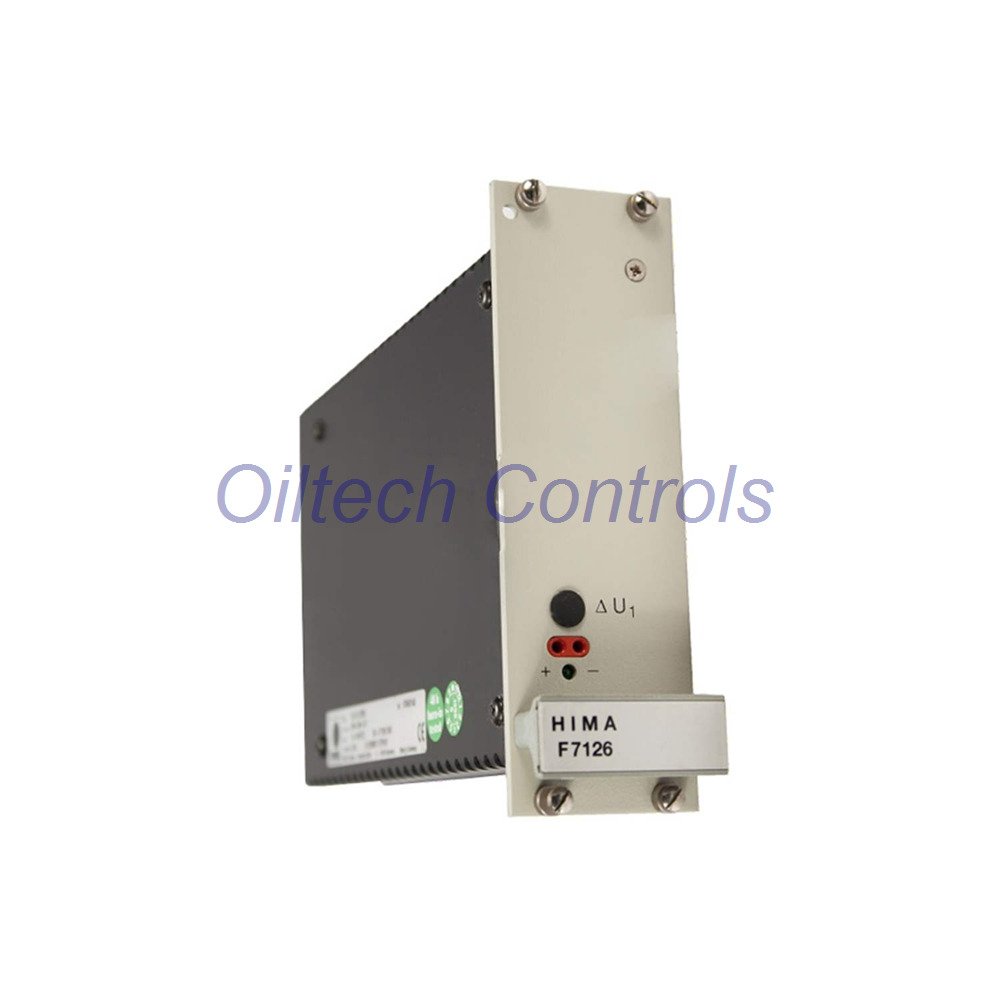

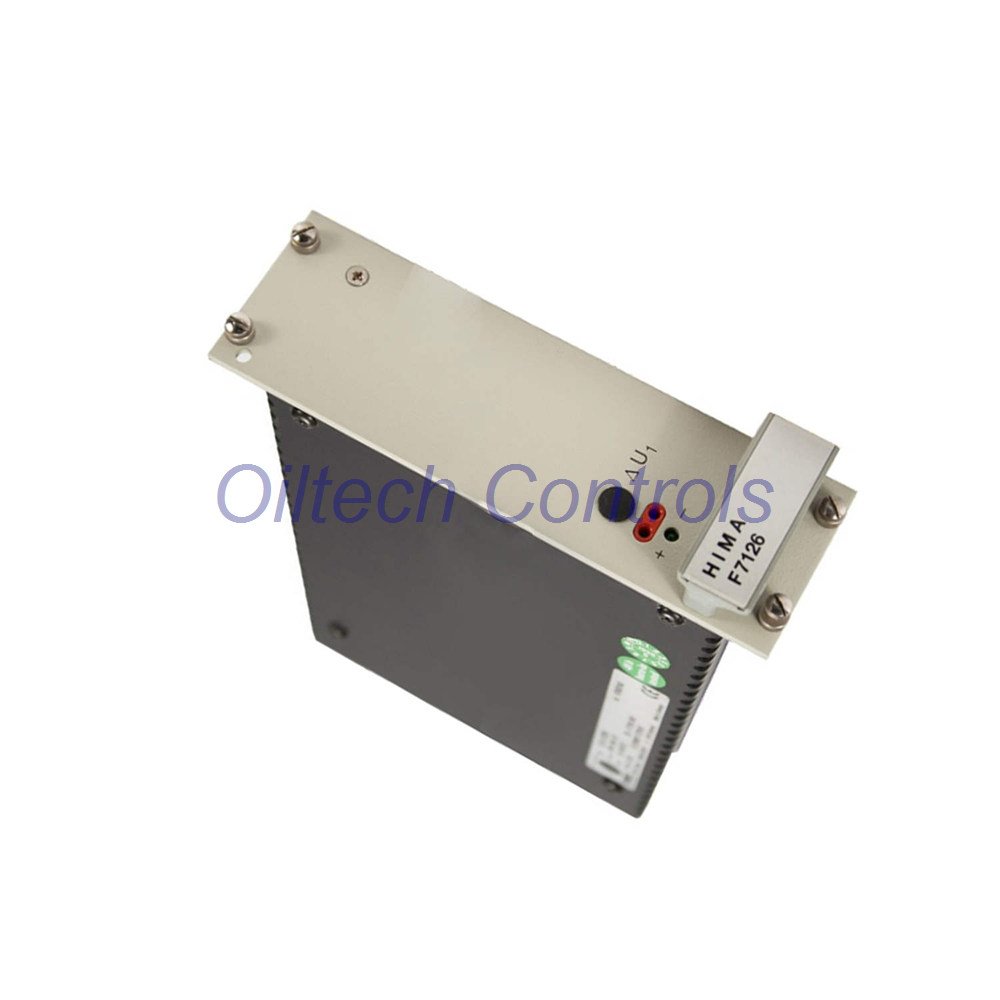

The HIMA F7126 is a high-performance DC/DC power supply module engineered for H51q safety automation systems. It provides reliable conversion from a 24V DC main supply to a stable 5V DC output. This module ensures peak performance and high safety standards in critical industrial environments.
Technical Specifications
- Brand: HIMA
- Model: F7126
- Input Voltage: 24V DC (-15% to +20%)
- Output Voltage: 5V DC ± 0.5V (Adjustable)
- Factory Adjustment: 5.4V DC ± 0.025V
- Output Current: 10A
- Current Limitation: Approx. 13A
- Overvoltage Protection: Set to 6.5V ± 0.5V
- Efficiency: ≥ 77%
- Interference Limit: Class B (VDE 0871/0877)
- Physical Size: 8 TE
Operation & Maintenance
- Safe Isolation: Offers reliable electrical isolation between input and output voltages.
- Short Circuit Proof: Built-in protection against output faults.
- Easy Calibration: Features a test socket and potentiometer on the front panel for precise voltage adjustment.
- Redundancy Support: Maintain an output voltage difference below 0.025V when using in parallel.
- Primary Protection: Equipped with a 6.3A slow-blow fuse.
Applications & Service
- Typical Applications: Essential for H51q safety-related automation control systems.
- Diagnostic Ability: Includes monitoring features to ensure continuous system integrity.
- Warranty: Backed by a 12-month quality guarantee.
- Logistics: We offer fast, reliable shipping via FedEx, UPS, or DHL.
- Support: For inquiries, contact info@oiltechcontrols.com or WhatsApp us at +86 158 8020 0923.
FAQ
- Can this module handle redundant power configurations? Yes, ensure the voltage difference is under 0.025V for balanced loads.
- How can I adjust the output voltage? Use the potentiometer located on the front plate for seamless adjustment.
- What is the overvoltage protection limit? It is factory-set to 6.5V ± 0.5V.
