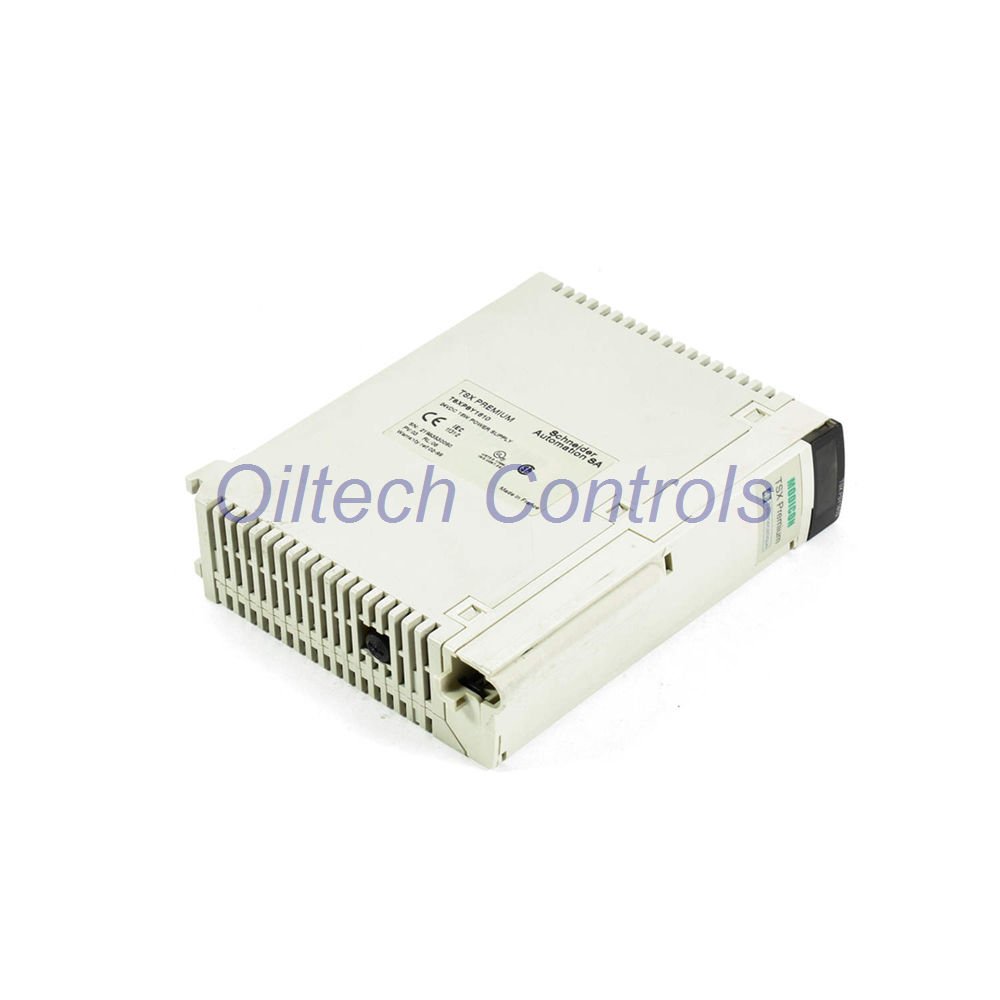

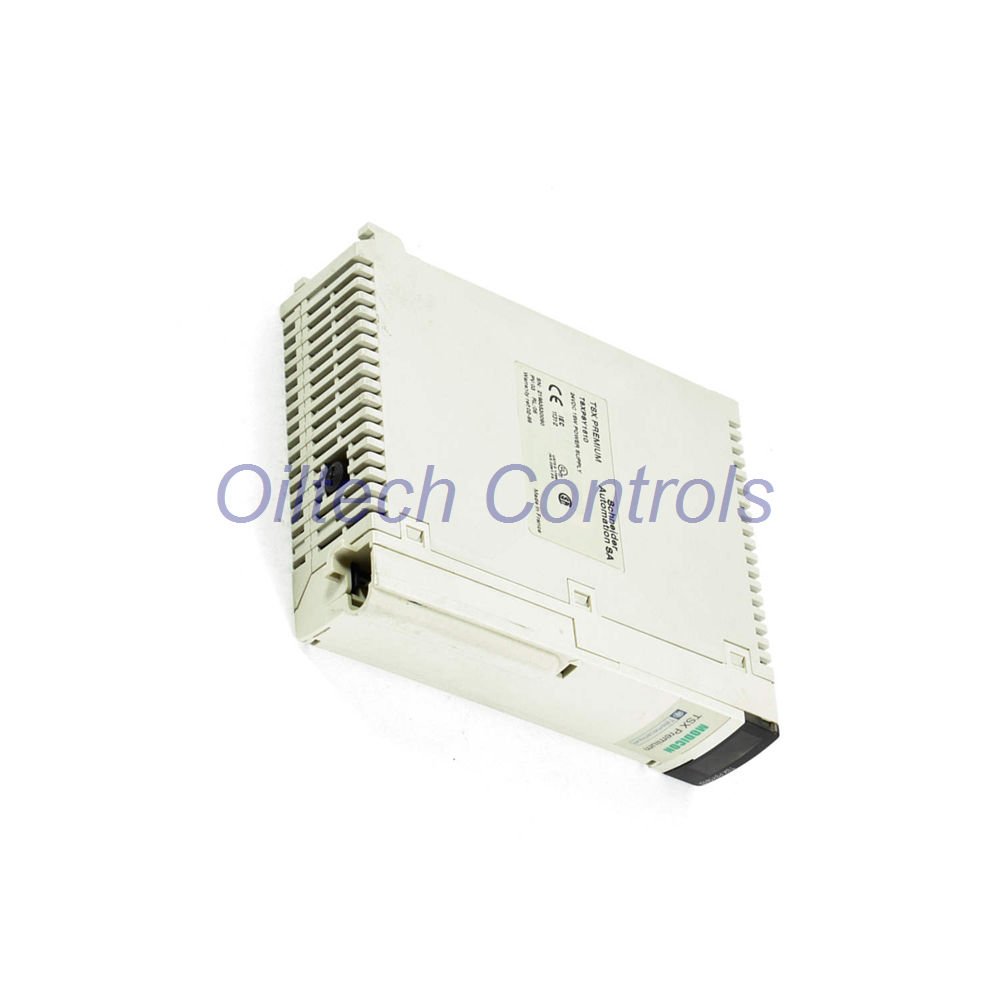

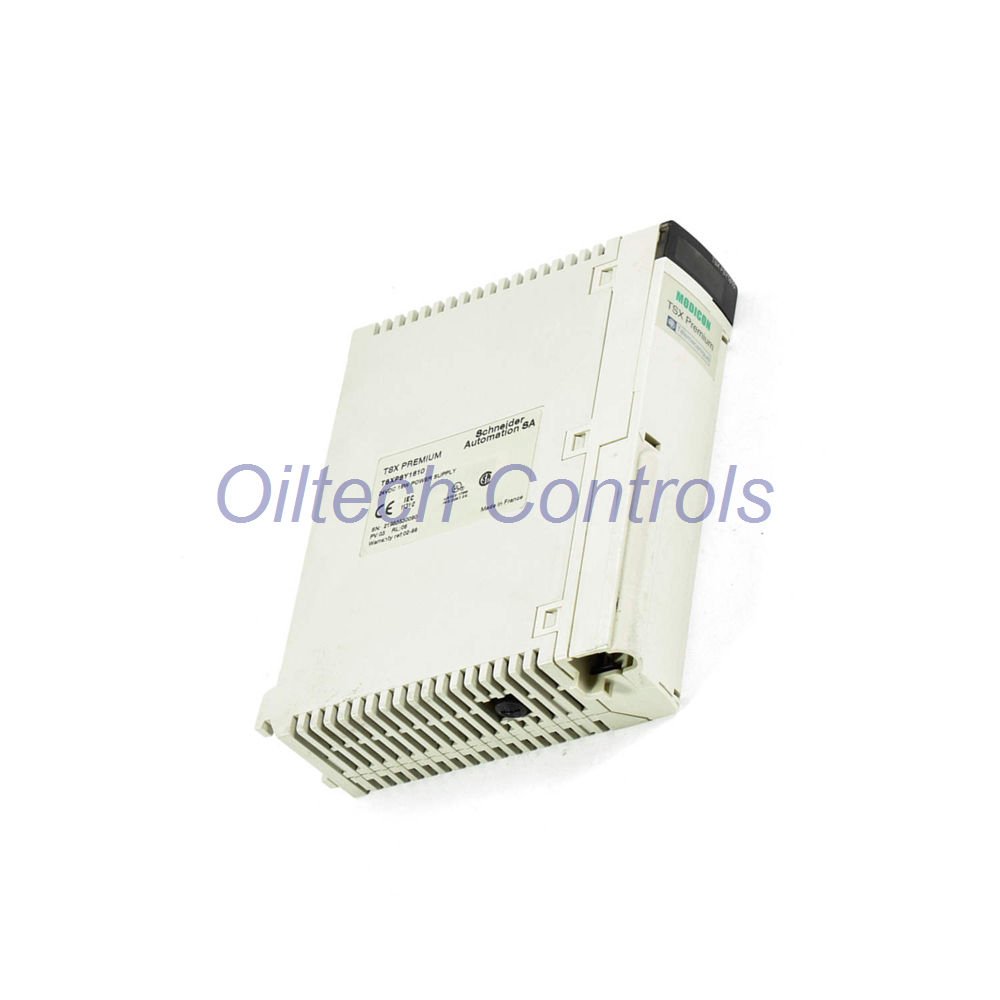

TSXPSY1610M Schneider Electric PLC Power Supply Module Overview
TSXPSY1610M is a compact PLC power supply module from Schneider Electric.
It provides stable energy for industrial automation systems.
The module converts 24V DC input into reliable control voltages.
It supports relay circuits and logic circuits at the same time.
The design fits many PLC cabinets and factory control systems.
Main Product Advantages
- Model: TSXPSY1610M
- Manufacturer: Schneider Electric
- Stable power for PLC automation platforms
- Compact size for easy cabinet installation
- Reliable power for relay and logic circuits
- Built-in protection improves system safety
- Long service life in factory environments
- Simple wiring and fast installation
- Suitable for many industrial PLC racks
Electrical Performance Data
- Primary input voltage: 24 V DC
- Input voltage range: 19.2 V to 30 V DC
- Maximum input current: 1500 mA
- Total secondary output power: 30 W
- Output power at 5 V DC: 15 W
- Output power at 24 V DC: 15 W
- Secondary current: 3 A at 5 V DC
- Relay supply current: 0.6 A at 24 V DC
- Inrush current: 100 A at 24 V
- Activation energy I²t: 12.5 A².s
- Activation time constant: 0.2 A.s
Protection and Safety Features
- Internal time-delay fuse: 3.5 A
- Fuse size: 5 × 20 mm
- Secondary overload protection
- Output overvoltage protection
- Short-circuit protection for safety
- Dielectric strength: 2000 V isolation
- Protection between primary and ground
- Protection between primary and secondary circuits
Visual Indicators and Diagnostics
- Green LED shows normal voltage status
- Red LED shows battery fault warning
- Fast status check without extra tools
- Easy troubleshooting during maintenance
- Helps reduce system downtime
Environmental Operating Limits
- Operating temperature: 0°C to 60°C
- Storage temperature: −25°C to 70°C
- Operating humidity: 10% to 95%
- Storage humidity: 5% to 95%
- No condensation allowed
- Maximum altitude: 2000 meters
- Protection treatment: TC industrial coating
- Pollution degree: 2
- Ingress protection: IP20
Physical Structure
- Module format: standard PLC module
- Approximate weight: 0.54 kg
- Compact cabinet installation design
- Easy replacement inside PLC racks
- Robust industrial housing
Compliance and Certifications
- IEC 61131-2 automation standard
- UL 508 industrial control equipment approval
- CSA C22.2 safety certification
- Marine approvals: ABS, BV, DNV, LR
- RINA, RMRS, GL certification
- CE compliance marking
Typical Industrial Applications
- PLC control cabinets
- Factory automation lines
- Machine control systems
- Industrial monitoring equipment
- Power distribution control panels
- Integration with Modicon Quantum automation environments
Packaging Information
- 1 × TSXPSY1610M PLC power module
- Factory sealed industrial packaging
- Quality inspection before shipment
- Protective export packing
Warranty and Shipping
- 12-month product warranty
- Professional industrial packaging
- Worldwide shipping available
- Express delivery via FedEx, UPS, DHL
- Reliable logistics tracking service
Professional FAQ
- How do engineers select the correct PLC power module?
- Check the input voltage, total output power, and PLC compatibility first.
- Is TSXPSY1610M suitable for continuous industrial operation?
- Yes. It supports long working cycles in PLC cabinets.
- What is the main reason to choose a 30W PLC power module?
- It provides enough power for logic circuits and relay outputs.
- What common issues appear in PLC power supplies?
- Voltage fluctuation, fuse failure, and overload conditions.
- How do experts extend the service life of this module?
- Keep cabinet ventilation good and avoid overload operation.
