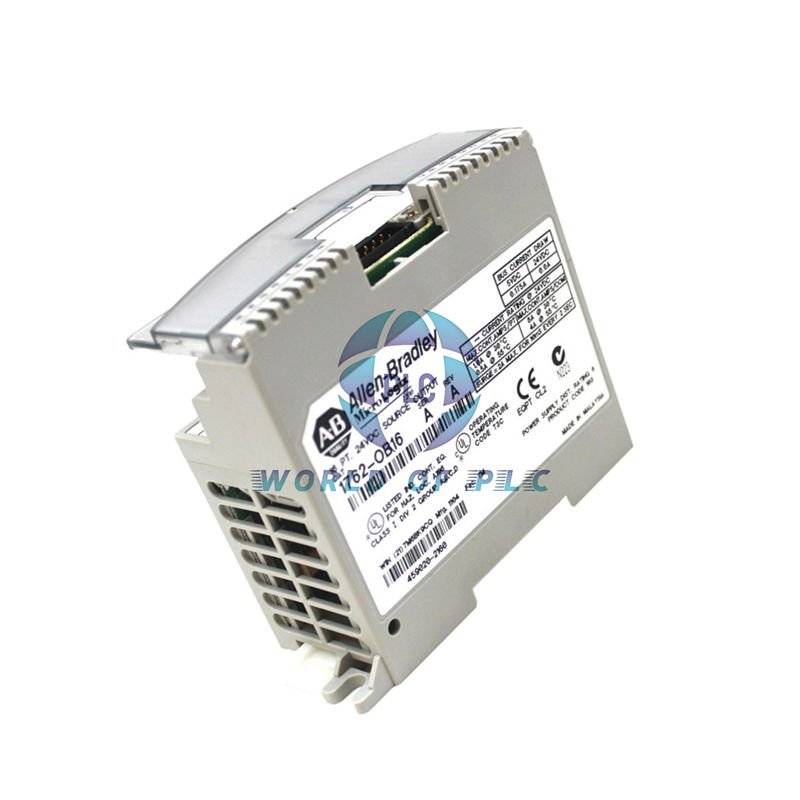

1762-OB16 Allen-Bradley MicroLogix 16-Point 24VDC Sourcing Output Module
Product Title: 1762-OB16 Allen-Bradley MicroLogix 16-Channel 24VDC Sourcing Output Expansion Module
The Allen-Bradley 1762-OB16 is a solid-state expansion output module for the MicroLogix 1100, 1200, and 1400 families. It adds 16 sourcing 24VDC outputs in one group, outputs 0 through 15. The module suits panel builders and maintenance teams who need extra discrete outputs without changing the controller platform.
Each point switches fast: 0.1 ms ON delay and 1.0 ms OFF delay. The module draws 175 mA max at 5VDC from the bus. It uses external 24VDC input power over a 20.4 to 26.4VDC range. Use it to drive solenoids, relay coils, pilot lamps, horns, buzzers, and small motor starters.
Key point: the 1762-OB16 is a sourcing (PNP-style) output module. Check your field device wiring before you install it. For sourcing input needs, choose a different module.
Technical Specifications
| Brand | Allen-Bradley (Rockwell Automation) |
| Model / Catalog No. | 1762-OB16 |
| Series | MicroLogix 1200 expansion I/O |
| Module Type | Discrete solid-state output module |
| Output Count | 16 sourcing outputs, 1 group (0 to 15) |
| Voltage Category | 24VDC |
| Output Voltage Range | 20.4 to 26.4VDC |
| Input Power | 24VDC external supply, 20 to 26.4VDC |
| Signal Delay ON | 0.1 ms |
| Signal Delay OFF | 1.0 ms |
| Current per Point | 0.5A at 55°C / 1.0A at 30°C |
| Current per Module | 4.0A at 55°C / 8.0A at 30°C |
| Max Surge Current | 2.0A (10 ms duration) |
| Bus Current Draw | 175 mA max at 5VDC (0.88W) |
| Mounting | DIN rail or panel mount |
| Operating Altitude | 2000 m max (6561 ft) |
| Humidity | 5 to 95% non-condensing |
| Power Supply Distance | 6 modules max from the power supply |
| UPC | 10611320320579 |
| UNSPSC | 32151601 |
Note on temperature derating: point and module current ratings fall as ambient temperature rises. Confirm your panel temperature before you set load limits. The surge rating allows one repeat every 2 s at 55°C, or once per second at 30°C, for 10 ms each time.
Compatibility Notes
- MicroLogix 1100: up to 4 expansion modules
- MicroLogix 1200: up to 6 expansion modules
- MicroLogix 1400: up to 7 expansion modules
Keep the module within six positions of the power supply. Add a second supply if your layout needs more modules. This rule protects bus voltage and stable switching.
Installation Guide
- Mount on a well-grounded surface or DIN rail.
- Leave 2 in (50.8 mm) clearance on all sides for airflow.
- Use a DIN rail end anchor in high-vibration areas.
- Keep wiring away from enclosure walls and adjacent wireways.
- Check sourcing wiring polarity before you power up.
Setup and Maintenance
The module has no user serviceable parts. Commissioning is fast. Wire the outputs, set the controller I/O map, and confirm each point with a test load. Keep spare modules on hand for critical lines. Oiltech Controls tests each unit before shipment. Contact us: info@oiltechcontrols.com or +86 158 8020 0923 for compatibility checks.
Typical Applications
- Solenoid and valve control
- Relay coil and motor starter switching
- Pilot lamps, sirens, horns, and buzzers
- Packaging, material handling, and small machine lines
- Legacy MicroLogix panel upgrades
Diagnostics
The controller handles point status reporting. Watch for output faults in the controller I/O status table. Use a meter at the terminal to confirm point voltage. If a point fails to switch, check the external 24VDC supply first, then the field wiring and load current.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipping support
- Tested surplus and refurbished options
- 12-month warranty on every unit
- Technical verification before dispatch
- Help with obsolete control systems
Shipping and Warranty
We ship by FedEx, UPS, and DHL. Every order includes a 12-month warranty. Packaging includes the module only unless we state otherwise. Ask us for a quote on cable and terminal accessories.
FAQ
Q: Is the 1762-OB16 sourcing or sinking?
A: It is a sourcing output module. It supplies positive voltage to the load.
Q: Can I use it with a MicroLogix 1400?
A: Yes. The 1400 accepts up to seven expansion modules.
Q: What supply voltage does it need?
A: Use a 24VDC supply in the 20.4 to 26.4VDC range.
Q: How many modules can sit from the power supply?
A: Six modules maximum. Add a supply for larger racks.
Q: Does it come with a warranty?
A: Yes. 12 months from Oiltech Controls.
Questions? Reach us at info@oiltechcontrols.com or +86 158 8020 0923 on WhatsApp.
