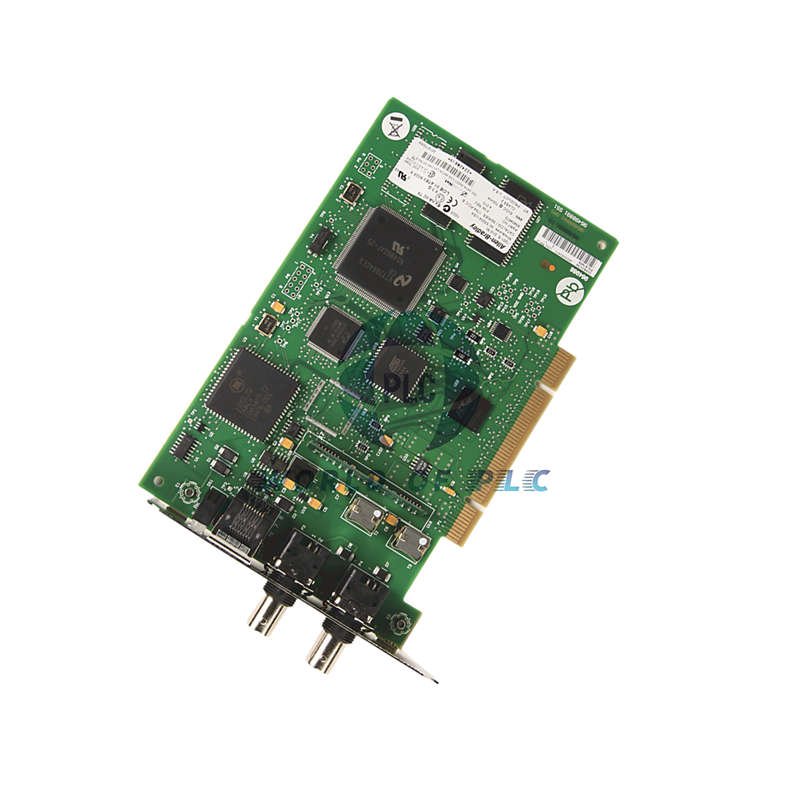

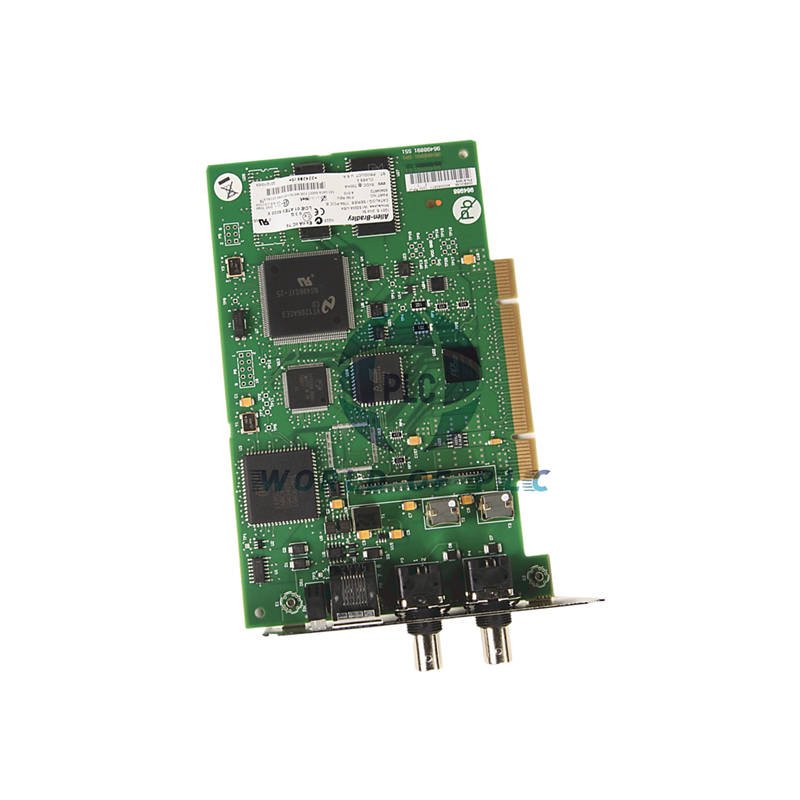

1784-PCIC ControlNet PCI Card – PLC 5 Series
Allen-Bradley | Rockwell Automation | 1784-PCIC | ControlNet PCI Interface
This universal PCI card enables host computers to communicate with ControlNet networks. It supports both RJ45 programming terminals and redundant BNC connections. The 1784-PCIC fits 32/64-bit PCI and PCI-X slots at 5V or 3.3V.
Technical Specifications
| Brand | Allen‑Bradley / Rockwell Automation |
| Model | 1784‑PCIC |
| Series | PLC 5 |
| Product Type | ControlNet PCI Communication Card |
| Dimensions | 4.2 × 6.5 in (107 × 165 mm) |
| Network Ports | RJ45 (programming) + BNC (ControlNet, redundant) |
| Cable | 1786‑CP (programming terminal) |
| Slot Compatibility | 5V / 3.3V PCI, 32‑bit / 64‑bit PCI, PCI‑X |
| Power Dissipation | 3.5 W |
| Isolation Voltage | 50 V (tested 600 V for 60 s) |
| Wire Type | Category 2 for communication ports |
| Operating Temp | 0‑50°C |
| Storage Temp | ‑40‑85°C |
Key Features & Performance
- Network interface: RJ45 for programming, BNC for ControlNet.
- Redundant BNC: Provides failover or dual‑media options.
- Wide slot support: Works with 5V/3.3V, 32/64‑bit, and PCI‑X.
- ESD protection: Sensitive components – handle with grounded wrist straps.
- Isolation: 50V isolation, tested to 600V for 60 seconds.
- Certifications: CE, CSA, UR, EEx, C‑tick.
Installation & Handling
- Power off: Shut down computer before installation.
- ESD precautions: Touch grounded object, use wrist straps, avoid pins.
- Slot selection: Insert into any compatible PCI or PCI‑X slot.
- Cable: Use only 1786‑CP for programming terminal connection.
- Wire: Category 2 wire for communication ports.
Compatibility & Integration
- Connects PC to ControlNet networks.
- Supports programming terminals via RJ45.
- Redundant BNC for ControlNet trunk or drop connections.
- Works with RSLinx and ControlNet configuration tools.
Diagnostic & Field Support
- LED indicators for network status (typical on bracket).
- Isolation protects host PC from network transients.
- Wide temperature range supports industrial environments.
- Power dissipation low (3.5W) – no additional cooling needed.
Environmental & Certifications
- Operating: 0‑50°C.
- Storage/transport: ‑40‑85°C.
- Certified: CE, CSA, UR, EEx, C‑tick.
- ESD sensitive – follow handling guidelines.
Package Contents
- 1784‑PCIC ControlNet PCI card.
- Quick start guide (digital).
- No cables included (1786‑CP sold separately).
Warranty & Shipping
12‑month warranty against defects. 24‑28 hour dispatch from order confirmation. Shipping: FedEx, UPS, DHL – global express.
Typical Applications & Compatible Devices
- PC‑based ControlNet programming stations.
- Human‑Machine Interface (HMI) nodes on ControlNet.
- Data collection and SCADA systems.
- Legacy PLC‑5 and ControlLogix networks.
- Industrial PC upgrades requiring ControlNet connectivity.
Oiltech Controls’s Insight
This card is a reliable bridge between PCs and ControlNet. The redundant BNC ports are valuable for critical networks – you can connect to both trunk and drop or use as backup. Always verify your PC has an available 5V/3.3V PCI slot. We recommend using the 1786-CP cable for stable programming connection.
FAQ – Expert Selection Guide
Q: What is the difference between RJ45 and BNC ports?
RJ45 connects a programming terminal (e.g., laptop). BNC connects to the ControlNet trunk or drop cable. Both are active simultaneously.
Q: Can I use this card in a PCI‑Express slot?
No. It requires standard PCI or PCI‑X. Adapters are not recommended.
Q: What cable do I need for programming?
Use 1786‑CP (RJ45 to RJ45) – standard Ethernet cable may not work reliably.
Q: Is the 1784-PCIC hot‑swappable?
No. You must power off the computer before inserting or removing the card.
Q: How do I verify the card is working?
Check RSLinx – the card appears as a ControlNet device. LED indicators on the bracket show link activity.
