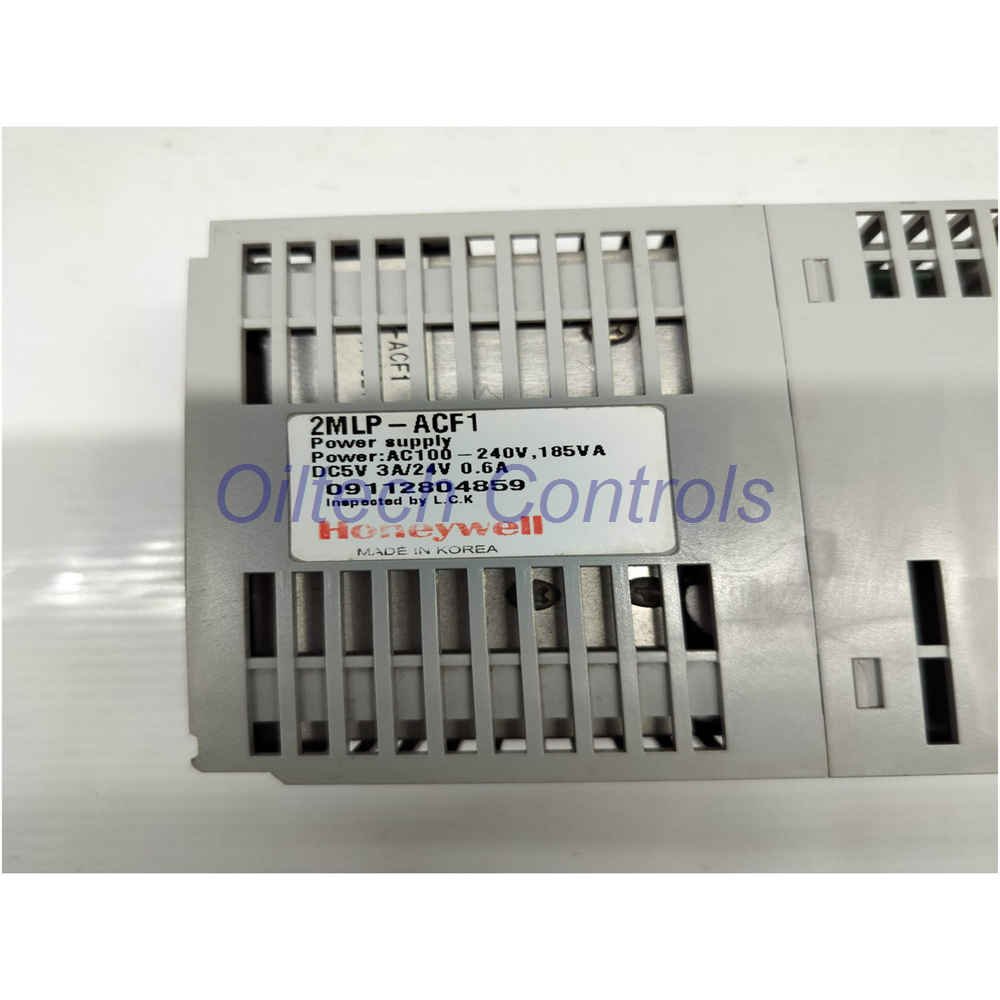

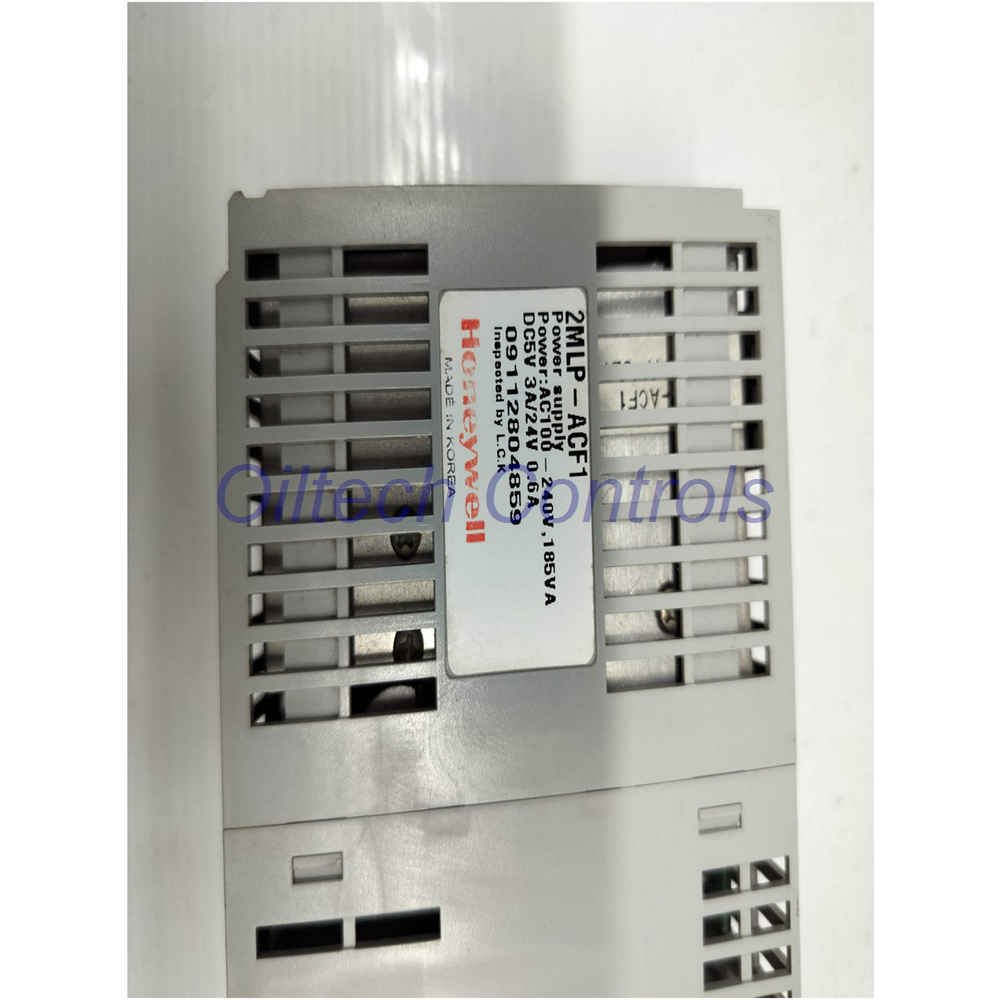

2MLP-ACF1 Honeywell MasterLogic-200 Power Supply Module 100-240VAC

Overview

• Rated Input Voltage: Standard AC 100V to AC 240V
• Input Voltage Range: Functional from AC 85V up to AC 264V
• Frequency Range: Supports 50/60 Hz (47 Hz to 63 Hz)
• System Efficiency: Maintains a minimum efficiency of 65%
• Protection: Features a built-in UL standard Slow Blow type input fuse
• Interruption Tolerance: Handles instantaneous power drops for 10 ms or shorter
• Current Indicators: Equipped with a green LED to signal normal output voltage status

Dual DC Output Specifications

• Output 1 (Logic): DC 5V (±2%) with a 3.0A rated current capacity
• Output 1 Safety: Over-current protection starts at 3.2A; Over-voltage protection at 5.5V – 6.5V
• Output 2 (Auxiliary): DC 24V (±10%) with a 0.6A rated current capacity
• Output 2 Safety: Over-current protection triggers at 0.7A or more
• Switching Load: Minimum switching capability of DC 5V, 1 mA
• Response Timing: Rapid OFF to ON transition in ≤ 10 ms; ON to OFF in ≤ 12 ms

Oiltech Controls Review and System Insight

• The 2MLP-ACF1 serves as the backbone of the MasterLogic-200 rack, providing essential logic power.
• Oiltech Controls notes that the “Fail-Safe” relay contact (RUN contact) is excellent for external alarm monitoring.
• It is ideal for high-cycle industrial environments due to its 20-million-cycle mechanical life.
• We recommend this module for distributed I/O stations where input voltage stability varies.
• The compact 0.4kg design allows for efficient heat dissipation within crowded control cabinets.

Mechanical Installation and Logistics

• Cable Compatibility: Supports wire sizes ranging from 0.75 mm to 2.0 mm
• Terminal Types: Compatible with RAV 1.25-3.5 and RAV 2-3.5 compressed terminals
• Warranty Policy: Includes a full 12-month quality guarantee from Oiltech Controls
• Shipping Window: In-stock units ship globally within 24-28 hours
• Express Carriers: Daily pickups by FedEx, UPS, and DHL for rapid delivery

Professional FAQ and Procurement Guidance

• What is the purpose of the 24V DC Output 2 on the 2MLP-ACF1?
• This output typically powers external sensors or the RUN contact relay, independent of the internal logic 5V rail.
• Can I replace the internal fuse if the module stops working?
• The fuse is built-in and not user-serviceable; we recommend a full module replacement to ensure UL compliance.
• How do I know if the power module is reaching the end of its life?
• Monitor the voltage indicator LED; if it flickers or fails while input is present, the internal capacitors may be aged.
• Selection Guide: Does this module support redundant power configurations?
• The 2MLP-ACF1 is a standard base module; check your MasterLogic rack type to confirm if it supports dual-slot redundancy.
• How can I obtain a technical datasheet or official quote?
• Email info@oiltechcontrols.com or message us on WhatsApp at +86 158 8020 0923 for support.
