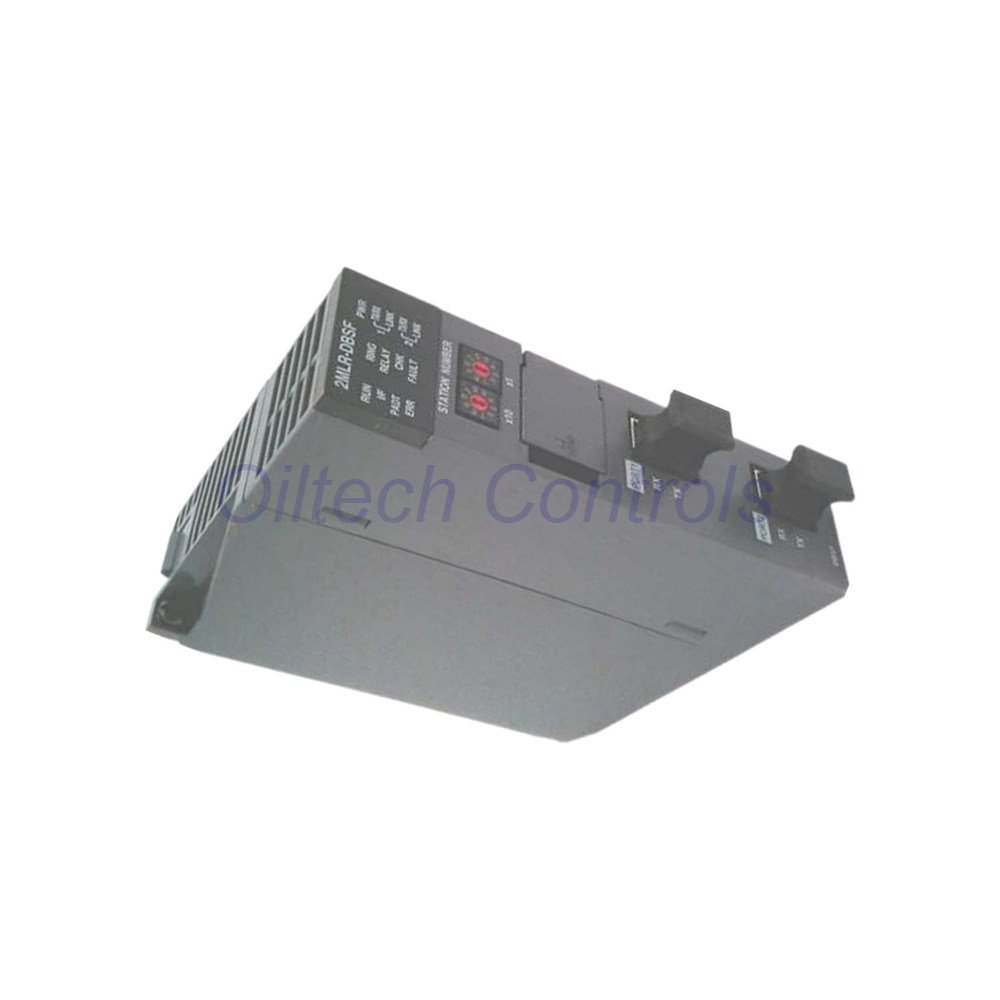

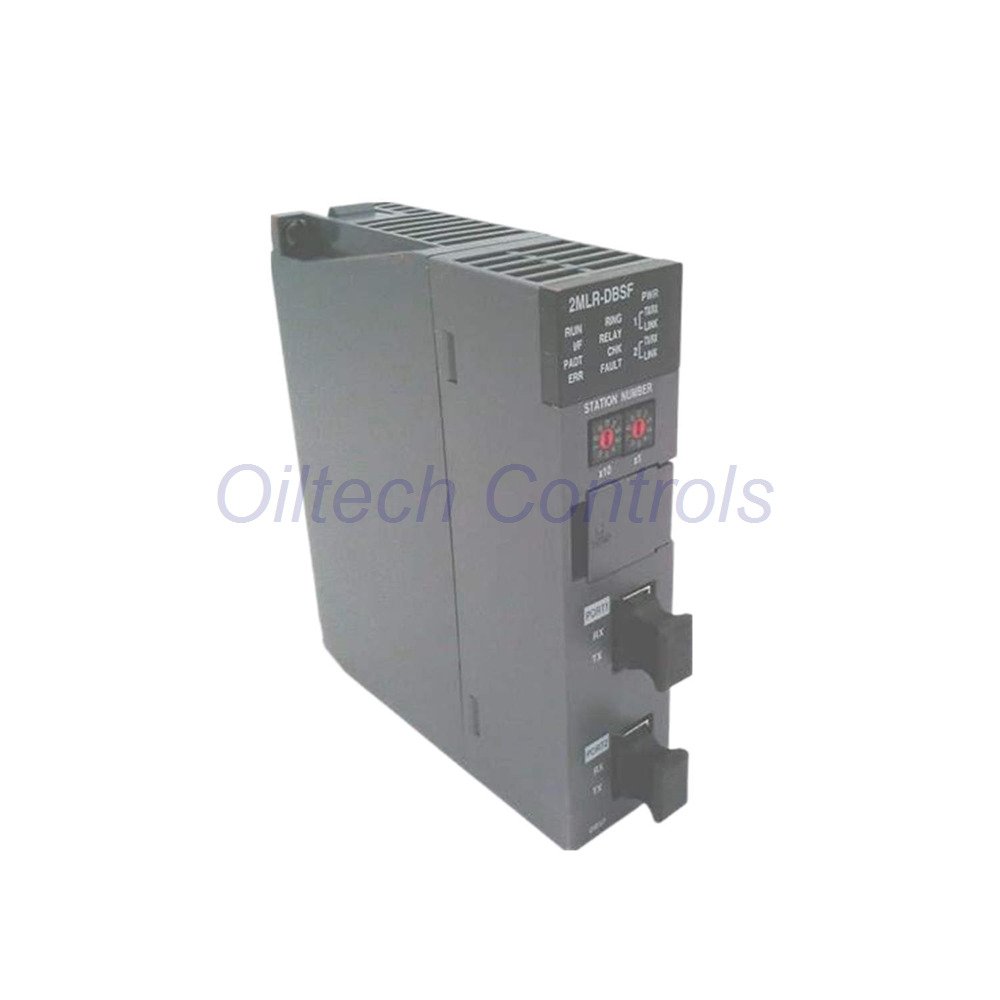

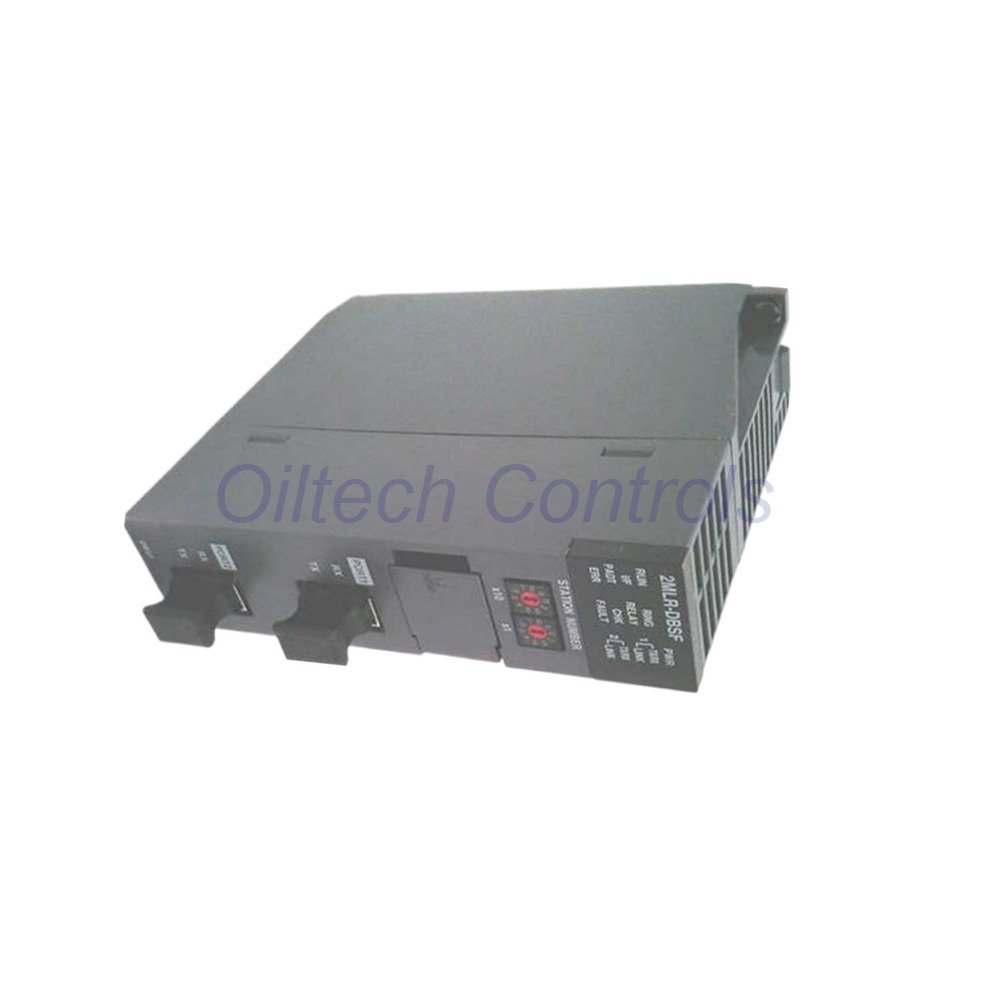

2MLR-DBSF Honeywell I/O Interface Module
Honeywell engineered the 2MLR-DBSF as a high-performance optical interface module for advanced PLC expansion requirements. This module facilitates reliable data transmission between expansion bases over long distances using fiber optic technology. It integrates seamlessly into the CPU0 connector of the expansion base to ensure stable system synchronization. Engineers choose the 2MLR-DBSF to maintain signal integrity in environments with high electromagnetic interference. Oiltech Controls provides this specialized hardware to optimize your industrial control network architecture and reach.
Core Technical Specifications
- Brand: Honeywell
- Model Number: 2MLR-DBSF
- Media Type: High-speed Optical fiber communication
- Maximum Distance: 2km coverage between the expansion base units
- Cable Requirement: 62.5/125 Multi-mode fiber optic cable standard
- Connector Style: Industry-standard Lucent Connector (LC type)
- Return Loss Performance: High efficiency rated at over 45db
- Loader Interface: Integrated Expansion drive USB for easy local connection
- Station Addressing: Configurable range from 1 to 31 unique station numbers
- Mounting Location: Dedicated CPU parts position via the CPU0 connector
- Physical Weight: Lightweight design at exactly 99 grams for easy handling
Installation and Setup Guidelines
- Insert the 2MLR-DBSF module into the CPU0 connector on the expansion base.
- Verify that the station number falls strictly between the range of 1 and 31.
- Avoid using station number 0 or exceeding 31 to prevent system generation errors.
- Clean the LC type fiber connectors before insertion to maintain high return loss.
- Route the multi-mode fiber cables safely to prevent exceeding the minimum bend radius.
- Connect the expansion drive USB for local configuration during the initial commissioning phase.
Shipping and Logistics Information
- Package includes one Honeywell 2MLR-DBSF I/O Interface Module unit.
- Shipping available globally via reliable carriers like Fedex, UPS, and DHL.
- Standard industrial protective packaging ensures the module remains safe during transit.
- Contact info@oiltechcontrols.com for bulk shipping rates and specific logistics tracking.
Frequently Asked Questions
How do I troubleshoot a station number error on this module?
- Check the rotary switches or software settings to ensure the ID is 1-31.
- Restart the expansion base after changing the station number to register the update.
Can I use single-mode fiber with this specific interface module?
- No, the internal optics require 62.5/125 Multi-mode fiber for correct signal timing.
- Using mismatched fiber types will lead to significant signal loss and communication failure.
What is the best way to select expansion modules for long distances?
- Select the 2MLR-DBSF when your distance exceeds the limits of standard copper cables.
- Always calculate the total optical budget to ensure the 45db return loss is maintained.
- Call our technical team at +86 158 8020 0923 for compatibility verification with existing bases.
