330194-00-07-10-05 Bently Nevada 3300 XL 8mm Probe In Stock Fast Shipping

Product Overview

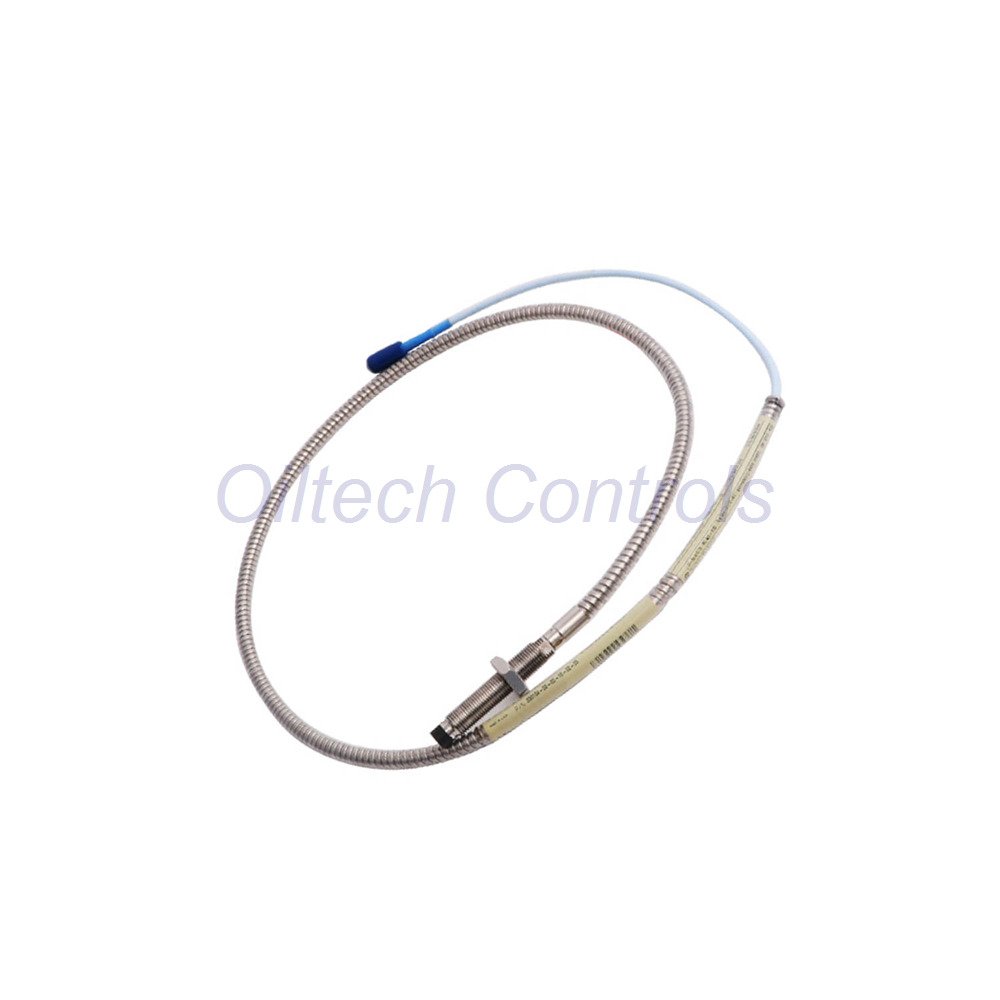

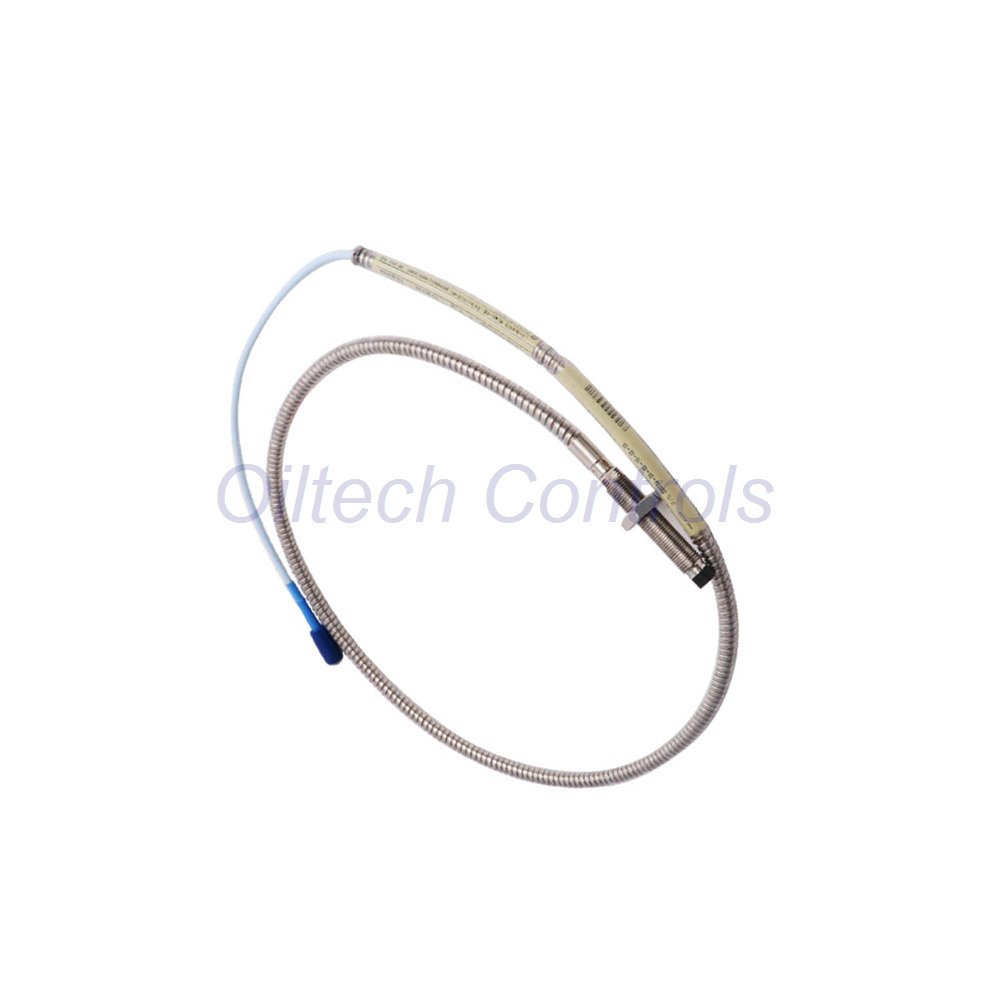

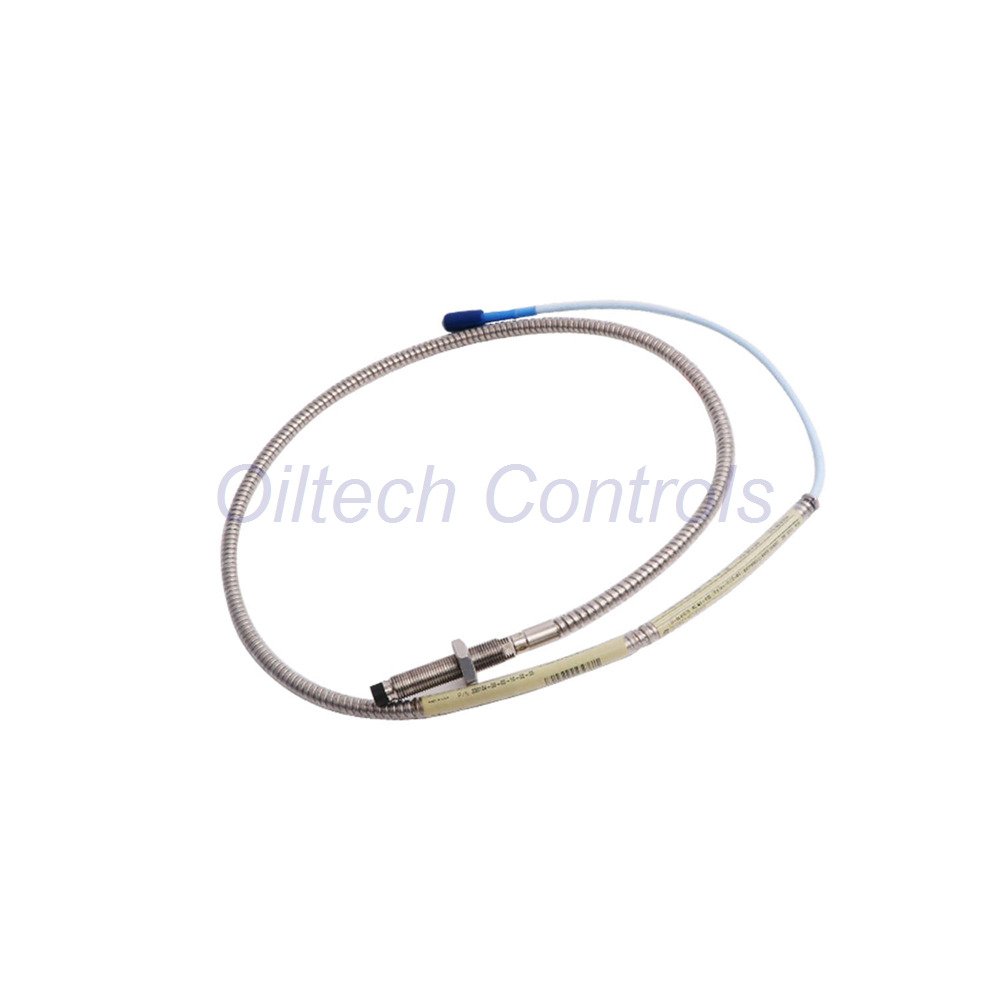

• The 330194-00-07-10-05 is a premium Bently Nevada 3300 XL 8 mm Proximity Probe.
• This probe uses a patented TipLoc molding method for a robust bond between tip and body.
• The CableLoc design provides 330 N (75 lbf) pull strength to prevent disconnection.
• It is built for harsh industrial environments to monitor vibration and shaft position.

Configuration Breakdown

• 330194 Base Model: 3300 XL 8 mm Probe (M10 x 1 thread with armor)
  • 00 Unthreaded Length: 0 mm
  • 07 Overall Case Length: 70 mm
  • 10 Total Length: 1.0 meter (No extension cable required)
  • 05 Agency Approvals: CSA, ATEX, and IECEx Certified

Technical Data

• Brand: Bently Nevada
• Model: 330194-00-07-10-05
• Series: 3300 XL 11 mm Proximity Probes
• Supply Voltage: -17.5 Vdc to -26 Vdc
• Current Consumption: 12 mA maximum
• Operating Temperature: -55°C to +232°C
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303 or 304 Stainless Steel
• Armor Material: Flexible SST with FEP outer jacket
• Connector Plating: Gold-plated brass
• Linear Range: Provided when used with compatible Proximitor

Installation and Maintenance

• Mount the probe using the M10x1 thread in the machine housing.
• Ensure the maximum thread engagement does not exceed 15 mm.
• Tighten all connectors to a maximum torque of 0.565 N•m.
• The Viton O-ring seals differential pressure between the tip and case.
• One-meter systems connect directly to the sensor without extension cables.

Expert Review

• The 330194-00-07-10-05 features integrated armor and metric threading for global compatibility.
• The 8 mm tip provides thicker encapsulation than standard 3300 XL 11 mm Probes.
• This design creates a more rugged sensor for high-vibration machinery.
• Gold-plated connectors prevent corrosion and ensure long-term signal stability.

Manager’s Insight

• This configuration is perfect for projects requiring ATEX/IECEx safety standards.
• The 1-meter length removes the need for extra cables, reducing signal interference.
• It offers a reliable, low-maintenance solution for critical asset protection.

Application Scenarios

• Steam and Gas Turbine vibration monitoring
• Centrifugal Compressor shaft displacement
• Gearbox bearing wear detection
• Hydroelectric generator thrust position
• Industrial pumps in hazardous zones

Shipping and Warranty

• Condition: New and Original in factory packing
• Warranty: 12 Months Factory Warranty
• Dispatch Time: 12 to 48 hours
• Express Delivery: DHL, UPS, and FedEx

FAQ and Buying Guide

• • Question: Can I use an extension cable with this probe?
  • Answer: No, this 1-meter model is designed for direct connection.

• • Question: Is the cable protected against oil?
  • Answer: Yes, the FEP jacket provides excellent resistance to industrial oils.

• • Question: How do I identify the approval rating?
  • Answer: The 05 suffix confirms it meets CSA, ATEX, and IECEx standards.

• Buying Tip: Verify your machine’s thread type; this is a Metric M10x1 model.
• Buying Tip: Always use 3300 XL 11 mm Proximity Probes series components for system compatibility.
