330194-05-13-10-05 Bently Nevada 3300 XL 8mm Probe – In Stock

330194-05-13-10-05 Bently Nevada 3300 XL 8mm Probe – In Stock – Fast Delivery

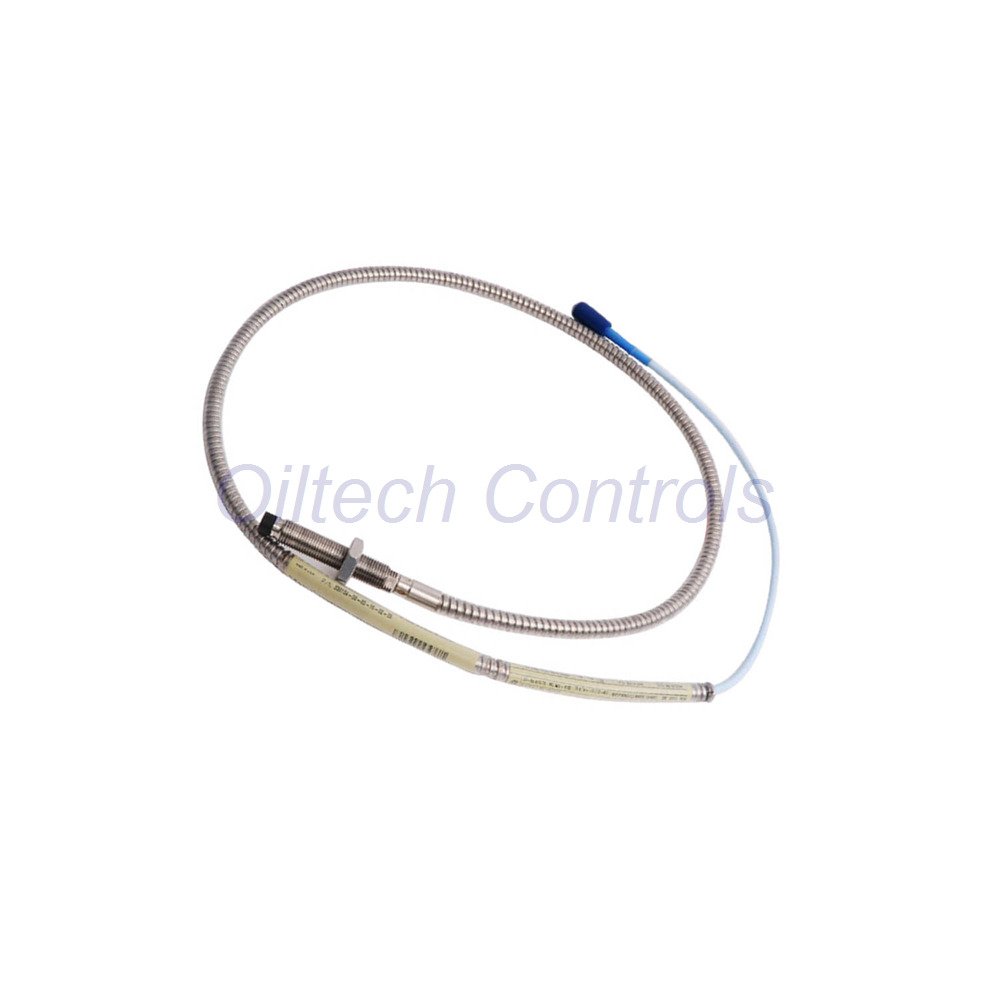

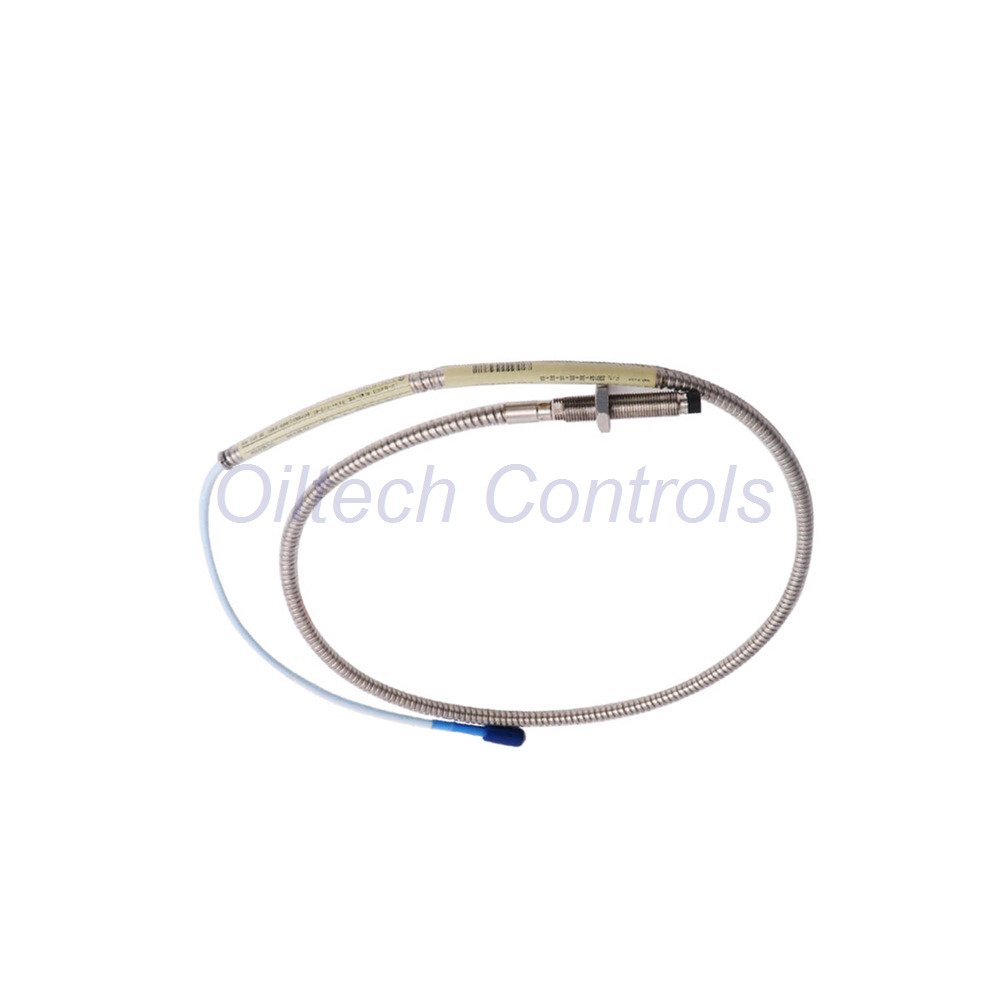

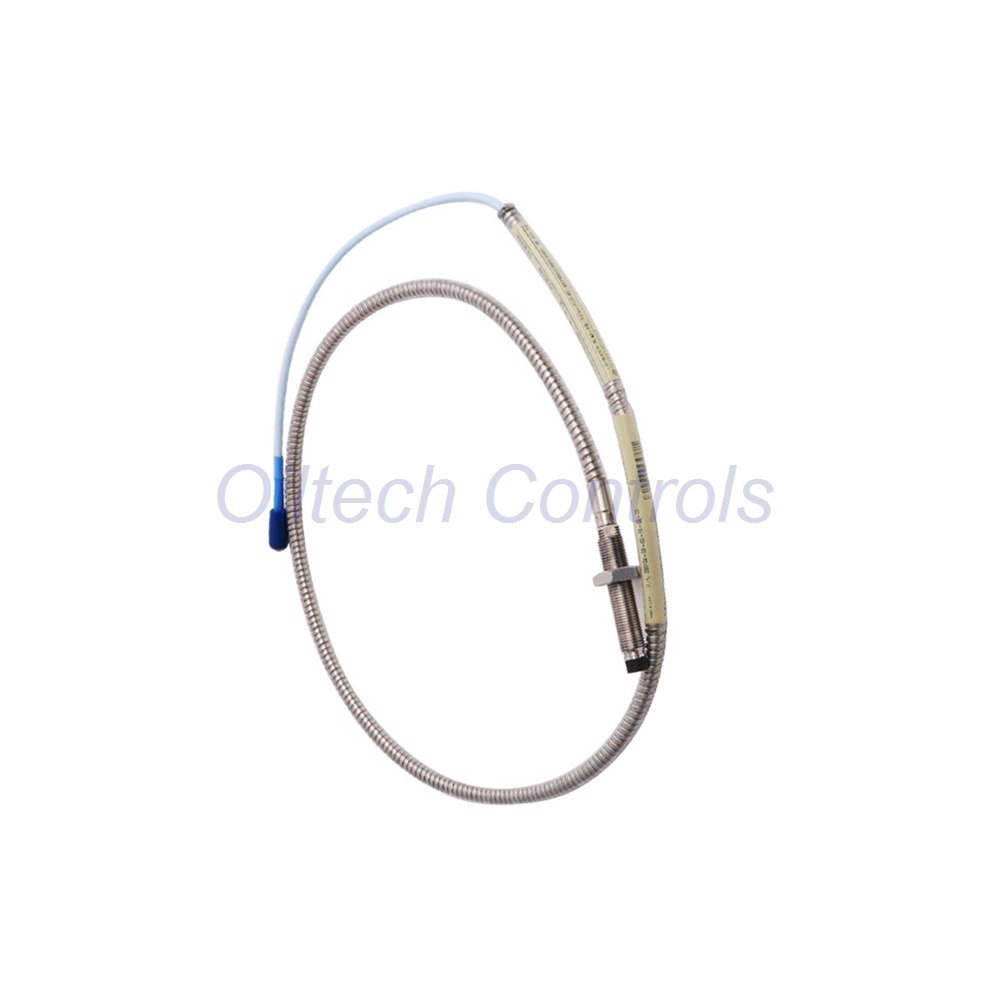

Ensure your machinery stays safe with the Bently Nevada 330194-05-13-10-05 proximity probe. This 8 mm sensor offers superior durability for industrial environments. It features the patented TipLoc and CableLoc designs to prevent physical damage. These technologies ensure the probe survives high-pull forces and harsh vibrations. The 3300 XL series provides stable readings for critical displacement measurements. It is the industry standard for monitoring steam turbines, pumps, and compressors.

Configuration Breakdown

• 330194 — 3300 XL 8 mm Probe (M10 x 1 Thread with Armor)
  • 05 — Unthreaded Length: 50 mm
  • 13 — Overall Case Length: 130 mm
  • 10 — Total Length: 1.0 Meter (3.3 Feet)
  • 05 — Agency Approval: CSA, ATEX, and IECEx

Technical Data & Performance

• Brand: Bently Nevada
• Model: 330194-05-13-10-05
• Probe Diameter: 8 mm (Provides thicker encapsulation for rugged use)
• Linear Range: 2 mm (80 mils) with stable frequency response.
• Input Power: Requires -17.5 Vdc to -26 Vdc at 12 mA maximum.
• Output Resistance: 50 Ohms.
• Probe Tip Material: High-performance Polyphenylene sulfide (PPS).
• Case Material: Corrosion-resistant AISI 303 or 304 Stainless Steel.
• Pull Strength: Patented design supports 330 N (75 lbf) resistance.
• Temperature Range: Classified for environments from -55°C up to +232°C.
• Environmental Sealing: Viton O-ring prevents differential pressure leakage.
• Magnetic Immunity: Excellent resistance against 60 Hz magnetic fields.

Ideal Equipment and Applications

• Steam and Gas Turbines
• Centrifugal Air Compressors
• Electric Motors and Large Power Generators
• Water Pumps and Hydroelectric Turbines
• Industrial Gearboxes in Power Plants
• Critical Rotating Machinery in Oil and Gas Refineries

Installation and Maintenance Benefits

• The M10x1 thread ensures easy mounting in standard industrial ports.
• One-meter systems simplify setup by eliminating extension cable needs.
• Gold-plated brass connectors prevent signal loss from corrosion.
• The 8mm body diameter offers a stronger case against physical abuse.
• High linearity reduces calibration time during routine maintenance.

Shipping, Warranty, and Packing

• Condition: New and Original in factory sealed packing.
• Warranty: Includes a full 12-Month factory warranty.
• Dispatch Time: Ready for shipment within 12 to 48 hours.
• Global Shipping: Fast delivery via FedEx, UPS, or DHL express.
• Box Contents: 330194 Probe, technical data sheet, and factory certificates.

Expert Review & Manager’s Insight

The 330194-05-13-10-05 is the “gold standard” for reliability engineers globally. While smaller 5mm probes exist, we recommend the 8mm version for its superior physical toughness. The FluidLoc technology effectively stops oil migration through the cable interior. This specific configuration with ATEX/IECEx approvals ensures your facility stays compliant in hazardous zones. It is a vital component for protecting high-value rotating assets.

FAQ and Buying Guide

• How do I choose between a 1-meter and 5-meter total length?Select the length based on your Proximitor sensor location. 1-meter probes are best when the sensor is mounted close to the machine.
• What is the risk of over-tightening the connectors?Exceeding 0.565 N•m torque can crack the gold plating. This leads to intermittent signals or false vibration alarms.
• Is the 3300 XL series compatible with older Bently Nevada systems?Yes, it is backward compatible with most 3300 systems. However, we recommend using a full XL system for maximum precision.
• Buying Tip: Why check the Unthreaded Length?Ensure the unthreaded part is long enough to pass through the machine wall. If it is too short, the probe tip cannot reach the target area.
• Does the probe come pressure tested?The Viton O-ring provides a seal, but they are not pressure tested by default. Contact us for specific high-pressure needs.
