Bently Nevada 330194-05-13-50-05 3300 XL Proximity Probe Fast Ship

Product Overview

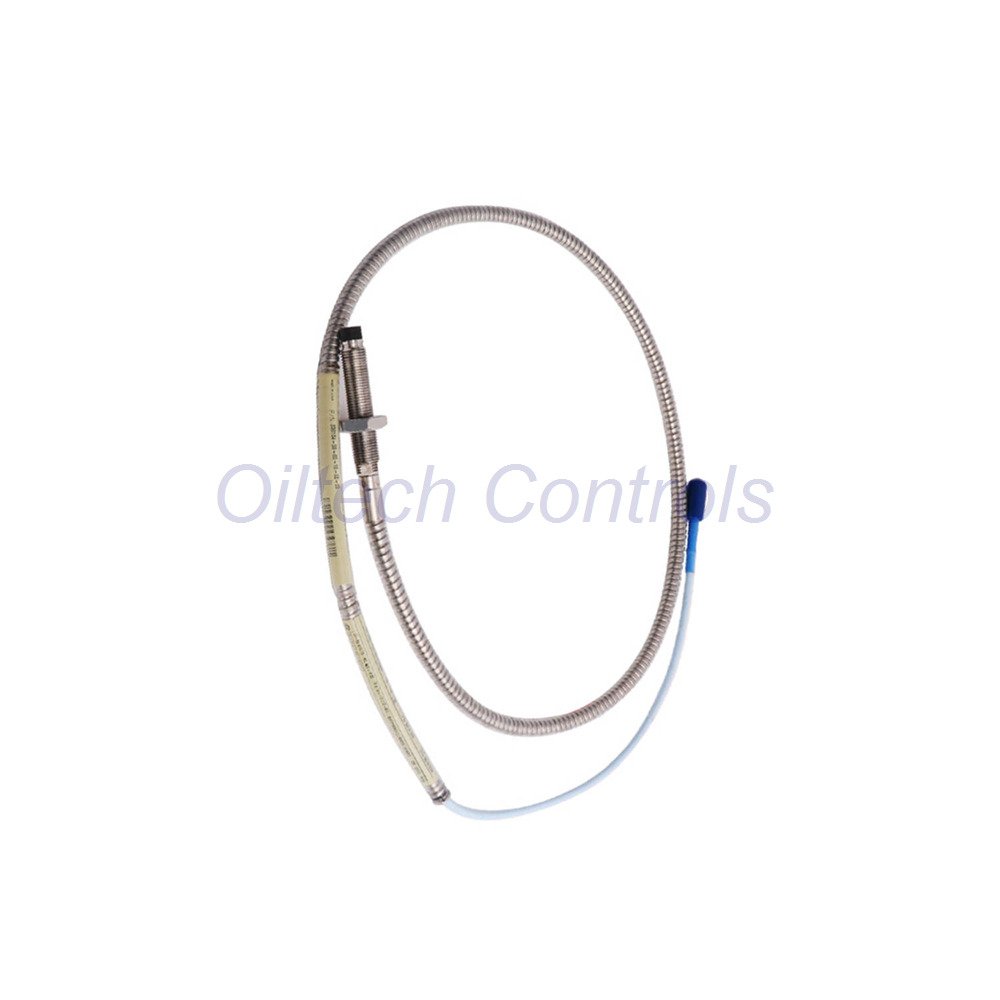

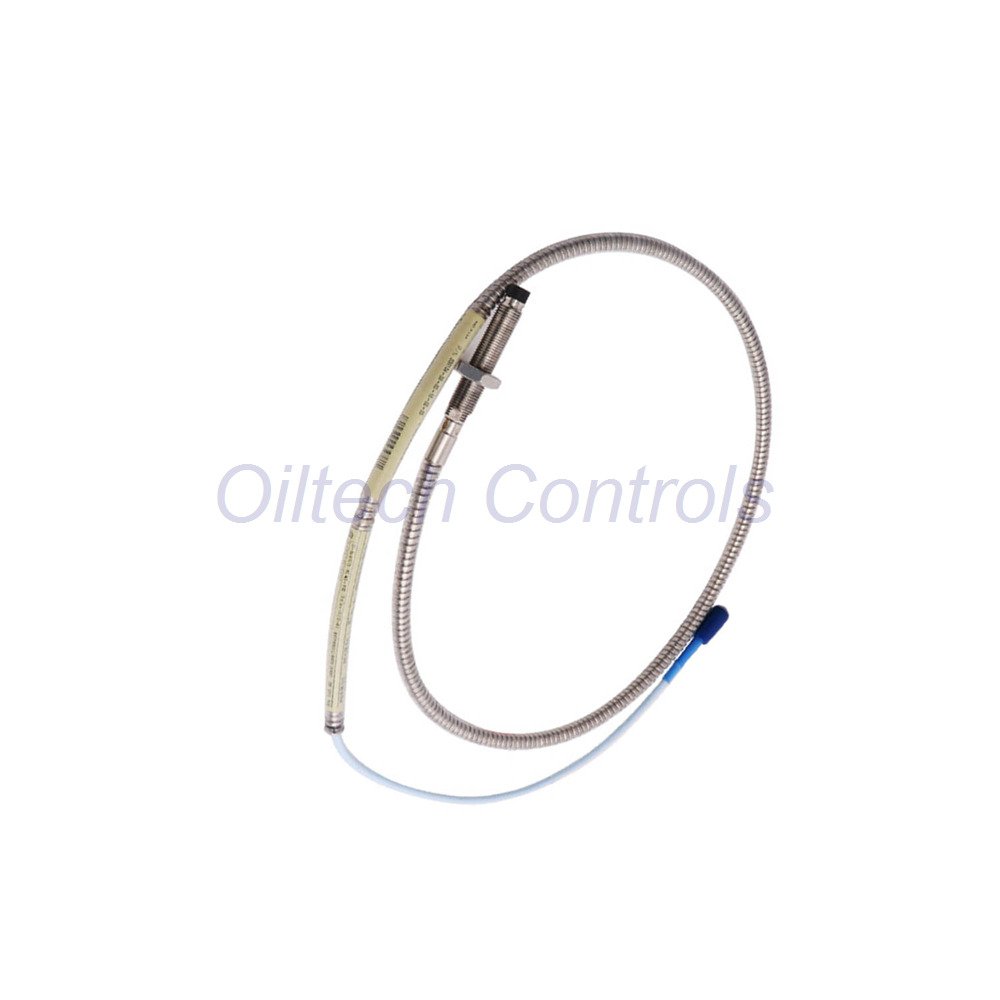

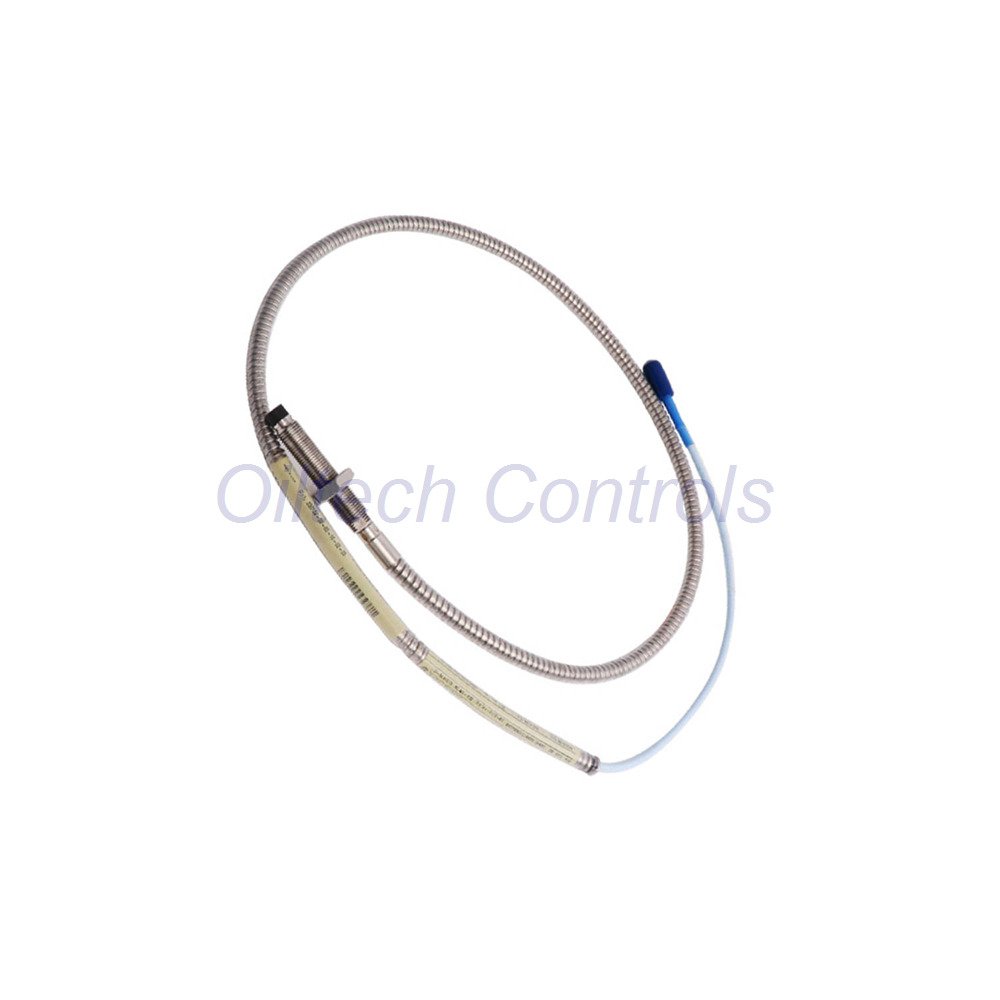

• The Bently Nevada 330194-05-13-50-05 is a high-performance 3300 XL 8mm Proximity Probe.
• This sensor provides precise vibration and position data for critical machinery.
• It features a rugged M10 x 1 thread design with protective stainless steel armor.
• Patented TipLoc and CableLoc technologies ensure maximum durability in harsh environments.
• This probe is essential for monitoring shaft vibration on turbines, pumps, and compressors.

Configuration Breakdown

• 330194: 3300 XL 8mm Probe with M10 x 1 thread and armor
• 05: Unthreaded Length Option
  • Standard Length: 50 mm
• 13: Overall Case Length Option
  • Case Length: 130 mm
• 50: Total Length Option
  • Length: 5.0 meters (16.4 feet)
  • Note: Designed for use with 5-meter Proximitor sensors only.
• 05: Agency Approval Option
  • Includes: CSA, ATEX, and IECEx safety certifications

Technical Data

• Brand: Bently Nevada
• Model: 330194-05-13-50-05
• Series: 3300 XL 8mm
• Power Requirements: -17.5 Vdc to -26 Vdc
• Nominal Resistance: 8.73 ± 0.50 Ω
• Output Resistance: 50 Ω
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303 or 304 Stainless Steel
• Armor Material: Stainless Steel with FEP jacket
• Tensile Strength: 330 N (75 lbf) maximum
• Temperature Range: -55°C to +232°C
• Environmental Sealing: Viton O-ring for differential pressure

Compatibility and Application

• Machine Types: Ideal for gas turbines, steam turbines, and centrifugal compressors.
• Measurement: Captures radial vibration, axial thrust, and speed measurements.
• Sensor Pairing: Use only with 3300 XL 5-meter Proximitor models.
• Cable Pairing: Fully compatible with Bently Nevada extension cables.

Manager’s Insight

• I highly recommend the 3300 XL 8mm series for high-stress applications.
• The 8mm diameter offers superior physical strength compared to smaller versions.
• The TipLoc molding provides a more robust bond between the probe tip and body.
• This specific 5-meter configuration simplifies setups by reducing extra connection points.
• It is a “set-and-forget” solution for industrial reliability and long-term monitoring.

Ordering and Logistics

• Condition: Brand New & Original in factory packing.
• Warranty: 12 Months Factory Warranty.
• Stock Status: In Stock and ready for fast delivery.
• Dispatch Time: Orders ship within 12-48 hours.
• Shipping Carriers: Global express via FedEx, UPS, and DHL.
• Package Includes: One 330194-05-13-50-05 probe and inspection certificate.

Frequently Asked Questions

• Can I use this 5-meter probe with a 9-meter Proximitor?
  No, you must match the probe length to the specific Proximitor sensor calibration.
• What makes the TipLoc design better?
  It creates a permanent bond between the tip and body to prevent detachment.
• How do I choose the correct unthreaded length?
  Measure the distance from the mounting bracket to the shaft surface carefully.
• Is this probe suitable for explosive environments?
  Yes, the 05 approval covers global hazardous area standards like ATEX and IECEx.
