Industrial Output Architecture – 3601E Triconex Digital Output Module

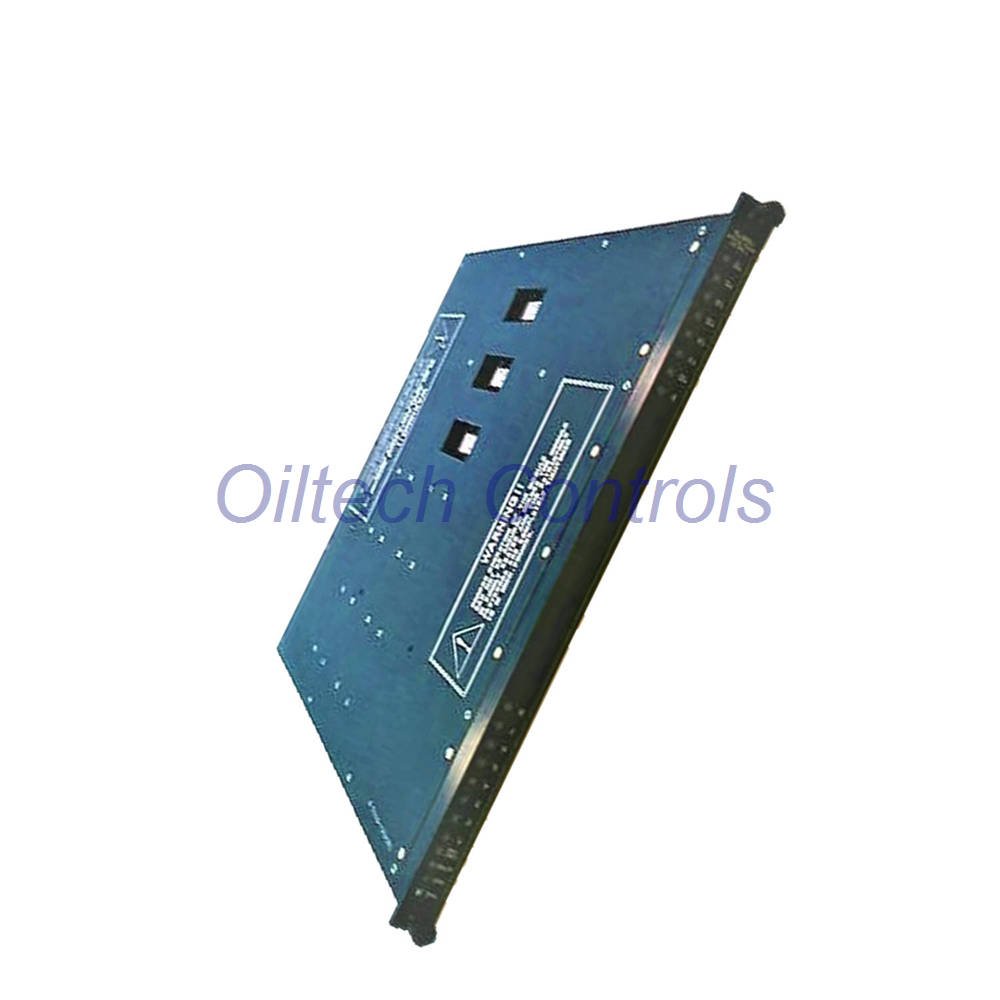

The 3601E is a high-integrity AC digital output module engineered for critical safety shutdown applications. Its non-commoned isolation structure enhances operational security in demanding industrial automation systems.
Core Output Structure
- Module category: TMR digital output
- Total outputs: 16 individually isolated points
- Isolation architecture minimizes cross-channel fault propagation
- Optimized for high-voltage field device switching
- Green identification coding for rapid cabinet recognition
Electrical Operating Characteristics
- Nominal operating voltage: 115 VAC
- Supported voltage range: 80–155 VAC
- Frequency range: 47–63 Hz
- Voltage drop typically below 3V
- Stable switching performance under fluctuating load conditions
Load & Current Capability
- Continuous current rating: 2A per point
- Surge tolerance: 12A per cycle
- Suitable for inductive AC loads
- Supports large solenoid valves and motor starter circuits
- Point-to-point isolation: 1500 VDC typical
Protective Design Features
- Requires 3A fast-acting fuse per output channel
- Dedicated LOAD/FUSE monitoring indicators
- Detects blown fuses and field wiring interruptions
- Low chassis leakage enhances operational safety
- Designed for harsh process control environments
Diagnostic Visibility
- Individual ON/OFF status indicator per output
- PASS indicator for healthy module operation
- FAULT indication for abnormal operating states
- ACTIVE LED confirms module engagement status
- Supports rapid troubleshooting during maintenance
Recommended Applications
- Emergency shutdown systems (ESD)
- Fire and gas protection systems (F&G)
- Turbine trip and process shutdown logic
- Industrial motor starter control panels
- High-integrity process automation systems
Oiltech Controls’s Insight
- The 3601E is highly effective for inductive AC load management
- Non-commoned isolation improves operational fault containment
- Recommended for high-availability safety instrumented systems
- Performs reliably in continuous-duty plant operations
Engineering Purchase Guidance
- Verify AC load current before output assignment
- Use fast-acting field fuses for proper protection
- Check cabinet thermal conditions during integration
- Suitable for systems requiring isolated AC switching logic
Delivery & Warranty Support
- Shipping methods:
FedEx,
UPS,
DHL - Fast dispatch within 24–48 hours
- Industrial anti-static protective packaging
- 12-month warranty coverage
Contact Information
- Email:
info@oiltechcontrols.com - WhatsApp:
+86 158 8020 0923 - Official Website:
www.oiltechcontrols.com
FAQ – Field Engineering & System Selection
- Why is non-commoned isolation important in safety systems?
- It prevents electrical faults from spreading between output channels.
- What type of loads suit this module best?
- Inductive AC loads such as solenoids and motor starters perform well.
- What is a common installation oversight?
- Using incorrect fuse ratings may reduce protection effectiveness.
- How can output reliability be improved?
- Maintain proper ventilation and inspect terminal tightness regularly.
- How should engineers select this module for a project?
- Choose it when isolated high-current AC outputs are required.
