Overview

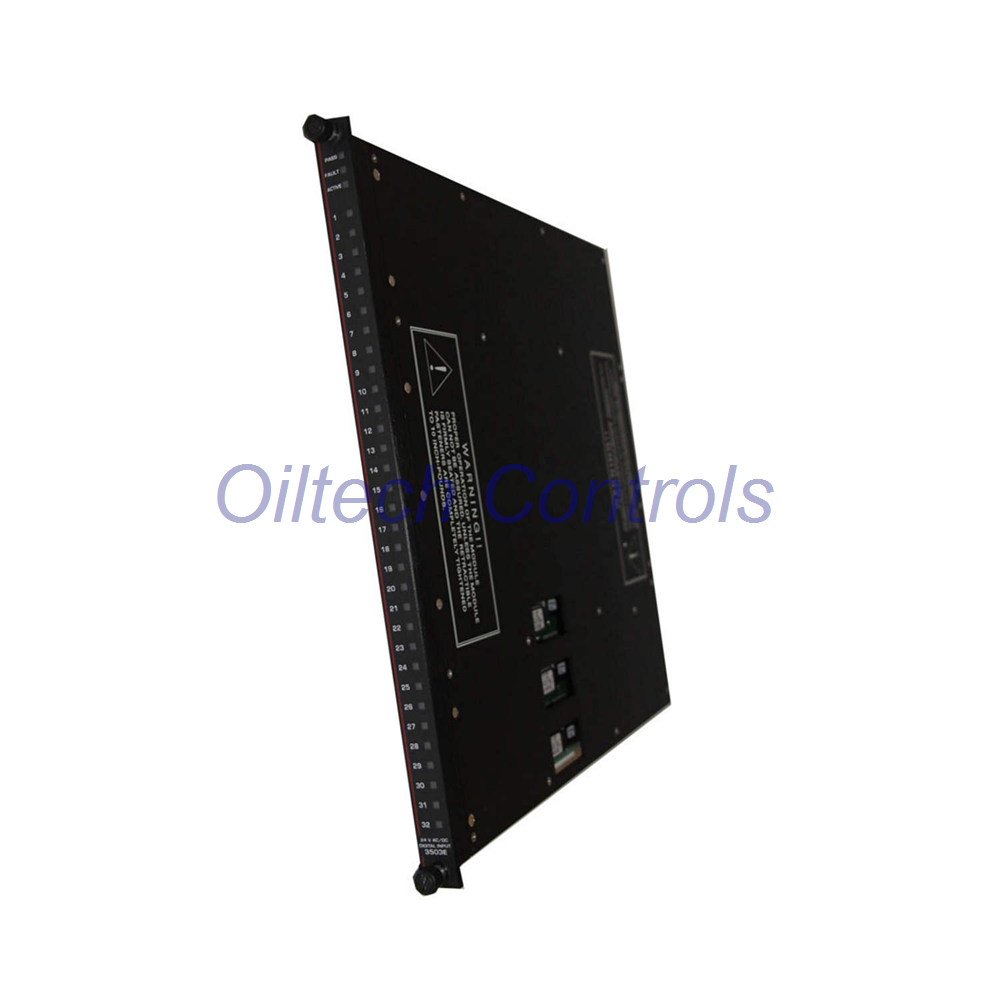

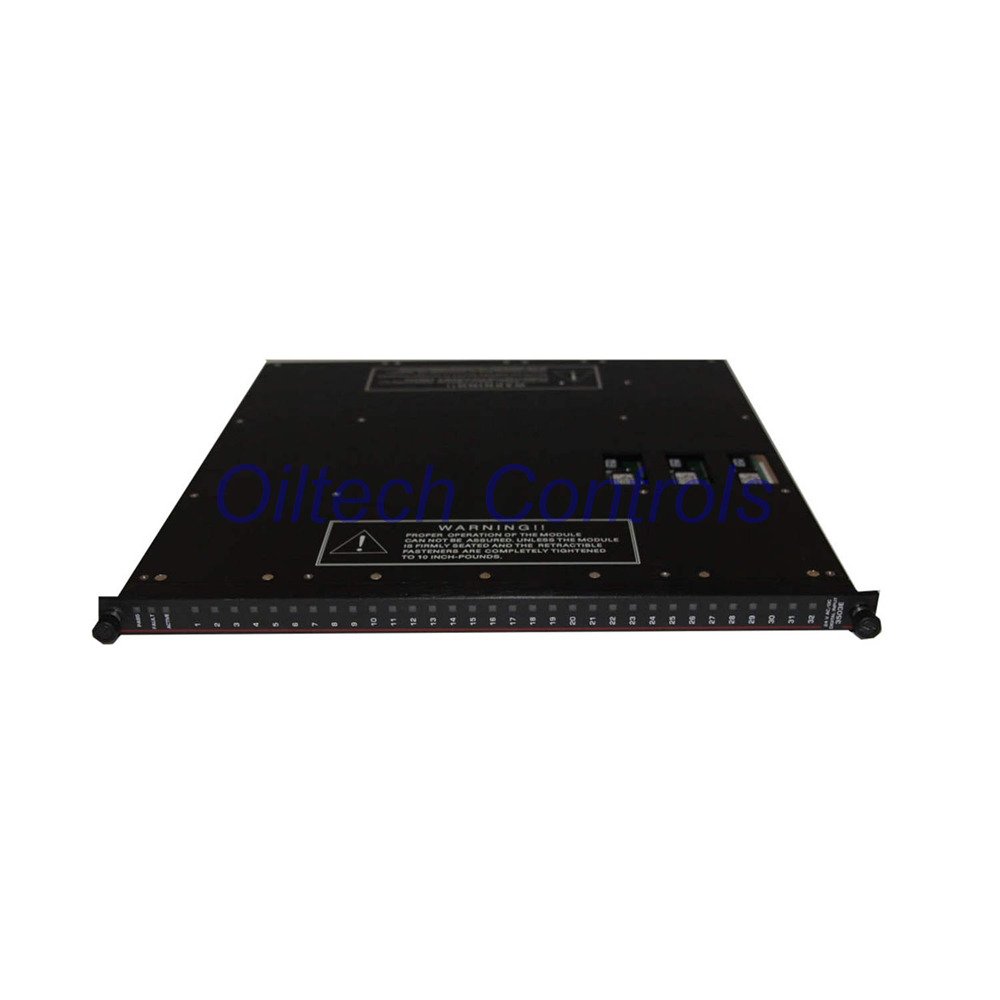

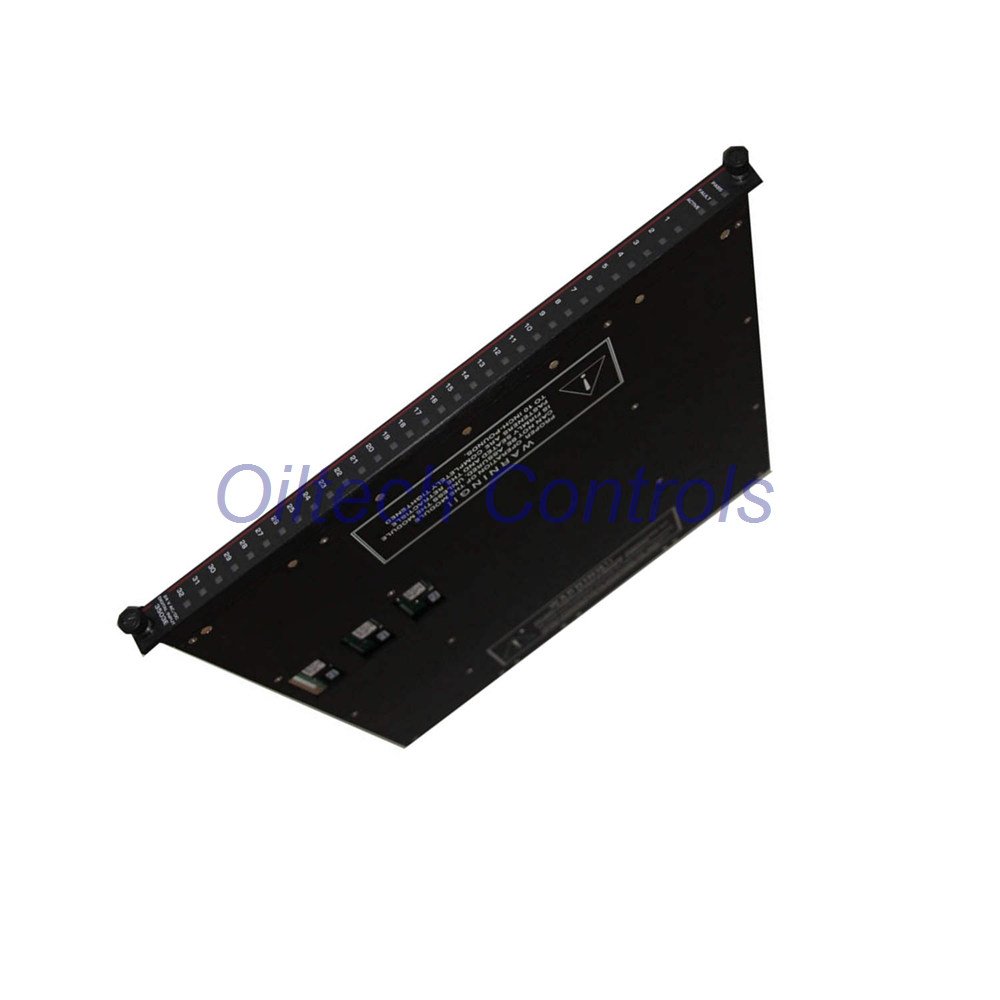

3502E is a high-integrity TMR digital input module designed for critical safety systems. It supports 48 VAC/VDC applications with advanced self-test diagnostics, hot spare capability, and high-speed fault detection for industrial process protection environments.
System Architecture Overview
- Model: 3502E
- Manufacturer: Triconex
- Module Type: TMR Digital Input Module
- Architecture: Triple Modular Redundant
- Self-Test Capability: Integrated stuck-On diagnostics
- Color Identification: Dark Red
- Hot Spare Support: Enabled
Input Signal Characteristics
- 32 input channels grouped in sets of 8
- Nominal operating voltage: 48 VAC/VDC
- Input voltage range: 35 to 95 VAC/VDC
- Frequency compatibility: DC or 47–63 Hz
- Nominal impedance: greater than 2.9 KΩ
- Maximum voltage rating: 95 VAC/VDC
Switching and Timing Performance
- OFF to ON threshold: less than 32 VAC/VDC
- ON to OFF threshold: greater than 11 VAC/VDC
- Typical hysteresis: 7 VAC/VDC
- Turn-on current: 6 to 9 mA
- OFF to ON delay: less than 8 ms
- ON to OFF delay: less than 15 ms
Isolation and Reliability Design
- 1500 VDC point isolation
- Power consumption per active point: 1.0 W
- Maximum field load: 3.2 W
- Integrated optical isolation circuitry
- Mechanical keying prevents incorrect insertion
Diagnostic and Monitoring Features
- Dedicated LED for each input point
- PASS, FAULT, and ACTIVE module indicators
- Continuous stuck-On condition testing
- Frozen data protection during diagnostic cycles
- Enhanced fault visibility for shutdown systems
Recommended Applications
- Emergency shutdown systems
- Process safety instrumented systems
- Power generation facilities
- Oil and gas process control
- Turbine protection platforms
Oiltech Controls’s Insight
- 3502E performs well in high-availability safety environments.
- The TMR architecture improves fault tolerance during critical operations.
- Engineers prefer this module for shutdown systems requiring continuous diagnostics.
- Hot spare support minimizes downtime during maintenance activities.
Shipping and Warranty
- 12-month warranty included
- Fast shipping within 24–48 hours
- Courier options: FedEx, UPS, DHL
Technical Support and Contact
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
Professional FAQ
- Why is TMR architecture important in safety systems?
- TMR increases fault tolerance and improves operational reliability.
- How does the self-test function improve safety?
- It detects stuck-On conditions before they affect shutdown logic.
- What should engineers check during commissioning?
- Verify wiring integrity and confirm proper voltage thresholds.
- How to select a digital input module for SIS applications?
- Choose based on redundancy level, diagnostics, and response timing.
- What is a common field issue in safety input systems?
- Loose termination connections can create unstable signal states.
