Product Overview

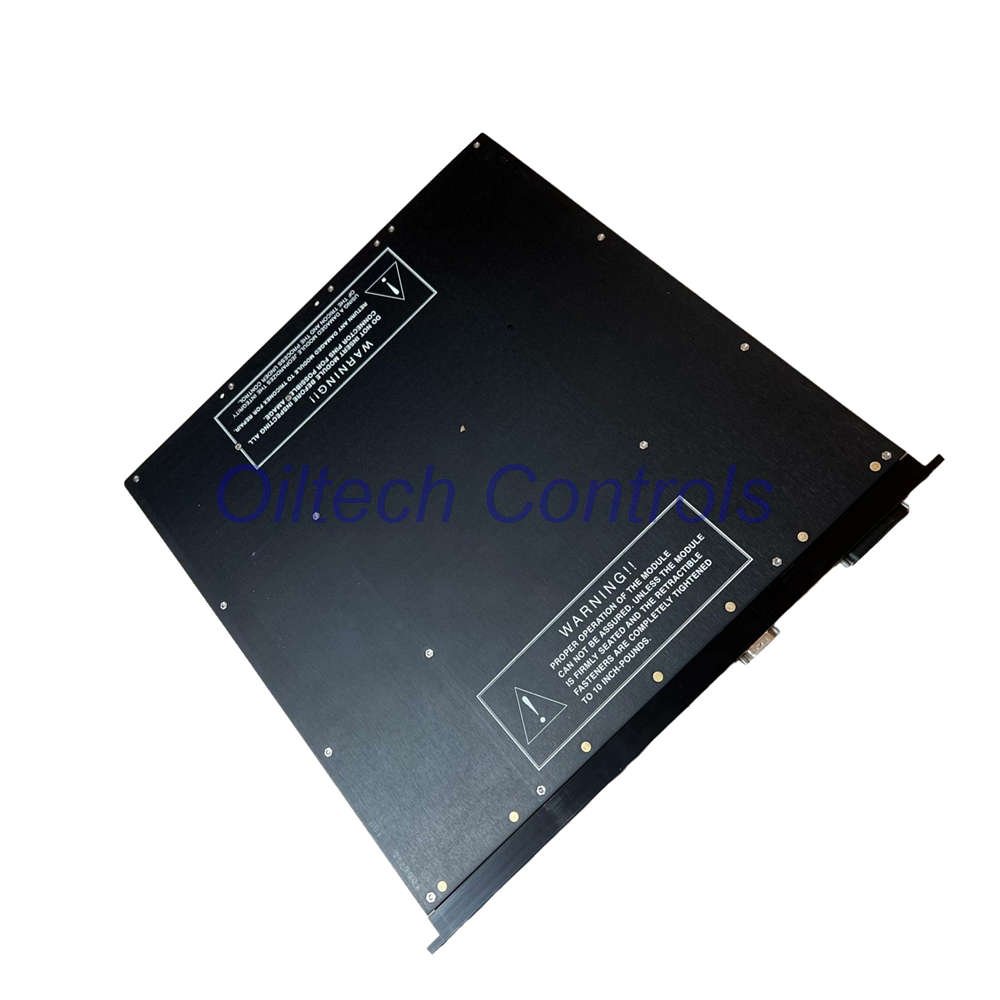

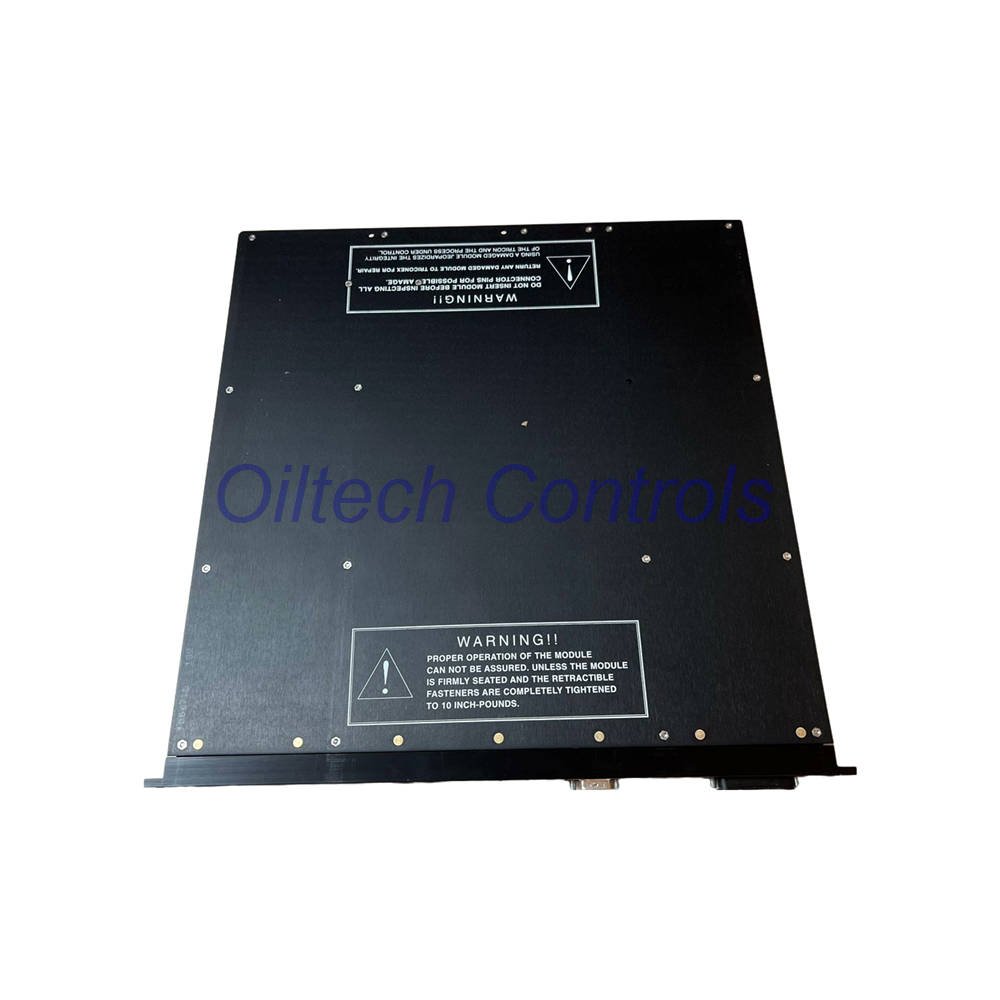

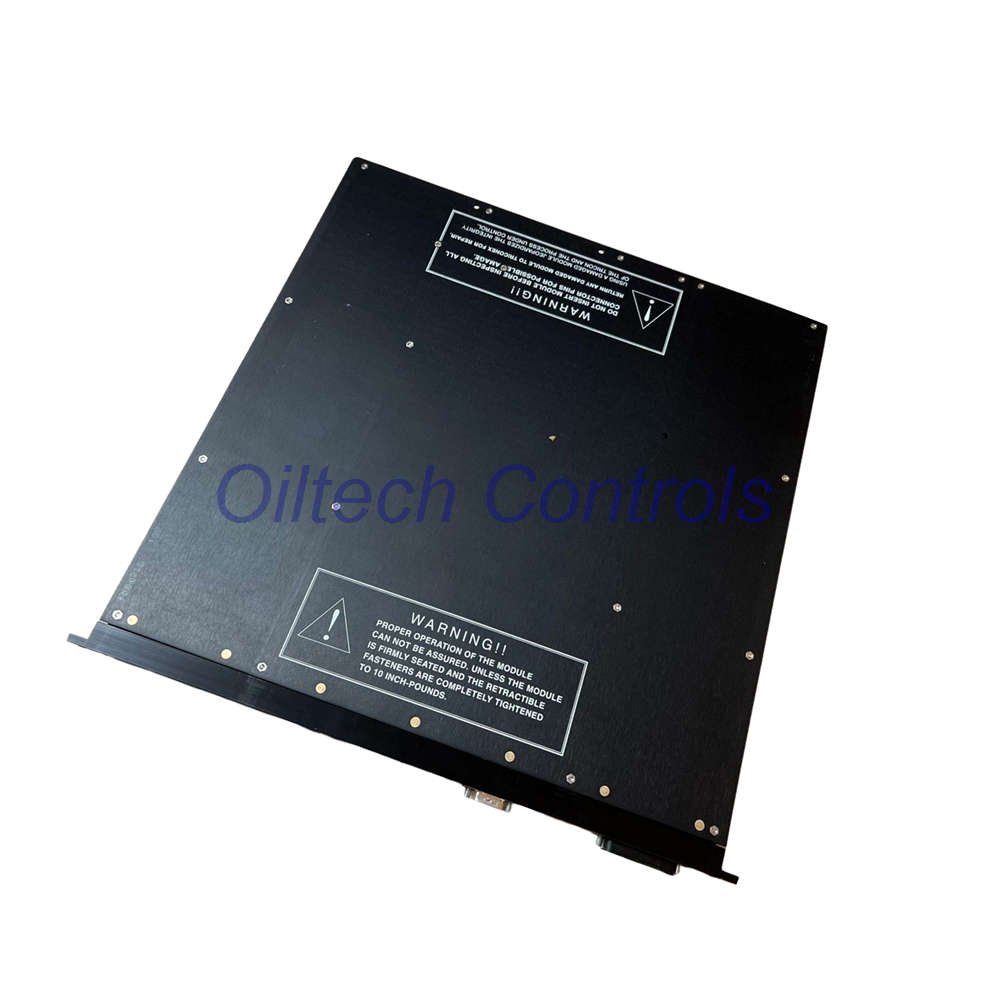

The Triconex 3008 Main Processor is the core component for Tricon v9.6 and later safety-critical systems. Three 3008 modules operate in a triple-modular redundant configuration to ensure continuous uptime. Each unit independently manages its I/O subsystem and executes complex control logic. These processors feature advanced Sequence of Events (SOE) recording to capture precise system state changes.
Technical Specifications
- Brand: Triconex
- Model: 3008 Main Processor
- Microprocessor: Motorola MPC860, 32-bit, 50 MHz
- Memory: 16 MB DRAM, 32 KB battery-backed SRAM, 6 MB Flash PROM
- Communication Rate: 25 Mbps, 32-bit CRC protected
- Bus Architecture: 32-bit DMA, fully isolated I/O and communication buses
- Environmental Tolerance: Designed for rigorous industrial safety environments
- Anti-Interference: High-integrity hardware majority-voting circuits shield against transient faults
Diagnostic and Maintenance Capabilities
- System Health: Extensive diagnostics monitor every module and channel constantly.
- Fault Handling: Hardware masks transient faults; persistent errors trigger immediate alerts.
- Hot-Replacement: Errant modules support live replacement without system shutdown.
- Status Indicators: Integrated LED panel displays PASS, FAULT, ACTIVE, MAINT1, MAINT2, and COM/IO status.
- Testing: Firmware performs automated verification of memory and static RAM.
Compatibility and Installation
- System Requirements: Compatible with Tricon v9.6+ architecture.
- Installation: Requires three units per main chassis for full redundancy.
- Time Synchronization: Supports multi-system synchronization via NCMs for unified SOE time-stamping.
- Shipping: Secure global delivery via FedEx, UPS, or DHL.
- Warranty: Includes a comprehensive 12-month quality guarantee.
Typical Application Scenarios
- Emergency Shutdown Systems (ESD)
- Burner Management Systems (BMS)
- High-availability industrial process control
- Critical safety instrumented systems
Frequently Asked Questions
- How many modules are required? You must install three 3008 modules per main chassis.
- Is the memory battery-backed? Only the 32 KB SRAM is battery-backed.
- Does it support hot-swapping? Yes, the system supports hot-replacement for failed modules.
