4200 Triconex Remote Extender Module | 12km Fiber-Optic I/O Link

Product Overview

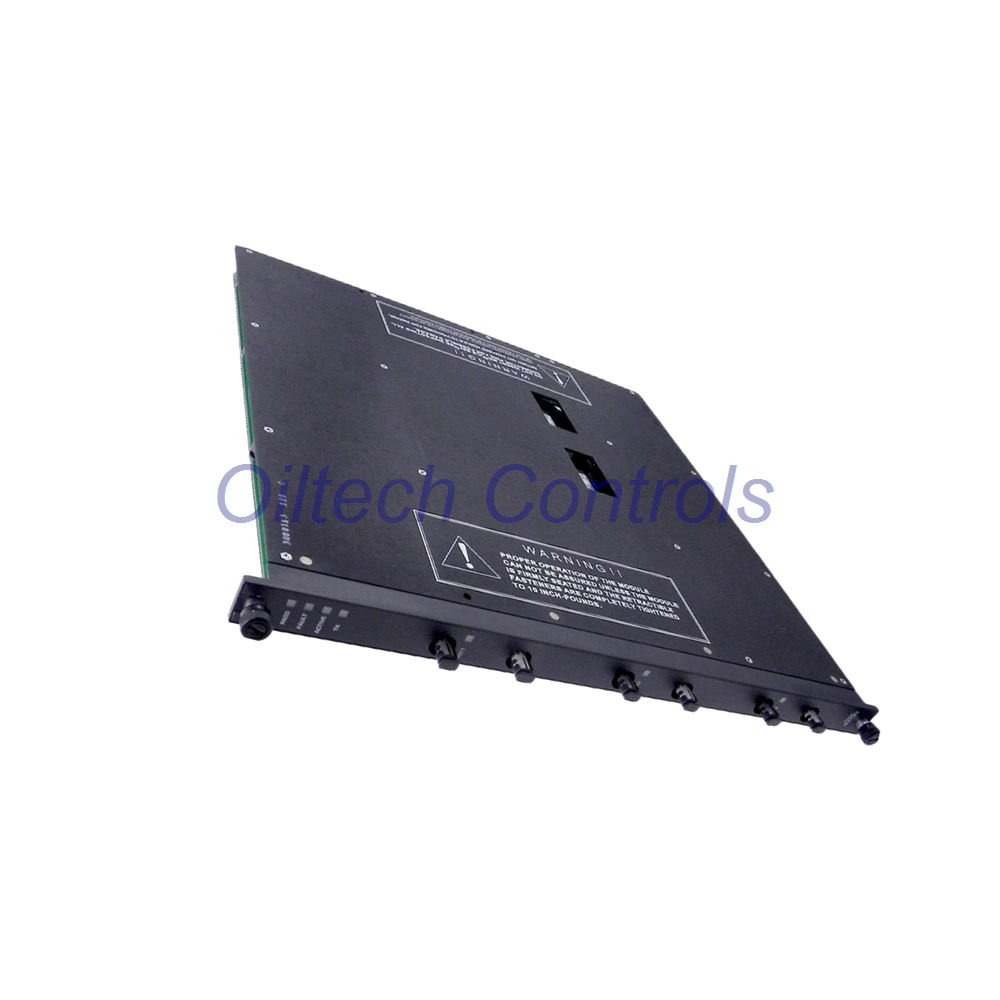

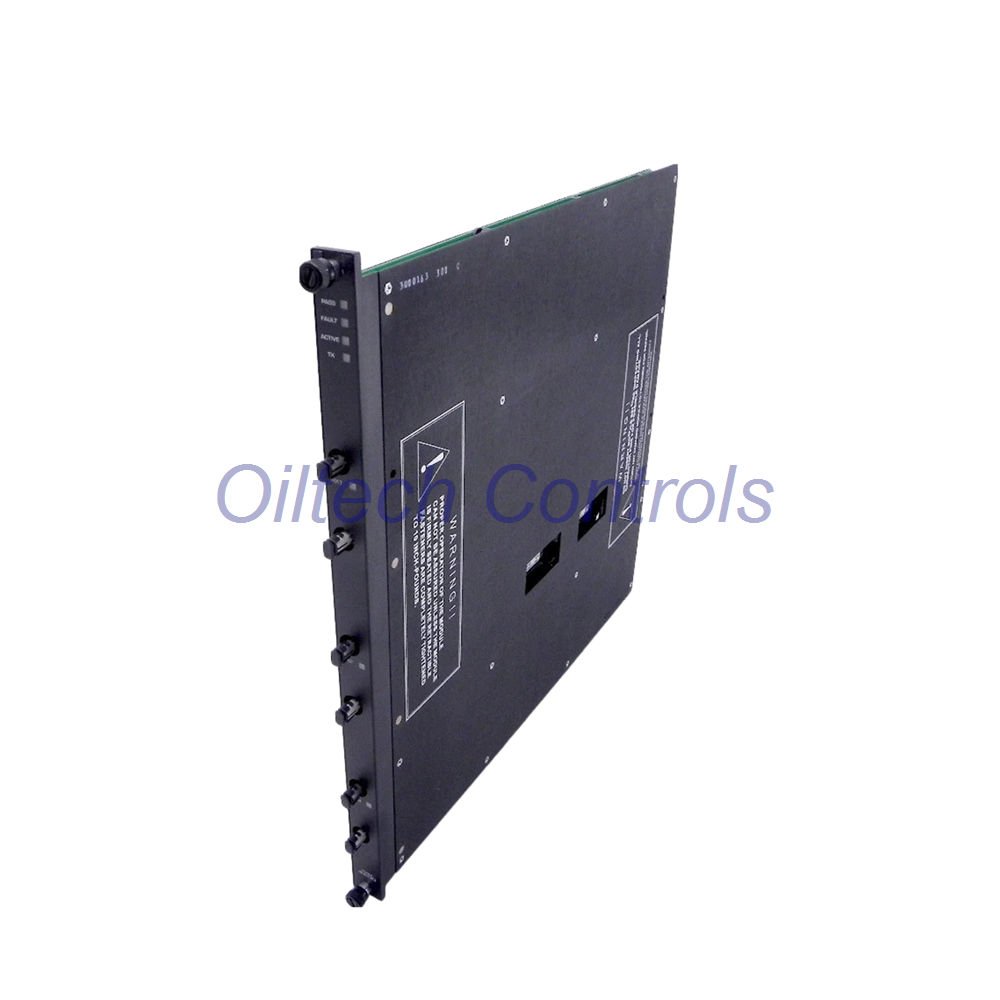

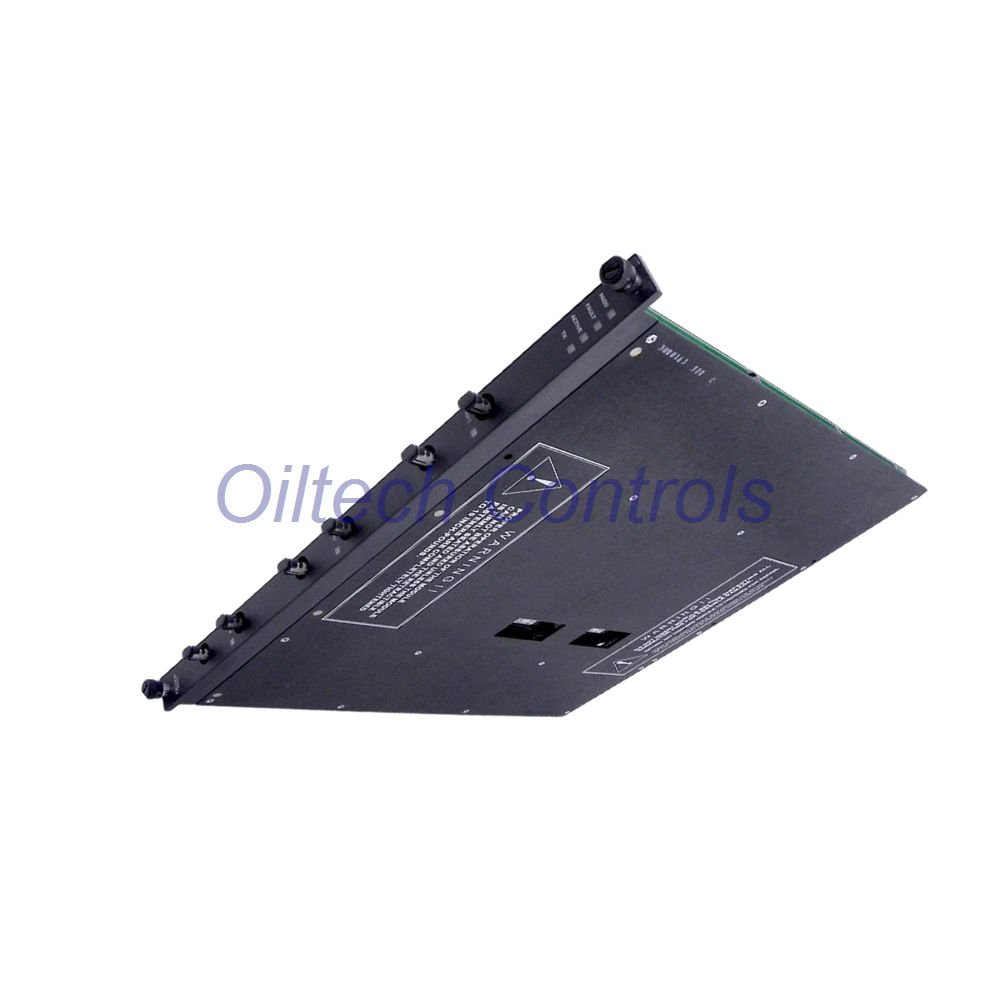

The Triconex 4200 Remote Extender Module (RXM) enables seamless communication between your main chassis and remote I/O locations. This module set extends your system reach up to 12 kilometers (7.5 miles). It utilizes fiber-optic technology to ensure reliable data transfer in demanding industrial environments. The 4200 RXM design includes three identical modules per set to act as repeaters. It provides essential ground loop isolation for system safety. This unit supports up to three remote sites from one primary chassis.

Key Technical Specifications

• Brand: Triconex
• Model: 4200 RXM
• Series: Tricon I/O Bus Extension
• Communication Rate: 375 kilobits per second
• Fiber-Optic Compatibility: Multi-mode fiber
• Maximum Distance: 12 kilometers (7.5 miles)
• Remote Capacity: Supports 3 remote sites
• Physical Connectors: 6 per remote site using ST connectors
• Noise Immunity: Superior resistance to EMI/RFI and electrostatic interference
• Diagnostic Indicators: Integrated LEDs for PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 status
• Operating Environment: Industrial grade for harsh site conditions
• Linearity & Resolution: Optimized for high-speed digital I/O bus consistency

Installation, Maintenance, and Compatibility

Installation: Connect the 4200 RXM using a point-to-point fiber-optic topology. Each remote site requires a pair of modules. You must wire six cables per remote location to maintain three channels of data.

Maintenance: The 4200 RXM features a modular design for quick swapping. Front-facing diagnostic LEDs allow engineers to troubleshoot status and connectivity instantly.

Compatibility: This module is fully compatible with the Tricon I/O bus architecture. It supports external optical modems for flexible network expansion.

Shipping, Warranty, and Support

• Shipping Options: We offer expedited global delivery via FedEx, UPS, and DHL.
• Warranty: All units include a comprehensive 12-month quality guarantee.
• Technical Inquiries: Contact our team at info@oiltechcontrols.com or via WhatsApp: +86 158 8020 0923.

Typical Applications and FAQ

Typical Applications: Distributed Control Systems (DCS) for oil and gas, long-distance signal transmission in power plants, and industrial automation requiring high ground loop isolation.

• Q: What is the maximum fiber length? A: The 4200 RXM supports up to 12 kilometers.
• Q: How many sites can one primary module support? A: It supports up to 3 remote locations.
• Q: Does the module protect against noise? A: Yes, fiber-optic design provides maximum immunity to interference.
