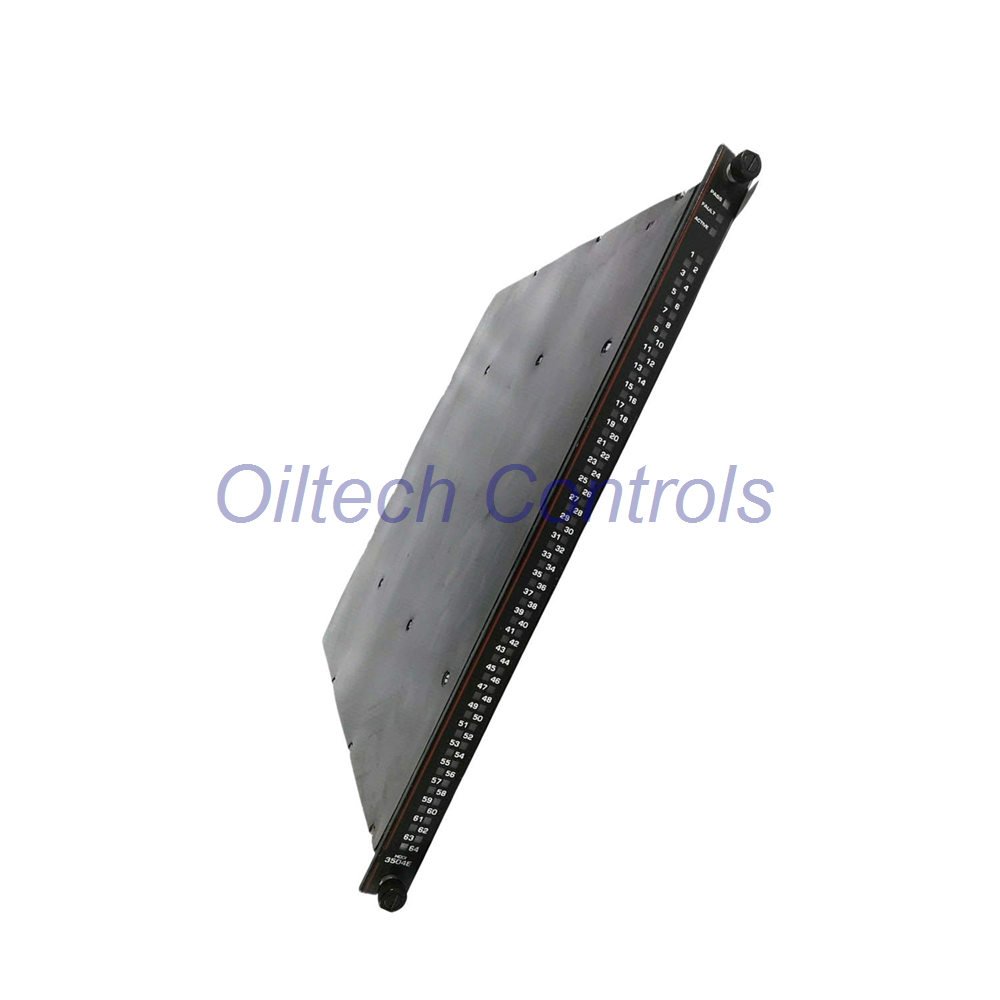

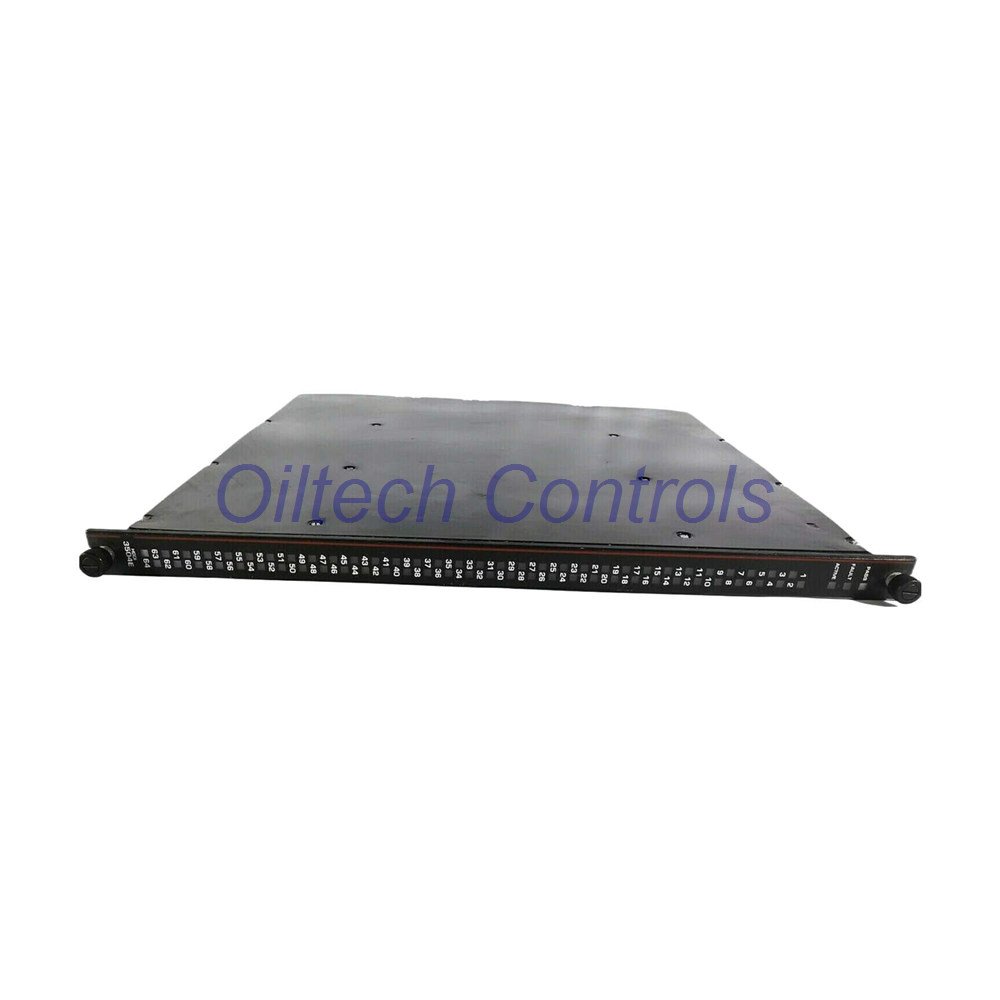

3504E Triconex High Density Digital Input Module
The 3504E from Triconex is a high-density TMR digital input module designed for safety-critical automation systems.
It supports 24VDC and 48VDC signal environments with fast response performance.
Its triple modular redundancy architecture improves fault tolerance and operational reliability.
The module suits industrial processes requiring high availability and stable diagnostics.
Core Hardware Profile
- Manufacturer: Triconex
- Model: 3504E
- Module Type: High Density Digital Input Module
- Architecture: TMR
- Input Points: 64 commoned channels
- Voltage Options: 24VDC / 48VDC
- DC Operating Range: 20–72VDC
- Maximum Voltage: 72VDC
- Color Code: Dark Red
Input Switching Characteristics
- 24VDC OFF to ON threshold: 15VDC typical
- 24VDC ON to OFF threshold: 8VDC typical
- 48VDC OFF to ON threshold: 27VDC typical
- 48VDC ON to OFF threshold: 14VDC typical
- Typical hysteresis: 4VDC / 7VDC
- Input transition delay: <10 ms
Protection and Diagnostics
- Continuous over-range protection up to 150VDC
- Integrated stuck ON and OFF testing
- Diagnostic glitch monitoring every 2–3 seconds
- Module indicators: Pass, Fault, Active
- One status LED per input channel
Signal and Interface Performance
- DC-coupled signal architecture
- Typical output voltage: 0VDC or 5VDC
- Typical output impedance: 100 kΩ
- Input impedance monitoring every 100 ms
- Supports stable field signal acquisition
Recommended Equipment Integration
- Emergency shutdown systems
- Turbine control platforms
- Process safety systems
- Distributed industrial controllers
- Critical plant monitoring infrastructure
Application Environments
- Oil and gas production facilities
- Petrochemical processing plants
- Power generation systems
- Refinery automation systems
- High-availability industrial plants
Oiltech Controls’s Insight
- The 3504E performs well in high-redundancy architectures.
- Its TMR structure minimizes false trip risks.
- Fast diagnostic routines improve maintenance planning.
- Engineers prefer it for safety instrumented systems.
- It supports reliable digital signal validation.
Shipping and Warranty
- Warranty: 12 months
- Dispatch Time: 24–48 hours
- Courier Services: FedEx, UPS, DHL
- Protective industrial packaging included
Technical Support Contact
- Email:
info@oiltechcontrols.com - WhatsApp:
+86 158 8020 0923
FAQ
- Why is TMR important in digital input systems?
TMR improves fault tolerance and voting reliability.
It reduces unexpected shutdown risks in critical systems.
- How should input voltage ranges be selected?
Match field device voltage with module configuration.
Incorrect voltage selection affects switching stability.
- What installation practice improves signal integrity?
Use shielded wiring and proper grounding methods.
Avoid routing signal cables near high-power lines.
- How do diagnostics support maintenance?
Built-in tests identify abnormal signal conditions early.
This reduces troubleshooting time during operation.
- Which systems commonly use the 3504E?
It integrates into safety PLC and shutdown systems.
It suits process-critical industrial applications.
