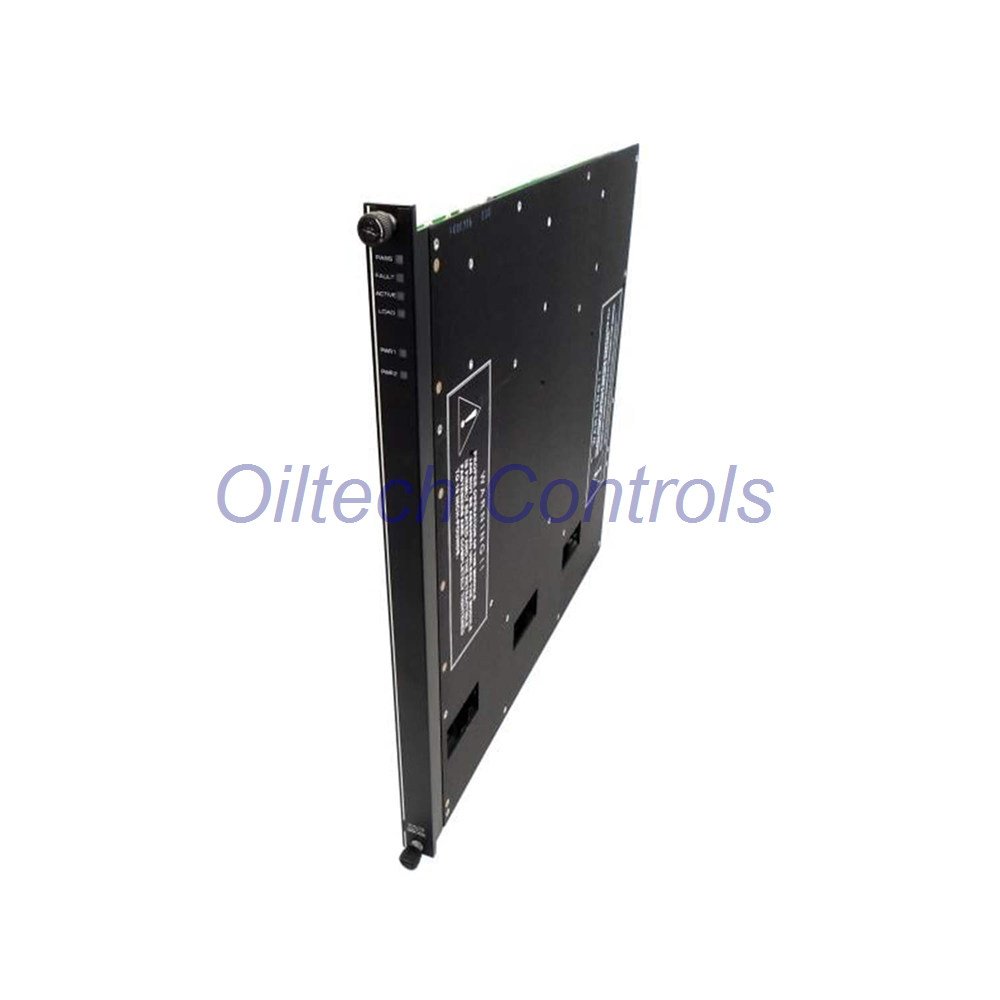

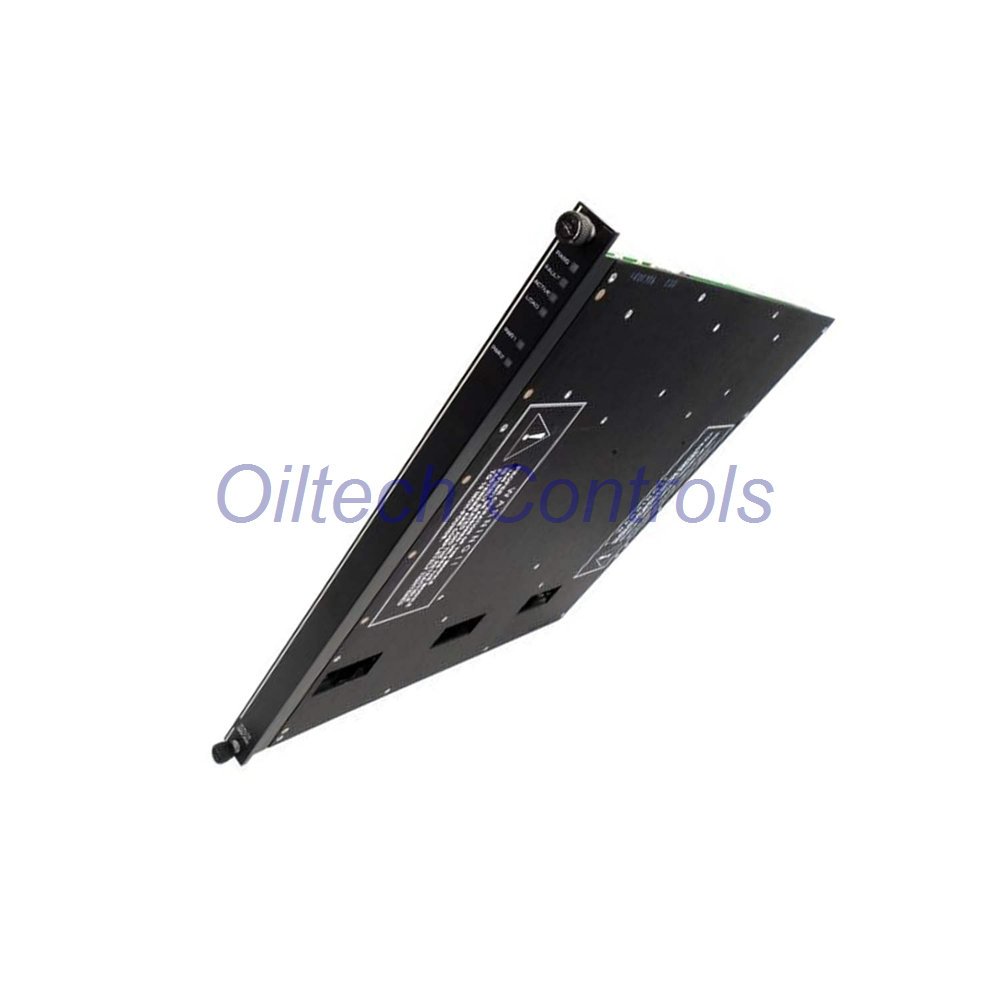

Control Integrity Platform – 3806E Triconex Analog Output Module
The 3806E is engineered for high-availability analog signal control in safety-critical environments.
It combines Triple Modular Redundancy architecture with continuous diagnostics for reliable process operation.
The module is optimized for turbomachinery and demanding industrial control applications.
Core Output Architecture
- Manufacturer: Triconex
- Module Type: Analog Output Module
- Architecture: TMR (Triple Modular Redundancy)
- Output Channels: 8 outputs total
- Signal Types: 4–20 mA and 20–320 mA
- Isolation: Commoned return, DC coupled
- Resolution: 12-bit analog processing
Performance & Electrical Characteristics
- Output accuracy below 0.25% of full scale
- Supports external loop voltage up to 42.5 VDC
- Nominal operating voltage 24 VDC
- Reverse voltage protection integrated
- Fast leg failure switching below 10 ms
- Optimized for stable analog loop performance
Load Capacity Specifications
- 4–20 mA outputs support up to 825 Ω load
- 20–320 mA outputs support up to 50 Ω load
- Suitable for industrial actuator and control loops
- Reliable operation under variable field conditions
Built-In Reliability Features
- Continuous self-diagnostic monitoring
- Independent current loopback verification
- Fault-tolerant channel selection system
- Hot-spare replacement capability
- Module-level LED diagnostics
- Open-loop detection functionality
Status Indicators
- PASS status indicator
- FAULT diagnostic indicator
- ACTIVE operational status
- LOAD monitoring indicator
- PWR1 and PWR2 power indicators
- Light green module identification color
Recommended Equipment & Applications
- Steam turbine control systems
- Gas compressor protection systems
- Critical process shutdown systems
- High-availability industrial automation
- Safety instrumented systems (SIS)
- Analog valve and actuator control loops
Oiltech Controls’s Insight
- The 3806E is highly effective for critical analog output applications
- TMR redundancy improves operational reliability in safety systems
- Ideal for turbomachinery requiring uninterrupted analog control
- Continuous diagnostics reduce unexpected downtime risks
- Recommended for high-demand process industries
Installation & Integration Guidance
- Requires compatible Triconex termination panel
- Verify external loop power before startup
- Use shielded wiring for signal stability
- Ensure proper chassis slot configuration
- Supports online maintenance replacement
Packaging & Logistics
- 1 × 3806E analog output module
- Industrial protective packaging
- 12-month warranty
- Shipping via
FedEx,
UPS,
DHL - Dispatch within 24–48 hours
Technical Support & Contact
- Email:
info@oiltechcontrols.com - WhatsApp:
+86 158 8020 0923 - Official Website:
https://www.oiltechcontrols.com/
FAQ – Engineering Selection & Field Practices
- Why is TMR architecture important in analog output systems?
- It maintains output reliability during single-channel failures.
- How to choose between standard and high-current outputs?
- Select based on actuator load and field device requirements.
- What causes analog loop instability?
- Poor grounding and incorrect loop power sizing are common causes.
- Why is loopback verification valuable?
- It continuously confirms signal accuracy during operation.
- What should engineers verify before installation?
- Check external loop voltage and compatible termination hardware.
