3625 Triconex Tricon TMR Supervised Digital Output Module 24VDC

3625 Triconex Digital Output Module Product Overview

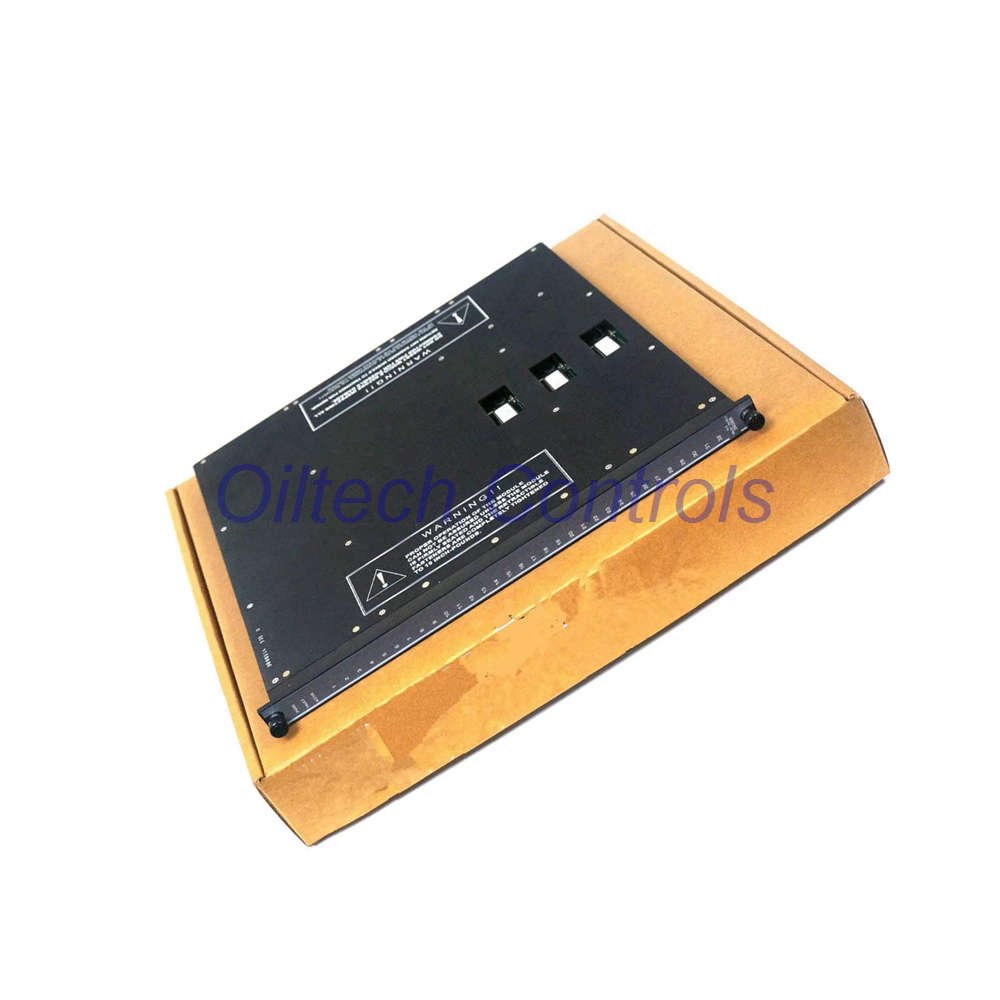

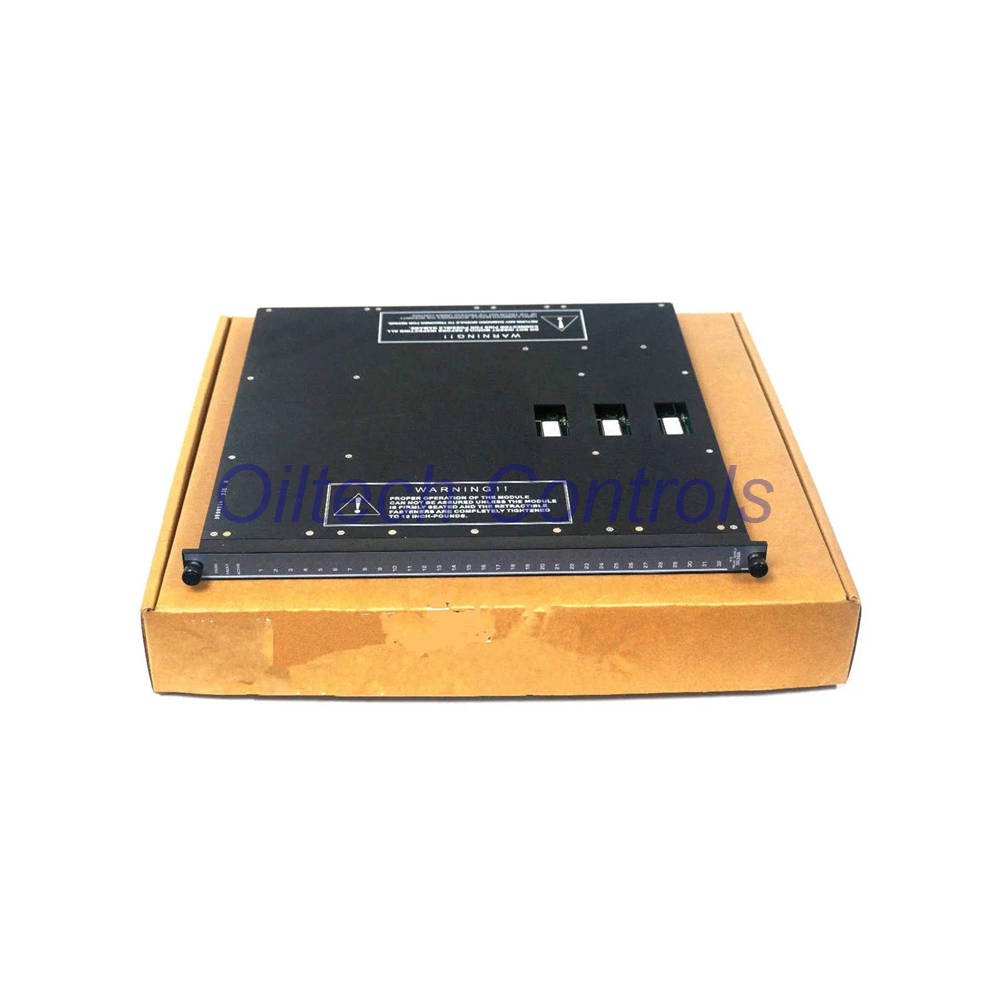

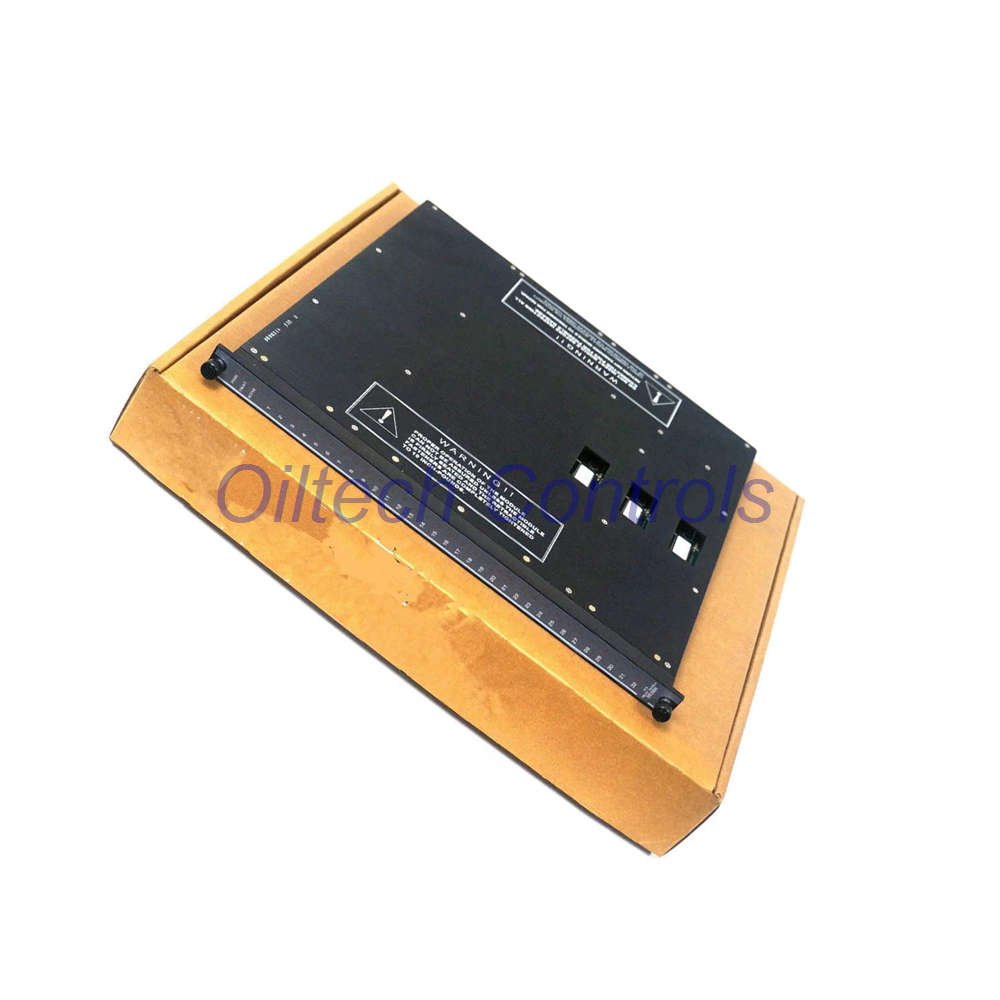

The 3625 module delivers high-reliability control for critical industrial automation programs. This Triple Modular Redundant (TMR) Supervised Digital Output (SDO) module ensures continuous operation for outputs remaining in a single state for extended periods. The 3625 Triconex module receives output signals from main processors across three distinct channels. A fully fault-tolerant quadruplicated output switch votes on these signals using advanced power transistors. This architecture delivers a single voted output signal to the field termination panel.

Integrated voltage and current loopback circuitry pairs with sophisticated online diagnostics. These systems constantly verify the operation of each output switch, field circuit, and load presence. This design provides complete fault coverage without affecting the output signal state. The 3625 Tricon series module supervises the field circuit to detect critical field faults instantly. It identifies loss of power, blown fuses, open loads, missing loads, and field shorts. Failure to detect field voltage or load presence immediately alerts operators via dedicated LED alarm indicators. Contact us at info@oiltechcontrols.com for immediate pricing and stock availability.

Technical Specifications

**Core Architecture and Electrical Ratings**

• Brand: Triconex
• Model: 3625
• Series: Tricon
• Module Type: Triple Modular Redundant (TMR) Supervised Digital Output
• Color Code: Dark Blue
• Output Density: 32 points, commoned
• Nominal Voltage: 24 VDC
• Operational Voltage Range: 16 to 32 VDC
• Maximum Peak Voltage: 36 VDC
• Continuous Current: 1.7 A maximum per point
• Surge Current: 7 A maximum for a 10 ms duration
• Minimum Required Load: 10 mA
• Maximum Load Leakage: 4 mA
• Typical Voltage Drop: Less than 2.8 VDC @ 1.7 A
• Power Module Load: Less than 13 watts
• Point Isolation: 1,500 VDC
• Protection Features: Built-in self-protecting circuitry eliminates the need for external field fuses
• Temperature Range: 0 to 60 degrees Celsius operating ambient temperature
• Environmental Tolerance: 5 to 95 percent relative humidity, non-condensing
• Antijamming Capacity: High electromagnetic interference immunity suitable for harsh industrial environments

**Diagnostic Capabilities and Status Indicators**

• On/Off State Monitoring: 1 dedicated LED status indicator for each individual point
• Module Status Indicators: Front-panel LEDs for PASS, FAULT, LOAD, and ACTIVE statuses
• Field Fault Detection: Automated triggers for loss of power, blown fuses, and shorted loads
• Power Alarm Trigger: Missing field voltage on any active output point illuminates the power alarm indicator
• Load Alarm Trigger: Absence of a valid electrical load energizes the dedicated load alarm indicator

**Installation, Compatibility, and Logistics**

• System Compatibility: Fully compatible with standard Triconex TMR controller backplanes
• Interface Requirement: Requires a separate external termination panel (ETP) with a dedicated cable interface
• Maintenance Features: Supports online hot-spare modules for seamless replacement without process interruption
• Certification Standards: Certified for use in safety-instrumented systems up to SIL 3 compliance levels
• Product Condition: Factory-tested components ensuring optimal field performance and structural integrity
• Packaging List: Includes one 3625 digital output module, protective anti-static packaging, and verification certificate
• Warranty Term: Provided with a standard 12-month warranty covering all manufacturing defects
• Shipping Methods: Worldwide express delivery available via FedEx, UPS, and DHL carriers

**Typical Application Scenarios**

• Emergency Shutdown Systems: Managing critical isolation valves and trip initiators in oil and gas refineries
• Fire and Gas Systems: Controlling regional visual alarms, audible horns, and fire suppression release valves
• Burner Management Systems: Direct control of fuel safety shutoff valves in high-temperature industrial boilers
• Turbine Control: Operating critical trip solenoids and safety interlocks for large scale power generation turbines

**Frequently Asked Questions (FAQ)**

• Do I need to install external fuses on the field termination panel? No, the 3625 features an integrated self-protecting design that eliminates external fusing.
• What happens if a field load falls below 10 mA? The module requires a minimum 10 mA load to prevent false load alarm triggers.
• Does the module support hot-swapping during active system operation? Yes, the 3625 supports hot-spare modules for uninterrupted safety system maintenance.
• How does the module communicate field-side power failures? It automatically energizes the front-panel power alarm indicator upon losing field voltage.
• Can I use this module for non-supervised output configurations? Yes, the architecture supports both supervised and non-supervised digital output setups.

**Technical Documentation Download Guide**

• Access comprehensive installation procedures and wiring diagrams by downloading the official technical manual.
• Review exact terminal assignments for the external termination panel to ensure correct system integration.
• Verify compliance certificates and environmental test reports before completing your system design layout.
• Get immediate support for product documentation by messaging our team on WhatsApp at +86 158 8020 0923 now.
